Engineered Industrial Warehouse Pallet Shelving & Structural Systems
Factory-direct high-capacity cold-formed steel selective racks, wire mesh decks, automated sorting machines, and prefabricated structural warehouse frames engineered to international seismic and static load thresholds.
Prefabricated Steel Structure Warehouse Factory Modular Frame Building
Heavy-duty industrial factory shed customized with welded H-beams, C/Z purlins, and sandwich thermal panels for turn-key logistics expansion.
800x600mm Corflute Stackable Picking Bin Warehouse Shelf Storage Box
High-density polypropylene corrugated shelf containers designed for rapid SKU access, automotive spare part sorting, and e-commerce picking channels.
Steel Storage Rack Heavy Duty Pallet Racking Q235B Steel Selective Racking
Universal 100% selective beam configuration manufactured with continuous roll-formed omega uprights and dual-welded interlocking box beams.
Fireproof Prefab Metal Frame Industrial Storage Workshop Steel Warehouse
Turnkey high-bay warehouse structures featuring mineral wool insulation panels, portal framing, and anti-corrosive primer coating for chemical storage.

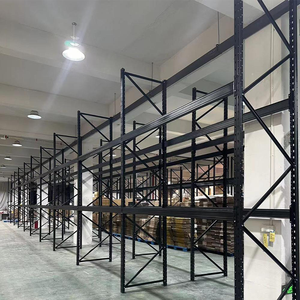

Wire Mesh Deck Pallet Racking Corrosion Resistant 5-Layer Storage Shelf
Drop-in welded wire mesh decks with heavy-gauge support channels preventing undersized pallet collapse and allowing 100% fire sprinkler flue clearance.
Heavy Duty Narrow Aisle Selective Pallet Racking High-Density System
Maximizes volumetric storage density with ultra-narrow aisles down to 1.6m, integrating induction wire guide rails for articulated high-reach turret trucks.
Huiting High Precision 8-Axis Automatic CNC Wire Bending Machine
Servo-driven industrial CNC wire forming apparatus for high-speed manufacturing of pallet rack safety pins, wire dividers, and hanging warehouse hardware.
Single Deep Selective Rack Factory Metal Heavy Duty Industrial Racking
Standard industrial workhorse pallet shelving system featuring cold-drawn Q235B upright frames, safety drop pins, and heavy anchor base footplates.
CE Certified Pallet Shelving: Metallurgical Integrity and European Standard Mandates
Within the scope of modern supply chain engineering, procurement of static steel storage racking transcends mere dimensional configuration. Specifying pallet shelving demands rigid adherence to the European Construction Products Regulation (CPR 305/2011/EU) and execution standard EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design). Under CE Certificate No. 2435-CPR-8605159, Guangzhou Heda Shelves Co., Ltd. subjects every cold-formed profile to finite element stress verification, verifying that both Serviceability Limit States (SLS) and Ultimate Limit States (ULS) consistently exceed baseline European and Australasian mechanical safety margins.
Unlike light commercial shelving, heavy-duty industrial pallet racking supports massive concentrated point loads ranging from 1,000 kg to beyond 4,500 kg per beam level. The critical performance differentiator lies in the chemical composition and yield tensile ratio of the coil stock. We utilize mill-certified Q235B and Q355B structural carbon steel (equivalent to European S235JR and S355JR under EN 10025). The steel exhibits a minimum yield strength ($f_y$) of 235 MPa to 355 MPa, paired with an elongation rate exceeding 21%, ensuring that under extreme seismic loading or accidental lift-truck impact, the steel structure undergoes predictable plastic deformation rather than catastrophic brittle shearing.
EN 15512 Interlocking Beam-End Connector Flaw Testing
Technical Engineering Specification: Racking Steel Class vs. Operational Duty
| Structural Subsystem | Material Grade / Metallurgy | Cross-Section Geometry | Yield Threshold ($f_y$) | Compliance Standards | Deflection Criteria (SLS) |
|---|---|---|---|---|---|
| Heavy Upright Columns | Q355B Cold-Formed Steel | Omega ($\Omega$) Profile with 13-Bend Rigidity | $\ge 355\text{ N/mm}^2$ | EN 15512 / AS 4084 | $H/350$ Axial Drift Under Dynamic Load |
| Load Box Beams | Q235B Continuous Seam Steel | Dual C-Profile Interlocked & Mig-Welded | $\ge 235\text{ N/mm}^2$ | CE No. 2435-CPR | $L/200$ Maximum Elastic Beam Sag |
| Wire Mesh Decking | High-Tensile Drawn Carbon Wire | 50x100mm Grid with 2.0mm Rib Channels | $\ge 450\text{ N/mm}^2$ | NFPA 13 / ANSI MH26.2 | $L/150$ Direct Uniform Pallet Bearing |
| Seismic Frame Bracing | Q235B Structural C-Channel | Triangulated K-Truss Bolted Configuration | $\ge 235\text{ N/mm}^2$ | NZS 1170.5 / Eurocode 8 | Full Ductility Factor ($\mu \ge 3.0$) |
| Column Footplates | Heavy Gauge Hot-Rolled Plate | 6.0mm–12.0mm Laser-Cut Anchor Pads | $\ge 235\text{ N/mm}^2$ | ETA Anchor Certified | M12/M16 Dual Wedge Anchor Resistance |
Precision Beam Locking Clip & Safety Dowel Assembly
Beam-to-Column Connection Mechanics and Rotational Stiffness
The primary point of vulnerability in any selective warehouse pallet shelving rack is not the central span of the horizontal beam, but the semi-rigid beam-end connector weldment. Under EN 15512:2020 protocols, racking frames are calculated as semi-rigid unbraced portal frames in the down-aisle direction. Rotational stiffness ($C_i$) of the connector claw governs the sway deflection and global buckling stability of the entire rack array.
HEDA Shelves utilizes a 4-claw to 5-claw interlocking connector stamped from 3.5mm thick hardened steel, robotic-welded to the box beam profile via gas-shielded automated arc welding. Each node is secured with spring-loaded carbon-steel safety locking pins capable of resisting an upward dislodgement shear force greater than 5.0 kN per European safety codes. This mechanical interlock prevents unintended disengagement caused by erratic forklift operator lifting cycles, preserving lateral structural stiffness across 12-meter high-bay operations.
Future Procurement & Technological Trends in Warehouse Pallet Shelving (2025–2030)
How macro-economic shifts, automation convergence, localized seismic mandates, and EU carbon regulations are reshaping industrial steel racking specifications for international supply chain directors.
1. Convergence with High-Speed Autonomous Shuttles & AMRs
Manual counterbalanced forklift aisles (3.5m–4.0m) are steadily yielding to automated narrow-aisle systems. Global procurement is shifting decisively toward Radio Shuttle Pallet Racking and 4-Way AMR-integrated racking matrices. Racking tolerances must contract from ISO Class 400 down to millimeter-exact ISO Class 100/200 under EN 15620 to support unmanned guidance sensors without chassis friction.
2. Decarbonization Mandates & EU CBAM Compliance
With the European Union Carbon Border Adjustment Mechanism (CBAM) fully transitioning into operational tariffs, enterprise buyers require certified low-carbon embedded emissions reporting for cold-formed steel. Sourcing from manufacturers utilizing EAF (Electric Arc Furnace) and low-emission blast furnace lines with verifiable mill certificates is no longer optional for European import audits.
3. Dynamic Non-Linear Seismic Engineering (AS 4084 / NZS 1170.5)
Geological realities across the Pacific Rim, New Zealand, Southern Europe, and Latin America necessitate non-linear time-history structural calculations. Procurement directors now reject generic load tables, mandating site-specific ground acceleration ($S_a$) design packs, heavy ductility base anchors, and enlarged frame bracing to eliminate catastrophic progressive collapse risks.
4. BIM & Digital Twin Native Integration
Modern mega-DCs require complete IFC and Autodesk Revit 3D BIM asset models before steel rolling begins. Structural racking layouts must interface directly with fire-sprinkler hydraulics, HVAC air distribution velocity models, and automated warehouse management system (WMS) slotting logic, mitigating field rework on multi-million dollar capital expenditure projects.
5. Extreme Environment Finishes (Cold-Chain & Coastal C5)
Rapid expansion in cold-chain logistics (-30°C frozen storage) and coastal port distribution hubs demands specialized metallurgical metallurgy. Traditional powder coatings crack under cryogenic thermal contraction. Procurement standards now dictate 80μm low-temperature thermosetting epoxy-polyester formulas or ISO 1461 Hot-Dip Galvanization to guarantee 20+ year zero-rust operational longevity.
6. Hybrid Modular Rack-Clad Building Structures
To optimize construction timelines and slash land utilization costs, industrial projects increasingly adopt Rack-Clad Building Architecture (Rack-Supported Buildings). The pallet shelving columns themselves serve as the primary structural pillars supporting the exterior wall cladding and roof trusses, eliminating the expense of independent building structural steel.
From Raw Prime Coil to Export Stillage: The 10-Step Quality Pipeline
Operating across a modern 30,000 square meter fabrication facility with 300+ engineering and production staff, Guangzhou Heda Shelves enforces end-to-end quality control across every rolling and welding cycle.
Step 01
Raw Material Mill Testing
Step 02
High-Speed CNC Slitting
Step 03
Continuous Auto Punching
Step 04
Precision Roll Forming
Step 05
Calibrated Cold Bending
Step 06
Automated Edge Polishing
Step 07
Robotic Connector Welding
Step 08
9-Stage Acid Pickling
Step 09
Electrostatic Powder Curing
Step 10
Stillaged Export Packing
Factory-Direct Authority: Audited Quality Systems
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has developed into an internationally respected Tier-1 structural racking manufacturer. We maintain full internal ownership of stamping, cold roll-forming, robotic welding, and automated surface treatment lines. For international general contractors, 3PL giants, and industrial shelving distributors, our transparent quality certifications mitigate technical non-compliance liabilities.
-
CE Factory Production Control (FPC): Certified under European Regulation (EU) No 305/2011 with Certificate No. 2435-CPR-8605159 for steel structural racking components.
-
ISO 9001:2015 Quality Management: Accredited under Certificate No. 18624Q00169R0M covering design, static calculation, manufacturing, and international export.
-
Australasian Biosecurity & DAFF/MPI Customs Clearance: Export shipments use ISPM-15 heat-treated dunnage or 100% steel stillages, avoiding port fumigation delays in Sydney, Melbourne, Brisbane, and Auckland.
CE Structural
2435-CPR-8605159
ISO 9001:2015
18624Q00169R0M
RoHS Directive
Non-Toxic Surface
SGS Load Test
Capacity Verified
Real-World Case Studies: Engineered Pallet Shelving Implementations
Explore how HEDA Shelves customized heavy selective storage, multi-tier mezzanines, and cold-store arrays for demanding logistics environments around the globe.
Chemical Storage Pallet Racking with Sump Containment
Engineered for an international agricultural chemical distributor requiring customized 3,500kg level ratings, galvanized secondary containment sumps, and barrel cradles compliant with environmental fluid containment codes.
Multi-Tier Rack-Supported Mezzanine Platform
Doubled accessible square footage for an e-commerce fulfillment depot without building expansion. Combined heavy pallet storage on the lower floor with a high-density, multi-bin carton picking mezzanine on the second level.
Heavy Duty Cantilever & Selective Auto Parts Hub
Designed for an OEM spare parts distribution network. Featured integrated long-span cantilever arms for exhaust assemblies alongside heavy selective single-deep racks for palletized engine blocks and transmissions.
Frequently Asked Questions for Warehouse Pallet Shelving Buyers
Detailed engineering, standard compliance, logistics, and documentation inquiries answered directly by our senior structural engineering team.
What is the fundamental difference between EN 15512:2020 and AS 4084:2023 compliance for pallet shelving? +
How do cold-formed Q235B and Q355B steels perform in sub-zero cold storage (-25°C to -30°C)? +
What critical data points are required to engineer an optimized warehouse racking layout? +
1. Architectural Slab Drawing: Floor length, width, column grid locations, dock door clearances, and concrete slab load bearing capacity ($kN/m^2$ and point-load punch capacity).
2. Clear Eaves Height: Lowest point of roof structure, overhead crane clearances, or fire sprinkler drop pipes.
3. Pallet Geometry: Pallet dimension (e.g., Euro 800x1200mm, Industrial 1000x1200mm, Australian Standard 1165x1165mm) including pallet overhang and maximum cargo height.
4. Weight Matrix: Average and maximum gross weight per pallet position.
5. Material Handling Equipment (MHE): Make and model of forklifts, mast collapsed/extended height, turning radius, and minimum operating aisle width (AST).
6. Seismic Ground Acceleration: Local site coordinate data to determine seismic coefficient ($S_a / C_h(T)$).
How does HEDA Shelves ensure biosecurity compliance and prevent damage during maritime container shipping? +
What is the standard production lead time and documentation provided for international orders? +
• Official CE Declaration of Performance (DoP) under EN 15512:2020.
• Raw Material Mill Test Certificates (MTC) proving heat number, chemical composition, and mechanical yield strength ($f_y$).
• 3D Assembly CAD Shop Drawings with step-by-step numbered piece marks for fast site erection.
• Certified Pallet Racking Load Capacity Warning Plaques specifying maximum permissible compartment and bay loads.
• Preferential Certificate of Origin (Form E, ChAFTA, RCEP) to support duty-free or reduced tariff customs clearance.
Request an Engineered 3D CAD Warehouse Layout & Factory-Direct Quote
Collaborate with our structural racking engineers to optimize pallet density, verify seismic compliance, and secure factory-direct pricing for your logistics facility. Free layout designs delivered within 24 hours.
