Q: What is the weight capacity range for industrial shelving systems?

Our industrial shelving accommodates loads ranging from 200 kg up to 1,000 kg per shelf level. Light-to-medium configurations handle 200–500 kg per level, while heavy-duty Longspan shelving supports 500–1,000 kg uniformly distributed load (UDL) per beam pair.

Product Configurations

Engineered Warehouse Shelving Solutions

Guangzhou Heda Shelves Co., Ltd. manufactures heavy, medium, and high-density dynamic shelving tailored to hand-loaded goods, bin storage, and order-fulfillment operations.

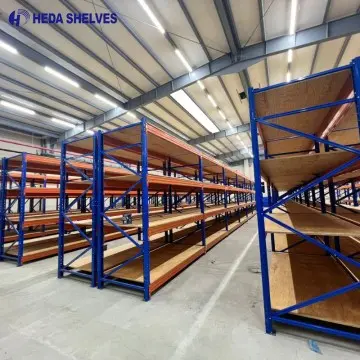

Heavy Manual Storage Heavy Duty Longspan Shelving Unit

Longspan Shelving

Constructed for wide, bulky, or irregular inventory. Built from certified Q235B high-strength steel with modular step-beams that hold heavy timber shelves, wire mesh decks, or ribbed steel panels.

Load Capacity500 – 1,000 kg / layer

Clear Spans1,200 – 2,700 mm wide

Upright Depths400 – 1,200 mm custom

Vertical Pitch50 mm clip-in adjustable

Boltless clip-in design allows rapid adjustments without tooling
Available with electrostatic epoxy-polyester coating or hot-dip galvanizing
Tested to ISO 9001 and international safety load standards

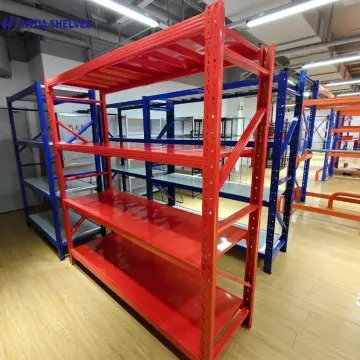

Flexible Picking Light and Medium Duty Steel Storage Shelving

Light & Medium Duty Shelving

Versatile boltless shelving tailored for auto parts stockrooms, retail backrooms, e-commerce sortation, and light industrial storage. Smooth welded finish protects cartons and hands.

Load Capacity200 – 800 kg / level

Standard Heights1,500 – 3,000 mm

Welding TechArgon arc clean finish

Decking TypesSolid steel or melamine

No-tool quick assembly saves significant site labor during installation
Precision column hole pitch permits vertical shelf adjustment in seconds
Ideal for bin divider systems, multi-bay runs, and small parts picking

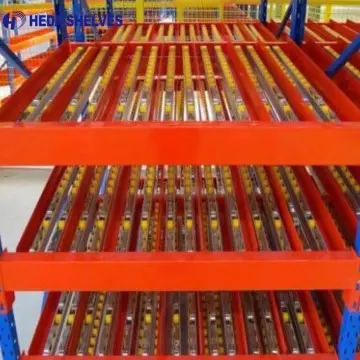

Dynamic FIFO Order Picking Carton Flow Racking Dynamic System

Carton Flow Racking

Gravity-driven roller track shelving engineered for continuous high-speed order fulfillment. Cartons are loaded at the rear replenishment face and roll smoothly to the front pick face.

Rotation ModelStrict FIFO (First-In, First-Out)

Roller TracksHigh-impact polymer / aluminum

CapacityUp to 1,000 kg / bed layer

Incline Angle2° to 5° adjustable gradient

Completely separates loading aisles from picking personnel for safety
Reduces picker travel time by up to 50% in high-volume distribution
Custom lane guide dividers configured for varied carton dimensions

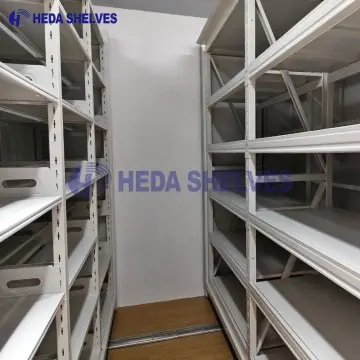

High-Density Compact Storage Mobile Compactus Shelving Cabinet System

Mobile Shelving System

Shelving units mounted on precision ground rail bases. By eliminating fixed operating aisles, mobile shelving recovers up to 85% of inactive warehouse floor area.

Drive OptionsMechanical hand-crank or electric

Floor RailsSurface-mounted or recessed

SecurityCentral lock & anti-tip clamps

ModularityExpandable multi-bay carriages

Single moveable aisle concept doubles storage capacity in the same footprint
Low-friction gear transmission permits effortless manual movement
Commonly utilized for archival records, tooling, pharmaceuticals, and parts

Engineering Consultation

End-to-End Engineering & Project Support

Guangzhou Heda Shelves Co., Ltd. supports warehouse operators, distributors, and EPC contractors from raw site dimensions to verified installation sign-off.

01

Fast CAD Layouts

Upload your warehouse architectural dimensions, column spacing, and inventory profiles. Our structural engineering department produces full-scale 2D CAD layouts within 72 hours, optimizing aisle clearance and pick face density.

02

3D Spatial Modeling

We generate 3D perspective models of your storage facility, detailing vertical beam levels, flue space compliance, and picking aisles. Clear visual validation ensures operational compatibility before manufacturing begins.

03

Complete Storage Integration

From industrial steel shelving to radio shuttle racking and multi-tier structural mezzanine floors, Guangzhou Heda Shelves Co., Ltd. provides unified warehouse storage integration manufactured in one facility.

Manufacturing Authority

Why Global Importers Partner with Guangzhou Heda Shelves Co., Ltd.

Factory-direct engineering integrity, strict certified material quality, and dependable export packaging tailored for international shipping standards.

25+ Years Experience

Established in 2001, Guangzhou Heda Shelves Co., Ltd. specializes in warehouse racking and industrial shelving systems, supplying over 120 countries and regions worldwide.

30,000 Tons Monthly

Our 30,000 m² automated production facility operates continuous profile roll forming lines, robotic laser cutting, and automatic electrostatic powder-coating lines to meet fast delivery schedules.

CE & ISO Quality Control

Every batch of Q235B cold-rolled steel undergoes raw material tensile verification, Argon-arc weld checking, and salt spray corrosion tests to ensure compliance with European and Australian safety codes.

10,000+ Case References

Delivered proven storage systems for high-bay 3PL logistics, cold chain facilities, automotive component warehouses, and manufacturing supply hubs worldwide.

Real Installations

Featured Industrial Shelving Projects

Verified warehouse installations executed for global distributors and enterprise logistics facilities.

Medium Duty Shelving Warehouse Installation

Commercial Warehousing

Medium-Duty Shelving for General Storage

Engineered multi-bay runs of boltless steel shelving for carton distribution, providing 400 kg per-level capacity and easy height reconfiguration.

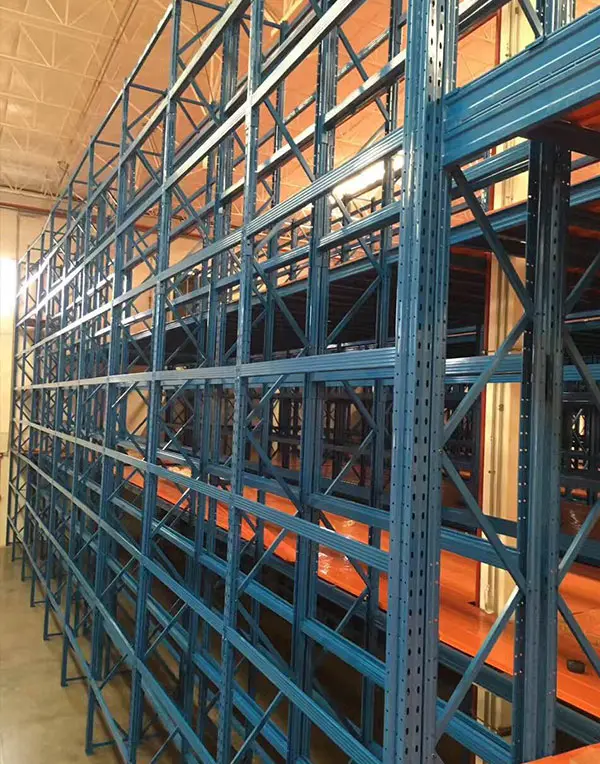

Shelving Supported Mezzanine System Installation

High-Bay Pick Area

Shelving-Supported Multi-Tier Mezzanine

Multi-level installation utilizing industrial shelving upright frames to support high-tensile steel walkways, doubling usable picking area.

Reinforced Shelving for Automotive Parts

Automotive Supply

Multi-Level Shelving for Spare Parts Hub

Integrated longspan and medium shelving configuration customized with parts dividers, drop-in bins, and reinforced steel shelf panels.

Procurement FAQ

Technical Questions on Industrial Shelving Systems

Key technical and logistics inquiries from procurement teams, operations managers, and warehouse engineers prior to placement of purchase orders.

What is the weight capacity range for industrial shelving systems?

Our industrial shelving systems accommodate loads ranging from 200 kg up to 1,000 kg per shelf level. Light-to-medium configurations handle 200–500 kg per level, while heavy-duty Longspan shelving supports 500–1,000 kg uniformly distributed load (UDL) per beam pair.

Are HEDA industrial shelving systems boltless?

Yes, our Longspan and medium-duty shelving units feature modular boltless clip-in beam systems, allowing for quick, tool-free vertical height adjustments at 50 mm increments.

What steel grade and surface finishes are used?

We manufacture all structural components from certified Q235B high-tensile cold-rolled steel. Finishes include electrostatic thermoset powder coating for dry indoor environments or hot-dip galvanizing for coastal, chilled, or humid applications.

Can industrial shelving be converted into a multi-tier mezzanine?

Yes. Guangzhou Heda Shelves Co., Ltd. designs shelving-supported mezzanines using heavy-duty upright frames as the structural support for second- and third-tier steel walkways and picking floors.

How are export shipments packed for Oceania and overseas transport?

All beams and uprights are bundled with protective steel banding and edge protectors, packed onto steel stillages or ISPM-15 heat-treated certified timber frames. This complies with DAFF and MPI biosecurity clearance protocols for Australia and New Zealand ports.
