Manufactured by Guangzhou Heda Shelves Co., Ltd., our modular pallet racks accommodate 1165 × 1165 mm standard Australian pallets, Euro pallets, and customized industrial loads with structural calculations verified for seismic and high-bay stability.

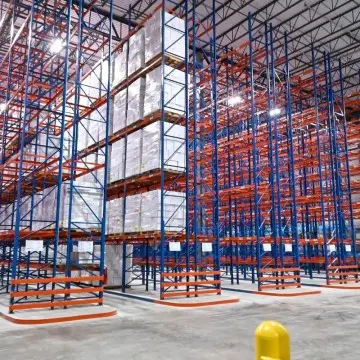

Aisle Width 1.5–1.8m A precision-engineered selective storage solution built with strict structural deflections for high-bay reach up to 18 metres. Operated via wire-guided or rail-guided turret trucks, it unlocks up to 40% additional pallet positions within the same footprint while retaining 100% individual pallet selectivity.

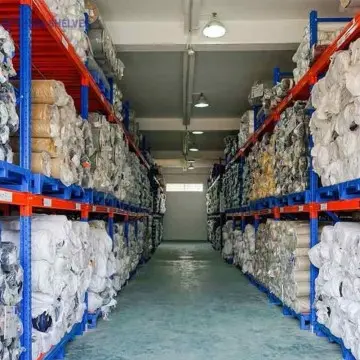

Specialized Handling Engineered cradle and saddle-beam storage systems specifically constructed for carpet coils, paper rolls, fabric spools, and cylindrical materials. Prevents product rolling, deformation, and contact crushing while enabling overhead crane or fork handling.
100% Selective The global benchmark for multi-SKU operations, third-party logistics (3PL), and rapid FMCG order fulfillment. Designed with 75mm and 50mm beam adjustability, interlocking 3 to 4-prong connectors, and safety lock pins to support Australian standard 1165 × 1165 mm pallets.
Maximum Density Eliminates operating aisles to convert warehouse floor area into continuous deep-lane storage. Ideal for cold store freezers and single-SKU batch storage operating on Last-In First-Out (LIFO) or First-In First-Out (FIFO) loading protocols with reinforced guide rails.
FIFO Dynamic Flow High-throughput live storage lanes fitted with heavy-duty roller tracks, magnetic speed controllers, and end-stop separators. Pallets glide automatically from charge to picking face under gravity, ensuring strict FIFO stock rotation for perishable foods and pharmaceuticals.
Semi-Automated Intelligent deep-lane pallet management where an independent motorized radio shuttle moves pallets inside storage lanes. Forklift trucks operate exclusively at the lane face, substantially minimizing frame impacts, operational cycle times, and operator fatigue.
LIFO Cart Flow Nested rolling carts positioned on inclined steel structural rails allow 2 to 6 pallets to be stored per lane. When a pallet is picked, succeeding pallets smoothly roll forward to the aisle face, providing dense multi-SKU storage with fewer aisle corridors.

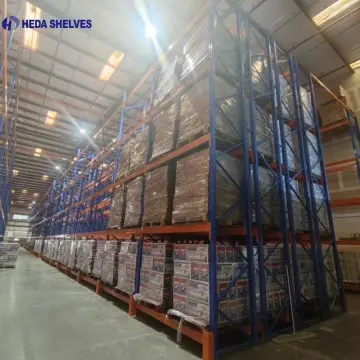

Double Density Configured by positioning two selective racks back-to-back, accessed via deep-reach pantograph forklifts. Reduces overall aisle counts by up to 50% compared to standard selective layouts while balancing substantial volumetric gains with lower capital costs.
Fabricated using certified Q235B and Q355B structural steel, processed through automated roll-forming lines, CNC punching, and automated electrostatic powder coating.
| Technical Parameter | Standard Specification | Custom / Heavy-Duty Options |
|---|---|---|
| Steel Grade | Q235B Cold-Rolled Carbon Steel | High-Yield Q355B / Equivalent to AS/NZS Standards |
| Upright Column Profiles | 80×60mm, 90×70mm, 100×70mm (1.5mm–2.0mm) | 120×95mm, 140×95mm (2.5mm–3.5mm Heavy Section) |
| Box / Step Beam Depths | 80mm to 140mm Dual-C Interlocking Profile | 160mm, 180mm Heavy Box Beams for Long Clear Spans |
| Standard Pallet Accommodations | 1165 × 1165 mm (Australian Standard Pallet) | 1200 × 1000 mm, 1200 × 800 mm, Drum/Coil Dimensions |
| Surface Treatment | Epoxy Polyester Electrostatic Powder Coating (60–80μm) | Hot-Dip Galvanized (>65μm) for Salt Spray/Outdoor Yards |
| Factory Quality Controls | ISO 9001:2015, CE Certificate No. 2435-CPR-8605159 | Full Mill Certificates, Destructive Load Testing Reports |
| Logistics Packaging | Steel frame stillages, protected strapping | ISPM-15 compliant timber, DAFF & MPI clearance ready |
Guangzhou Heda Shelves Co., Ltd. provides comprehensive engineering planning before fabrication begins. Our 300-strong production and design team ensures compliant, space-optimized layouts.
Provide your building dimensions, clear roof heights, column grids, and pallet sizes. Our structural team models 2D architectural drawings showing aisle turning radii and flue spacing within 3 business days.
Visualize operational workflows, forklift access lanes, fire sprinkler clearances, and pick faces before ordering. We deliver high-resolution 3D renders for management and board approval.
From initial structural racking to mezzanine floors, safety column guards, wire mesh decks, and radio shuttles, we provide unified designs ready for local engineering certification sign-off.
More than 10,000 completed warehouse racking systems delivered to logistics, industrial, and cold storage operators worldwide.
Key technical and logistical information for procurement directors, warehouse operations managers, and installation contractors.
We manufacture Selective Pallet Racking, Double Deep, Drive-In, Pallet Flow (Gravity FIFO), Radio Shuttle, Push Back, and Very Narrow Aisle (VNA) systems. We also customize specialized cantilever and roll-handling racking configured for specific project footprints.
Our structural team utilizes calculation methods consistent with AS 4084 and FEM 10.2.02. We provide detailed section modulus, yield data, frame buckling assessments, and rated capacity tables, enabling your local registered structural engineer or certifier to verify and sign off on site compliance with complete confidence.
Yes. We regularly supply 838mm or 850mm deep upright frames and 2591mm or 2743mm clear span beam levels specifically engineered to house two standard 1165 × 1165 mm Australian pallets per bay, maintaining correct flue space and overhang dimensions.
Standard selective racking configurations support from 1,000 kg to 5,000 kg per beam level uniformly distributed load (UDL). Total bay capacity can exceed 20,000 kg depending on upright gauge, column profile, and unsupported vertical beam pitch.
We pack upright frames, beams, and components onto customized heavy-duty steel stillages or strictly ISPM-15 heat-treated, fumigated, and officially stamped timber dunnage to avoid quarantine re-treatment delays upon arrival at Australian and New Zealand container terminals.
