Precision-Engineered Industrial Storage & Slotted Racking Systems
From modular multi-tier slotted angle steel configurations to high-bay automated warehouse pallet systems, our Guangzhou production facility produces custom load-bearing racking lines built with certified cold-rolled structural steel.
Slotted Angle Rack Mechanics: Structural Metallurgy & Cold-Roll Profiling
Industrial slotted angle racks (commonly termed slotted angle iron shelving or universal perforated angle steel) represent the baseline of scalable modular warehousing. Below is an engineering appraisal of steel grades, gauge specifications, and load dynamics.
Cold-Rolled Steel Metallurgy
Manufactured from high-strength Q235B structural carbon steel (equivalent to ASTM A36 / SS400). Strip coils undergo continuous multi-stage cold roll forming to achieve tight dimensional tolerance (±0.05 mm) and high tensile yield strength exceeding 235 MPa without micro-fissuring along the 90-degree angle apex.
- Standard gauges: 1.5mm, 1.8mm, 2.0mm, 2.5mm, 3.0mm
- Cold-rolled yield strength: ≥ 235 N/mm²
- Elongation at break: ≥ 26%
CNC Progressive Punch Geometry
Universal perforated slot layouts feature alternating oval, circular, and teardrop holes positioned on a 50mm or 75mm center pitch. This allows both M8 high-tensile bolted fastening (with triangular corner corner-plates for moment resistance) or drop-in keyhole rivet engagement for rapid assembly.
- Standard punch pitch: 50mm / 75mm increment
- Fastening: Grade 8.8 galvanized M8 hex bolts
- Corner gussets: 1.0mm–1.5mm triangular stiffeners
Surface Passivation & Powder Cure
Complete 7-stage surface pre-treatment including alkaline degreasing, acid pickling, rinse pass, and zinc phosphating. Finished through automatic electrostatic spray booths applying 60–80 micron high-adhesion polyester epoxy powder cured at 200°C for superior impact, scratch, and corrosion resistance.
- Coating thickness: 60 to 90 μm
- Salt spray resistance: ASTM B117 > 500 hours
- Pencil hardness: ≥ 2H scratch rating
| Profile Dimension (L x W) | Wall Thickness (mm) | Standard Lengths | Uniformly Distributed Load (UDL / Level) | Recommended Applications | Assembly Format |
|---|---|---|---|---|---|
| 38 x 38 mm (1.5" x 1.5") | 1.5 mm – 1.8 mm | 1800, 2400, 3000 mm | 80 – 120 kg (176 – 264 lbs) | Hardware retail, office archives, light electronic picking | Bolted / Rivet |
| 40 x 40 mm (1.57" x 1.57") | 1.8 mm – 2.0 mm | 2000, 2500, 3000 mm | 120 – 180 kg (264 – 396 lbs) | Automotive spare bins, chemical stores, maintenance cribs | Corner Braced |
| 50 x 50 mm (2.0" x 2.0") | 2.0 mm – 2.5 mm | 2400, 3000, 3600 mm | 200 – 350 kg (440 – 770 lbs) | Heavy manufacturing parts, industrial bulk storage, tier racks | Heavy Bolted |
| 60 x 40 mm (Unequal Flange) | 2.0 mm – 3.0 mm | 3000, 4000, 6000 mm | 300 – 500 kg (660 – 1100 lbs) | Multi-tier mezzanine uprights, catwalk catwalk support frames | Structural Frame |
Future Sourcing & Procurement Trends in Slotted Angle Storage (2025–2030)
Global procurement directors are shifting away from commoditized transactional purchases. Sourcing decisions now hinge on structural adaptability, modular cold-chain compatibility, automated carton picking readiness, and optimized sea freight volume nesting.
Optimized Container Nesting Geometry
Skyrocketing maritime container rates have driven our engineering team to design nesting profiles where L-shaped slotted angle posts pack inside one another with near-zero dead space. This increases steel weight density per 40HQ container by up to 34%, drastically slashing landed freight cost per unit for importers across Australia, Europe, and the Americas.
Convergence of Slotted Angle & Boltless Rivet Systems
Traditional slotted angle racks require labor-intensive bolt tightening. The industry is rapidly adopting hybrid profiles that combine slotted corner gusset bolt holes with teardrop and butterfly slots. This allows customers to execute high-speed toolless drop-in shelf reconfigurations while maintaining structural moment-frame rigidity where required.
Pre-Galvanized & High-Durability Thermoset Polymers
With the explosion of refrigerated warehousing, agri-business hubs, and coastal logistic parks, demand for hot-dip galvanized (HDG) and sendzimir pre-galvanized slotted angle steel has risen over 45%. These finishes prevent zinc flaking and rust under temperature swings from -30°C in blast freezers to humid tropical container freight.
Engineered Tolerances for Automated Handling
Even manual slotted angle racks are increasingly integrated with Autonomous Mobile Robots (AMRs) and automated guided picking shuttles. Racking uprights must maintain straightness tolerances within 1/1000 of overall span length, ensuring optical and LiDAR guidance systems do not encounter beam bowing or column deflection under dynamic pick cycles.
Recyclable Structural Steel & Eco-Powder Lines
Tier-1 international supply chains now demand strict compliance with RoHS, REACH, and verifiable corporate carbon footprints. Guangzhou Heda Shelves leverages closed-loop powder recovery systems capturing 98% of overspray, eliminates heavy-metal chromate rinses during pre-treatment, and sources EAF (Electric Arc Furnace) billets with certified recycled content.
Digital Layout Twins & Parametric 3D CAD
Procurement no longer begins with a paper bill of materials. Engineering buyers demand exact IFC/Revit BIM models to import directly into architectural building systems. Heda provides free 24-hour CAD spatial layouts, validating fire suppression sprinkler clearances, forklift turning radiuses, and egress compliance before steel cutting begins.
Why Enterprise Importers Partner with Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. is a recognized leader in heavy-duty industrial shelving, pallet racking, and structural mezzanines. Our facility combines automated CNC punching lines with strict quality management systems.
Production Scale
Operating an expansive 30,000 square meter factory equipped with 8 continuous cold-roll forming lines, automated robotic welding, and high-capacity dual-chain powder coating lines producing 30,000 tons monthly.
Engineering Depth
Over 300 dedicated technicians, CAD spatial designers, and structural engineers who generate customized 3D layout renderings and stress-strain calculations compliant with AS 4084, FEM, and ANSI standards within 24 hours.
Rigorous Compliance
Complete international accreditation including CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M), and full RoHS compliant non-toxic finish verification.
Export Logistical Excellence
Serving Australia, New Zealand, Europe, Southeast Asia, and the Americas. Custom ISPM-15 heat-treated packaging, nested steel stillages, and container loading supervision to guarantee zero transit warping or damage.
Frequently Asked Questions (FAQ) for Global Racking Buyers
Clear answers to critical engineering, minimum order quantities, surface finishes, load-testing protocols, and customs clearance questions when importing industrial racking from China.
How do you guarantee load ratings and prevent structural buckling under full capacity?
Every batch of cold-rolled steel undergoes raw material tensile yield verification. Our slotted angle profiles are designed with safety factor margins of 1.65 to 1.95 in accordance with FEM 10.2.02 and AS 4084 standards. We provide certified structural load tables showing uniform distributed load (UDL) ratings per level alongside Euler column buckling limit analysis based on your specified beam pitch.
Can slotted angle racks be customized for seismic zones like New Zealand or the US West Coast?
Yes. For seismic environments, our engineering team works from your local site seismic ground acceleration parameters (e.g., NZS 1170.5 or ASCE 7). We increase footplate gauge thickness, integrate reinforced cross-bracing channels, utilize high-strength floor anchor bolts (Hilti / Trubolt format), and increase corner gusset thickness to resist lateral dynamic seismic forces.
What is the minimum order quantity (MOQ) and production lead time for custom colors/sizes?
Our standard MOQ for wholesale production is typically one 20GP or 40HQ full container load (FCL), which can combine varied slotted angle lengths, shelving panels, and accessories. Custom RAL colors (e.g., blue RAL 5015, orange RAL 2004, grey RAL 7035) require no extra surcharge for full container volumes. Average factory lead time is 15 to 25 business days from CAD layout approval.
How do you handle biosecurity and timber packaging compliance (DAFF / MPI / USDA)?
All export shipments destined for biosecurity-stringent regions (such as Australia, New Zealand, and North America) are packaged using ISPM-15 certified heat-treated pallets stamped with official IPPC markings, or nested onto reusable heavy-gauge steel stillages. Complete packing declarations, commercial invoices, and preferential certificates of origin (such as ChAFTA) are provided.

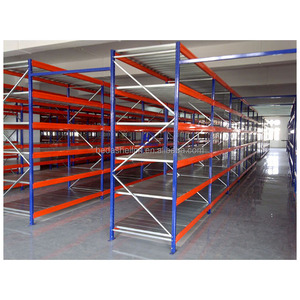

What is the difference between bolted slotted angle racks and boltless longspan systems?
Bolted slotted angle racks offer total freedom of vertical adjustment (every 50mm) and can be field-cut to custom dimensions for irregular spaces using basic tools. Boltless longspan racks feature factory-welded end connectors that slot directly into upright teardrop or diamond perforations without bolts, delivering significantly faster site assembly and higher tier capacities (up to 800 kg/tier).
Do you supply private-label OEM / ODM manufacturing for overseas rack distributors?
Yes. A substantial share of our 30,000-ton monthly capacity is dedicated to private-label manufacturing for major industrial distributors in Oceania, Europe, and the Americas. We can stamp your brand logo directly onto uprights, provide customized multi-lingual assembly instruction manuals, and package components into barcode-labeled retail or commercial cartons ready for direct resale.
