Heavy-Duty Pallet Racks & Structural Mezzanine Platforms
Fabricated from certified SS400/Q235B & Q355B high-tensile cold-rolled steel coils. Automated continuous punching, laser profiling, and multi-stage anti-corrosion pre-treatments guarantee structural stability up to 5,000 kg per level.
High-Density
Narrow Aisle VNA Heavy Duty Racking System
Engineered for high-throughput fulfillment centers requiring up to 15m vertical reach with 1,600mm aisle clearance using wire-guided turret trucks.
- Steel Grade: Q235B / Q355B Cold Rolled
- Bay Load Capacity: Up to 4,500 kg / level
- Finish: Electrostatic Powder Coated
100% Selectivity
Selective Pallet Racking Warehouse System
The industrial benchmark for multi-SKU inventory accessibility. Seamless beam level adjustability via 75mm/50mm pitch connector clips with dual safety lock pins.
- Pallet Accessibility: 100% Direct Picking
- Beam Section: 80×50 to 160×50 Box Beam
- Standards: AS 4084 / CE EN 15512
Cold Chain -40°C
Anti-Rust Plastic-Steel Cold Room Shelving
Formulated specifically for refrigerated chambers and deep-freeze logistics. Structural core wrapped in non-toxic polymer prevents oxidation down to -40°C.
- Thermal Range: -40°C to +80°C
- Hygiene Standard: HACCP / Food-Grade Washable
- Deck Type: Vented Removable Inserts
Bulk Logistics

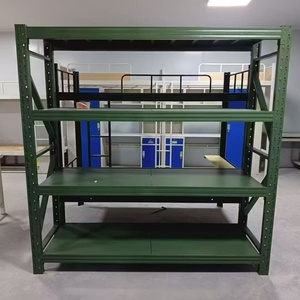

Heavy Duty Industrial Bulk Storage Shelves
High-strength roll-formed step beams engineered for dense carton loading, heavy industrial components, manufacturing buffers, and manual picking setups.
- Shelf Decking: Galvanized Steel / Wire Deck
- Capacity / Level: 800 kg – 1,800 kg UDL
- Upright Pitch: 50mm Incremental Slots
Mezzanine Platform
Multi-Level Mezzanine Floor Storage Platform
Doubles or triples warehouse cubic floor efficiency. Modular structural I-beam or rack-supported sub-structures fitted with staircases, handrails, and pallet drop gates.
- Floor Loading: 300 kg – 1,200 kg / m²
- Deck Profiles: Perforated Steel / B-Deck + Plywood
- Clear Height: Configured to Building Eaves
Boltless Modular
5-Layer Industrial Boltless Steel Storage Rack
CE-certified rapid-deployment shelving without hardware. Proprietary cold-formed interlocking connectors allow tool-free assembly and rapid reconfiguration.
- Assembly Time: Under 10 Mins / Bay
- Panel Thickness: 0.8mm – 1.5mm Precision Steel
- Corrosion Test: ASTM B117 Salt Spray > 500 hrs
Occupational Safety
Heavy-Duty HDPE/Nylon Pallet Safety Netting
High-tenacity knotted polyamide and virgin HDPE barrier netting preventing falling pallet cartons along main personnel thoroughfares and picking aisles.
- Impact Rating: Dynamic Resistance > 1,500J
- UV & Flame Rating: UV Stabilized / FR Treated
- Mounting: Aircraft Cable & Turnbuckle Rig
FIFO Dynamic
High-Density Gravity Pallet Flow Rack System
Strict First-In First-Out (FIFO) dynamic storage utilizing calibrated steel roller beds and centrifugal speed brake controllers for controlled gravity pallet transit.
- Track Capacity: 2,000 kg / Pallet Position
- Braking System: Centrifugal Speed Dampeners
- Lane Depth: 2 to 20 Pallets Deep
Why Tier-1 3PLs and Industrial EPCs Partner Directly With Our Factory
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. controls over 30,000 square meters of high-precision heavy-duty steel rack rolling, robotized welding, and automatic powder-coating workshops. Certified under ISO 9001:2015 and CE EN 15512.
Prime Raw Steel Quality & Mill Traceability
We source prime hot and cold rolled coils exclusively from tier-1 steelmakers like Baosteel and Shougang. Every production heat is verified via mill test certificates (MTC) to guarantee minimum yield strengths ($R_{eH} \ge 235 \text{ MPa}$ for Q235B, $R_{eH} \ge 355 \text{ MPa}$ for Q355B).
- Continuous ultrasonic flaw detection along coil edges
- Carbon equivalent composition controls weld integrity
- Tensile, impact, and elongation verification per heat batch
12 Automated Roll-Forming Lines
Our dedicated roll-forming mills use 18 to 24 cold-rolling passes to shape continuous upright omega columns without residual mechanical stresses. Precision punching at 50mm or 75mm intervals achieves dimensional tolerances within ±0.5mm over 12-meter lengths.
- Closed-loop laser gauging ensures consistent profile depth
- Automated beam connector welding via Fanuc robotics
- Zero-twist profiling ensures strict column verticality
Multi-Stage Surface Conversion & Coating
Steel durability is determined by pre-treatment chemistry. Our 8-stage automated pre-treatment bath line executes ultrasonic degreasing, pickling, iron phosphate conversion, and double demineralized water rinses before electrostatic polyester powder application.
- Swiss Gema automated multi-gun reciprocal booths
- Dry film thickness strictly calibrated to 60–90 μm
- Cross-hatch adhesion tested to ISO 2409 Class 0
Engineering Decision Matrix: Selecting the Optimum Platform Architecture
A side-by-side engineering evaluation of primary industrial storage systems across footprint efficiency, capital expenditure per pallet position, structural deflection limits, and operational throughput.
| Storage System Type | Volumetric Space Utilization | SKU Selectivity Ratio | Standard Safe Working Load (UDL) | Aisle Clearance Requirement | Structural Deflection Limit | Relative CapEx / Position |
|---|---|---|---|---|---|---|
| Standard Selective Racking | 40% – 45% (Baseline) | 100% Immediate | 1,000 – 4,000 kg / Beam Pair | 3,000mm – 3,500mm (Counterbalance) | $L / 200$ (Span/200) | Low / Economy Baseline |
| Very Narrow Aisle (VNA) | 65% – 70% (High Density) | 100% Immediate | 1,200 – 3,500 kg / Beam Pair | 1,600mm – 1,800mm (Turret Truck) | $L / 250$ (Tight Tolerance) | Moderate to Medium-High |
| Multi-Tier Mezzanine Platform | 180% – 250% (Footprint Multiplied) | Variable by Sub-Grid | 300 – 1,200 kg / m² Floor Area | Manual Cart / Hand Pallet Accessible | $L / 300$ for Floor Joists | Medium (High ROI vs Building) |
| Drive-In / Drive-Through Rack | 70% – 75% (Aisle-Free) | Low (LIFO / Block Batch) | 1,000 – 1,500 kg / Pallet Spot | Forklift Drives Inside Racks | $L / 180$ Cantilever Brackets | Moderate |
| Dynamic Gravity Pallet Flow | 80% – 85% (Continuous Lane) | High per Lane (Strict FIFO) | 500 – 2,000 kg / Roller Position | Separated Loading & Picking Aisles | $L / 250$ Track Inclines | High (Specialized Rollers) |
| Radio Shuttle Automation Racking | 85% – 90% (Deep Lane Max) | Configurable FIFO / LIFO | 1,000 – 2,500 kg / Station | Transfer Aisle Only (No Drive-In) | $L / 250$ Rail Stiffeners | High (Automated Carriers) |
Structural Deflection Compliance Note:
All structural calculations provided by our engineering office conform directly to AS 4084:2023, EN 15512:2020, and RMI ANSI MH16.1 specifications. Beam vertical deflection under total working load is rigorously capped at $L/200$ for standard pallet racking and $L/300$ for mezzanine platform joists, guaranteeing that dynamic deflection does not damage building slab anchoring or dislodge palletized inventory.
Future Procurement Trends in Industrial Storage Platforms
Global supply chain directors and warehouse developers are migrating away from fragmented middleman distribution toward engineering-direct procurement models that slash capital expenditures by 30% while maintaining compliance integrity.
Total Cost of Ownership (TCO) vs. Ex-Factory Price
Procuring warehouse racking based solely on metric-ton steel cost is an obsolete practice. Advanced procurement models evaluate container cubing density, packaging damage rates, on-site assembly labor overhead, and life-cycle reconfigurability.
By utilizing our factory's 3D container packing algorithms, upright frames and beams are nested on custom heavy-duty steel stillages, eliminating ISPM-15 quarantine delays and reducing the required 40ft HQ container count by up to 18% per project.
Supply Chain Resiliency via Direct Factory Hybridization
Major distribution centers are bypassing regional brand licensees to contract directly with primary Chinese production plants while hiring certified domestic structural engineers for local site verification and sign-off.
We supply comprehensive structural section data packs, mechanical properties, and verified finite element analysis (FEA) models, allowing local consulting engineers to rapidly stamp structural documentation for municipal building permits.
Embodied Carbon Accounting & ESG Procurement
International infrastructure developers must now report Scope 3 supply chain carbon emissions. Chinese steel mills have modernized using closed-loop electric arc furnace (EAF) recycling and scrap steel integration.
Our production plant features continuous heat recovery on curing ovens, non-toxic TGIC-free polyester powder chemistries, and RoHS-certified non-heavy-metal surface passivation, satisfying strict global corporate ESG audits.
Technological Developments Shaping Industrial Warehouse Racking
The warehouse racking platform has transitioned from static passive steel framing into an intelligent structural node interfacing seamlessly with robotics, high-speed automated material handling, and seismic monitoring sensors.
High-Precision Automation & ASRS Compatibility
Autonomous Mobile Robots (AMRs), Automated Storage and Retrieval Systems (ASRS), and AGV pallet lifters require dimensional tolerances that far exceed standard manual forklift rack guidelines. Beam deflection and rail deflection must not exceed 1.5mm under operational loads.
Our factory incorporates laser-calibrated CNC bending tables and robotic alignment jigs, maintaining beam length tolerances within ±0.8mm to prevent robotic sensor misreads and shuttle rail jamming in high-density automated warehouses.
Seismic Ductility & Baseplate Engineering
Warehouse structures erected in seismic hazard zones (such as New Zealand, California, Japan, and the Mediterranean basin) demand ductile structural response to lateral ground acceleration forces without brittle beam connector shearing.
We manufacture enlarged seismic anchor baseplates (up to 20mm thickness), heavy-duty diagonal truss frame bracing, and custom moment-resisting 4-hook beam connectors tested for dynamic seismic energy dissipation according to NZS 1170.5 and FEMA 460.
IoT Structural Health & Impact Telemetry
Forklift impact damage to upright columns is the primary cause of industrial racking collapses worldwide. The next generation of warehouse racking platforms is adopting integrated telemetry.
Our platform designs include pre-engineered mounting brackets for triaxial wireless accelerometers and strain gauges, enabling plant safety officers to receive real-time mobile alerts whenever an impact exceeds critical structural safety thresholds.
Frequently Asked Questions on Direct Factory Racking Procurement
Essential technical, legal, and operational guidance for procurement managers, structural consultants, and warehouse operations directors importing industrial racking systems from China.
How does your factory ensure compliance with Australian AS 4084 and European EN 15512 standards?
Our structural engineering team designs racking systems referencing the limit state design principles defined in AS 4084:2023 (Steel Storage Racking) and EN 15512:2020. We supply certified physical coupon test reports, section modulus ($Z$), moments of inertia ($I$), and beam-to-column connector moment rotation curves ($M$-$\theta$). This technical dossier enables your registered local professional engineer to verify the installation and issue structural compliance certificates effortlessly.
Can you engineer mezzanine platforms and pallet racking for high-risk New Zealand seismic zones?
Yes. For New Zealand projects, our engineering design integrates site-specific seismic hazard parameters derived from NZS 1170.5 and BRANZ recommendations. We calculate peak ground acceleration (PGA), structural ductility factor ($k_\mu$), and dynamic story drift. To resist lateral seismic shock waves, we integrate heavy-gauge vertical upright profiles (up to 2.5mm and 3.0mm thickness), upgraded floor baseplates, high-grade M16/M20 chemical floor anchors, and reinforced spine/row spacing braces.
What is the metallurgical difference between Q235B and Q355B steel in structural rack manufacturing?
Q235B possesses a guaranteed minimum yield strength of $235 \text{ N/mm}^2$ with excellent ductility and cold-forming properties, making it the cost-effective standard for standard selective beams and light-to-medium upright columns. Q355B (equivalent to ASTM A572 Grade 50 and S355JR) provides a minimum yield of $355 \text{ N/mm}^2$—providing 51% higher tensile capacity. We use Q355B for high-load mezzanine main support beams, heavy cantilever arms, and extra-tall upright frames where buckling safety is critical.
How are international biosecurity and timber packaging regulations (e.g., DAFF and MPI) managed?
To eliminate biosecurity delays and fumigation quarantine surcharges at ports in Australia, New Zealand, and the Americas, our factory packs heavy components primarily on customized, reusable heavy-duty steel stillages and cradles. When timber dunnage or pallets are necessary, we use exclusively ISPM-15 certified heat-treated timber with official IPPC stamps visible. Every export container includes stamped packing lists, phytosanitary declarations, and commercial documentation.
What specific engineering parameters are required to generate a custom 3D CAD layout?
To produce a complimentary 3D and CAD layout within 24 hours, our engineering department requires: (1) An architectural warehouse floor plan indicating column grids, doors, and dock locations; (2) Clear underside building height below roof rafters, sprinklers, or lighting; (3) Pallet dimensions (width × depth × height) including product overhang; (4) Maximum gross weight per pallet; (5) Material handling equipment type, turning radius, and maximum lift height; (6) Operating environment temperature range.
How do low cold-room temperatures (-25°C to -40°C) affect structural steel racking?
Sub-zero freezer environments cause conventional carbon steel to undergo a ductile-to-brittle transition, significantly reducing Charpy V-notch impact toughness and making components vulnerable to brittle fracture under sudden forklift impacts. For deep-freeze facilities, we employ cold-temperature steel alloys and specially formulated epoxy-polyester powder coats that resist micro-cracking and delamination under high humidity condensation cycles.
What is the standard manufacturing lead time and ocean transit duration from South China?
Standard factory production lead time for orders between 1 to 5 forty-foot high-cube (40ft HQ) containers is 15 to 22 business days. Large custom projects exceeding 500 metric tons typically ship within 30 to 40 days. Direct ocean transit from Guangzhou / Nansha / Shenzhen ports takes approximately 12–18 days to Australia/New Zealand, 20–28 days to the US West Coast, and 28–35 days to main European hub ports.
Can overseas customers perform third-party factory quality audits prior to balance payment?
Absolutely. We regularly facilitate independent quality control inspections conducted by accredited agencies such as SGS, Bureau Veritas, TV, and customer-appointed audit teams. Inspectors are granted complete access to our rolling workshops, welding stations, powder coating lines, and dimensional verification jigs to inspect raw coil MTCs, weld penetration, coating thickness, and pre-loading assembly tests.
Request a Precision 3D Warehouse Racking Layout & Factory Quote
Connect directly with our senior logistics structural engineering team. Supply your building parameters or tender drawings, and receive an optimized CAD layout, detailed bill of materials (BOM), static calculation overview, and factory-direct pricing within 24 hours.
