Featured Warehouse Storage & Heavy-Duty Pallet Racking Units
Explore our factory-engineered storage hardware designed for maximum cubic volume utilization, robust structural integrity, and deep compatibility with high-throughput pallet shuttle operations.
800 lbs/Tier
Commercial Storage Shelves 800lbs Heavy Duty 5 Tiers Chrome Steel Metal Wire Shelving Unit Shelf Rack
- Material: High-Grade Carbon Steel Wire
- Finish: Anti-Corrosive Chrome Plating
- Assembly: Tool-Free Slip-Sleeve Collar
Cold Rolled Q235B
Cold Rolled Steel 5 Layer Heavy Duty Storage Anti-corrosion Bolt Free Standard Pallet Rack
- Load Capacity: Up to 3,500 kg / level
- Design: Boltless 50/75mm Pitch Locking
- Surface: Pure Epoxy Powder Coating
100% Density
Customizable 100% Space Utilization Drive-In Pallet Flow System with 5 Layer Metal Safety Guardrails for Warehouses Laser-Cut
- Configuration: LIFO / FIFO Deep Storage
- Protection: Laser-Cut Heavy Floor Rails
- Application: Cold Store & High-Density DC
Modular Boltless
5 Level Boltless Corner Metal Racks Storage Warehouse Logistics Shelf Storage Rack Shelves Wholesale Slotted Angle Rack
- Structure: Precision Slotted Corner Angle
- Modularity: Interlocking Rivet Design
- Use: Fulfillment & Maintenance Depots
Strict FIFO
Warehouse Gravity Storage Racking Live Gravity Pallet Flow Rack Cooler Gravity Shelving and Racks
- Movement: Magnetic Brake Flow Rollers
- Safety: Auto Speed Controllers Built-in
- Environment: Ambient to -30°C Freezers
ESD Conductive

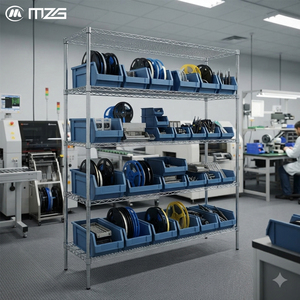

MZG ESD Anti Static 5 Tier Heavy Duty Wire Shelving Rack Metal Storage Rack for Factory Warehouse
- Dissipation: 10^4 to 10^9 Ohms/sq Surface
- Safety: Grounded Conductive Metal Collars
- Target: Electronics & Micro-Assemblies
Static 4T / Racking 1.5T
NEXARA Industrial HDPE Racking Load 4t 1208 1200*800*150mm Flat Surface Three Runner Heavy Duty Pallet for Forklift
- Reinforcement: Internal Steel Rod Tube Inserts
- Design: 3-Runner Base for Shuttle Channels
- Material: 100% Virgin Food-Grade HDPE
100% Selectivity
Heavy Duty Selective Pallet Rack Warehouse Storage Racking System for Large Capacity Industrial Pallet Storage
- Compatibility: All Forklift & Reach Trucks
- Profile: High-Yield Steel Box Beams
- Customization: Seismic Footplates & Splices
Pallet Shuttle Racking System: Mechanical Architecture & Kinematics
A deep technical appraisal of semi-automated radio shuttle racking (RSM) systems—bridging the gap between conventional static density and complex, costly crane-based AS/RS solutions.
Sub-Zero Cold Chain Propulsion
Radio shuttles operate in temperature thresholds from -30°C to +45°C. Powered by hermetically sealed Lithium Iron Phosphate (LiFePO4) or Lithium Titanate (LTO) battery cells with internal thermal management, our shuttle platforms sustain 8 to 10 hours of uninterrupted high-load duty cycles with zero electrolyte sluggishness.
Optoelectronic Sensing & Obstacle Stop
Integrated with dual front-and-rear industrial SICK or Omron optical distance sensors, ultrasonic proximity arrays, and high-frequency RFID lane markers. The shuttle dynamically modulates travel speeds (0.8 m/s loaded, 1.2 m/s empty) and applies regenerative magnetic deceleration within ±2mm pallet gap tolerances.
Cold-Formed High-Yield Rail Geometry
Manufactured from high-strength continuous galvanized steel (EN 10346 S350GD+Z275 or Baosteel Q355B). The proprietary dual-flange guide rail functions simultaneously as a low-friction wheel track for the shuttle cart and a high-load shelf support bracket capable of handling pallet weights up to 1,800 kg with deflection limits strictly under L/250.
| Evaluation Parameter | Radio Shuttle Racking (RSM) | Drive-In Racking | Selective Pallet Racking | Unit-Load AS/RS (Stacker Crane) |
|---|---|---|---|---|
| Volumetric Space Efficiency | Very High (80% – 88%) | High (65% – 75%) | Low (35% – 45%) | Maximum (85% – 92%) |
| Operating Stock Flow Mode | FIFO & LIFO Configurable | Strictly LIFO Only | 100% Direct Selective | Dynamic Automated WMS Direct |
| Pallet Cycle Throughput | 40 – 50 pallets/hr per aisle | 15 – 22 pallets/hr | 25 – 30 pallets/hr | 60 – 80 pallets/hr |
| Structural Damage Risk | Extremely Low (Forklift stays out) | High (Frequent mast strikes) | Moderate (Aisle collision) | Near Zero (Fully automated) |
| Capital Expenditure (CapEx) | Moderate ($90 – $140 / position) | Low ($55 – $80 / position) | Lowest ($35 – $60 / position) | Very High ($400 – $900 / position) |
| Operating Expenditure (OpEx) | Low (Minimal labor & fuel) | High (Slow transit & rack repairs) | High (Extensive forklift fleet) | Lowest (Zero manual operators) |
Future B2B Procurement Trends in Global Pallet Shuttle Systems
Global supply chain directors and warehouse infrastructure buyers are pivoting their capital expenditure strategies toward resilient, flexible, and rapidly depreciated semi-automated frameworks.
1. Shift from Rigid AS/RS to Modular Shuttle Cells
Procurement officers are actively abandoning 10-year locked fixed-crane AS/RS infrastructure in favor of modular pallet shuttle networks. A pallet shuttle grid offers immediate phase-in capabilities: companies can start with two shuttles servicing 4,000 pallet positions and scale the vehicle fleet dynamically during peak seasonal surges (e.g., harvest cycles, Black Friday) without altering physical civil works.
2. Fast-Charging Supercapacitor & LTO Power Systems
The B2B sourcing landscape is transitioning rapidly away from standard lead-acid and early-generation NMC lithium batteries. Modern RFPs mandate Lithium Iron Phosphate (LiFePO4) or high-frequency induction supercapacitors that deliver a 3-minute opportunity charge inside the lane, unlocking continuous 24/7/365 operations and eliminating dedicated battery-swapping charging rooms.
3. Standardized Total Cost of Ownership (TCO) Metrics
Overseas procurement teams now evaluate racking systems not by gross steel weight, but by cost-per-pallet-position-year. Pallet shuttle racking slashes forklift operating hours by 65%, cuts cold storage electrical chiller power dissipation by 28% through hyper-compact cubic density, and eliminates column impact repairs caused by lift trucks entering aisles.
Technological Innovations Reshaping Shuttle Racking Automation
From 2-way linear shuttles to 4-way omnidirectional robotic swarms, discover the electro-mechanical and software frontiers advancing high-density material handling.
4D Multi-Directional Vectoring
Advanced 4-way shuttles utilize dual-wheel motorized climbing mechanisms to traverse both longitudinal lanes and cross-aisle transfer rails, switching tracks in 2.5 seconds without manual forklift repositioning.
Industrial 5G & Wi-Fi 6 Roaming
Eliminating communication drops in steel-dense environments via 0ms roaming handshakes between industrial wireless access points, ensuring uninterrupted real-time telemetry with SAP, Manhattan, and custom WMS/WCS suites.
IoT Strain & Seismic Deflection
Smart structural monitoring uses IoT strain gauge nodes attached to critical beam connectors and upright bases to stream vibrational, tilt, and overloading alerts before structural deformation reaches threshold limits.
Autonomous AMR Fleet Hand-off
Interfacing pallet shuttles with Autonomous Mobile Robots (AMRs) and automatic vertical reciprocating lifts (VRCs) enables completely lights-out distribution hubs, from end-of-line palletizing to outbound dispatch bays.
Guangzhou Heda Shelves Co., Ltd.: Global Manufacturing & Turnkey Engineering
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a sprawling 30,000 m² state-of-the-art production complex. Over two decades of specialized heavy-industry manufacturing have positioned HEDA as the premier partner for international distributors, 3PL giants, and industrial EPC contractors.
-
Certified Engineering Standards (AS 4084 / FEM / CE)
Every shuttle upright column, guide rail profile, and load-bearing beam connector undergoes Finite Element Analysis (FEA) calibrated against Australian AS 4084, European FEM 10.2.02, and American RMI standards.
-
Seismic Resilient Engineering for Global Zones
Specialized baseplate designs, oversized chemical anchor bolt arrays, and heavy-duty portal frame ties customized to meet rigorous New Zealand NZS 1170.5 and US West Coast seismic parameters.
-
Biosecurity & Heavy Stillage Export Packaging
Packed on precision custom steel stillages or fully fumigated, heat-treated ISPM-15 compliant timber, ensuring smooth entry through Australian DAFF, New Zealand MPI, and strict EU border inspections.
Direct Factory Procurement Advantages
Eliminate middleman markups by purchasing directly from Guangzhou HEDA's automated roll-forming and powder-coating workshops:
Frequently Asked Questions for Wholesale & Overseas Buyers
Detailed answers addressing engineering compliance, customs clearance, sub-zero battery performance, and project installation management.
1. What warehouse data is required to generate an accurate 3D CAD layout and quotation?
2. How do your pallet shuttle systems perform in -25°C to -30°C cold storage facilities?
3. How is compliance with local engineering codes (AS 4084, NZS 1170.5, FEM, RMI) verified?
4. What is the typical ocean shipping transit time and container packing density from South China?
5. How does the shuttle cart handle uneven, damaged, or poor-quality wooden pallets?
6. What is the expected battery operating duration and lifecycle replacement cost?
7. How is on-site installation, commissioning, and shuttle programming managed internationally?
8. What warranty and spare parts package is provided for overseas projects?
Accelerate Your Warehouse Capacity with Factory-Direct Engineering
Send your warehouse floor plans or pallet requirements today. Our senior structural engineers will return a complimentary 3D CAD layout, pallet density comparison, and factory-direct wholesale pricing within 24 hours.
