Heavy Duty
Direct Factory Portfolio
Engineered Industrial Rack & Shelving Configurations
Heavy-duty structural systems certified for automated warehouses, 3PL logistics hubs, industrial manufacturing yards, and cold-storage operations worldwide.
Industrial / Display

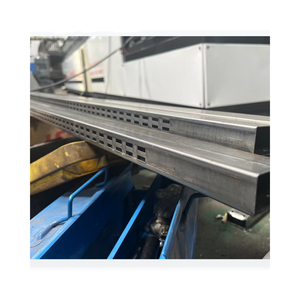

Supermarket Display Shelving & Industrial Machinery Rack High Productivity
Custom OEM
Custom Sheet Metal Rack Shelf Fabrication Stamping Laser Cutting Welding OEM
Pallet Beam

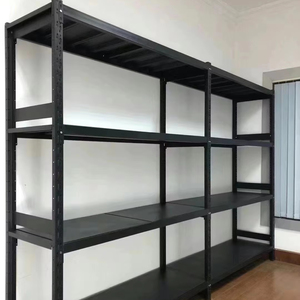

Metal Warehouse Storage Shelves Pallet Racking Beam Shelf Type Floor Mount
Modular Systems

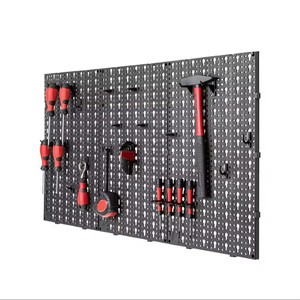

Tools Storage Rack Wall Display Boards With Hooks Heavy Duty Workshop Panels
Selective Rack

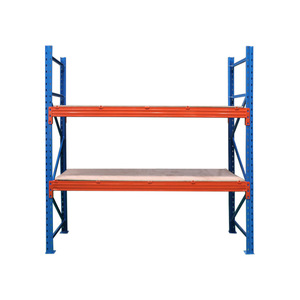

Warehouse Heavy Duty Pallet Rack Industrial Steel Shelving Systems
Hardware Storage

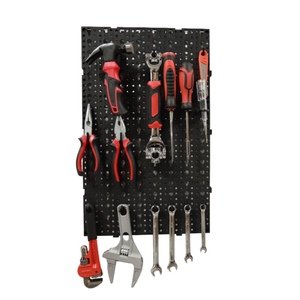

Wholesale Wall Mount Display Tool Organizer Wall Tool Rack Panel Pegboard
Medium Duty

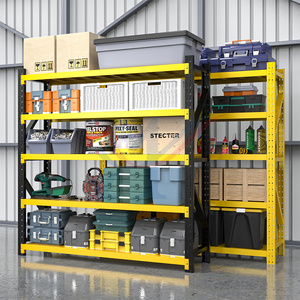

Custom Medium Duty Steel Shelving 200 Kg Layer 4 Tier Powder Coated Metal
Industrial Engineering & Mechanical Design Standards for OEM Shelving
In high-throughput intralogistics ecosystems, structural failure or excessive beam deflection compromises facility safety and halts mission-critical operations. As a global custom OEM industrial rack shelving manufacturer, our fabrication operations adhere strictly to international mechanical and seismic standards, including AS 4084:2023 (Steel Storage Racking for Oceania), FEM 10.2.02 (European Racking Federation), RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), and NZS 1170.5 for dynamic seismic zone performance.
Structural reliability starts with raw material integrity. We source prime high-tensile Q235B and Q355B structural steel coils, each tested for specified yield strength (≥ 235 MPa to ≥ 355 MPa) and elongation characteristics. Upright frames are rolled on precision automated continuous roll-forming lines, maintaining dimensional tolerances within ±0.5 mm across heights exceeding 12 meters. This tight manufacturing tolerance prevents frame eccentricity, minimizes residual stress buildup, and prevents long-column Euler buckling under fully rated static and dynamic loads.
| System Architecture | Structural Load Rating | Space Utilization Ratio | Stock Rotation Logic | Primary Sector Applications |
|---|---|---|---|---|
| Selective Pallet Racking | 1,000 - 4,500 kg / beam pair | 40% - 50% Floor Area | 100% Selectivity (FIFO) | 3PL Warehouses, FMCG, General Distribution |
| Drive-In / Drive-Through | 800 - 1,800 kg / pallet slot | 65% - 75% High Density | Strict LIFO / Selective FIFO | Cold Storage, Frozen Food, Bulk Uniform SKU |
| Semi-Automated Radio Shuttle | 500 - 2,000 kg / pallet unit | 80% - 85% Ultra-Dense | Programmed FIFO / LIFO | Beverage, Dairy, Chemical, Automated DCs |
| Heavy Duty Cantilever Systems | 500 - 3,000 kg / arm | Linear Variable Width | Open Clear-Span Access | Timber, Aluminum Profiles, Steel Pipe, Rebar |
| Multi-Tier Mezzanine Platforms | 300 - 1,200 kg / m² deck load | 200% - 300% Vertical Volume | Multi-Level Pick Zones | Automotive Spares, E-commerce Fulfillment |
End-to-End Enterprise OEM Advantages & Quality Control
Operational reliability for international project contractors relies on guaranteed repeatable manufacturing precision. Leveraging our certified management systems—ISO 9001:2015 (Reg. No. 18624Q00169R0M), CE Structural Certification (No. 2435-CPR-8605159), and RoHS environmental compliance—our fully owned 30,000 m² factory integrates in-house processes that eliminate supply chain vulnerabilities.
10-Stage Precision Workflow
From automated decoiling, precision punching, CNC cold-bending, robot-assisted welding, to pickling and phosphating rust conversion.
Electrostatic Powder Shield
Thermosetting polymer powder coating cured at 180°C–200°C produces a durable 60–80 micron film, verified through cross-hatch adhesion and salt-spray testing.
Global Biosecurity Packaging
All components are strapped inside specialized steel stillages or heat-treated ISPM-15 compliant crating, clearing DAFF, MPI, and EU biosecurity protocols smoothly.
Free 3D CAD & FEA Layouts
Our 300+ technical personnel provide turnkey layout schematics, pallet clearance verification, and structural calculation packs tailored to local building codes.
Industry Development Trends: Engineering the Smart Logistics Era (2025–2030)
The industrial storage industry is shifting from passive structural ironmongery to dynamically integrated automation frameworks. As e-commerce velocity grows and land acquisition costs escalate, OEM rack structures are increasingly engineered as the foundational physical layer for warehouse robotics, automation machinery, and real-time sensor networks.
AS/RS & AMR Floor Integration
Racking systems are transitioning toward high-tolerance structures capable of interfacing with Autonomous Mobile Robots (AMRs), automated pallet cranes, and micro-shuttle carriers requiring deflection tolerances tighter than 1/500 under full live load.
Structural Health Monitoring (IoT)
Modern distribution hubs are adopting smart strain gauges, inclinometers, and wireless impact sensors integrated into baseplates and column uprights to monitor forklift impacts, seismic events, and live dynamic load redistributions.
Green Finishing & Hot-Dip Zinc Alloys
Procurement teams are shifting away from high-solvent paint methods toward zero-VOC powder systems and high-durability continuous pre-galvanized or zinc-aluminum-magnesium alloy steels engineered for coastal humidity and aggressive sub-zero cold chains.
Strategic Procurement Trends for Global Supply Chain Directors
Enterprise procurement professionals are moving away from evaluating industrial racking merely as a commoditized tonnage-based steel purchase. High-efficiency supply chain directors focus on total lifecycle performance, supply continuity, and regulatory certainty across several key metrics:
Total Cost of Ownership (TCO) Prioritization
Evaluation models now prioritize installation cycle times, modular field reconfiguration flexibility, and impact resilience over raw purchase price, reducing 10-year facility operating expenses caused by rack-collapse downtime.
Engineered Traceability & Carbon Disclosures
Tier-1 procurement tenders mandate complete mill test certificates (MTCs), verifiable steel yield stress ratings, and Scope 3 embodied carbon reporting aligned with corporate sustainability benchmarks and ESG covenants.
Turnkey Freight & Fast-Track Logistics
Supply chain managers prefer factory partners with optimized container nesting techniques (maximizing 40HQ payload to 26–28 metric tons) and established direct shipping lanes to major global ports (Sydney, Melbourne, Auckland, Rotterdam, Long Beach).
Frequently Asked Questions: Technical Procurement & Compliance
Direct technical answers addressing structural calculations, international standards compliance, shipping protocols, and custom manufacturing parameters.
How do you ensure compliance with regional seismic codes (e.g., AS 4084, NZS 1170.5, RMI)?
Our structural engineering department performs finite element modeling using site-specific ground acceleration coefficients (Z values), soil classification factors, and building importance levels. We enlarge heavy-gauge seismic baseplates, up-gauge upright wall thicknesses, integrate cross-directional portal bracing, and use certified structural expansion anchors to satisfy third-party engineering verifications.
What documentation is provided to support local building permit approvals?
We supply a comprehensive engineering submittal pack: detailed structural CAD installation drawings, 3D spatial models, certified raw steel Mill Test Certificates (MTC EN 10204 3.1), section modulus calculations, allowable beam deflection limits, and certified load capacity plaques formatted to local regulatory guidelines.
What are standard lead times for custom OEM production runs and ocean freight?
Standard fabrication cycle times range between 15 to 25 business days depending on customized roll tooling, hole punching configurations, and specified powder coating colors. Ocean transit from South China to major ports across Australia and Oceania takes approximately 14 to 22 days, while transit to North American and European deep-water ports averages 24 to 35 days.
How are components packed to prevent transport damage and meet biosecurity standards?
Beams, frames, and uprights are bundled onto custom structural steel transport skids or ISPM-15 heat-treated certified bearers with corrugated corner protection and multi-layer plastic shrink wrapping. This prevents abrasion in transit and allows zero-treatment biosecurity clearance at inspection points like DAFF (Australia) and MPI (New Zealand).
What are the key differences between powder coating and hot-dip galvanizing for industrial racks?
Electrostatic powder coating provides an economical, impact-resistant, high-visibility finish (standard Safety Orange and Ultramarine Blue) ideal for dry ambient temperature warehouses. Hot-dip galvanization (HDG conforming to ISO 1461) coats steel in molten zinc (≥65 microns), offering metallurgical corrosion protection essential for outdoor lumber yards, chemical storage, coastal terminals, and sub-zero blast freezers.
Can your manufacturing line produce custom pitch perforations and proprietary OEM connectors?
Yes. Our tooling facility designs and manufactures CNC punching dies for 50 mm, 75 mm, 76.2 mm (3-inch), and teardrop patterns. We support proprietary connector geometries, interlocking hook angles, custom safety drop-pins, and unique profile stampings according to strict OEM proprietary agreements.
Connect with our Structural Engineering Team
Send us your warehouse CAD floor plan, ceiling clear heights, pallet specifications, and forklift fleet parameters. Our engineering department will return a free 3D design model, load calculation matrix, and factory-direct pricing proposal within 24 business hours.
Get a Quote
