Dynamic FIFO
Industrial OEM Solutions
Engineered Heavy-Duty Storage Configurations
Precision cold-rolled and robotic-welded rack structures tailored for high-cube distribution centres, seismic zones, cold storage, and automated material handling workflows.
High-Density LIFO
Direct Access

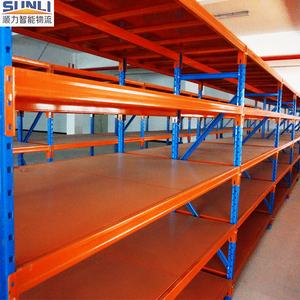

ESD Conductive

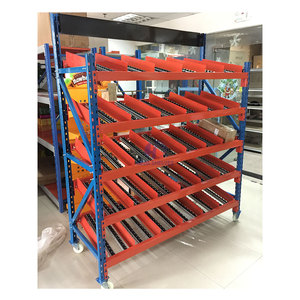

Lineside Kanban

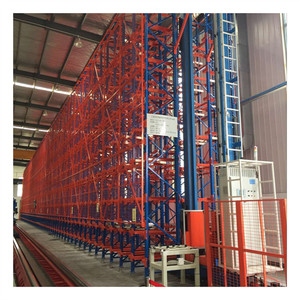

ASRS Ready
Space Maximizer
Heavy Multi-Tier
Whitepaper: Engineering Rigour
Structural Integrity, Metallurgical Standards & Deflection Limits
Evaluating commercial warehouse racking requires analyzing yield strength, cold-forming stress profiles, second moment of area, and global compliance testing methodologies.
Certified Raw Steel Grades
We mill structural members strictly from high-grade Q235B and Q355B coils (equivalent to ASTM A36 and ASTM A572 Grade 50). Certified mill test reports accompany every batch, certifying carbon content below 0.20% and controlled manganese alloy levels for exceptional ductility, impact resistance, and crack-free roll-forming.
Finite Element Analysis (FEA)
Our dedicated engineering division designs every profile using sophisticated FEA stress models. We compute axial loading, torsional shear, and secondary moments to deliver optimized profile geometries. Upright columns feature engineered multiple-rib stiffening to resist local buckling under concentrated dynamic impact loads.
Seismic Dynamic Resistance
Fully adapted to regional seismic load demands including AS/NZS 1170.5 and US RMI MH16.1 specifications. We calculate base plate ductility ratios, enlarge high-tensile anchor diameters, and incorporate custom horizontal and vertical cross-bay bracing systems to safely absorb peak ground acceleration (PGA) forces.
| Racking System Type | Typical Payload / Level | Space Utilization Ratio | Stock Rotation Logic | Handling Fleet Synergy | Compliance Standards |
|---|---|---|---|---|---|

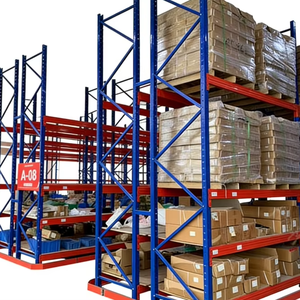

| Selective Pallet Racking | 1,000 – 4,500 kg | 40% – 50% | 100% Direct (FIFO/LIFO) | Counterbalance, Reach Truck | AS 4084 / FEM 10.2.02 |
| Drive-In / Drive-Through | 1,000 – 2,000 kg | 65% – 75% | LIFO (Strict Batch) | Reach Truck, Counterbalance | ISO 9001 / RMI MH16.1 |

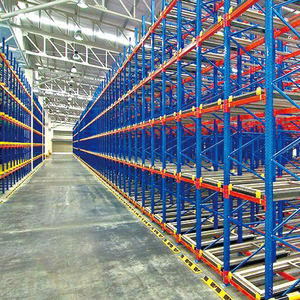

| Push-Back Carts (2-6 Deep) | 800 – 1,800 kg | 70% – 75% | LIFO (Lane Selective) | Standard Reach Truck | EN 15512:2020 |
| Gravity Pallet Flow | 500 – 1,500 kg | 80% – 85% | Absolute FIFO Dynamic | Counterbalance, Electric Stacker | CE Certified / FEM |
| Radio Shuttle Automation | 500 – 2,000 kg | 85% – 92% | Dynamic FIFO & LIFO | AGV, AMR, Standard Forklift | CE 2435-CPR / AS 4084 |

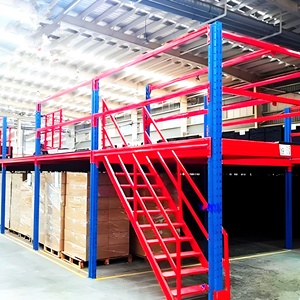

| Heavy Structural Mezzanine | 300 – 1,200 kg/m² | 100% (Vertical Cube) | Omni-Channel Flow | Conveyors, Vertical Lifts | BCA / NZS 1170 / AISC |
The HEDA Advantage
Why Tier-1 Importers & EPC Contractors Choose Our Factory
Operating an integrated 30,000 m² state-of-the-art facility since 2001. We deliver factory-direct pricing, uncompromising engineering rigor, and complete supply chain transparency.
2001yr
Established Heritage
30,000m²
Manufacturing Facility
300+
Certified Engineers & Crew
30,000t
Monthly Fabrication Capacity
10-Stage Precision Production
Every batch progresses through raw steel spectroscopic verification, automated CNC column punch indexing, progressive roll-forming, robotic pulse MIG beam welding, acid pickling, multi-stage phosphating, and electrostatic powder coating cured at 200°C for superior impact resilience.
Independently Audited Credentials
Backed by verified certifications: CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (Certificate No. 18624Q00169R0M), and full RoHS compliant finishing chemistry. We deliver structural section modulus calculations to simplify local engineering sign-offs worldwide.
Export Logistics & Biosecurity
Decades of international freight mastery ensure stress-free customs clearance. Packages are palletized on custom steel stillages or ISPM-15 heat-treated dunnage, exceeding stringent biosecurity regimes including Australian DAFF and New Zealand MPI inspection requirements without transit delays.
Industry Strategic Outlook
Strategic Procurement & Technological Trends Shaping 2026-2030
As real estate costs rise and automation matures, warehouse racking procurement has shifted from static commodity buying to dynamic systems engineering.
Robotic AMR & Shuttle Synergies
Static racks are increasingly re-engineered as hybrid platforms accommodating Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and 2D/4D multi-directional pallet shuttles. Modern designs require tightened beam tolerances (±1.0 mm) and non-deflection guide rails to ensure optical sensor alignment.
Total Cost of Ownership (TCO) Shift
Savvy enterprise procurement managers now evaluate TCO over a 15-year lifecycle rather than base FOB steel tonnage costs. Factor inputs include structural damage resistance, modular relocatability, reconfigurable pitch connectors (50mm/75mm), and standardized structural add-ons that eliminate costly future re-engineering.
Decarbonization & Green Steel
With Scope 3 supply chain auditing becoming mandatory across multinational retail, 3PL, and pharmaceutical corporations, racking buyers require verified Environmental Product Declarations (EPDs). We leverage electric-arc furnace (EAF) low-carbon steel coils and zero-VOC heavy metal-free powder coatings.
Procurement Knowledge Base
Frequently Asked Questions by Industrial Buyers
Detailed answers addressing load certifiability, regional seismic verification, OEM tolerances, and international logistics protocols.
How do your custom OEM racking systems ensure compliance with regional structural standards like AS 4084, RMI MH16.1, and EN 15512?
Our engineering team performs full structural calculations referencing regional parameters for every project. We calculate section properties (effective area, moment of inertia, torsional constant) using advanced cold-formed steel analysis software. For Australia, layouts and load tables follow AS 4084 guidelines; for North America, designs mirror ANSI/RMI MH16.1; and for Europe, calculations follow EN 15512:2020. We provide full calculation packs, certified material test sheets, and dynamic beam loading deflection charts (maintaining safety deflection limits under L/200) to simplify formal sign-off by your local licensed structural engineer.
What specific design modifications are made for heavy-duty seismic installations?
For installations in high-seismic zones (such as New Zealand following NZS 1170.5 or the US West Coast under IBC/UBC seismic categories D through F), racking requires specific engineering adaptations. We increase upright column gauge thickness, enlarge baseplate surface dimensions, add multi-hole chemical or mechanical anchor layouts, upgrade beam connector tang count, and engineer top-tie portal frames alongside full-bay vertical and horizontal cross-bracing towers. These modifications dissipate horizontal ground acceleration forces and prevent frame collapse during an earthquake.
What is your typical manufacturing lead time, and what documentation is provided for import customs?
Standard fabrication cycle times range between 18 to 28 business days depending on tonnage volume, color customization, and structural complexity. Ocean freight takes 2 to 4 weeks depending on destination ports across Oceania, the Americas, or EMEA. Every shipment includes complete documentation: Master Bill of Lading, Commercial Invoices, Itemized Packing Lists by container and bay location, Certificate of Origin (including Form A, ChAFTA, or RCEP for preferential tariff benefits), Mill Test Certificates for raw steel batches, and detailed CAD assembly plans with piece-marked hardware packaging.
Can you customize upright punch patterns to match existing warehouse systems (e.g., teardrop, hex-hole)?
Yes. As a dedicated OEM/ODM manufacturer, our tooling workshops maintain precision stamping dies for international profiles. We manufacture classic American Teardrop punch configurations, 50mm and 75mm European pitch uprights, Omega beam sections, and specialized slotted frames. Whether expanding an existing distribution center without replacing legacy beams or producing an OEM private-label line for local distributors, our factory fabricates exact profile matches with consistent tolerances.
What surface finishes are recommended for aggressive, coastal, or refrigerated environments?
For standard ambient warehouses, our automated electrostatic powder coating with thermosetting polyester powder (60-80 micron thickness) delivers salt spray test endurance exceeding 500 hours. For deep-freeze cold storage (-30°C), we apply specialized epoxy resin systems resistant to thermal shock, micro-cracking, and flaking. For exterior yards, coastal installations, or chemical facilities exposed to continuous corrosive vapor, we provide continuous hot-dip galvanizing per ISO 1461 / ASTM A123, ensuring zinc coating thickness over 85 microns for multi-decade protection without rusting.
Accelerate Your Warehouse Capacity: Claim Your Free 3D/CAD Layout
Send us your warehouse dimensions, ceiling clear heights, and target pallet specifications. Our senior structural logistics engineers will deliver an optimized CAD layout, capacity schedule, and factory-direct quote within 24 hours.
