Certified High-Density Pallet Racks & Mezzanines
Explore our factory-engineered portfolio of stackable, dynamic, and modular racking units, fabricated from prime SS400/Q235B & Q355B high-tensile structural steel for global logistics deployments.
Space Saving Push Back Pallet Racking Nestable Cart for Medium Turnover Single SKU Warehouse Storage
- Configuration: 2 to 6 deep nested carts
- Load Capacity: 1,500 kg per pallet position
- Principle: Last-In, First-Out (LIFO)

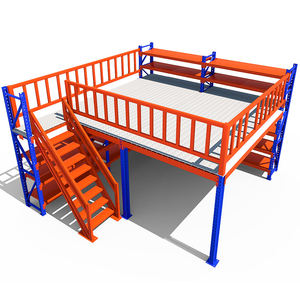

Steel Structure Mezzanine Floor Rack Platform
- Deck Capacity: 300 - 1,200 kg/m²
- Structural Type: Column or rack-supported
- Safety: Integrated stairs, rails & gates
Steel High-Density LIFO Drive Pallet Rack 25000 kg Capacity Powder Coated Strong Guide Rails Forklift Drive-In Access Storage
- Bay Load: Up to 25,000 kg total capacity
- Upright Frame: 80-140mm roll-formed profile
- Guide Rails: Heavy-duty floor guidance
Industrial Steel Racks & Shelving System Heavy-Duty Adjustable Pallet Racking with Multi-Tier Shelves and Corrosion Protection
- Pitch Adjustability: 50mm / 75mm pattern
- Finish: Electrostatic thermoset powder
- Standard: AS 4084, ISO 9001 certified
Heavy Duty Steel Pallet Racking System Adjustable Warehouse Storage Rack Industrial Shelving Unit
- Access Profile: 100% individual pallet access
- Beam Load: 1,000 - 4,500 kg per beam level
- Forklift Types: Reach, Counterbalance, VNA

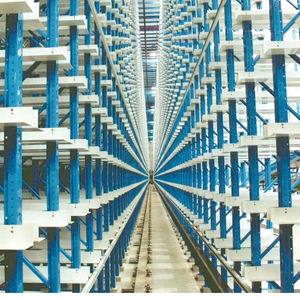

Automatic Small Parts Warehouse Miniload Single-Store Pallet Rack Medium Duty Steel and Metal for Storage Use
- Crane Compatibility: Miniload Stacker Crane
- Bin/Tote Load: 50 - 300 kg per location
- Tolerance: Ultra-tight CNC precision stamping

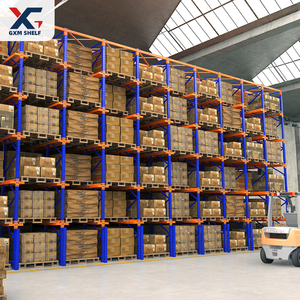

GXM Industrial Heavy Duty Warehouse Rack Boltless Storage Pallet Racking System Shelving Drive-in Rack
- Assembly: Quick-lock boltless connector lugs
- Structural Steel: High yield cold-rolled coils
- Corrosion Guard: Acid-wash zinc phosphating

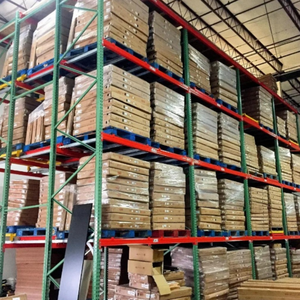

Cost Effective Push Back Pallet Racking LIFO Inventory Management Push Back Rack For Small & Medium Logistics Warehouse
- Efficiency: Reduces aisle space by up to 55%
- Bearing: High-grade sealed steel rollers
- Application: Cold storage & FMCG distribution
Industrial White Paper: Mechanical Metallurgy & Cold-Form Profile Design
Metallurgical Chemistry & High-Yield Coils
Our upright columns and box-welded beams are fabricated exclusively from certified hot-rolled and cold-rolled steel (structural grade Q235B and Q355B/SS400). With guaranteed minimum yield strengths reaching up to 355 MPa and elongation ratings above 21%, our structural profiles absorb seismic dynamic shock and prevent sudden shear buckling under full rated payload conditions.
Continuous CNC Roll-Forming Precision
Uprights are manufactured on automated rolling lines with up to 24 progressive bending stations. Holes and butterfly/teardrop connection slots are punched on micro-controlled servo presses prior to cold-roll bending, guaranteeing an axial pitch positioning tolerance within ±0.1mm along the entire 12-meter profile length for rigid interlocking connectors.
10-Stage Surface Protection Architecture
Corrosion resistance is engineered through automated continuous chemical immersion: degreasing, twin water wash, acid-pickling, micro-crystalline zinc phosphating, and final passivation rinse. Components are subsequently electrostatically powder coated with high-grade architectural polyester resins cured at 200°C, exceeding 500-hour ASTM B117 salt-spray standards.
Stackable Pallet Rack Configuration Comparison
Select the optimal warehousing design based on selectivity needs, forklift clearance, and volumetric density ratios.
| Racking Typology | Direct Pallet Selectivity | Floor Area Utilization | Inventory Method | Aisle Requirements | Primary Application Profile |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | 40% - 45% | FIFO / LIFO Flexible | 3.0m - 3.8m Standard | High-turnover distribution centers, 3PLs, auto parts |
| Push Back Racking (2-6 Deep) | Lane Accessible | 65% - 75% | Strict LIFO | 2.8m - 3.2m Minimal | Cold storage, medium-rotation FMCG, batch lots |
| Drive-In / Drive-Through | Lane Restricted | 75% - 85% | LIFO (Drive-In) / FIFO (Through) | Forklift channel lanes | Raw materials, beverage manufacturing, seasonal crops |
| Miniload AS/RS Racking | 100% Automated | 85% - 92% | System Controlled FIFO | 1.2m - 1.6m Crane Aisle | Pharmaceuticals, micro-electronics, small bin kits |
| Mezzanine Floor Platform | Multi-Tier Free | 100% - 200% Volumetric | Manual / Conveyor | Variable picking alleys | E-commerce fulfillment centers, packaging facilities |
Future Procurement Trends in Stackable & Modular Storage Systems (2025–2030)
How automated vehicle integration, environmental ESG metrics, and supply chain nearshoring are revolutionizing capital procurement.
1. AGV/AMR Autonomous Integration
Global warehouse operations are replacing legacy manual counterbalanced forklifts with Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). This transition forces rack manufacturers to achieve strict structural tolerances (±1.0mm frame deflections). Bottom rack levels now feature cantilevered recessed base legs, optical reflector brackets, and precision floor-level target anchors.
2. Demountable Modular Architecture
Fixed warehousing infrastructure is being superseded by demountable, portable stackable pallet racks (manuracks/post pallets). Logistics operators facing short-term building leases require nesting base designs that stack 4 to 6 units high when loaded, yet collapse flat with 4:1 return ratios during empty transport, dramatically slashing reverse logistics overheads.
3. Decarbonized Low-Carbon Steel (Scope 3)
Enterprise procurement departments in Europe, North America, and Australasia now weigh Scope 3 embodied carbon calculations in capital machinery tenders. OEM manufacturers must supply raw material traceability certifications verified via Electric Arc Furnace (EAF) production lines and low-VOC thermoset hybrid powder coatings that meet international RoHS and REACH declarations.
4. Dynamic Seismic Resiliency Engineering
Geographic locations throughout New Zealand (NZS 1170.5), the Pacific Rim, and US seismic zones require dynamic finite-element spectral response analysis. Modern procurement mandates seismic footplates with expanded anchor shear zones, boxed diagonal bracing trusses, and high-ductility connection clips engineered to absorb earthquake lateral sway energy without unseating beam locks.
Factory-Direct Manufacturing Capacity & OEM/ODM Excellence
Operating from our massive 30,000 square meter industrial facility in Guangzhou, China, delivering verified engineering confidence since 2001.
Full OEM/ODM Private Label Production
We empower international racking distributors, material handling brands, and engineering contractors with customized structural fabrications. From bespoke upright punch geometries to company-branded electrostatic powder color-matching and customized embossed logos, our R&D engineering department turns complex engineering blueprints into market-ready pallet rack hardware.
Documented Quality Assurance & Certifications
Our quality management systems are certified under ISO 9001:2015 (Certificate No. 18624Q00169R0M) and European CE Certification (Certificate No. 2435-CPR-8605159). Tensile mechanical testing, automated laser dimension verification, and full-scale beam deflection loading tests are executed on every production batch before release.
Turnkey Export Packing & Biosecurity Compliance
Shipping industrial steel globally involves severe marine transport hazards and stringent dockside quarantine protocols. We package beams, frames, and accessories using dedicated steel stillages or ISPM-15 certified heat-treated timber dunage, ensuring zero fumigation delays at Australian (DAFF) and New Zealand (MPI) ports.
Frequently Asked Questions by Industrial Racking Buyers
Technical answers directly from our senior structural engineers covering structural standards, lead times, safety tolerances, and international installations.
Accelerate Your Warehouse Capacity: Request a Complimentary 3D CAD Storage Layout
Send our senior engineering team your architectural floor plan, ceiling clear height, forklift model, and pallet specifications. Within 24 hours, our structural design office will provide a complete 3D warehouse simulation, total pallet position calculations, and factory-direct volume pricing.
