4 Storage Levels Heavy Duty Pallet Rack 3000KG
3,000 kg/Tier
Q235B/Q355B Steel
Safety Pins Included
Technical Datasheet
25+
Years Engineering Expertise
30Kt
Monthly Cold-Formed Steel Capacity
10K+
Global DC Projects Commissioned
100%
RMI, CE & AS 4084 Alignment
Factory Catalog Reference
High-Efficiency Warehouse Racking & Component Range
Direct factory-manufactured structural assemblies engineered to optimize cubic volume utilization across multi-echelon supply chain facilities.
Very Narrow Aisle (VNA) High-Bay Storage Racking
Max Density
Up to 15m Height
Guide Rail Compatible
Technical Datasheet
5-Layer Adjustable Bolt-Structure Selective Pallet Rack
Universal Teardrop Hole
50mm/75mm Pitch
High Access
Technical Datasheet
Heda Heavy-Duty Industrial Selective Warehouse Racks
100% SKU Access
Powder Coated
Direct Factory
Technical Datasheet
Compact Powder-Coated Steel Small Parts Storage Rack
Medium-Duty
Manual Picking
Modular Height
Technical Datasheet
Adjustable Warehouse Heavy Storage Rack Shelving Unit
High Rigidity
Footplate Anchored
Custom Layout
Technical Datasheet
Automated Sheet Metal Drawer Type Retrieval Racking
Cranes/ASRS Built
Anti-Rust Finish
High-Density Sheet
Technical Datasheet

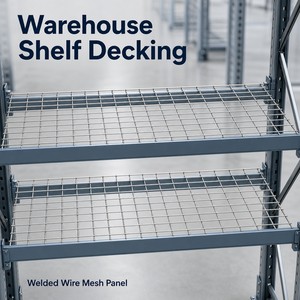

Drop-In Galvanized Wire Mesh Decking Panel
Fire Code NFPA 13
Universal Flange
Self-Cleaning
Technical Datasheet
Industry Technical Evaluation
Top 10 Teardrop Racking System Manufacturers & Global OEM Factories
Teardrop pallet racking has become the de facto industrial standard throughout North America and international supply chains due to its boltless, self-locking connector architecture and interchangeable cross-manufacturer profile. Originally patented and popularized to accelerate field assembly, the teardrop connection features a punching design where an inverted droplet aperture receives a dual-rivet beam pin. Under gravity and downward operational loads, the connector pin wedges firmly into the tapered lower slot, creating a rigid moment connection without requiring threaded fasteners through the column face.
When selecting a manufacturing partner for tier-1 distribution centers, cold stores, or logistics hubs, procurement leaders evaluate structural integrity under RMI (Rack Manufacturers Institute) MH16.1 specifications, AS 4084 compliance, ISO 9001 quality process control, dynamic seismic engineering, and precision automated roll-forming capabilities. Below is an authoritative breakdown of the top 10 global manufacturers and direct OEM factories leading teardrop rack production:
| Rank & Manufacturer | HQ / Core Plant | Structural Steel Standard | Engineering Strengths | OEM / Direct Supply |
|---|---|---|---|---|
| 01. HEDA Shelves | Guangzhou, CN | ASTM A1011 / Q235B / Q355B | Custom CAD/3D layouts, AS 4084 & NZS seismic modeling, automated lines | Direct Factory / Full OEM |
| 02. Interlake Mecalux | Chicago, US / ES | ASTM Structural Grades | Large North American footprint, integrated automated shuttle capabilities | Global Tier-1 / Distribution |
| 03. Ridg-U-Rak | North East, PA, US | High-Strength Low-Alloy | Patented column base protection, rigid seismic designs | Direct & Dealer Network |
| 04. Steel King Industries | Stevens Point, WI, US | Structural & Roll-Formed | Heavy tubular columns, SK2000 closed-tube teardrop uprights | Manufacturer Direct / Dealers |
| 05. Advance Storage Products | Huntington Beach, CA, US | ASTM High-Yield Coils | Large-scale pushback and structural teardrop systems | Engineered Project Direct |
| 06. Frazier Industrial | Long Valley, NJ, US | Hot-Rolled Structural Steel | Structural teardrop hybrids, robust impact resistance in cold hubs | Direct Project EPC |
| 07. UNARCO Material Handling | Springfield, TN, US | Certified Domestic Strip | T-Bolt and interchangeable teardrop, automated roll forming | National Account Supplier |
| 08. Speedrack Products Group | Sparta, MI, US | High-Tensile Cold Formed | Seamless closed tube upright designs, seismic testing rigs | Enterprise Integrator |
| 09. Hannibal Industries (Nucor) | Los Angeles, CA, US | Nucor Structural Steels | TubeRAC seismic teardrop systems, integrated mill sourcing | Integrated Mill Producer |
| 10. Bulldog Racks | Madison, GA, US | Heavy Carbon Steel | High-volume selective teardrop frames, heavy-duty footplates | Factory Wholesale Direct |
1. Architectural Advantages of the Universal Teardrop Connection
The ubiquity of the teardrop punch profile is driven by its operational versatility. Unlike slotted or proprietary hook systems, standard teardrop configurations feature a 2-inch vertical adjustment increment. This allows warehouse operators to reconfigure beam levels without special tooling, accommodating changing pallet heights or product turnover. In modern high-throughput logistics, beam end connectors utilize high-tensile three-rivet or four-rivet brackets with secondary gravity safety pins (such as drop-in J-bolts or spring-actuated auto-locks) preventing accidental beam disengagement from forklift upward impacts.
Technical Information Gain: Yield strength differences between generic commercially available hot-rolled coil and controlled high-tensile cold-formed steel (such as Q355B or ASTM A1011 Grade 50) allow up to a 22% reduction in overall system dead-weight while maintaining equivalent frame moment resistance and load-carrying limits under severe seismic peak ground acceleration (PGA).
2. Material Science: Closed Tube vs. Open C-Channel Uprights
In standard warehouse operations, upright frames are roll-formed into open-back C-channel configurations with return flanges to increase local buckling resistance. However, for severe environments—such as high-traffic cross-dock hubs and seismic-rated automated warehouses—manufacturers employ closed-box or tubular roll-formed uprights. Torsional rigidity in closed-tube uprights is up to 40 times higher than that of standard open sections, significantly reducing catastrophic failures from eccentric impacts along reach-truck transit aisles.
Factory Differentiation
Why Enterprise Buyers Partner with Guangzhou Heda Shelves
From architectural CAD layout engineering to multi-stage surface passivation, our integrated production lines deliver turnkey solutions with measurable savings.
Free 3D & CAD Engineering Layouts
Before metal is punched, our 300+ engineering team models clear ceiling heights, column grids, forklift turning radiuses, flue spaces, and AS 4084 / RMI load capacity charts within 24 hours.
Verified CE & ISO 9001:2015 Quality
We hold verifiable certifications (CE No. 2435-CPR-8605159, ISO 9001:2015 No. 18624Q00169R0M). Raw steel batches undergo yield tensile and weld ultrasonic inspections before roll forming.
10-Step Automated Production Process
From CNC automated column punching and profile roll-forming to pickling, phosphating, and electrostatic powder coating, every upright and step beam is produced under tight tolerances.
High-Density Seismic & Cold Storage Pre-Treatments
Specialized low-temperature electrostatic coatings and hot-dip galvanized steel treatments engineered specifically for sub-zero freezer cold stores and high-humidity environments.
Biosecurity Export Packaging & Fast Freight
Shipments utilize custom steel stillages and ISPM-15 heat-treated dunnage compliant with strict Australian DAFF, NZ MPI, and North American cross-border phytosanitary regulations.
Direct OEM Pricing & Private Label Support
Eliminate middle-tier broker markups. We support regional racking distributors, material handling integrators, and industrial shelving contractors with full OEM fabrication.
Forward Outlook
Future Procurement Trends in Teardrop Racking Systems
Market intelligence for supply chain directors planning greenfield automation projects and long-term facility expansions.
Automation-Ready Tolerances
Integration of Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) requires beam deflection tolerances exceeding 1/240th of clear span, demanding precision CNC roll tooling.
Total Cost of Ownership (TCO)
Procurement teams are shifting focus from purchase cost to lifespan maintenance. Heavy-gauge column bottom reinforcers and welded structural base plates mitigate reach truck collisions.
Seismic Code Alignment
Global standards such as ASCE 7-22, IBC 2024, and NZS 1170.5 require localized seismic response spectrum analysis. Custom column anchors and back-to-back bracing configurations are now mandatory.
Eco-Passivated Finishes
Green building projects (LEED v4.1) require zero-VOC epoxy powder coatings, lead-free surface primers, and fully recyclable steel profiles with verified Environmental Product Declarations (EPDs).
Procurement Knowledge Hub
Frequently Asked Questions on Teardrop Racking Systems
Essential technical clarifications for warehouse operations directors, facility engineers, and procurement specialists.
What is the standard weight capacity of a 4-tier teardrop pallet rack?
Weight capacity depends directly on beam profile, steel gauge, and clear beam span. For standard 96-inch (2438 mm) or 108-inch (2743 mm) step beams, capacities commonly range from 2,000 kg (4,400 lbs) to 3,500 kg (7,700 lbs) uniformly distributed load (UDL) per pair of beams, with upright frames rated for over 15,000 kg total gross loading.
Can HEDA teardrop beams retrofit into older American brands like Interlake?
Yes. The standard teardrop geometry utilizes a standard 2-inch center-to-center hole pitch with identical taper angles. HEDA precision roll-formed teardrop step beams are engineered to integrate cleanly into most standard teardrop upright profiles across North America.
How does wire mesh decking improve teardrop rack fire safety compliance?
Under NFPA 13 building codes, solid shelving blocks in-rack fire sprinkler water penetration. Drop-in wire mesh decking provides over 50% open area, allowing sprinkler discharge to reach lower levels while preventing loose cartons or broken pallets from falling through beam spaces.
What is the standard production and shipping lead time for volume orders?
Standard fabrication runs for 1 to 5 forty-foot high-cube (40HQ) containers take approximately 15 to 22 business days. Direct ocean freight from South China to West Coast North America or Oceania ports typically ranges between 14 to 28 days depending on direct steamship line schedules.
Transform Your Warehouse Floor Space with Engineered Racking
Consult with our structural engineering team for complimentary 2D/3D CAD layout configurations, seismic load calculations, and competitive factory-direct volume pricing.
Get a Quote
