Top Trusted Heavy Duty Warehouse Shelving Manufacturers & Factories

Engineering-Grade Pallet Racking, High-Bay Mezzanines & Automated Storage Solutions Certified to AS 4084, EN 15512, and ISO 9001:2015 Standards for High-Throughput Global Supply Chains.

Engineered Warehouse Systems

Factory-Engineered Heavy Duty Racking & Material Handling Equipment

Precision cold-rolled high-tensile steel, robotic welding, and thermoset powder coatings designed for heavy unit loads, high-density SKU configurations, and high-velocity picking operations.

SKU Management Steel Material Warehouse Rack Numbering System Warehouse Racking Systems for Goods Storage

Steel Material Warehouse Rack Numbering System Racking for Goods Storage

  • Magnetic & Riveted Location Tags
  • High-Contrast Visual WMS Codification
  • Industrial Grade Scratch-Resistant PVC/Steel
Specs Sheet Contact Us

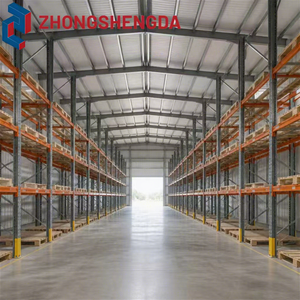

High Bay / 3PL High Bay Galvanized Steel Structure Workshop Warehouse Interior Multi Tier Pallet Racking

High Bay Galvanized Steel Multi-Tier Pallet Racking 3PL Fulfillment

  • Load: Up to 4,500 kg per beam level
  • Clear heights scalable up to 24 meters
  • Hot-dip galvanized or epoxy coating
Specs Sheet Contact Us

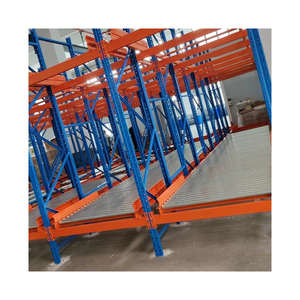

Dynamic FIFO High Quality FIFO Gravity Carton Flow Rack Pallet Rack System Pallet Flow Racking

FIFO Gravity Carton & Pallet Flow Racking Live Dynamic Warehouse System

  • Strict FIFO First-In First-Out rotation
  • Centrifugal brake rollers & end stops
  • Ideal for perishables, dairy, and pharma
Specs Sheet Contact Us
Manual Handling Heavy Duty Picking Truck Pick-up Sorting Cart Movable Hand Trolley Warehouse Material Shelf

Heavy Duty Order Picking Truck & Movable Material Sorting Cart

  • Rated dynamic capacity: 500 – 1,000 kg
  • Ergonomic ladder brake & swivel castors
  • Anti-static quiet PU casters for mezzanines
Specs Sheet Contact Us
Automated Storage Blue Orange Customizable Colors Industrial Stacking Racks Heavy Duty Steel Pallet Shuttle Racking

Heavy Duty Radio Pallet Shuttle Semi-Automated Dense Racking System

  • Up to 80% higher density than selective racks
  • Operates at speeds up to 1.1 m/s (loaded)
  • Low-temperature cold store rated (-25°C)
Specs Sheet Contact Us
North American Standard Industrial Warehouse Storage Rack Steel Teardrop Beam Heavy Duty Pallet Racking

Industrial Heavy Duty Teardrop Beam Pallet Racking RMI Compatible

  • Universal 2-inch punch pitch teardrop style
  • Toolless snap-in locking pin connection
  • Certified high-tensile Q235B cold rolled steel
Specs Sheet Contact Us
High Density Mobile Mobile Pallet Racking Guided Through Fixed Tracks

Electrically Powered Mobile Pallet Racking System Guided by Fixed Tracks

  • 90% floor utilization with single moving aisle
  • PLC integrated safety light barriers & radar
  • Maximum load up to 24 metric tons per base
Specs Sheet Contact Us
Workshop & Heavy Shelving Heavy Duty 5 Tiers Epoxy Black Steel Racking Garage Storage Workshop Shelf

Heavy Duty 5-Tier Boltless Epoxy Steel Racking Workshop Shelving

  • Uniform Distributed Load: 300–800 kg/tier
  • Boltless keyhole/butterfly assembly mechanism
  • Matte powder coat with wire mesh/steel decks
Specs Sheet Contact Us
Established in 2001 • Direct Factory Benchmark

Precision Manufacturing & Structural Authority in Heavy Duty Warehousing

Operating across a modernized 30,000 square meter intelligent fabrication base with an in-house team exceeding 300 senior structural engineers, CAD layout planners, and certified welders, our manufacturing plant stands as an authoritative tier-one supplier to global logistics hubs, third-party logistics (3PL) conglomerates, industrial cold storage networks, and automotive distribution centers.

Unlike commercial trading intermediaries, we control the entire lifecycle of industrial steel transformation—from raw structural coil spectral testing (Q235B and Q355B structural grades) through roll forming, multi-point continuous punch profiling, robotic carbon-dioxide shielding welding, 9-stage phosphate pre-treatment, and high-adhesion thermosetting electrostatic powder coating. Our fabrication methodologies conform rigorously to international standards including Australian AS 4084-2023, European EN 15512 / FEM 10.2.02, and American RMI (Rack Manufacturers Institute) ANSI MH16.1.

2001 Pedigree Founded
30,000m² Plant Facility
30,000t Monthly Output
10,000+ Global Projects

Every racking configuration is engineered against specific site parameters: clear ceiling heights, slab load capacities, concrete anchor embedment depths, seismic hazard coefficients ($S_s, S_1$), and forklift turning radii. Importers and procurement directors receive a complete engineering dossier with every consignment, including finite element analysis (FEA) reports, load rating plaques, mill test certificates (MTC), and biosecurity certifications complying with Australian DAFF and New Zealand MPI requirements.

CE Certified: 2435-CPR-8605159 ISO 9001:2015: 18624Q00169R0M AS 4084 Referenced Structural Design RoHS & REACH Environmentally Safe Finishes

Independent International Verification

We publish our genuine international testing and quality assurance certificates. All documents undergo periodic audit by authorized notify bodies, guaranteeing full export compliance without import quarantine delays.

CE Certificate of Conformity for Structural Storage Racking
ISO 9001 Quality Management System Certificate
RoHS Testing Report for Powder Coating Heavy Metals
Structural Racking Physical Load Capacity Test Certificate

Need local engineering sign-off for development approval or municipal occupancy permits? Our structural calculations provide sectional properties ($I_x, I_y, Z_x, Z_y$), yield points, and baseplate anchorage shear/pullout values ready for certified chartered professional engineer (CPEng/PE) submission.

Contact Us
Industrial Manufacturing QA Lifecycle

The 10-Stage Precision Heavy Racking Fabrication Process

From prime raw coil validation to final container stuffing, every production phase operates under strict statistical process control (SPC) to guarantee structural safety under static and dynamic loading.

Raw steel coil spectral analysis and tensile yield testing
Step 01

Raw Material Metallurgical Validation

CNC high-speed steel slitting and precision shearing line
Step 02

Precision CNC High-Speed Slitting

Automated continuous upright column perforation and punching
Step 03

Automated Upright Column Perforation

Multi-stage continuous roll cold bending and profile forming
Step 04

Multi-Station Cold Bending Forming

Continuous roll forming line for box and step beams
Step 05

Continuous Profile Roll Forming

Automated surface deburring and edge polishing equipment
Step 06

Deburring & Mechanical Edge Polishing

Robotic pulse MIG welding for structural beam end connectors
Step 07

Robotic Dual-Shield Arc Welding

Chemical pickling, degreasing, and silane phosphating line
Step 08

9-Stage Chemical Pickling & Phosphating

Automated electrostatic powder spray coating and high-temp curing oven
Step 09

Electrostatic Powder Spray Curing

Laser deflection testing, packaging and ocean freight stillage packing
Step 10

Laser QA Verification & Ocean Stillage Packing

Procurement Decision Framework

Heavy-Duty Storage Systems Comparison & Specification Matrix

Select the optimal racking typology based on SKU diversity, spatial floor utilization, capital expenditure per pallet position, and forklift compatibility.

Storage System Type Floor Space Utilization SKU Selectivity Stock Rotation Max Load per Bay Forklift Equipment Relative Cost Index
Selective Pallet Racking 40% – 45% 100% Direct Access FIFO or LIFO Up to 18,000 kg Standard Counterbalance / Reach Baseline ($)
Double-Deep Racking 55% – 65% 50% Direct Access LIFO Up to 16,000 kg Deep-Reach Pantograph Forklift Low-Moderate ($$)
Drive-In / Drive-Through 65% – 75% Low (Batch Access) LIFO (Drive-In) / FIFO Up to 14,000 kg Specialist Narrow Counterbalance Moderate ($$)
Gravity Pallet Flow 70% – 85% Lane-Level FIFO Strict FIFO Up to 20,000 kg Standard Forklift (Separated Aisles) Premium ($$$$)
Radio Pallet Shuttle 80% – 90% Channel Selective Configurable FIFO/LIFO Up to 25,000 kg Standard Forklift (No rack entry) High-Return ($$$$)
Heavy Duty Cantilever Variable (Long loads) 100% Face Access Open Storage Up to 3,000 kg / Arm Side Loader or 4-Directional Reach Moderate-High ($$$)
Multi-Tier Mezzanine 100% – 200% Extra 100% Manual Picking Batch / E-commerce 300 – 1,200 kg / m² Integrated Pallet Gate / Vertical Lift Capital Asset ($$$)
Global Market Intelligence

Evolutionary Trends in Heavy-Duty Storage Engineering & Sourcing (2025–2030)

Structural engineering in supply chains is rapidly shifting from passive static metal to dynamic, sensor-enabled, seismically resilient warehouse architectures.

Convergence of Shuttle Automation & AS/RS

Industrial logistics facilities are migrating away from deep-lane drive-in racks due to high forklift impact rates. Semi-automated radio shuttle carts and 4-way automated multi-level shuttles running on precision-profile cold-rolled rails have become the primary choice for FMCG, cold chain, and retail distribution hubs, tripling storage capacity while reducing operating labor costs by up to 55%.

High-Yield High-Tensile Micro-Alloyed Steels

To resist severe seismic excitation across circum-Pacific earthquake zones (e.g., New Zealand NZS 1170.5, Japan, California), manufacturers increasingly adopt high-ductility micro-alloyed steels (such as Q355B with niobium/vanadium grain refining). Coupled with laser-profiled energy-dissipating ductile baseplates and multi-point beam connector hooks, modern racks achieve higher safety factors with optimized steel dead-weight.

Direct-to-Factory (D2F) Disintermediation

Major enterprise procurement teams increasingly bypass regional traders and brand label re-sellers to contract directly with primary manufacturers in industrial steel production clusters. Direct OEM factory sourcing unlocks full 3D CAD customization, custom roll-formed section tooling, factory-direct QA verification, and substantial cost advantages of 25% to 40% on large-scale logistics hub rollouts.

Technical Due Diligence

Procurement & Engineering FAQ

Critical engineering considerations, international standard comparisons, and logistics compliance protocols essential for supply chain directors, industrial real estate developers, and warehouse facility planners.

Need Instant Technical Guidance?

Our structural engineering desk can review your CAD warehouse dwg floor plan and compute pallet loading capacity within 24 business hours.

Contact Us
How do certified manufacturers verify beam deflection and safety factor under AS 4084 and FEM 10.2.02?
Under international structural steel racking codes (including AS 4084:2023, FEM 10.2.02, and ANSI MH16.1), beam load capacity is governed by both ultimate strength limit state (factored load safety factor typically $\ge 1.50$ to $1.65$) and serviceability deflection limits. The standard elastic deflection criteria for horizontal pallet support beams is restricted to maximum $\delta \le L / 200$ (where $L$ is the clear span distance between uprights). For automated systems like automated storage and retrieval systems (AS/RS) or radio shuttle lanes, this deflection tolerance is tightened to $L / 300$ to ensure sensor clearance. Our beams undergo full-scale physical destructive load testing and FEA simulation with beam-end connector rotation stiffness ($k_b$) factored in.
What are the metallurgical differences between Q235B/Q355B and Western steel grades like ASTM A36 or AS/NZS 3678?
Chinese structural steel grades Q235B and Q355B map closely to international equivalents. Q235B provides a minimum yield strength ($f_y$) of 235 MPa and tensile strength of 370–500 MPa with elongation $\ge 26\%$, closely corresponding to ASTM A36, European S235JR, and Australian AS/NZS 1594 HA250. Q355B offers a high yield point of 355 MPa, equivalent to ASTM A572 Grade 50, European S355JR, and AS/NZS 3678 Grade 350. Q355B possesses controlled carbon equivalent (CEV) values and micro-alloying (Vanadium/Niobium) for superior ductile fracture resistance, making it the preferred choice for high-bay uprights and seismic zone installations. Mill Test Certificates (MTC EN 10204 Type 3.1) are supplied with all batches.
How is cold storage condensation and steel embrittlement prevented in refrigerated warehouses (-25°C)?
In sub-zero cold stores and blast freezers, carbon steel can become vulnerable to ductile-to-brittle transition. We specify Charpy V-notch tested steel grades rated for impact toughness at low temperatures (such as Q355D or Q355E tested at -20°C and -40°C respectively). For surface protection against condensation cycle corrosion, components receive either hot-dip galvanization conforming to ISO 1461 (with zinc coating thickness of 65–85 microns) or low-temperature flexible epoxy-polyester architectural powder coating with specialized zinc-rich primer pre-treatment. Drive-in and radio shuttle systems are specifically dimensioned to maintain minimum clearance around air-cooling blowers.
What engineering details are mandatory to generate an accurate 3D CAD layout within 24 hours?
To produce an optimized 3D layout, our application engineering desk requires six key inputs:
1. Architectural floor plan (DWG or PDF) showing clear internal column spans, dock doors, fire egress corridors, and mechanical services.
2. Clear vertical ceiling height measured to the lowest roof truss, sprinkler head line, or lighting fixture.
3. Pallet dimensions ($W \times D \times H$, including pallet overhang and load height) and pallet style (e.g. 1165×1165mm Australian standard, 1200×1000mm ISO, or 1200×800mm Euro).
4. Maximum load weight per pallet (including gross SKU, pallet base, and packaging).
5. Material handling equipment (MHE) specification: Forklift make/model, mast collapsed and extended lift heights, and minimum right-angle stacking aisle width (AST).
6. Seismic zone location and concrete slab floor thickness/compressive strength ($f'_c$).
How are biosecurity (DAFF/MPI) and ocean freight damage risks controlled during export?
All export consignments destined for strict biosecurity territories (including Australia, New Zealand, North America, and Europe) utilize non-timber custom heavy-duty steel stillages or strictly heat-treated and debarked timber certified with the ISPM-15 IPPC stamp. Racking uprights and horizontal beams are bundled using tensioned PET strapping, corrugated protective corner wraps, and moisture-barrier polyethylene stretch film. Desiccant packs are positioned in every ocean shipping container to mitigate container rain condensation during equatorial transits. Packing lists itemize container load distribution to enable systematic unloading by bay sequence at job sites.
Can heavy duty selective racking be converted to automated radio shuttle racking later?
While selective racking frames and beams can technically be reconfigured, a conversion to radio shuttle racking requires careful structural verification. Radio shuttle systems impose deeper bay profiles, localized concentrated dynamic wheel loads on guide rails, and higher total frame loading due to deep channel consolidation (often 10 to 40 pallets deep). If automated expansion is planned in phases, we design the initial selective upright columns with heavy-gauge profiles (e.g., 90×70×2.0mm or 100×70×2.5mm) and pre-drilled column perforations. This enables direct bolt-on mounting of shuttle running rails and pallet lead-in guides at a later stage without replacing the primary vertical column assets.

Request a Certified Engineering Layout & Factory Quote

Collaborate directly with senior structural design engineers. Supply your site dimensions and SKU metrics to receive a turnkey 3D rendering, detailed CAD floor plan, dynamic load calculations, and a direct-from-factory volume price quote within 24 hours.

  • Free 3D CAD Layout & Pallet Density Modeling
  • AS 4084 / EN 15512 Structural Compliance Dossiers
  • Direct Ocean Freight to Any Major Global Port
  • Complete Biosecurity & Custom Clearance Documents

Connect with Engineering Desk

Instant live technical support for distributors, importers, 3PL managers, and general contractors.
