High-Performance Storage & Material Handling Equipment
Engineered for Spanish industrial warehouses, metallurgy fabrication centers, automotive supply chains, and bulk construction material hubs across Madrid, Barcelona, Valencia, and the Basque Country.
Workshop Modular
Tools Storage Rack Wall Display Boards With Hooks Good
- Perforated heavy-gauge steel backing
- High-durability powder coat finish
- Instant accessory reorganization

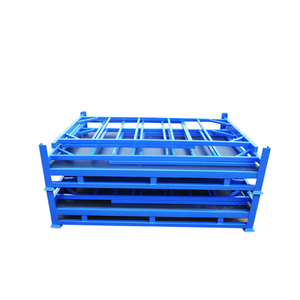

Collapsible Steel
Heavy Plate Stacking Pallet Rack Capacity Tire Racking High Quality Folding Storage Cage Bulk Rotary System
- Up to 2,500 kg dynamic stacking
- Foldable drop-gate for automotive tires
- Hot-dip galvanized & powder options
High Density LIFO
Good Price Q235 Drive in Racking From URGO Storage Rack
- Certified Q235 structural steel rails
- Maximum cube utilization for cold rooms
- Heavy floor guide rails included
500-5000 kg/Level
Mracking 500-5000kgs Per Layer Heavy Duty Rack Adjustable Metal Pallet Rack Warehouse Storage Racking System for Sale
- 75 mm / 50 mm pitch adjustability
- Full beam safety pins & foot protectors
- UNE-EN 15512 static load certified
Boltless Shelving
Factory Warehouse Storage Racks Adjustable 4 Tier Metal Shelving Units Heavy Duty Garage Shelves Racking
- Quick snap-in modular assembly
- Reinforced ribbed steel decking panels
- Ideal for manual picking & spare parts
3000 kg Heavy Pipe
Industrial Heavy Duty Customizable Honeycomb Structure Steel Pipe Profile 3000kg Roll Pipe Storage Rack CE/ISO Certified
- Engineered honeycomb anti-roll frame
- Direct crane & side-loader forklift access
- CE & ISO 9001 certified manufacturing
Prefab Structure
Steel Structure Warehouse Building Prefab Warehouse Steel Structure
- Integrated portal frame & rack-clad roofs
- High-tensile hot-rolled H-section steel
- Eurocode 3 & Eurocode 8 seismic-ready
Intelligent ASRS
Automated Four Way Shuttle Rack ASRS Heavy Duty Steel Iron Anti-Rust Mezzanine Rack Pallet Storage Racking System For Warehouse
- Autonomous 4-directional carrier shuttle
- Seamless WMS/WCS software integration
- Multi-level anti-rust mezzanine options
Structural Design & Calculation Standards for Cantilever Systems in Spain
Heavy-duty cantilever racking represents one of the most mechanically demanding storage configurations in structural logistics. Unlike conventional selective pallet racking systems where cross-aisle and down-aisle tie-beams create rigid framed portals, cantilever racking relies on single or double vertical columns acting as vertical structural cantilevers fixed at their base plates. In Spain, industrial installations must strictly comply with UNE-EN 15635 (Steel static storage systems – Application and maintenance of storage equipment), UNE-EN 15512 (Principles for structural design), and FEM 10.2.02 guidelines.
Our manufacturing plant engineers hot-rolled I-beam (IPE, HEA, HEB profiles) and cold-formed high-tensile column sections using structural carbon steels Q235B and Q355B (equivalent to European standard EN 10025-2 S235JR and S355JR). For demanding Iberian manufacturing environments—such as the extrusion of primary aluminum in Catalonia, heavy bar steel manufacturing in the Basque Country, and long-dimension timber milling across Galicia—the dynamic deflections at the cantilever arm tip must never exceed L/200 under nominal design working load, ensuring safe forklift handling without jamming or structural fatigue.
Furthermore, installations throughout the southern provinces of Spain (notably Granada, Murcia, and Alicante) require seismic validation according to NCSE-02 (Norma de Construcción Sismorresistente) and Eurocode 8 (UNE-EN 1998-1). We calculate dynamic seismic base moments, specify expanded anchor bolt spacing with chemical resin capsule systems, and engineer heavy-duty cross-bracing towers that prevent torsional twisting along the racking run.
| System Parameter | Medium Duty Profile | Heavy Duty (Roll-Formed) | Extra-Heavy Duty (Hot-Rolled IPE/HEA) |
|---|---|---|---|
| Column Height ($H$) | 2,000 mm – 4,500 mm | 3,500 mm – 7,500 mm | 4,000 mm – 12,000 mm |
| Arm Length ($L$) | 500 mm – 1,000 mm | 800 mm – 1,500 mm | 1,000 mm – 2,500 mm |
| Load Capacity / Arm | 250 kg – 600 kg | 600 kg – 1,800 kg | 1,800 kg – 5,000+ kg |
| Steel Grade | Q235B (EN S235JR) | Q355B (EN S355JR) | Q355B / S355JR Heavy Structural Steel |
| Surface Protection | Epoxy Polyester Powder (60–80 μm) | Powder Coated / Pre-Galvanized | Hot-Dip Galvanized (UNE-EN ISO 1461 ≥ 85 μm) |
| Arm Connection | Plug-in Pin Connection | Bolted Clamp / Safety Wedge Pin | High-Tensile Grade 8.8 / 10.9 Flange Bolts |
Localized Applications in Spanish Key Industrial Hubs
Spain possesses a diversified industrial landscape ranging from heavy metallurgical clusters along the northern Atlantic coast to automated distribution hubs servicing the Madrid and Mediterranean corridors.
Metallurgical & Heavy Steel Stockholding
Fabrication shops in Bilbao, Vitoria-Gasteiz, and Gijón handle massive steel structural beams (IPE, HEB), heavy forged bars, and alloy tubing. Our hot-rolled IPE cantilever columns support up to 5,000 kg per arm with welded anti-roll stops and polyurethane arm linings to preserve raw material surface integrity.
- Handling with 4-way sideloader & overhead cranes
- High-tensile grade 8.8 floor anchoring bolts
Aluminium Extrusion & Automotive Components
The manufacturing corridor across Baix Llobregat and Vallès Oriental produces automotive chassis panels, lightweight extruded aluminium profiles, and precision tooling. Cantilever systems here feature adjustable arm pitches at 75 mm intervals with intermediate wire mesh decking to store diversified bundle profiles.
- Scratch-resistant nylon arm caps for finished goods
- High vertical density up to 9,000 mm warehouse clearance
Centralized Building Supplies & Prefab Hubs
Logistics clusters spanning Coslada, San Fernando de Henares, and Illescas serve as Iberian central fulfillment hubs. Racks are optimized for builders' merchants stocking gypsum boards, long timber joists, insulation panels, and PVC drainage conduits with clear aisle allocations for fast order-picking fleets.
- Double-sided cantilever configuration for high throughput
- Full integration with warehouse management barcoding (WMS)
Ceramic Machinery & Extruded Plastic Piping
Serving Castellón's global tile machinery ecosystem and agricultural drip-irrigation pipe manufacturing across the Levant. We provide heavy-duty cantilever racks with cantilever roof canopies for outdoor yards, resisting saline Mediterranean humidity through certified hot-dip galvanizing under UNE-EN ISO 1461.
- Integrated structural roof arms for rain runoff
- Heavy-load base rails designed for direct pipe bundle staging
Aerospace Assembly Parts & Agricultural Infrastructure
Supporting Airbus supply tier subcontractors in Aerópolis (Seville) and naval facilities in Cádiz. Cantilever installations are structurally configured to accommodate long carbon fiber mandrel molds, structural spars, and greenhouse framing steel with seismic safety factors calculated for local seismic hazards.
- Eurocode 8 seismic base plate engineering
- Anti-corrosive powder coatings resistant to high heat & UV
Emerging Warehouse Trends in the Spanish Storage Sector
Market modernization, land scarcity in Tier-1 logistics belts, and European sustainability mandates are shaping purchasing criteria for Iberian facility directors.
Vertical Densification & Narrow-Aisle Sideloader Fleet
Skyrocketing land leasing costs across Madrid's third ring (A-2 and A-42 corridors) and Barcelona's ZAL are compelling warehouse designers to scale cantilever vertical heights from traditional 5-meter setups up to 10–12 meters. Operating in combination with multidirectional reach trucks and electric sideloaders, operating aisle widths are compressed from 4.8 m down to 2.4 m, expanding total storage capacity by over 60%.
Outdoor Racking with Solar Canopy Infrastructure
Driven by corporate decarbonization targets and Spain’s abundant solar irradiation, operators in Andalusia, Extremadura, and Castile-La Mancha are combining outdoor cantilever storage with photovoltaic rooftop structures. Our engineers design cantilever column heads to support PV mounting purlins, transforming heavy pipe and timber stockyards into zero-emission renewable energy generation assets.
Strict Regulatory Compliance with RD 1215/1997 Inspections
Spanish labor health and safety inspectors (Inspección de Trabajo y Seguridad Social) are actively enforcing Real Decreto 1215/1997 and UNE-EN 15635. Warehouse managers must provide verified static load calculation dossiers, visible metal load warning plaques, and record annual technical audits. Sourcing directly from a factory that provides stamped calculation datasheets eliminates civil liability risks.
25 Years of Precision Storage Engineering & Global Supply
Guangzhou Heda Shelves Co., Ltd. was established in 2001. We operate as an engineering-driven manufacturing partner offering unmatched scale, factory-direct pricing, and end-to-end container logistics directly to Spanish sea terminals.
Quarter-Century Heritage
25 years of specialized R&D and cold-rolled / hot-rolled steel storage manufacturing for global projects.
Manufacturing Facility
Modernized automated production workshops equipped with continuous CNC cold roll-forming lines.
Monthly Steel Throughput
Massive monthly steel processing capacity ensuring rapid delivery lead times for large capital projects.
Global Installations
Warehouse and logistics installations successfully delivered and operating across 130+ nations.
In-House 10-Step Quality Production Workflow
Every component shipped to Spain undergoes full internal process control—from certified Baosteel/Shougang raw coils to automated electrostatic powder coating.
Frequently Asked Questions by Spanish Logistics & Plant Managers
Key technical, regulatory, logistics, and customs inquiries addressable before issuing an international RFP for industrial racking.
