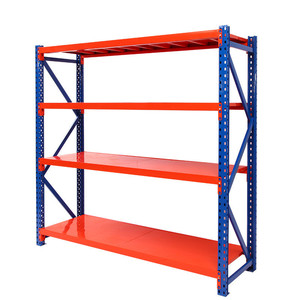

Customized Q235B Cold Rolled Steel Warehouse Medium Duty Long Span Shelving System
300-800 kg/Tier
Q235B Cold Rolled
Adjustable 50mm Pitch
Factory Engineered Racks
Certified Long Span Shelving Systems for Israeli Industrial Warehousing
Precision roll-formed from certified Q235B high-tensile cold-rolled steel. Custom designed to accommodate euro-box picking, open cartons, unpalletized heavy components, and high-density manual distribution hubs across Israel.
Geospatial Logistics & Strategic Storage
Navigating Israel's Logistics Geography: Density Constraints, Land Premiums, and Seaport Dynamics
The State of Israel presents one of the most operationally challenging and economically dense logistics microclimates in the Middle East and Mediterranean basin. With prime warehouse real estate throughout the Gush Dan metropolitan conurbation, Petah Tikva, Modi'in, and Shoham exceeding historical rental benchmarks per square meter, logistics managers, third-party logistics (3PL) providers, and pharmaceutical distribution networks can no longer afford inefficient floor-level staging. Storage optimization is no longer simply about holding SKUs; it is about maximizing vertical volumetric cube efficiency without sacrificing human-scale ergonomics or picking velocities.
Industrial supply chains feeding into Israel rely heavily on maritime container throughput handled by the modern container facilities at the Port of Ashdod and the Bay Port of Haifa. Due to periodic maritime congestion and international shipping recalibrations, Israeli enterprises consistently maintain higher buffer stocks of intermediate assemblies, industrial spare parts, electrical hardware, and medical supplies compared to standard European operators. This high-inventory-velocity reality demands heavy-duty Long Span Shelving Systems characterized by wide clear-entry spans, high uniformly distributed loads (UDL), and rapid reconfigurability without structural downtime.
Central District & Gush Dan Real Estate Squeeze
Warehouses within the Shoham, Ramla, and Holon industrial zones operate under extreme spatial footprints. Our long span systems allow double and triple-tier shelving configurations that expand usable vertical cubage by up to 240% compared to traditional single-tier layouts.
Maritime Port Resiliency (Haifa & Ashdod)
With maritime container dwell times fluctuating, coastal hubs require intermediate staging capable of handling substantial dead loads. Heavy steel roll-formed step beams engineered to support up to 1,000 kg per shelf ensure buffer stock remains secure and ready for high-throughput dispatch.
Silicon Wadi & High-Tech Component Staging
From Yokneam and Herzliya Pituach to Kiryat Gat, clean and ESD-safe sub-tier long span shelving provides electro-statically protected, anti-dust storage for high-value optical components, PCBs, server subracks, and automated pick modules.
Structural Mechanics & Steel Metallurgy
Engineering Architecture of High-Capacity Long Span Shelving Systems
Unlike ordinary light slotted-angle racking or lightweight retail shelving, an industrial Long Span Shelving System engineered for demanding distribution operations is a structural steel marvel designed under stringent mechanical criteria. We construct all load-bearing components utilizing certified Q235B cold-rolled structural steel, exhibiting a nominal yield strength ($f_y$) of 235 MPa and a tensile threshold ($f_u$) between 370 and 500 MPa. This metallurgical base guarantees superior cold-forming plasticity, high fatigue tolerance, and optimal weldability for precision robotics.
Mechanical Upright Column Geometry and Perforation Dynamics
The core structural foundation of our uprights utilizes an omega-profile or multi-faceted roll-formed column geometry (nominal profile cross-sections ranging from 55×47 mm to 60×50 mm with wall thicknesses from 1.5 mm to 2.0 mm). Cold roll-forming introduces work-hardening along the bend radiuses, considerably stiffening the cross-section against torsional buckling and lateral-torsional deflection under asymmetrical manual loading.
Precision CNC automated punching creates multi-functional butterfly or teardrop pitch slots at 50 mm or 75 mm vertical centers. This enables warehouse teams to alter beam levels rapidly without specialized tooling, while mechanical safety locking pins prevent accidental beam dislodgement caused by manual lifting or carton handling gear.
| Component / Parameter | Standard Specification | Heavy-Duty Israeli Spec | Structural Benefit / Compliance Impact |
|---|---|---|---|
| Primary Raw Material | Commercial Grade SPCC | Q235B Cold-Rolled Carbon Steel | High tensile resilience; ductile response under sustained load (FEM 10.2.06) |
| Upright Profile Section | 50 × 40 × 1.2 mm | 55 × 47 × 1.5–1.8 mm (Omega) | Superior radius of gyration, preventing localized torsional section buckling |
| Step Beam Cross-Section | 50 × 30 × 1.2 mm Tube | 60 × 40 × 1.5 mm to 80 × 50 P-Beam | Optimized step recess supports flush galvanized panels or heavy drop-in wire decks |
| Deflection Limit Ratio | L / 150 at max UDL | L / 200 (Rigid Deflection Criterion) | Eliminates visible shelf sag, preventing product displacement during pick cycles |
| Surface Pre-Treatment | Solvent Degreasing only | Continuous Acid Pickling & Phosphating | Guarantees complete rust removal and molecular phosphate bonding pre-powder coat |
| Corrosion Resistance Standard | Standard Indoor Paint | Electrostatic Epoxy-Polyester (60–90μm) | Withstands marine atmospheric salinity along coastal regions (Tel Aviv & Haifa) |
Seismic Design Considerations Along the Dead Sea Rift (SI 413 Awareness)
Israel sits directly adjacent to the active Dead Sea Transform (Syro-African Rift System), an active tectonic boundary running from the Gulf of Eilat through the Jordan Valley to northern Galilee. Consequently, warehouse infrastructure constructed throughout the Jordan Valley, Be'er Sheva, the Arava, and eastern logistics zones must integrate structural awareness aligning with Israeli Standard SI 413 (Design Provisions for Earthquake Resistance of Structures).
Our engineering team provides dynamic structural engineering packages that account for peak ground acceleration ($a_g$) coefficients. We reinforce long span installations by supplying enlarged, cold-stamped seismic baseplates with twin chemical M10/M12 anchoring holes, heavy tubular X-bracing in the rear upright bays, top-tie structural portal ties, and row-spacer connectors that unify back-to-back runs into a rigid hyperstatic spatial lattice capable of dissipating lateral seismic ground waves without frame collapse.
Application Engineering
Tailored Application Scenarios Across Key Israeli Industries
Engineered configurations designed specifically to address the SKU architectures, environmental variables, and pick methodologies unique to Israeli enterprise sectors.
Hi-Tech & Electronics Staging
Designed for the specialized tech parks of Haifa Matam and Tel Aviv. Features anti-static dissipative steel shelving, clear drop-in divider partitions, and integrated wire mesh decking for storing server spares, micro-electronics, and sub-assemblies.
Pharma & Medical Devices
Serving pharmaceutical distribution centers in Petah Tikva and Netanya. Surfaces finished in ultra-smooth, antimicrobial powder coat resistant to frequent hospital-grade chemical washdowns and cleanroom air handling standards.
Automotive & Machinery Spares
Heavy clear-span shelves up to 2,700 mm wide capable of supporting brake drums, engine blocks, hydraulic pumps, and unboxed hardware parts. Up to 800 kg uniformly distributed capacity per beam tier.
Fast-Moving E-Commerce Hubs
Direct response to the post-pandemic digital retail explosion in Central Israel. Configured with carton-flow inclined roller tracks, pick-to-light bracket channels, and modular bins for multi-SKU split-case picking efficiency.
Market Intelligence & Future Outlook
Technological & Operational Trends Driving Shelving Upgrades in Israel
The industrial intralogistics sector in Israel is undergoing a rapid, structural transformation. Facing tight labor markets, high municipal property tax structures (Arnona), and an unyielding requirement for next-day domestic home delivery across the northern and southern districts, operations directors are shifting investments toward hybridized storage infrastructures.
1. Convergence with Autonomous Mobile Robots (AMRs)
Rather than maintaining static manual picking aisles, leading logistics operators in Modi'in and Shoham are deploying "Person-to-Goods" and "Goods-to-Person" AMRs. Our long span systems are engineered with flush ground-clearance base configurations, precise aisle-entry tolerancing, and rigid perimeter guidance barriers that accommodate robotic transit paths seamlessly.

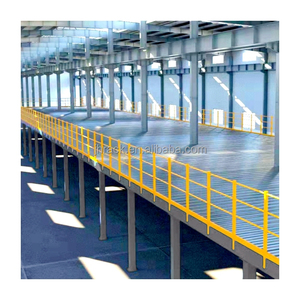

2. Multi-Tier Rack-Supported Catwalk Platforms
To circumvent the prohibitive costs of expanding horizontal footprints, developers are leveraging multi-level long span catwalk mezzanines. By utilizing the heavy upright columns as structural posts to support intermediate steel grating floors, warehouses convert a 6-meter ceiling height into three functional picking levels, multiplying operational throughput without requiring building extension permits.
3. Strict Compliance with Israel Fire & Rescue Regulations
Under Fire Authority directives and the Standard 1596 sprinkler guidelines, solid wood or solid steel shelves can impede overhead sprinkler water penetration in high-density rack runs. We furnish open-grid electro-galvanized wire mesh decking (offering >70% open area), satisfying fire suppression protocols while providing robust support for non-uniform totes.
Manufacturing Might & Quality Governance
25 Years of Factory-Direct Engineering Excellence
Supplying robust, internationally accredited racking and shelving systems from our state-of-the-art 30,000 m² smart manufacturing plant directly to the Israeli industrial base.
Rigorous 10-Stage Precision Fabrication Workflow
Every beam, upright column, brace, and shelf leaving our fabrication facility undergoes a documented 10-stage quality process. We maintain complete metallurgical traceability from raw coil inspection to seaworthy export container loading:
01
Coil Inspection
Spectrographic & tensile verification of raw Q235B coils
02
Precision Slitting
High-speed rotary longitudinal shearing to exact strip tolerances
03
CNC Punching
Continuous high-speed synchronized pitch hole punch line
04
Cold Roll-Form
24-stand roller progressive profile cold forming sequence
05
Step Forming
Dedicated profile tooling for recessed step & box beams
06
Deburring & Polish
Automated edge dressing to eliminate sharp edge burrs
07
Robotic Welding
CO2 gas-shielded automated welding of beam connector jaws
08
Pickling/Phosphate
Full immersion bath treatment for chemical rust removal
09
Powder Coating
Electrostatic powder line cured at 180°C–200°C chamber heat
10
QC & Stowage
Load testing, strapping, steel stillage export crating
Certifications, Quality Assurance & Export Protocols
Our production systems adhere strictly to verified global standards, including ISO 9001:2015 Quality Management (Certificate No. 18624Q00169R0M) and European CE Marking (Certificate No. 2435-CPR-8605159) under EN 1090 structural steel fabrication rules. Additionally, our pre-treatment and cured coatings meet rigorous RoHS environmental directives, ensuring non-toxic, lead-free installation in food storage, pharmaceutical logistics, and indoor cleanroom fulfillment sites.
For shipments destined for Israeli logistics companies, systems are packed in heavy-duty welded steel stillages and fumigation-free ISPM-15 compliant shipping crates. Comprehensive container stowage planning maximizes volumetric stuffing in 40ft High Cube (40HQ) containers, significantly reducing per-unit maritime freight overheads across shipping routes from South China ports to Haifa and Ashdod.
Procurement & Engineering Due Diligence
Frequently Asked Questions (FAQ) for Israeli Procurement Teams
Detailed answers addressing engineering validation, local Israeli regulatory compliance, customs tariffs, concrete floor anchor requirements, and sea freight logistics.
1. How does your long span shelving comply with Israeli Standards (SII) and local warehouse safety codes?
Our shelving systems are engineered according to European EN 15512 and FEM 10.2.06 calculation principles, which form the technical basis widely recognized by structural engineers in Israel and the Standards Institution of Israel (SII - מכון התקנים הישראלי). For every project, we supply comprehensive structural calculation sheets, steel mill test certificates (Q235B chemistry and mechanical yield/tensile proofs), beam deflection tables ($L/200$), and permissible column loads. This documentation allows your certified local Israeli structural engineer (מהנדס קונסטרוקציה) to review, sign off, and submit designs to municipal planning authorities and insurance underwriters smoothly.
2. What are the typical ocean freight transit durations and customs clearance procedures for Ashdod or Haifa?
Transit times for maritime container cargo shipped from South China ports (such as Nansha, Yantian, or Shekou) to the Port of Ashdod or the Port of Haifa generally span between 22 and 35 days, depending on carrier routing, direct versus transshipment calls, and Red Sea/Suez routing arrangements. We supply complete commercial documentation—including commercial invoices, detailed packing lists with component itemization, bill of lading (B/L), and Certificate of Origin—under Harmonized System (HS) Code 7308.90 (Structures and parts of structures of iron or steel). This expedites processing by your Israeli customs clearing agent (עמיל מכס).
3. How are our concrete slab characteristics evaluated for anchor bolt pull-out in Israeli facilities?
Industrial concrete warehouse slabs in Israel typically meet compressive strength ratings of B25 or B30 (equivalent to C20/25 or C25/30 under EN 206). Our structural baseplates feature pre-drilled anchoring slots tailored for heavy-duty mechanical expansion bolts or chemical ETA-approved concrete anchors (such as M10×80 mm or M12×100 mm). We provide baseplate point-load calculations ($kN/m^2$) so your facility manager can verify slab punching shear limits and confirm minimum slab depth (typically 150 mm–200 mm reinforced concrete) before installation.
4. What finishes do you recommend for installations near the Mediterranean coastline versus arid desert zones?
For warehouses located within 10 km of the Mediterranean coastline (e.g., Haifa Bay, Ashdod, Tel Aviv, Netanya), airborne salinity significantly increases metal oxidation risks. We recommend our heavy-duty electrostatic polyester-epoxy hybrid powder coating applied over a chemical phosphate conversion wash, yielding a durable 60–90 micron dry film thickness. For unconditioned or semi-open coastal yards, hot-dip galvanized (HDG) steel components provide permanent zinc barrier protection. Conversely, for dry, dust-prone inland or desert environments like Be'er Sheva, Kiryat Gat, and the Arava, our standard scratch-resistant thermoset powder coating provides exceptional UV stability and abrasion defense.
5. Can you provide turnkey 2D/3D CAD layouts and assembly guidance in English or Hebrew formats?
Yes. Our dedicated in-house engineering team uses advanced BIM and AutoCAD software to produce comprehensive 2D floor plans, 3D perspective models, and elevation cross-sections showing exact picking aisle widths, column clearance buffers, flue spaces, and maximum load ratings. We deliver these design packs within 24–48 hours of receiving your warehouse architectural drawing (.DWG or .PDF). All drawings, assembly instructions, and component tags are provided in clear English, with customized bilingual numbering tags available upon request to assist local installation teams.
Optimize Your Israeli Warehouse Storage Footprint Today
Connect directly with our senior intralogistics structural engineers. Provide your warehouse dimensions, clear ceiling heights, and SKU storage requirements to receive a customized 3D CAD layout and quotation within 24 hours.
