High-Efficiency Shelving & Industrial Pallet Racking Portfolio
Manufactured under strict ISO 9001:2015 and CE quality frameworks. Engineered with high-tensile Q235B/Q355B cold-rolled steel, custom-tailored to withstand intense throughput across Mercosur supply chain corridors.
Non-Standard Customized Wire Decking & Shelves
Welded steel wire mesh decking designed for fire sprinkler compliance, loose carton storage, and non-standard pallet safety containment.
View Technical Details →
EURO Standard Heavy Duty Pallet Racking
High-capacity selective beam racking optimized for 1200x800mm Euro pallets and 1200x1000mm industrial loads in cross-dock distribution hubs.
View Technical Details →
Industrial Drive-In Pallet Rack Storage System
Continuous lane high-density LIFO architecture engineered specifically to eliminate aisles and minimize refrigeration energy inside cold rooms.
View Technical Details →

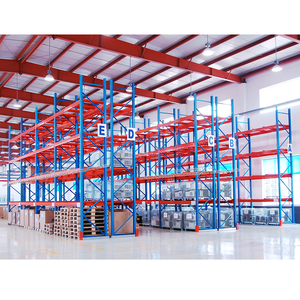

Selective Industrial Warehouse Pallet Racking
Configurable 4-to-8 tier structural frameworks offering direct 100% pallet accessibility for high-turnover logistics operators and retail distribution centers.
View Technical Details →

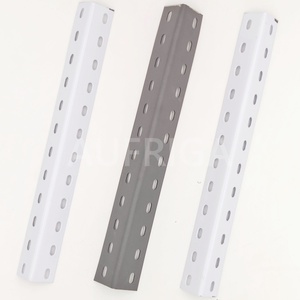

Adjustable Slotted Angle Light Duty Steel Shelving
Versatile, modular shelving with multi-hole pitch adjustments, ideal for small component picking, automotive bins, and workshop tool storage.
View Technical Details →
Radio Pallet Shuttle Deep-Lane Racking System
Intelligent robotic shuttle carts transport pallets inside deep storage channels without forklift entry, speeding cycle times and eliminating rack impacts.
View Technical Details →
Gravity Pallet Flow Roller Racking System
Sloped roller bed engineering utilizing natural gravity to cycle pallets smoothly from replenishment rear aisles to front retrieval faces with automated speed brakes.
View Technical Details →
3000KG Custom Steel Deck Warehouse Shelving
Heavy-duty rolled steel plate decking supported by multi-rib beams, built to support heavy irregular machinery parts, die storage, and heavy plastic containers.
View Technical Details →Optimizing Warehouse Cube Utilization Across Uruguayan Supply Chains
A technical overview of structural steel storage standards, humidity corrosion protection, and logistics footprint rationalization for Uruguayan supply operations.
Structural Load Standards & Deflection Mechanics
In modern industrial facilities throughout Montevideo and Canelones, vertical air-rights maximization is the most direct method to suppress surging square-meter land lease costs. When deploying shelving for pallet racking, engineering teams must evaluate beam deflection limits under maximum allowable uniform distributed loads (UDL). In accordance with international EN 15512 and RMI specifications, our systems maintain a strict deflection limit of L/200, ensuring zero structural fatigue under extreme cycles.
| Racking Topology | Standard Pallet Compatibility | Load Capacity (per tier) | Aisle Width (AST) | Typical Uruguay Operational Fit |
|---|---|---|---|---|
| Selective Pallet Racking | 1200x800, 1200x1000, 1200x1200mm | 1,000 kg – 4,000 kg | 3.0m – 3.8m | Fast-moving consumer goods (FMCG), general 3PL hubs |
| Drive-In / Drive-Through | 1200x1000mm standard entry | 800 kg – 1,500 kg | Forklift footprint only | Cold storage (beef exports, dairy processing, frozen fish) |
| Radio Shuttle Automation | All standard pallet formats | 500 kg – 1,800 kg | Transfer bay only | Pharmaceutical bonded warehouses, mega food packaging |
| Gravity Pallet Flow | Rigid bottom runner pallets | 500 kg – 1,200 kg | Separate loading/pick | Strict FIFO perishable handling, pharmaceutical buffers |
| Heavy-Duty Cantilever | Bundles, bars, sheet timber | 1,000 kg – 3,000 kg (arm) | 3.5m – 4.5m | Forestry mills (Rivera/Tacuarembó), steel service centers |
Furthermore, coastal installations along the Río de la Plata and the Atlantic coastline require precise anti-corrosion specifications. Standard electrostatic epoxy-polyester powder coating (60–80 microns thickness) provides exceptional indoor durability, while our continuous pre-treatment—comprising alkaline degreasing, zinc phosphating, and deionized water rinsing—guarantees superior adhesion and salt-spray resistance across changing seasonal humidity levels.
Tailored Racking Scenarios for Uruguay's Core Industries
Uruguay's status as a regional multimodal logistics hub demands highly specialized storage infrastructure. Below is how our racking architectures solve exact storage bottlenecks across key local industries.
Free Trade Zones (Zonas Francas) & Zonamerica
Bonded warehouses operating inside Zonamerica, Parque de las Ciencias, and WTC Free Zone demand agile, high-density modular racking that accommodates shifting multinational client SKU inventories without extensive civil alterations. Our boltless adjustable selective racks allow beam reconfiguration at 50mm increments in minutes.
Refrigerated Beef & Dairy Cold Storage
Uruguay is globally recognized for high-grade beef and dairy exports. Refrigerated warehousing in San José and Canelones demands maximum cubic volume efficiency to minimize kW cooling expenditure. Drive-In racking and Radio Shuttle systems eliminate wasted aisle space, functioning seamlessly down to -30°C.
Port of Montevideo Multimodal Freight Transshipment
Positioned as the ocean gateway to the Hidrovía Paraná-Paraguay waterway system, the Port of Montevideo relies heavily on heavy-duty selective systems with steel wire mesh decks to consolidate break-bulk cargo and transshipment container goods arriving from Argentina, Bolivia, and Brazil.
Agrochemical, Grain & Fertilizer Distribution
Agricultural enterprises in Soriano, Colonia, and Paysandú store bulk super-sacks (big bags), boxed pesticides, and seed bags. Reinforced pallet racking with secondary wire decking guarantees structural stability under concentrated point loads while maintaining leak containment clearances.
Forestry, Cellulose Pulp & Wood Processing
With massive pulp mills (UPM and Montes del Plata) anchoring the domestic economy, heavy-duty industrial cantilever racks support finished lumber bundles, long timber profiles, and spare heavy equipment parts in Tacuarembó, Rivera, and Fray Bentos.
Retail, Supermarket Chains & E-Commerce DC
Major department stores and grocery chains in Greater Montevideo operate hybrid distribution hubs. Lower levels utilize slotted angle or medium-duty step beam shelving for fast ergonomic hand-picking, while upper tiers store full pallet backstock under high-density configurations.
Emerging Warehouse & Intralogistics Trends in Uruguay (2025–2030)
Analysis of infrastructure modernizations driving the next generation of warehouse racking investments across the Oriental Republic of Uruguay.
The Central Railway (Ferrocarril Central) Impact
The revitalized rail corridor connecting Paso de los Toros to Montevideo Port has stimulated industrial park developments along Route 5. Facilities along this corridor are standardizing on tall vertical racking systems (exceeding 10m clear heights) to handle higher throughput bulk container rail deliveries.
Transition to Semi-Automated Warehousing
Rising labor wages and strict occupational health requirements (MTSS) are accelerating the migration from traditional manual forklifts to Radio Pallet Shuttles and Very Narrow Aisle (VNA) systems, minimizing operator travel distances and mitigating workplace collisions.
Nearshoring & Southern Cone Free Port Advantages
Uruguay's unique "Free Port" regulations allow goods to be received, transformed, and re-exported without customs duties. International distribution companies are prioritizing reconfigurable, multi-tier racking to handle diverse pallet sizes without structural replacement.
Why Major Latin American Importers Rely On Our Manufacturing
Direct from our state-of-the-art 30,000 m² facility. We combine advanced German roll-forming engineering with high-capacity powder coating lines to deliver unmatched supply reliability.
Complimentary 3D CAD & Engineering Layouts
Our licensed structural engineers deliver custom 2D warehouse blueprints and full 3D layout renderings within 24 hours. We evaluate building column spacing, forklift turning radiuses (AST), and smoke evacuation clearance without upfront design fees.
CE & ISO 9001:2015 International Certification
Every beam, upright column, and wire deck conforms to European EN standards and holds CE Certification (No. 2435-CPR-8605159) alongside ISO 9001:2015 accreditation (No. 18624Q00169R0M), guaranteeing seamless audit approval by local Uruguayan structural inspectors.
Export-Grade Steel Stillage Packaging
Ocean shipments traversing trans-Atlantic voyages face high salt air and handling stresses. We secure components on custom heavy steel frames with waterproof shrink protection, ensuring zero bending, surface scratching, or moisture damage upon arrival at Montevideo Port.
Our End-to-End Quality-Controlled Production Flow
From raw coil inspection to containerized shipping, every step is executed in-house.
Raw Material
Q235B/Q355B tensile & thickness verification.
Laser & Shearing
Automated high-precision blanking lines.
CNC Punching
Multi-station automated column hole dies.
Roll Forming
Precision 24-station cold-bending profile lines.
Robotic Welding
Seamless 4-claw connector automatic arc welds.
Surface Pickling
Multi-stage acid cleaning & rust removal.
Phosphating
Anti-oxidation crystalline chemical coating.
Powder Coating
Electrostatic spray curing at 200°C chamber.
Full QA Inspection
Load tests, paint gauge & weld verification.
Container Stowage
Heavy steel stillage bundles ready for sea.
Frequently Asked Questions by Warehouse Operators in Uruguay
Everything you need to know about sea transit times, customs clearance in Montevideo, local installation, and structural safety standards.
What is the average ocean freight transit time from your factory to Montevideo?
Are your racking systems compliant with Uruguayan and Mercosur seismic requirements?
Can your pallet racking handle both Euro (1200x800) and Mercosur (1200x1000) pallets?
How are customs documentation and import tariffs handled for shipments into Uruguay?
Do you offer installation guidance or on-site supervision in Uruguay?
How do your surface coatings perform against humidity in coastal logistics hubs?
Plan Your Uruguayan Warehouse Racking Project with Confidence
Send our senior engineering team your warehouse architectural floor plan, ceiling clear height, forklift model, and pallet specifications. Receive a free 3D CAD visualization and formal engineering quotation within 24 hours.
