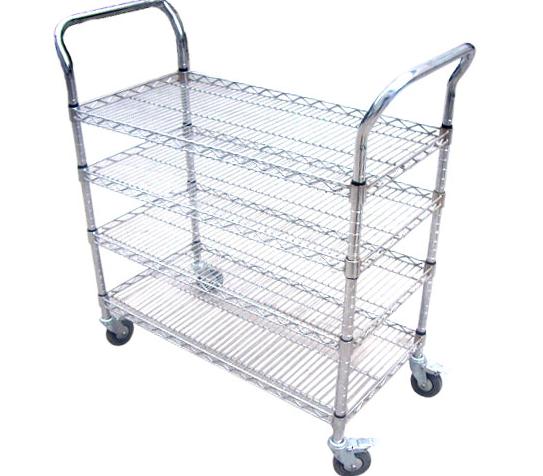

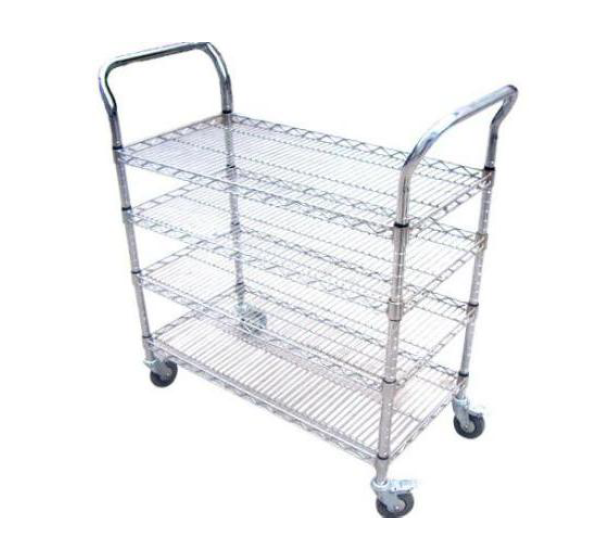

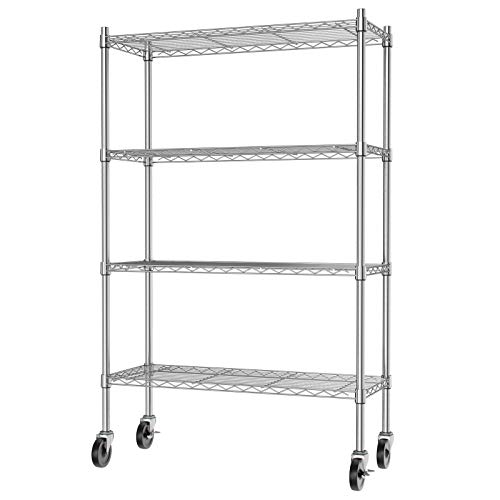

4 Layers Industrial Chrome Wire Basket ESD Shelf Trolley With Handrail
Product Description
★
Key Features & Specifications
- 01 Metal trolleys and shelving to help control the ESD risks of internal transport and storage inside the EPA.

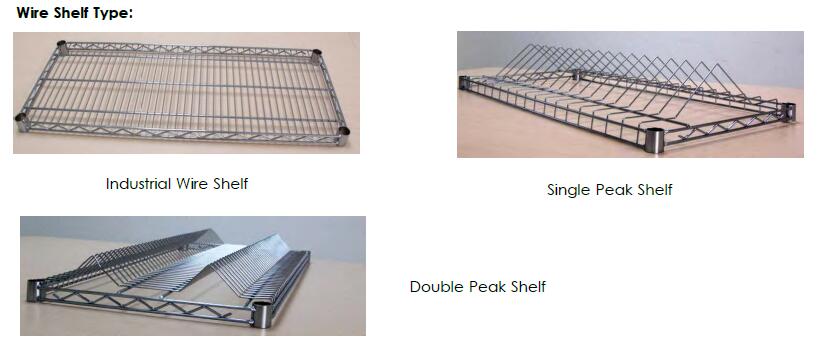

- 02 Shelving and trolleys feature chrome plated wire shelves.
- 03 About layers: 4 shelves per trolley, other requirements available.
- 04 About castors: 2 braked and 2 unbraked castors (each castor capacity 70kgs).
- 05 Trolley height 1500mm, other sizes request is available.
- 06 Note: All ESD trolleys have 2 ESD castors and metal collars.
▦
Standard Dimension Matrix (mm)
| (L) × (W) | 24″ | 26″ | 36″ | 42″ | 48″ |
|---|---|---|---|---|---|
| 14″ | 350 × 600 | 350 × 750 | 350 × 900 | 350 × 1050 | 350 × 1200 |
| 18″ | 450 × 600 | 450 × 750 | 450 × 900 | 450 × 1050 | 450 × 1200 |
| 21″ | 530 × 600 | 530 × 750 | 530 × 900 | 530 × 1050 | 530 × 1200 |
| 24″ | 600 × 600 | 600 × 750 | 600 × 900 | 600 × 1050 | 600 × 1200 |
| (H) | 940mm | ||||
⚙
Technical Specifications
| Brand Name | Herzesd | Model Number | HZ-28102 |
| Place of Origin | Shanghai, China | Type | Multi-Level |
| Material | Chrome Plated, Chrome Plated Carbon Steel; #201; #304 | ||
| Feature | ESD Protection | Use & Usage | Industrial / Electronic Workshop |
| Depth | 0.6-0.8mm | Weight Capacity | 200kg/layer |
| Width | 600mm | Height | 940mm |
| Caster | 4 Inch Caster With Brake | Color / Size | Silver / Customized |
📷
Product Gallery
🛡
ESD Protection & Solutions
Why You Need ESD Protection For Your Production Line
ESD (Electrostatic Discharge) is an effect we may all experience when simply removing an article of clothing, but a static buildup and discharge when working with electronics can cause potential damage to components and latent failure of the printed circuit board.
Before buying or implementing ESD safe products, one needs to implement an ESD safe procedure according to ESD Standards IEC 61340 or ANSI S2020, which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
What We Are Offering
ESD Package: Shielding Bag, EVA Foam, PU Foam, IXPE Foam, PP Corrugated Box, Tapes, Blister, Pallets, Bin Box, Tray.
ESD Mats: Table Mats, Floor Mats, Anti-Fatigue Mat, PVC Tile.
ESD SMT Circulation: Magazine Rack, PCB Circulation Rack, Reel Rack, Trolley, Storage Wire Shelf, Wire Shelf Trolley.
Grounding: ESD Wrist Straps, Grounders, Plugs.
ESD Apparel: Smock, Jacket, Shoes, Boots, Caps, Gloves.
ESD Tools: Brushes, Tweezers, Office Supplies, ESD Test Equipment, etc.
Why Choose HerzESD?
HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better means contradicting a more established but sometimes flawed opinion on the market.
At HerzESD, we pride ourselves on ensuring the only correct ESD solution. To continue this vision, we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner, and together with our international partners, we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
❓
Frequently Asked Questions (FAQ)
Q1: How do ESD wire trolleys control static discharge within an EPA?
ESD wire trolleys feature conductive metal collars and conductive ESD castors that allow static charges to safely dissipate to ESD flooring, preventing static accumulation that could damage sensitive components.
Q2: What is the load capacity of each trolley layer?
The shelf layer supports up to 200 kg per layer under distributed load, and each individual castor has a rated capacity of 70 kg.
Q3: Can the trolley dimensions and number of shelves be customized?
Yes, although standard configurations feature 4 shelves and a height of 940mm to 1500mm, custom dimensions, shelf counts, and materials (#201, #304 stainless steel, or chrome-plated carbon steel) are available.
Q4: Are the wheels safe for cleanrooms and electronic workshops?
Yes, the 4-inch casters include 2 braked and 2 unbraked models, equipped with 2 ESD-conductive castors to ensure stable mobility and static grounding in industrial workshop environments.
Q5: Which ESD international standards are these products designed to meet?
Our ESD protective equipment and trolleys follow procedures aligned with international standards IEC 61340 and ANSI/ESD S20.20 to guarantee effective preventive static control.
