Heavy Duty Galvanised External Adjustable Metal Cantilever Racks
Product Description
Product Description
Cantilever Racking

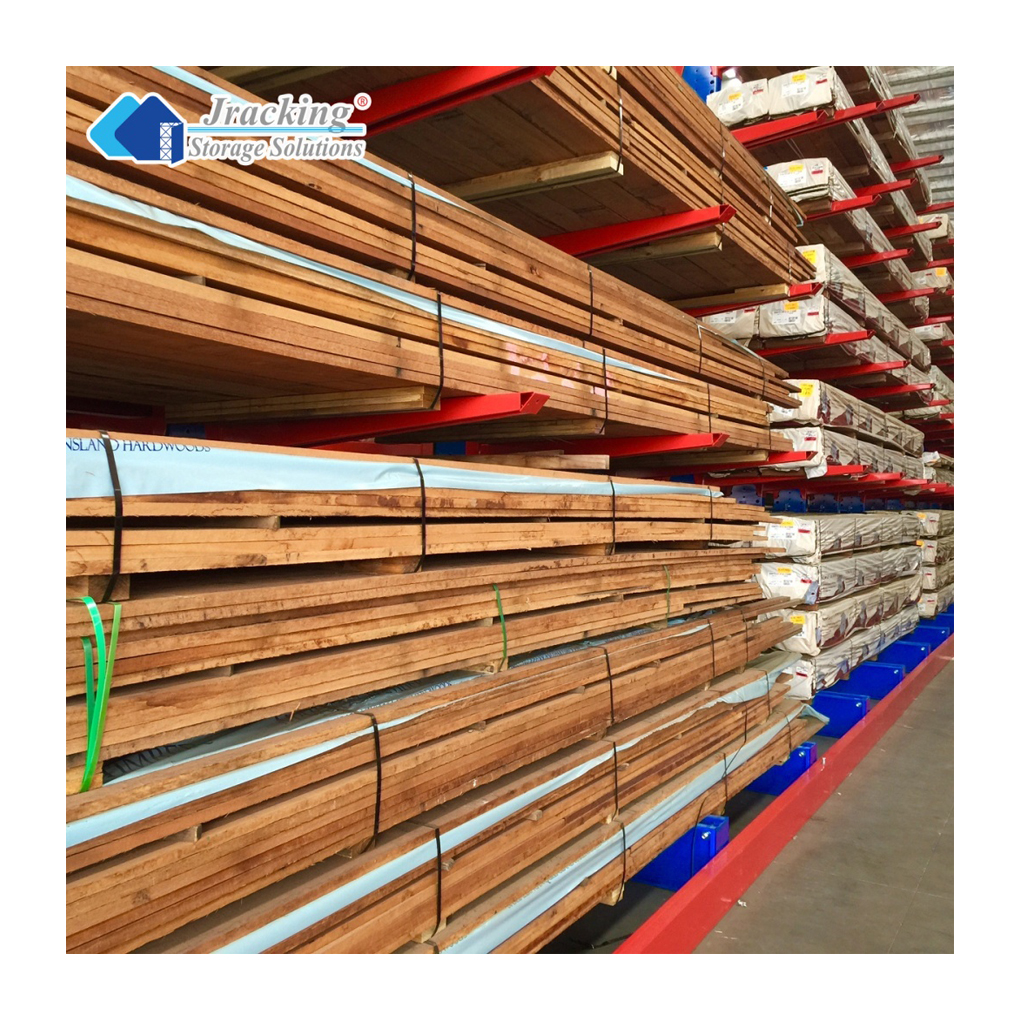

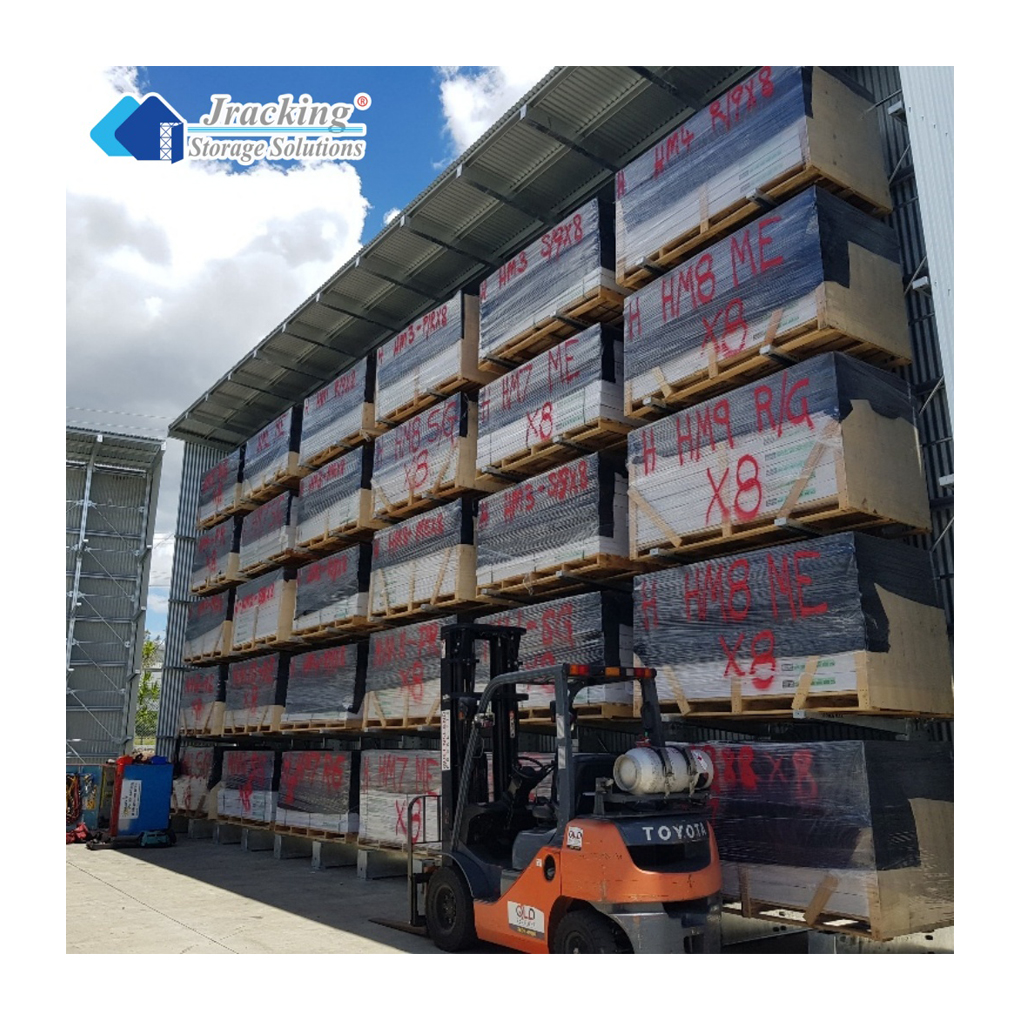

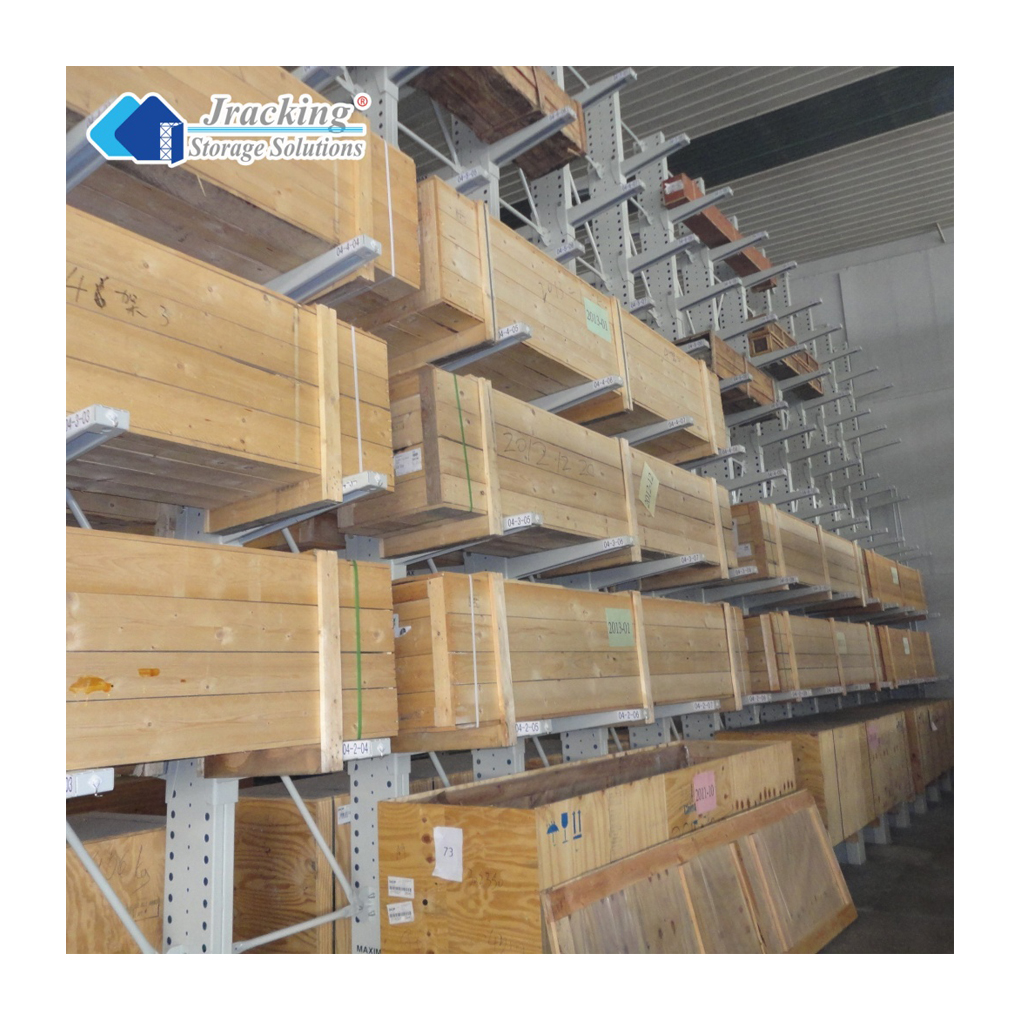

Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking and providing a clear opening in front of rack. Jracking cantilever racking is used around the world. We can tailor-make according to goods size and warehouse space. We can provide various column heights, arm lengths, base lengths (single or double sided) to ensure an ideal solution for your warehouse.
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Product Display
Brief Introduction

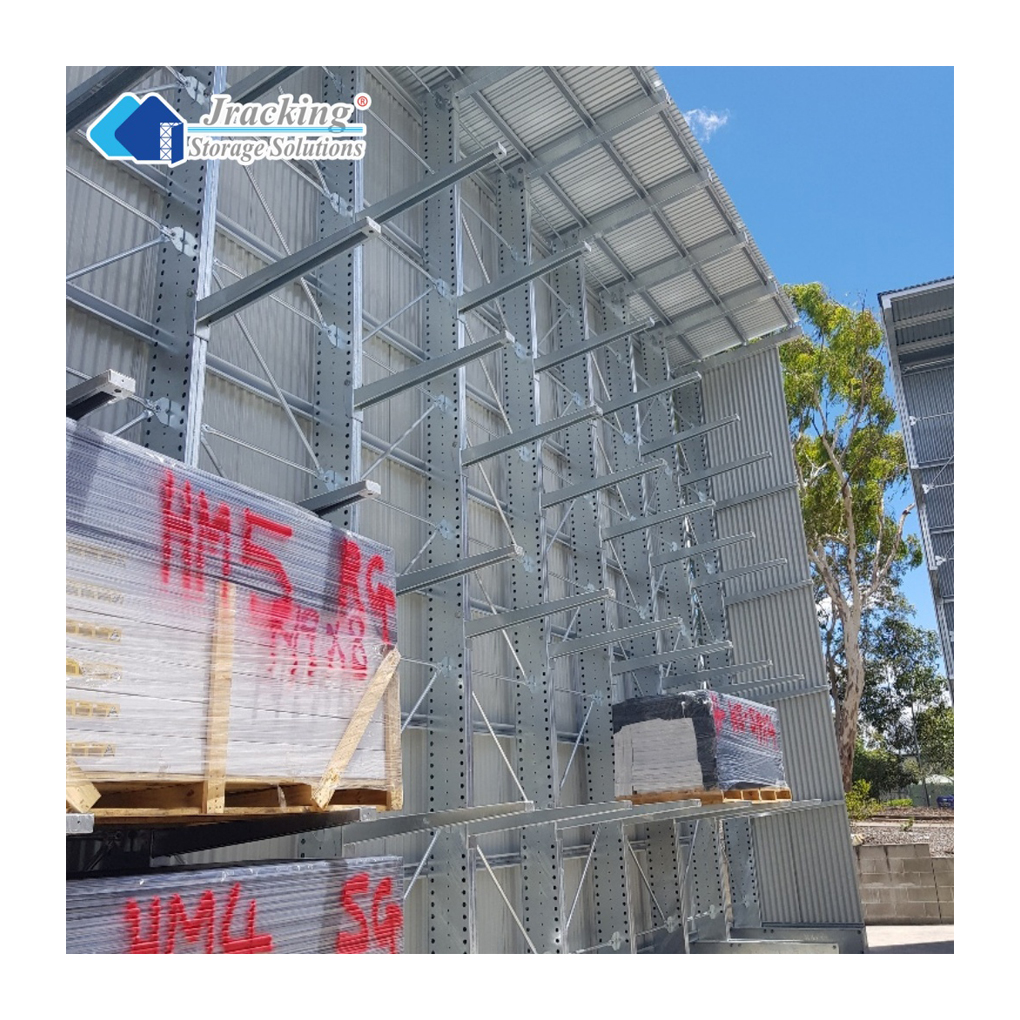

Jracking Cantilever Rack is designed with C/C roll-formed upright column of hot-rolled coil, while arm and column are bolted connected by lifting lug. The base is a welded single unit to be bolted with column. Adjustable diagonal flats and connecting bar is designed to improve the whole stability. Both single-side and double-side bases are available to meet different storage requirements.
Advantages
1. Exceeding 6m height is available, the highest column is able to reach 10.5m.
2. Heavy loading, loading of single-arm can up to 1500kg.
3. Keep selling to Australia market more than 10 years.
4. Long and irregular material goods stored.
5. Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
6. Except from the regular size, the longest arm can last to 3m.

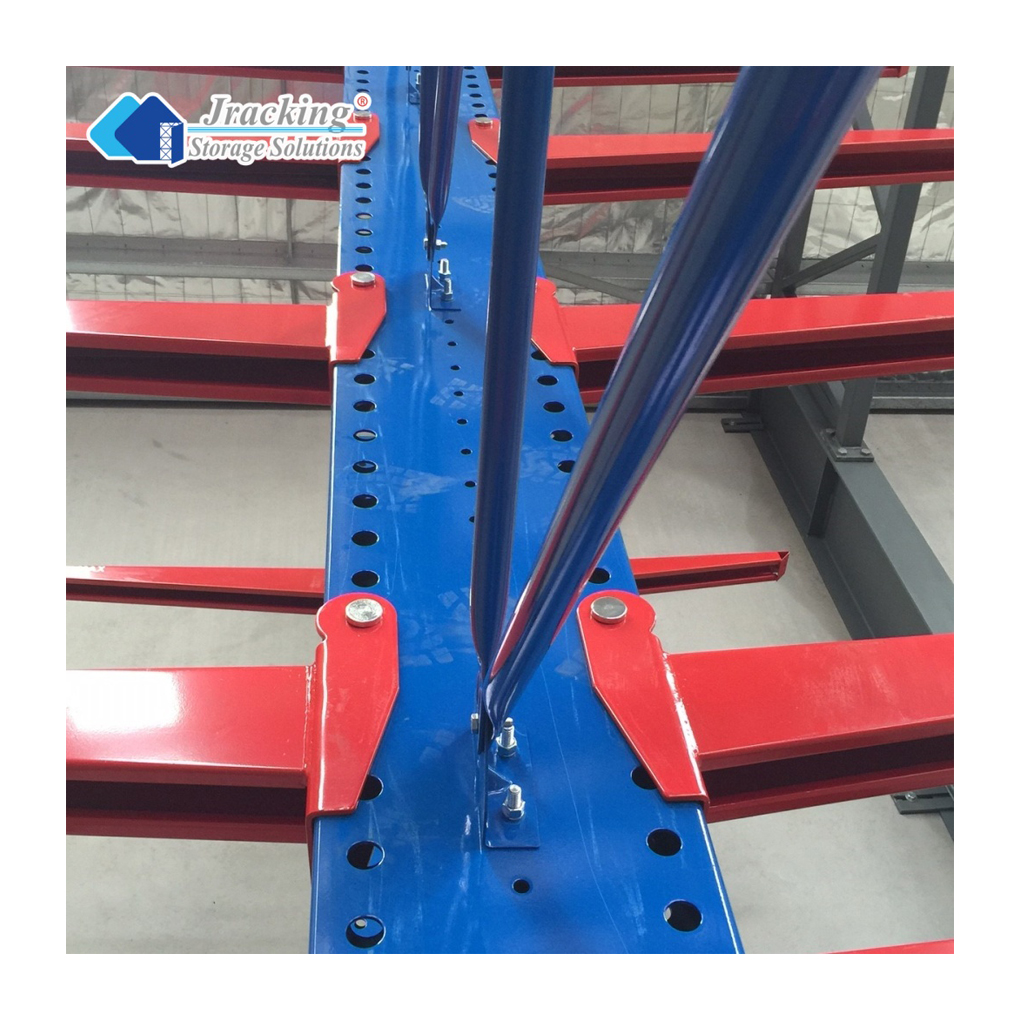

7. The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.
Technical Specifications
| Component | Specification | Length |
|---|---|---|
| Arm | H120 | 800-2000mm |
| H150 | ||
| H180 |
| Item | Dimension | C/C Distance |
|---|---|---|
| H-bracing | 60x30x2.5 | 500mm-2000mm |
| X-bracing | Φ32x1.5 |
C/C distance 1000, 1200, 1400, 1600, 1800, 2000.
Other specific dimension also can be customized as request.
Get more information here >>
Product Categories
Company Profile
Certifications
Production Process
FAQ
What types of goods are most suitable for Cantilever Racking?
Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing, lumber, and other oversized materials, by eliminating front upright obstructions to offer clear openings.
What are the load capacity and dimensions available?
Our cantilever racking supports standard capacities of 1000kg/arm, with heavy-duty loading reaching up to 1500kg per single arm. Column heights can reach up to 10.5m, and arm lengths range from 800mm to 3m. Dimensions are fully customizable.
What special design features ensure structural safety?
Our arms feature a 2° uptilt design to ensure goods do not tilt downwards under load. Furthermore, the bolted connection between column and arm via lifting lugs is specifically engineered to mitigate impact during forklift operation.
What surface treatment and materials are used?
The racks are fabricated from high-grade Q235B steel. Surface finishes include durable Powder Coating as well as Hot Dip Galvanizing to suit different environmental requirements.
What certifications do your racking systems comply with?
Our cantilever racking meets stringent international standards and is certified with RMI, CE, ISO, TUV, and AS4084-2012, backed by over 10 years of supply experience in the Australian and global markets.
What is the MOQ and sample policy?
Our standard MOQ is one 20ft or 40ft container. Free samples are available upon request, with delivery costs covered by the buyer. OEM solutions are fully supported.
