industrial galvanized steel rack heavy duty pallet racking system VNA/double deep high density warehouse storage racks
Product Description
Heavy Duty Storage Solution
Industrial Galvanized Steel Warehouse Pallet Racking System
Technical Specifications
| Product Name | Dexion type in Australia steel used pallet racking craigslist | ||
| Brand | KINGMORE | Material | Q235B Steel |
| Color Options | RAL system | Style | Heavy Duty Selective Shelf |
| Certification | RMI / CE / ISO / TUV / AS4084-2012 | Structure | Assembled Freely |
| Load Capacity | Maximum 4500kg / level | Height | Maximum 12000mm |
| Width Range | 1350mm - 3900mm | Thickness | 1.5mm - 3.0mm |
| Usage Scope | Warehouse Storage | Size Details | Customer Size / Customizable |
| Port of Loading | Nanjing / Shanghai | Packing | Customers' Request |

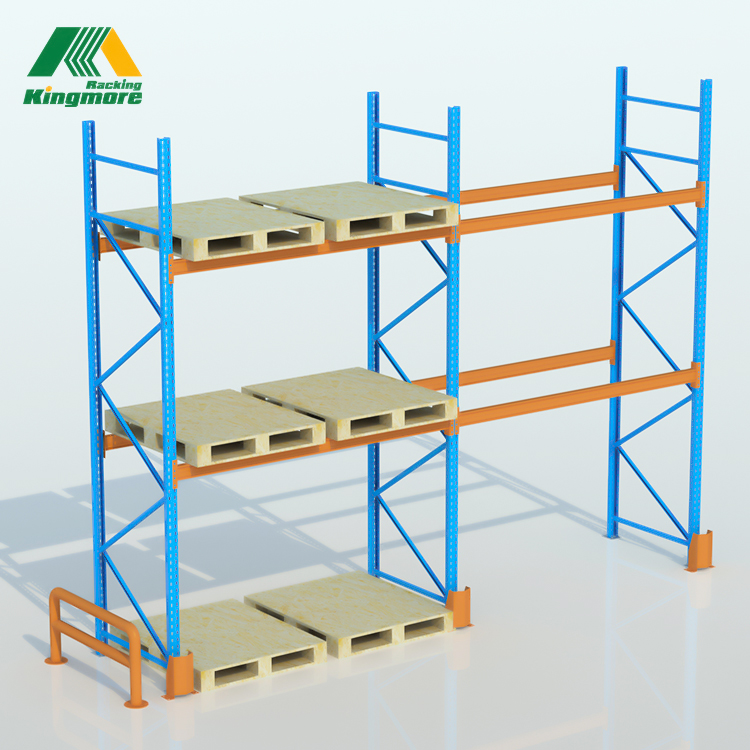

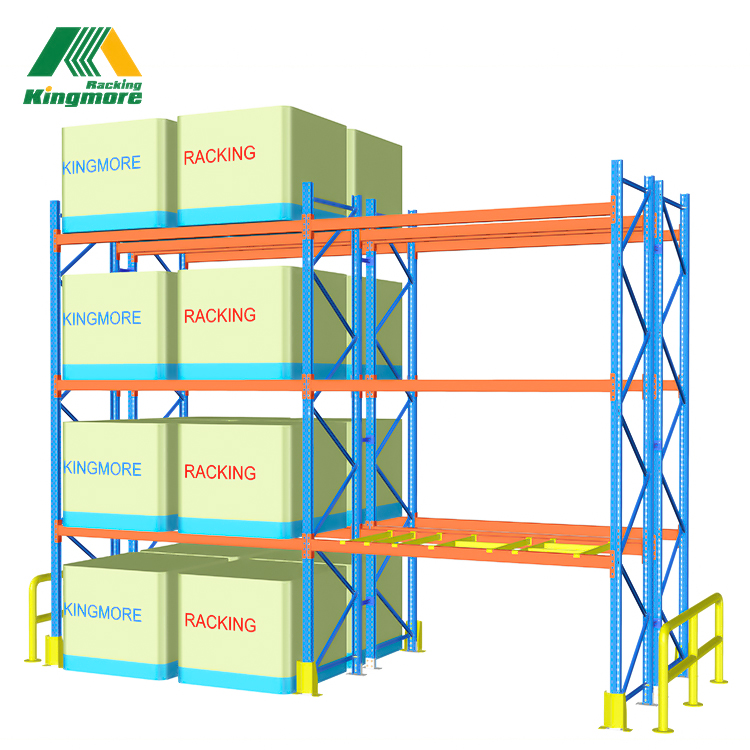

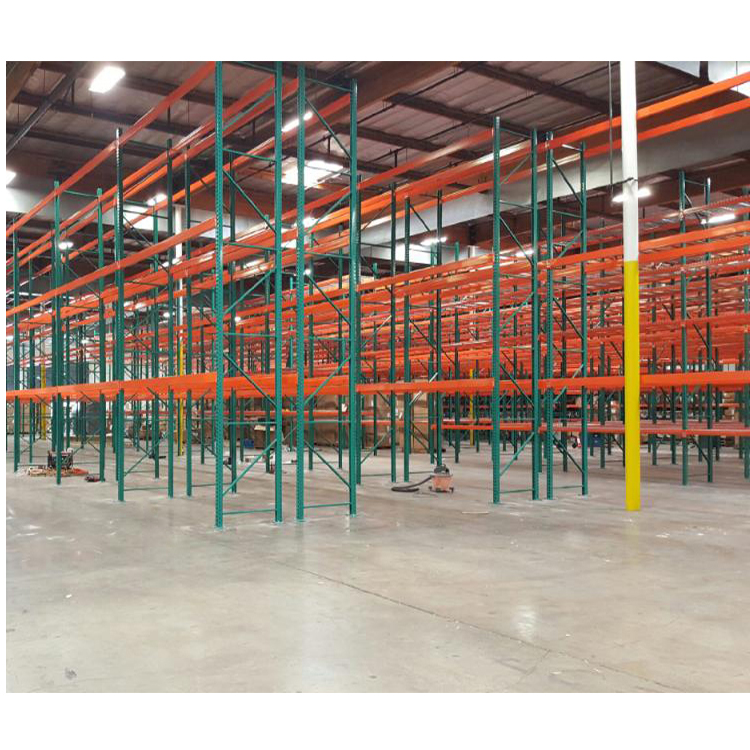

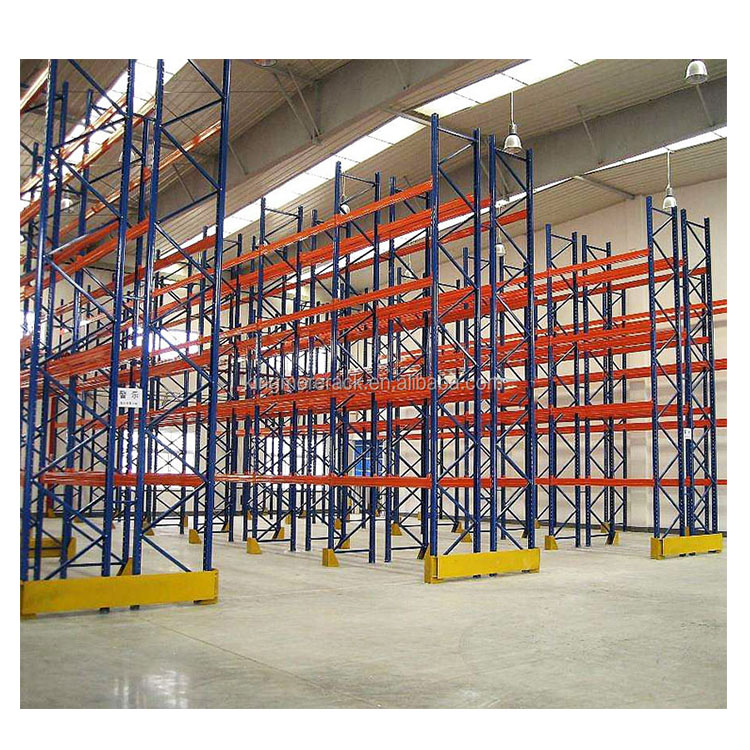

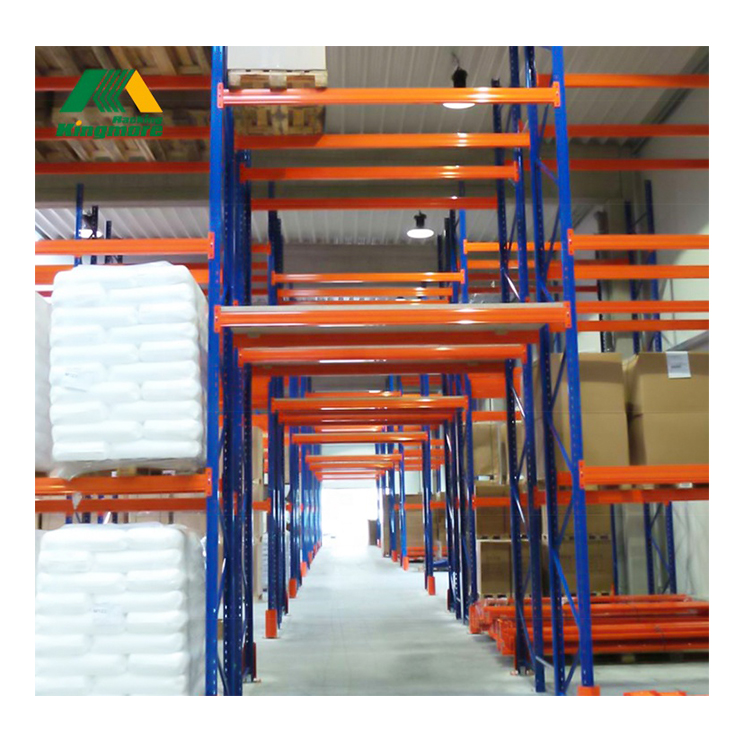

Selective Pallet Racking is the simplest, most commonly used and most economical storage system option. It offers the best solutions for warehouses with palletized products and a wide variety of goods. Kingmore’s extensive range of pallet racking components are tested to the highest international standards.
Key Features & Benefits
100% Direct Accessibility
Direct access to each individual pallet ensures seamless picking operations.
Flexible Inventory Control
Easy to control stock, highly adaptable to any product volume, weight, or size.
Safe & Easy Assembly
Fast assembly, reliable structure, and maximum stability for safe everyday usage.
Component Diagram & Structure

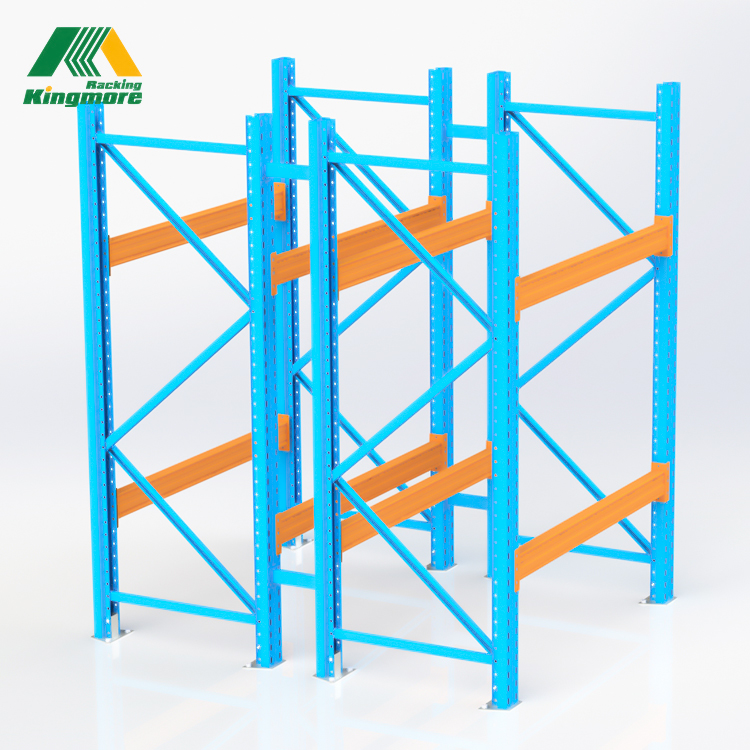

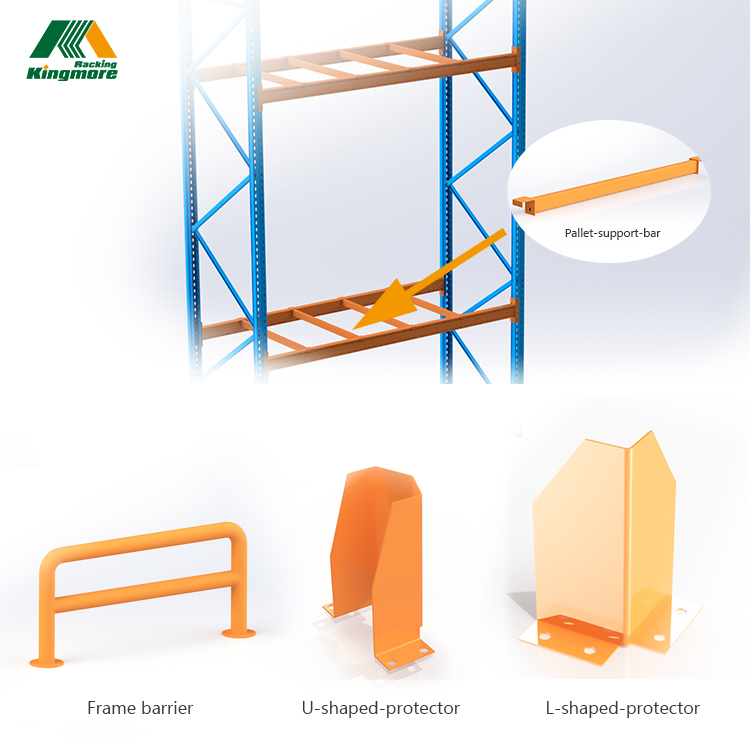

Pallet rack mainly consists of upright frame, beam and related accessories, like upright protector, frame barrier, pallet support bar, pallet stop beam, loading panel etc. Pallet rack structure is simple, installation is easy, disassembly is convenient, full free goods access mode can be reached.
Kingmore Product Standards
- High durable strength steel
- RAL color code / Galvanized both available
- Adjusted by 50mm / 50.8mm / 75mm / 76.2mm pitch
- Rigid beam connectors
- Automatic welding machines
- High grade bolts & nuts
- Certification: RMI / CE / ISO / TUV / AS4084-2012
Packaging & Shipping
Main Product Range
Company Information

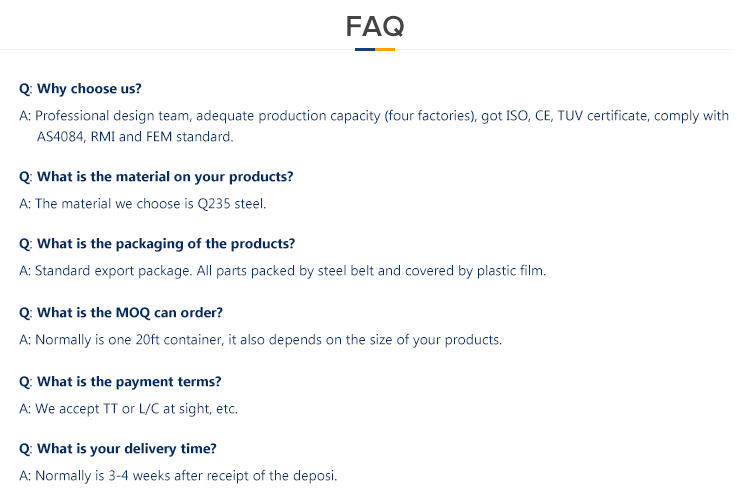

Frequently Asked Questions (FAQ)
What is the maximum loading capacity per level?
Our heavy duty selective pallet racking system supports a maximum load capacity of up to 4,500 kg per beam level, depending on beam profile selection and configuration.
What steel grade and surface finishes are provided?
The racking is manufactured using high-strength Q235B grade steel. Both electrostatic powder coating (standard RAL color system) and galvanized finishes are available.
What pitch adjustment standards are available?
Beam levels are freely adjustable by pitch increments of 50mm, 50.8mm, 75mm, or 76.2mm, accommodating a wide range of pallet sizes and vertical clearances.
Which international industry standards and certifications are met?
Our products conform to major international warehouse racking standards and are certified with RMI, CE, ISO, TUV, and AS4084-2012 Australian standards.
Can rack sizes be customized to specific warehouse dimensions?
Yes, we provide fully customized dimensions with overall heights up to 12,000 mm, bay widths from 1,350 mm to 3,900 mm, and steel thicknesses from 1.5 mm to 3.0 mm.
What shipping ports and packaging methods are utilized?
Standard export packaging is provided based on customer requirements, with primary export shipments departing from Nanjing and Shanghai ports.
