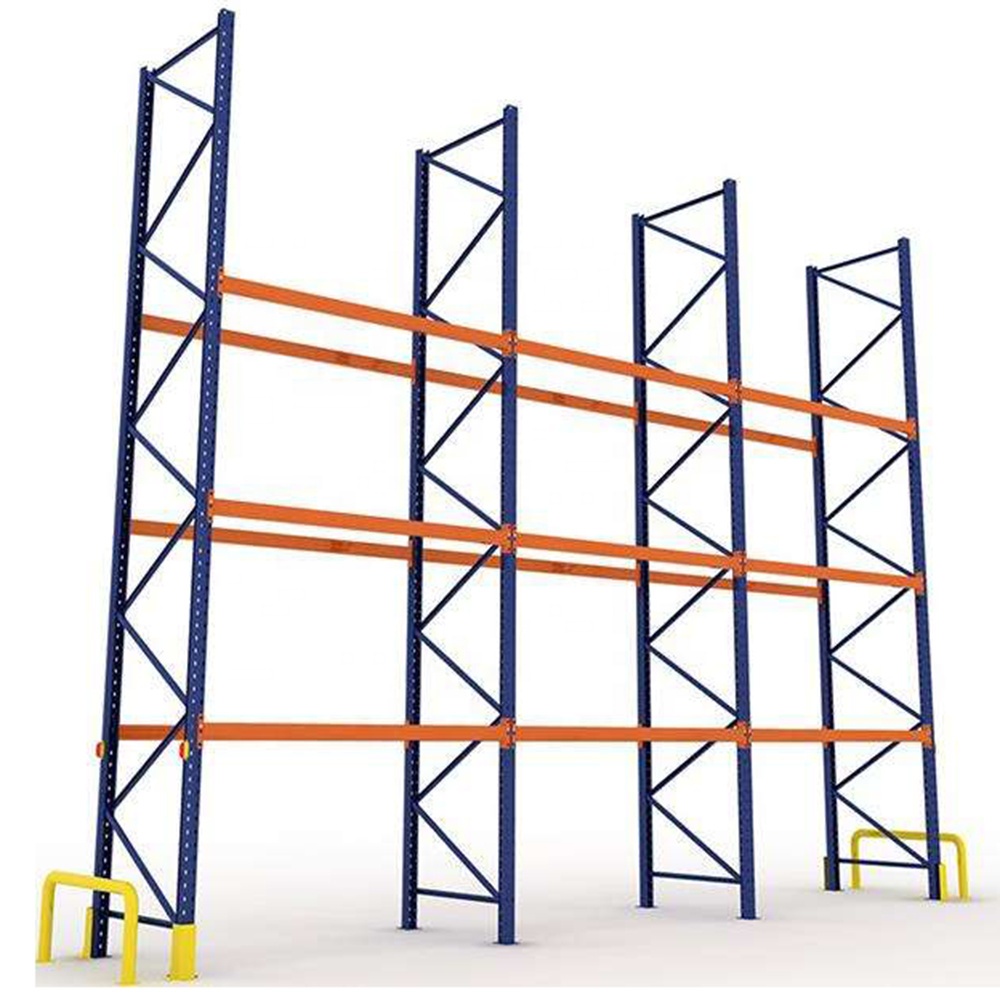

Industrial Steel Selective Pallet Rack Adjustable Heavy Duty Galvanized Powder Coated Warehouse Storage
Product Description
Product Description
URGO Heavy duty pallet rack is highly cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with exceptional load flexibility. It installs quickly and adjusts easily to your specific warehouse storage requirements.
Source Materials & Standards: At present, all our raw materials are sourced from large domestic steel corporations, ensuring stable quality. Combined with our manufacturing expertise, we deliver a perfect logistics storage system to our clients.
Target Applications
Warehouse & Logistics
Food / Drug Distribution
Petroleum / Chemical Plants
Automotive Distributors
Big Box Retail Hardware
Home Improvement Stores
Column Section Size (Bearing Capability)
Type 80
Type 85
Type 90
Type 100
Type 120
Type 140
Beam Heights by Structure & Cross Section
- Rectangular Tube Beam: 60 / 80 / 100 / 120 mm
- C Shape Tube Beam: 80 / 100 / 120 / 140 mm
- Box Beam: 80 / 90 / 100 / 110 / 120 / 140 / 160 / 180 mm
- Corbel Box Beam: 80 / 90 / 100 / 110 / 120 / 140 / 160 mm
- P Type Box Beam: 76.2 / 80 / 101.6 / 110 / 114.3 mm
URGO Heavy Weight Pallet Rack Key Features
100% accessibility to individual pallets
Easy picking on lower levels
Optimized and high storage density
Easily installed and repositioned
No special lift trucks required
Product Structure
The structure of the URGO heavy duty pallet rack primarily includes upright frames and beams. According to the actual pallet load capacity and warehouse dimensions, corresponding column and beam specifications are matched, alongside specialized racking accessories.
Upright Frame Features
- High Load Capacity: Up to 21,000 kg.
- Complete Kit: Frames include all elements needed for assembly: bracing, feet, and nuts & bolts.
- Surface Finish: Blue epoxy coated (RAL 5012 / 5015 / 5017).
- Standard Heights: Available from 2m to 11.5m.
- Pitch Adjustment: Adjustable by 50mm or 75mm pitch.
Column Profiles Specification
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8 - 2.0 | 4,000 - 6,000 KG |
| W85 x D67 | 1.8 - 2.3 | 7,500 - 12,500 KG |
| W90 x D60 | 1.8 - 2.5 | 8,000 - 10,000 KG |
| W90 x D70 | 1.8 - 2.5 | 10,000 - 12,000 KG |
| W100 x D70 | 2.0 - 2.5 | 11,000 - 14,000 KG |
| W120 x D95 | 2.3 - 3.0 | 17,000 - 21,000 KG |
Box Beam Profiles & Loading Chart
| Specification (mm) | Length of Box Beam (mm) & Safe Loading Capacity (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
P Type Box Beam Profiles & Loading Chart
| Specification (mm) | Length of P Box Beam (mm) & Safe Loading Capacity (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |
Main Spare Parts Profiles
Optional Accessories
Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo’s Safeguard.
We operate an in-house professional logistics team. First-class packaging techniques meet your customized packing requirements. Every step of the logistics progress is thoroughly and strictly controlled. We guarantee that your order is safely delivered within the agreed duration—on-time delivery is our supreme promise.
Company Information
Company Honor
Storage Plan Design & Installation Support
URGO operates a dedicated warehousing logistics storage system design team, providing customized optimization based on clients' existing storage schemes.
Cooperating with URGO ensures:
- Experienced Guidance: Dedicated professionals provide timely technical advice, transparent pricing, and comprehensive service.
- Reduced Risk: Production cycles and storage risks are minimized to yield maximum investment efficiency.
- Economic Value: Full-range logistics rack engineering designed to generate maximum economic benefits.
Installation Support
URGO provides an experienced racking installation crew ready to assemble or relocate warehouse racking systems and related logistics machinery in exact alignment with project specifications.
Service Commitment
Integrity, pragmatism, innovation, and supreme quality define our operations. Supported by over 15 years of industry experience, URGO systems are manufactured to rigorous international standards, granting each complete structure a 10-year warranty—the longest warranty period available in the industry.
Hot Sale Products
Frequently Asked Questions (FAQ)
1. What makes URGO different from other warehouse rack suppliers?
We stand out in four key areas:
- Responsive Service: Inquiries receive quotation feedback within 12 hours.
- Fast Turnaround: Selective pallet racking is manufactured in as little as 15 days.
- Export-Standard Packaging: Beams feature protective plastic clips and uprights are securely wrapped in clear protective film.
- 10-Year Warranty: Rigorous manufacturing allows us to offer an industry-leading 10-year warranty.
2. What is your manufacturing and delivery timeline?
For standard selective pallet racking orders, we commit to manufacturing within 15 days. As an original equipment manufacturer, we strictly follow delivery times agreed upon in official contracts.
3. What payment terms do you support?
Standard terms include:
- 30% T/T down payment with the remaining balance settled before shipment.
- 100% irrevocable Letter of Credit (L/C) at sight.
4. May I track the status of my order during production?
Yes. We consistently share production progress, reports, and clear photographic records at different manufacturing milestones, keeping you informed until dispatch.
5. What details are needed to receive a fast, accurate quotation?
Please share the following specifications:
- Pallet racking dimensions: Height × Depth × Length
- Number of beam levels
- Load capacity per level
- Total racking quantity
Not sure about the exact dimensions? Provide these details instead:
- The total weight capacity of your palletized goods
- Cargo dimensions including pallet (Length × Width × Height)
- Warehouse dimensions (Length × Width × Clear Height, or CAD drawings)
- Warehouse logistics and transportation aisle paths
6. Do you offer professional installation services and structural warranty?
Yes. URGO maintains an experienced technical crew for nationwide and overseas installation, assembly, and relocation. Every racking system comes backed with a 10-year manufacturer warranty supported by 15 years of industrial storage engineering experience.
