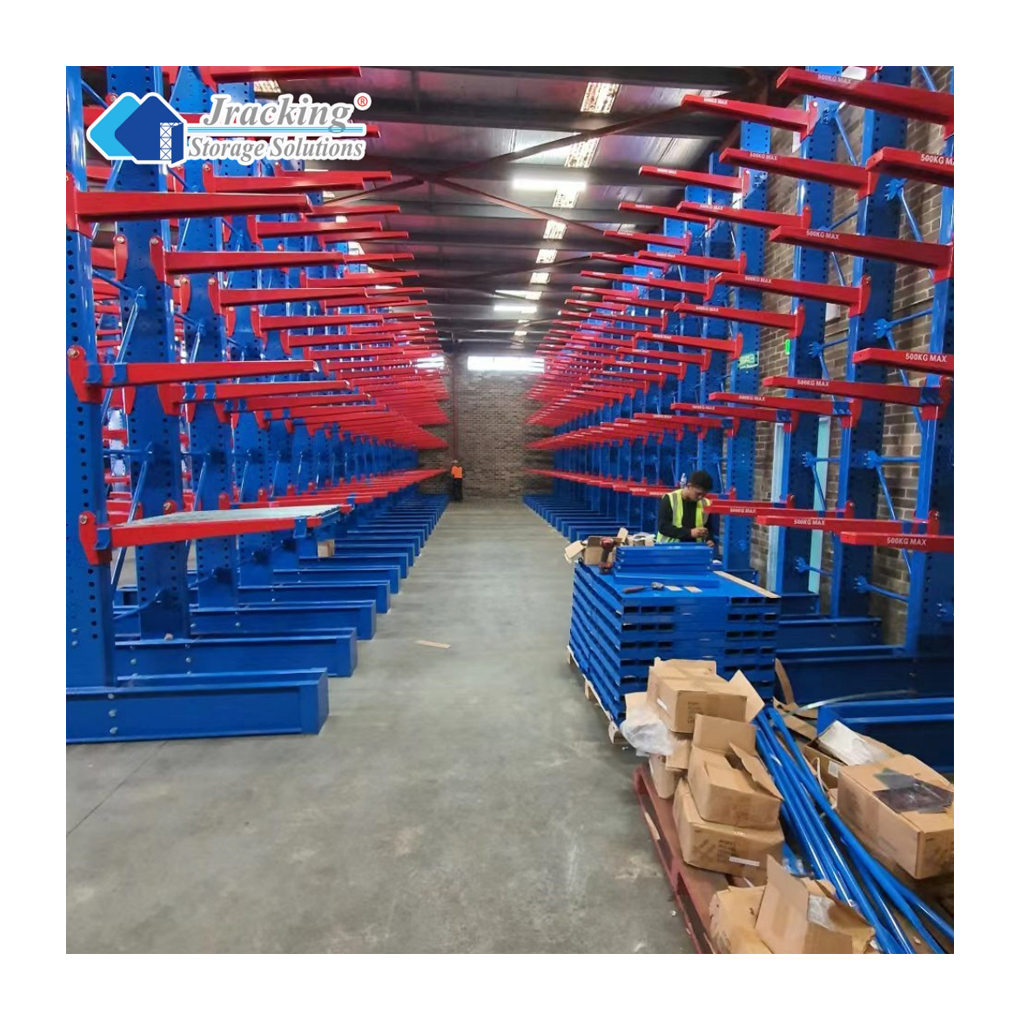

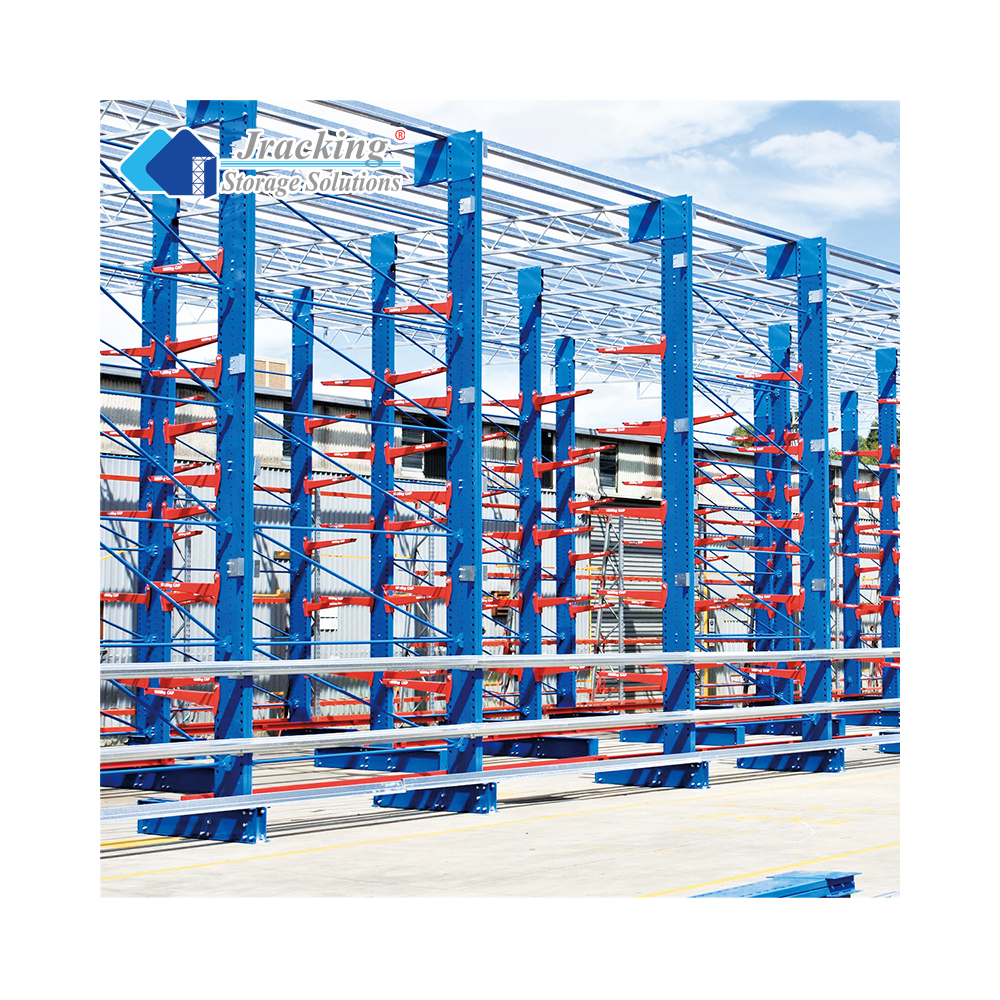

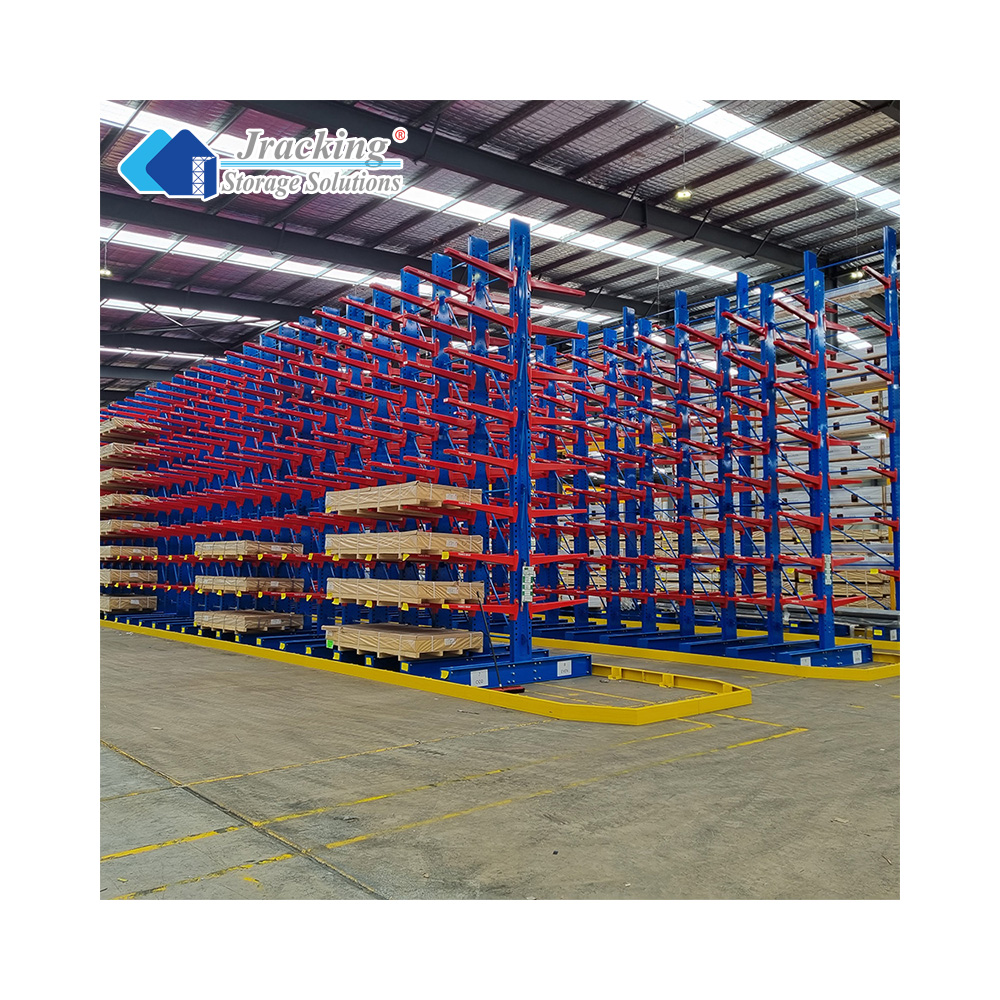

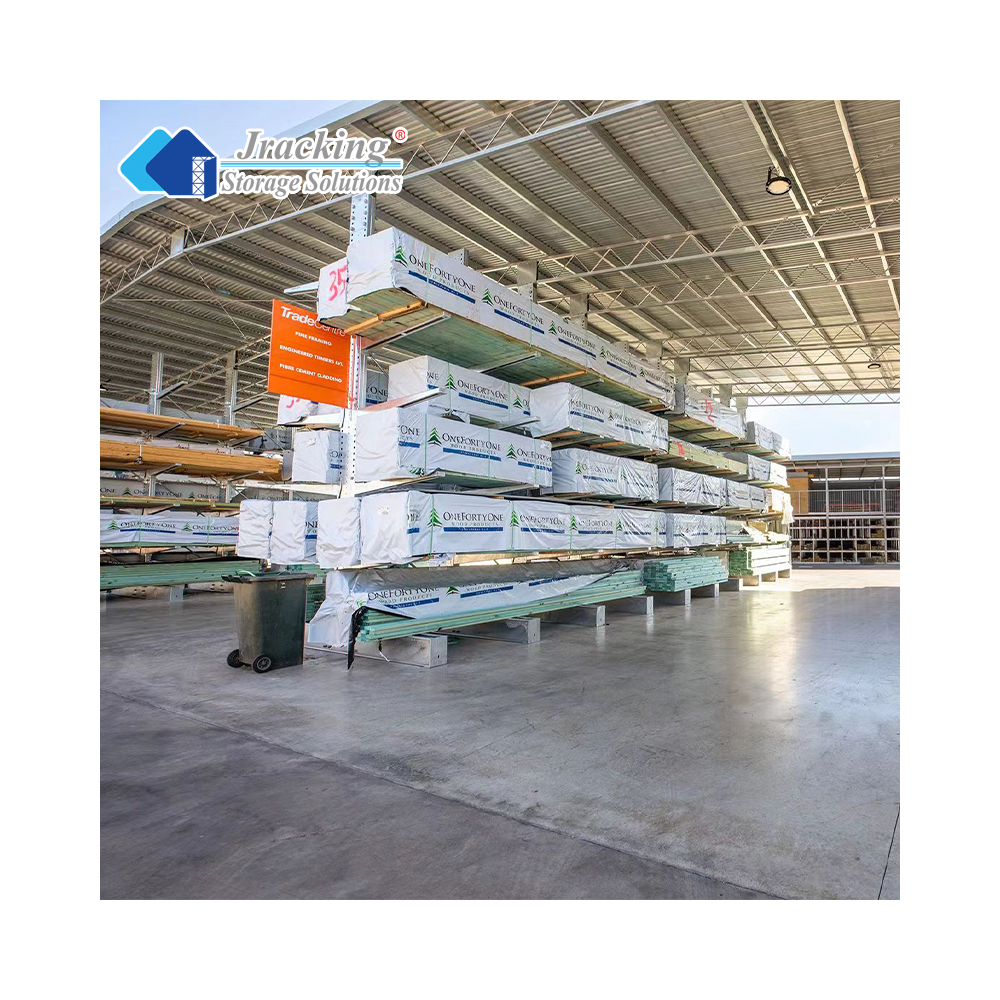

Jracking Industrial Warehouse Storage Shelves Rack Durable Heavy Duty Cantilever Racks for Industrial Material Organization
Product Description
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Step 1

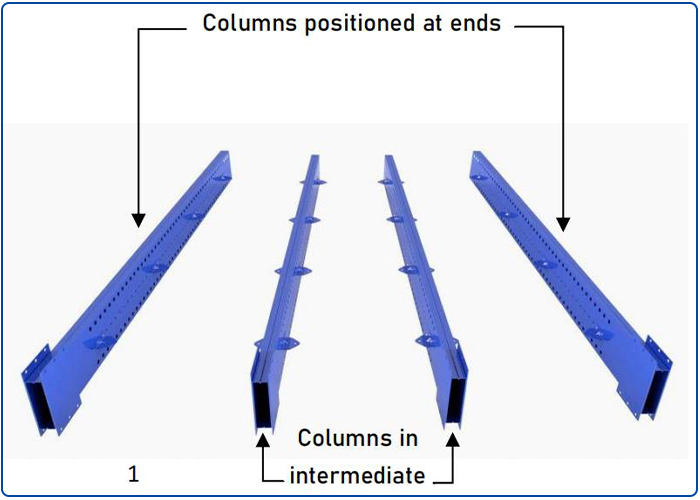

Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.
Step 2

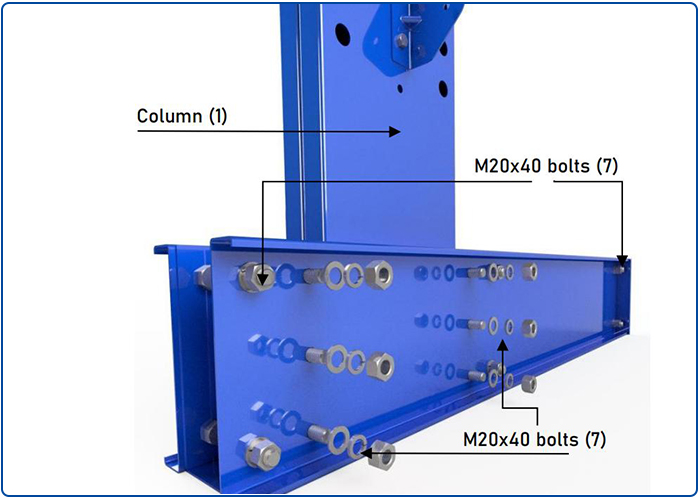

Position the column (1) vertically into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fasten the other M20x40 bolts (7) on the base. Recommended torque: 86~103 N.M.
Step 3

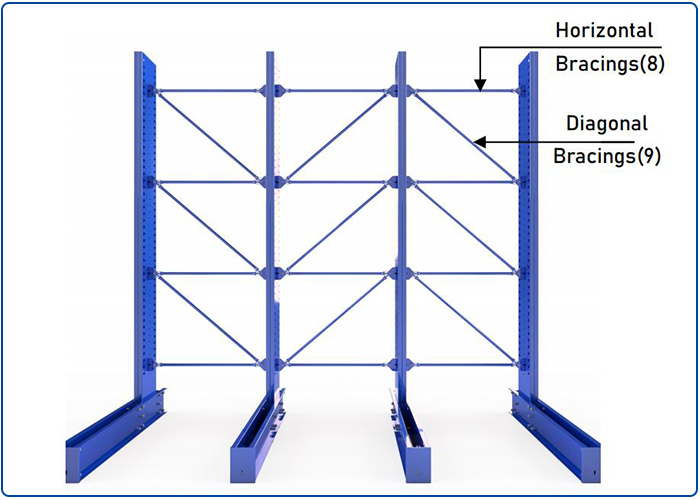

The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.
Step 4

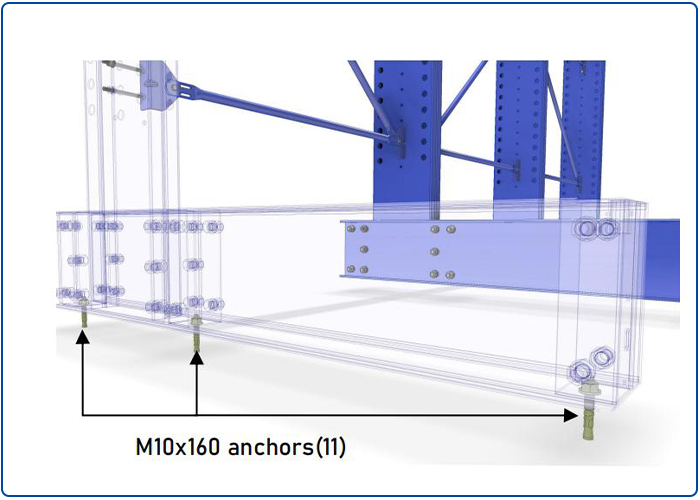

The bases must be leveled with metal leveling plates if necessary. Then, fully tighten the M20x40 bolts (7) on the base front as indicated in step 2. Using the drill-holes in the bases for fastening them to the floor, use a 014 bit and drill a hole with a minimum depth of 100 mm. Remove the drilling remains and carefully hammer in the fastening M10x160 anchors (11). Firmly bolt the fastening plate in place. Recommended torque: 50 MN.
Step 5

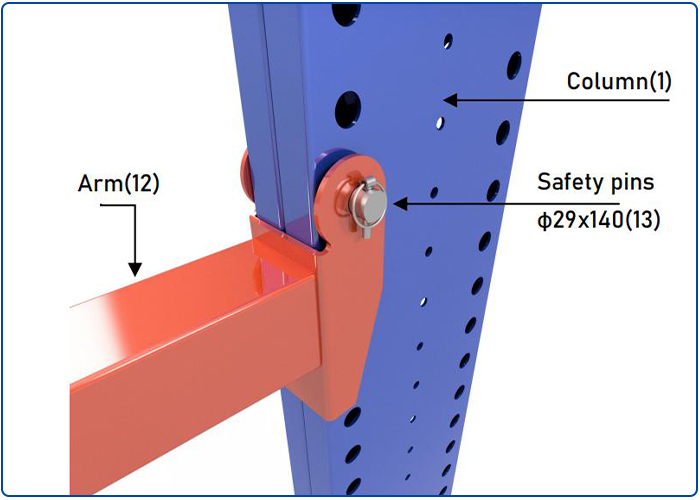

The arm (12) is fastened to the column (1) using safety pins ∅29x140 (13). Fit the arms (11) according to the heights and distribution shown on the corresponding project drawing, where applicable.
Step 6

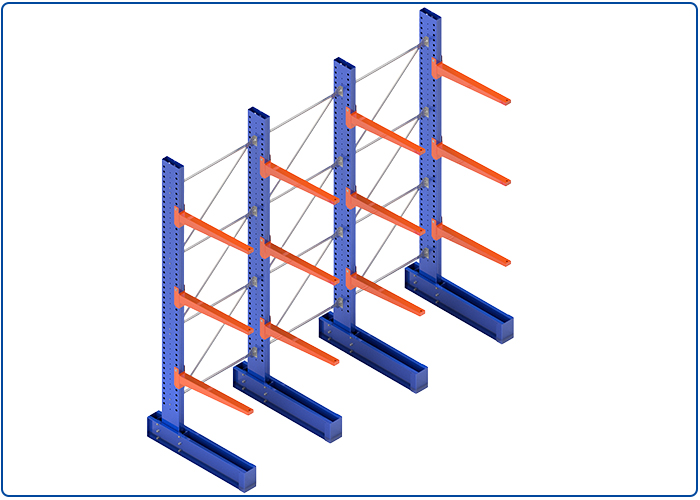

Finally, the completed structure should look like the illustration.
Frequently Asked Questions
Q What are your trading terms and payment options?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model and can be ready in 7-15 days once payment is received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer volume-based discounts for large orders.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model and can be ready in 7-15 days once payment is received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer volume-based discounts for large orders.
Q How will my goods be delivered?
1) Sea freight: We will provide updated sea freight rates once your destination port is determined.
2) Designated agent: If you work with your own freight forwarder, simply provide their contact details and we will coordinate shipping.
2) Designated agent: If you work with your own freight forwarder, simply provide their contact details and we will coordinate shipping.
Q What customer services and customization do you provide?
1) All inquiries related to products or pricing are answered within 12 hours.
2) Professional and experienced staff support inquiries in fluent English.
3) OEM & ODM services are available to tailor racking systems to your custom project needs.
4) Dedicated engineers provide optimized warehouse layout and storage designs.
2) Professional and experienced staff support inquiries in fluent English.
3) OEM & ODM services are available to tailor racking systems to your custom project needs.
4) Dedicated engineers provide optimized warehouse layout and storage designs.
Q What is the standard purchasing and ordering process?
Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspection → Pay balance → Shipping.
Q What advantages do you offer over competitors?
1) Payment terms: O/A 40-60 days available.
2) Flexible lead time: Expedited handling for urgent rush orders.
3) Factory pricing: Direct manufacturer sales with competitive rates.
4) Warranty: 2-year warranty with free parts replacement for defective components.
2) Flexible lead time: Expedited handling for urgent rush orders.
3) Factory pricing: Direct manufacturer sales with competitive rates.
4) Warranty: 2-year warranty with free parts replacement for defective components.
Q Does Jracking have an MOQ limitation or tooling fees?
There is no strict MOQ limitation; however, ordering in volume provides the best pricing. We recommend an order size fitting at least one 20ft container (approx. 15 tons). For custom tooling needs, mold fees are charged prior to the initial production run and are refunded partially or fully once designated order volumes are reached.
