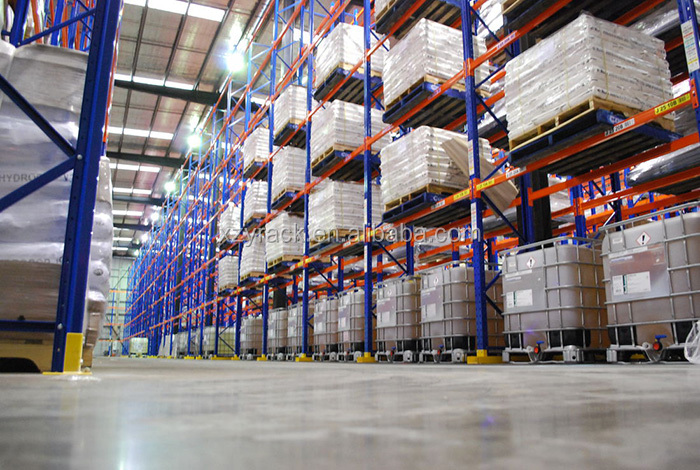

Q235b Steel Single Deep Double Side Selectivo Slective Pallet Storage Rack Warehouse Equipment
Product Description
Industrial Storage Solutions
China Wholesale Offer Installation Steel Pallet Storage Rack
| Upright frame | 80*60 to 120*95mm (many sizes available), Thickness: 2.0 / 2.3 / 2.5 / 3.0mm |
| Beams | 80*50 to 180*50 (many sizes available), Thickness: 1.5 / 2.0mm |
| Famous color | RAL 2004 / 5005 / 5015 / 7035 / 1003 |
| Surface treatment | Powder coating |
| ★ We offer free design with instant quotation ★ | |
Company Information
Established in 1999, Jiangsu Xin Zhong Ya Racking Manufacturing Co. Ltd. devotes itself to the design and manufacture of storage equipment. We specialize in producing various pallet racking, longspan shelving, drive-in racking, cantilever racking, mezzanine and steel platforms, steel/plastic pallets, storage cages, and other related storage equipment.
It provides 100 percent accessibility and good stock rotation. It is fully adjustable and easily installed. Equipment and capital investment for such a system is also the most economical.
It is designed to meet almost all pallet sizes or weights and is suitable for use with all types of lift trucks. A wide range of protection accessories is available, such as corner guards, column protectors, back mesh, pallet support bars, etc., making storage significantly safer.
Advantages: Versatility and Flexibility
- Pallets can be located, accessed, and moved individually.
- Infinitely adjustable, offering a wide range of options and components.
- Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
- High strength and rigidity prevent compression damage to goods.
- The bottom level of pallets can be stored directly on the floor, lowering structure costs.
- Quality guarantee: 3 years.
- More than 300 workers enable guaranteed delivery times (normal orders within 20 days).
Features & Load Range
Loading Capacity
< 4000 Kg / level
Whole rack < 13,500 Kg
Height
3,000 – 11,850 mm
Depth
838 – 1,200 mm
Length
1,500 – 3,300 mm
* Special sizes are also available to meet specific storage needs.
Customized Requirements
Please inform us of the following information so we can provide tailored solutions:
- Size of the warehouse
- Width, depth, and height for each unit of rack
- Number of levels for each unit of rack
- Loading capacity for each pallet or for each level of beams
- Preferred color
Product Specifications & Structural Details

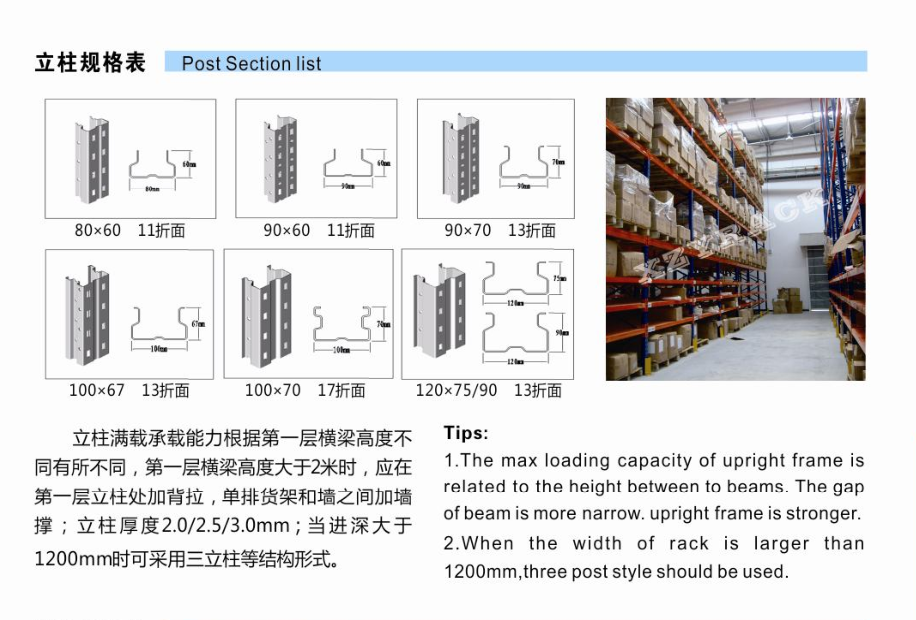

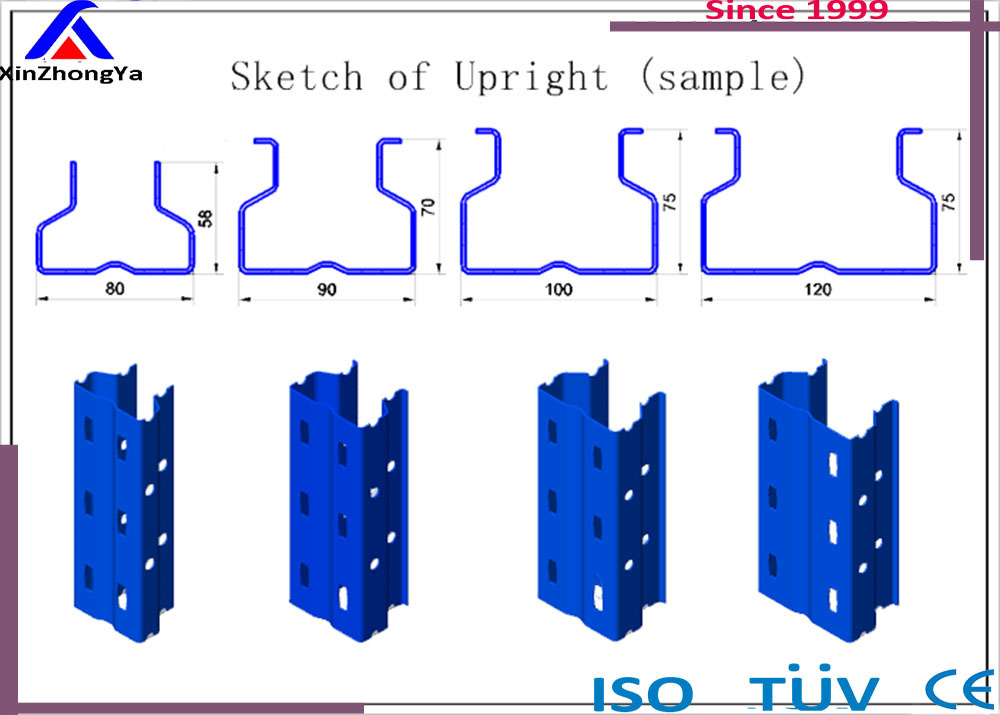

Post and Beam Section Size
Storage Rack Design
Structural Overview

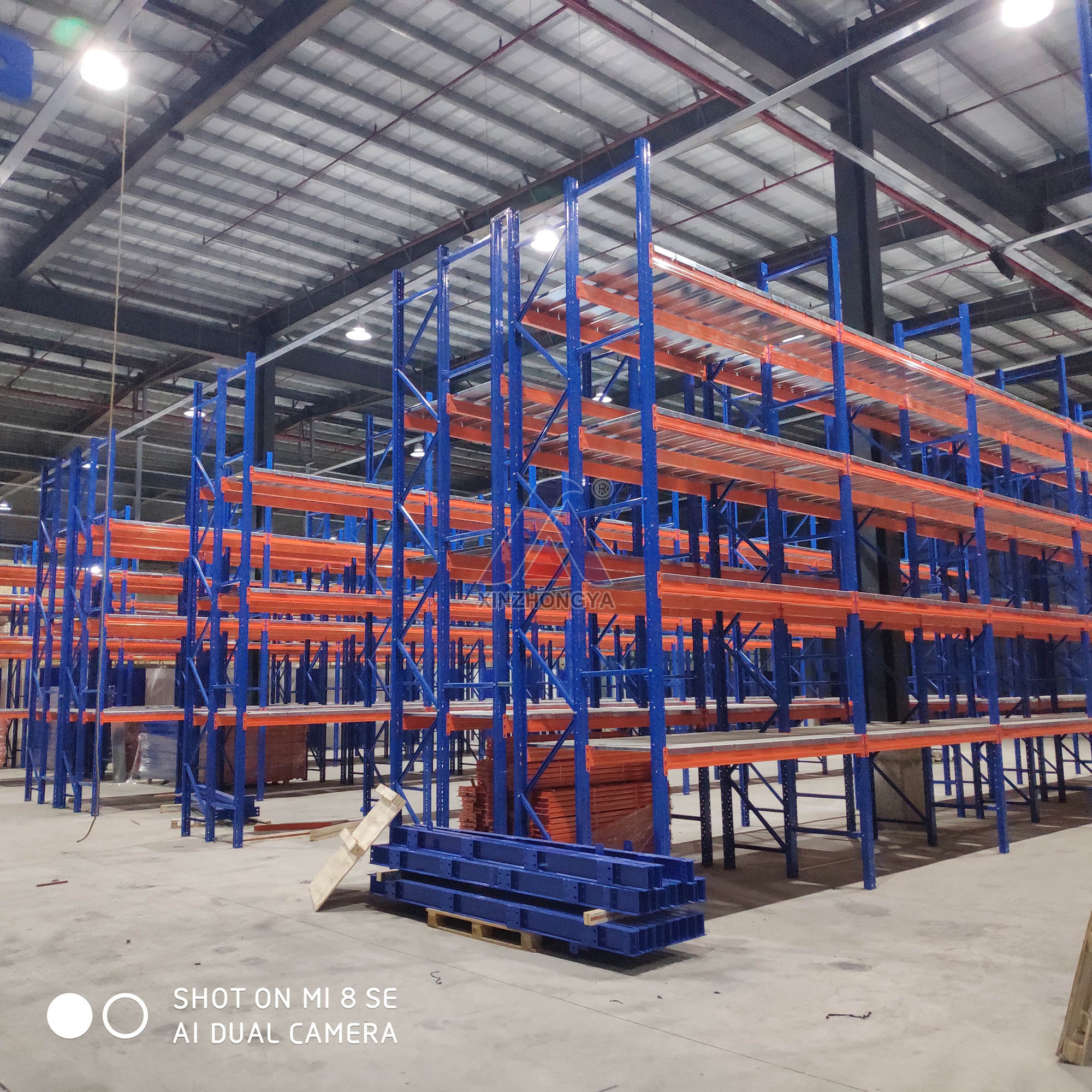

Storage Rack Installation

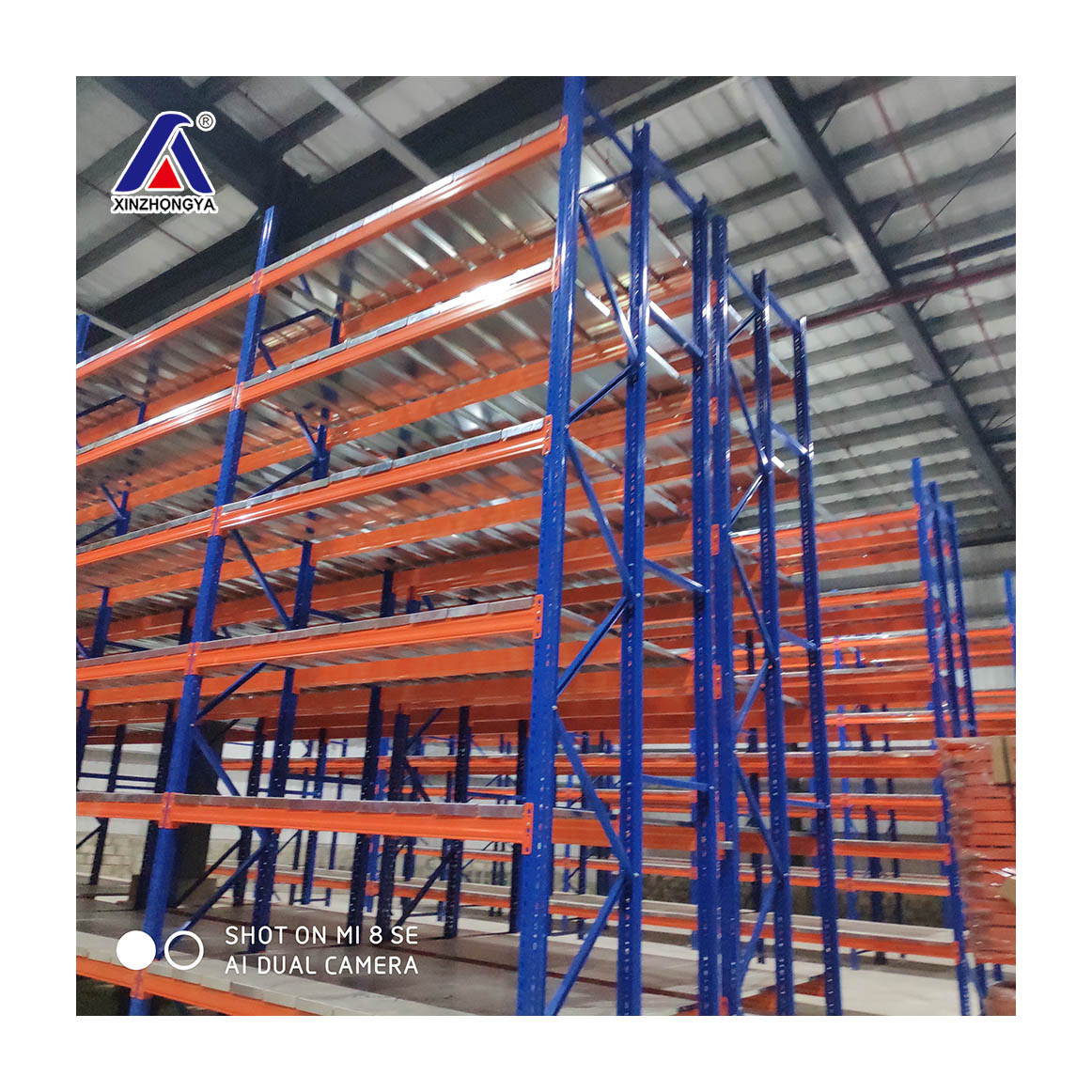

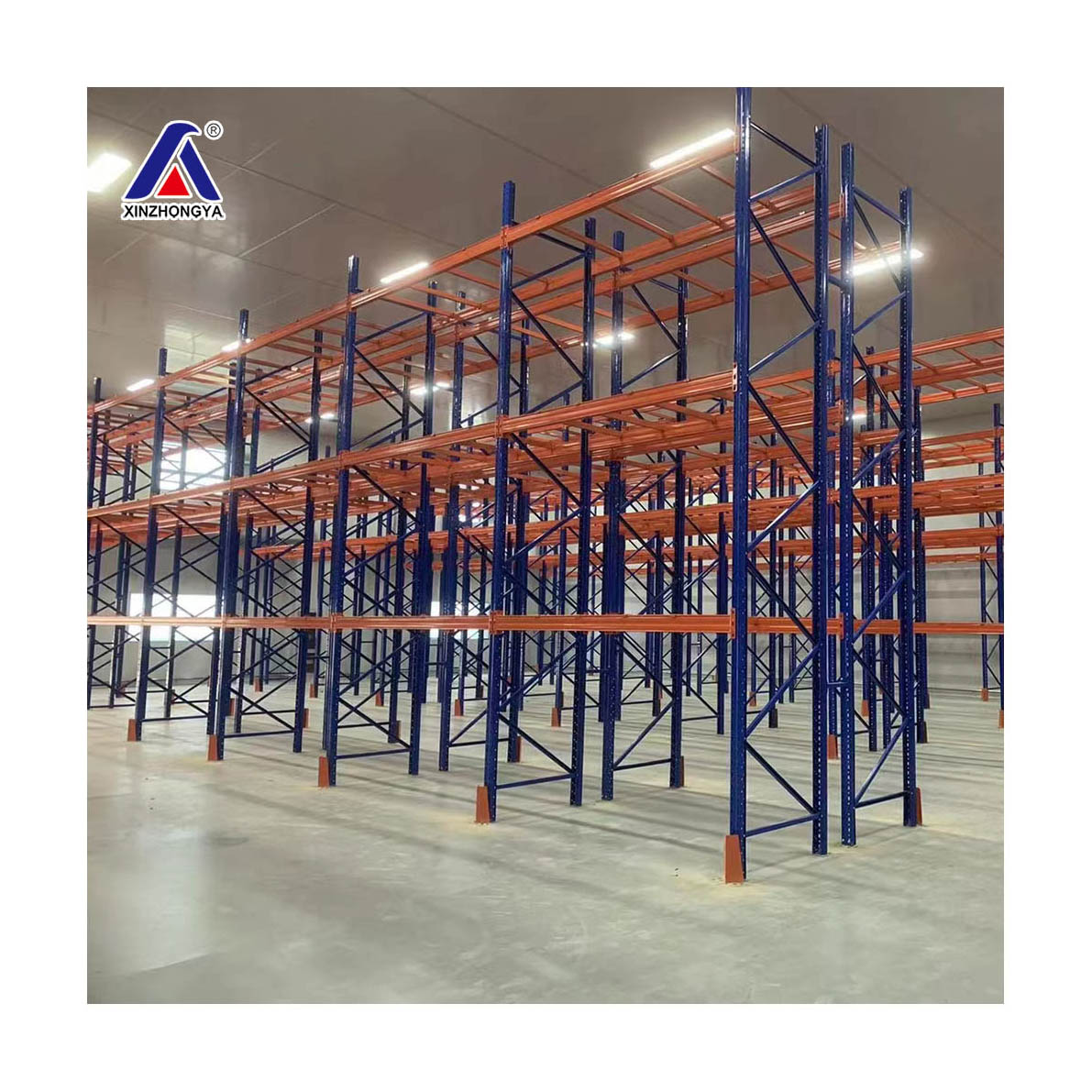

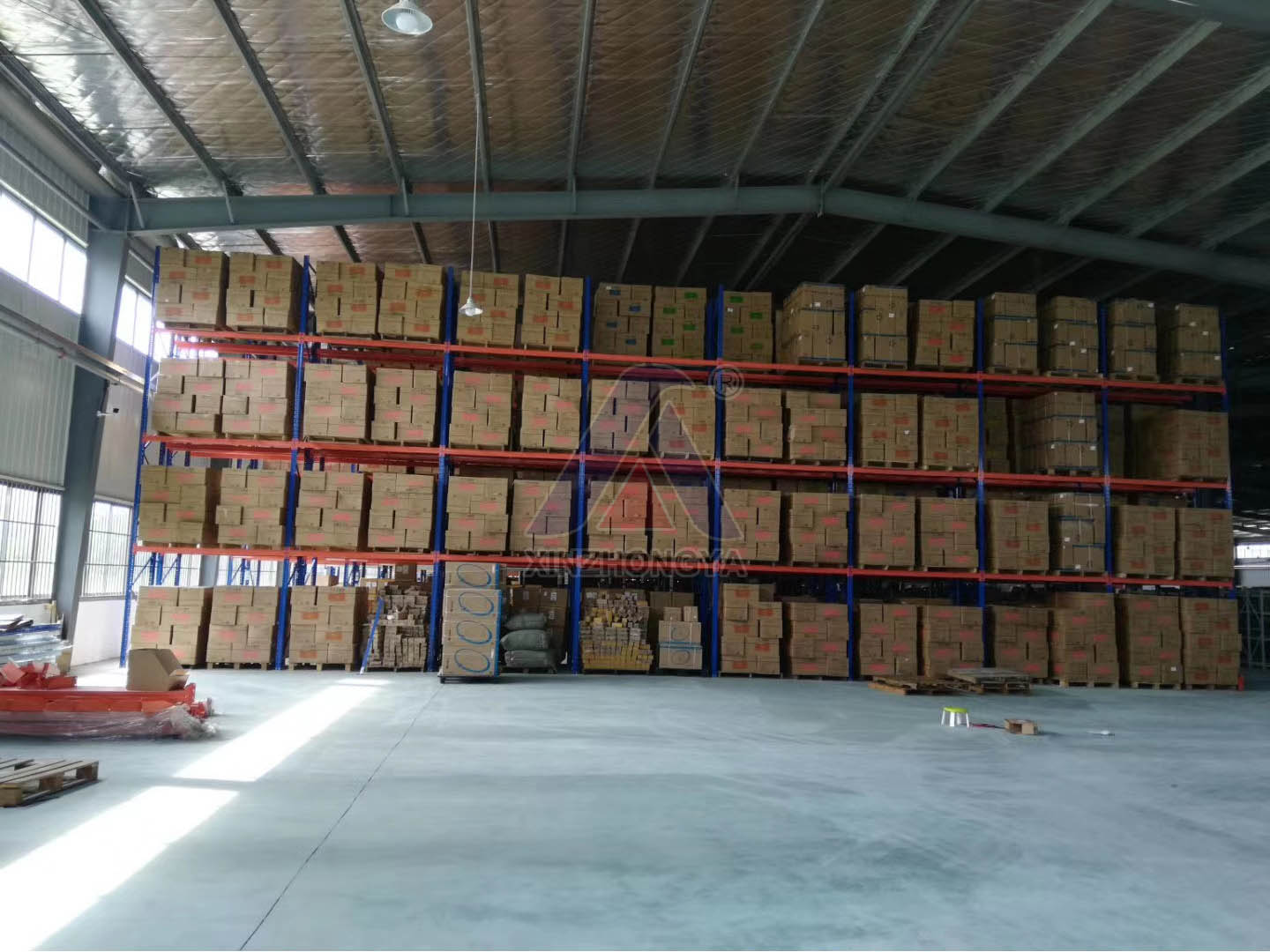

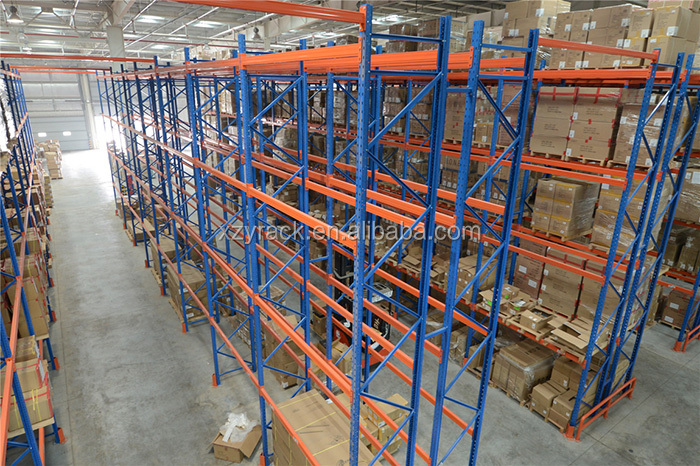

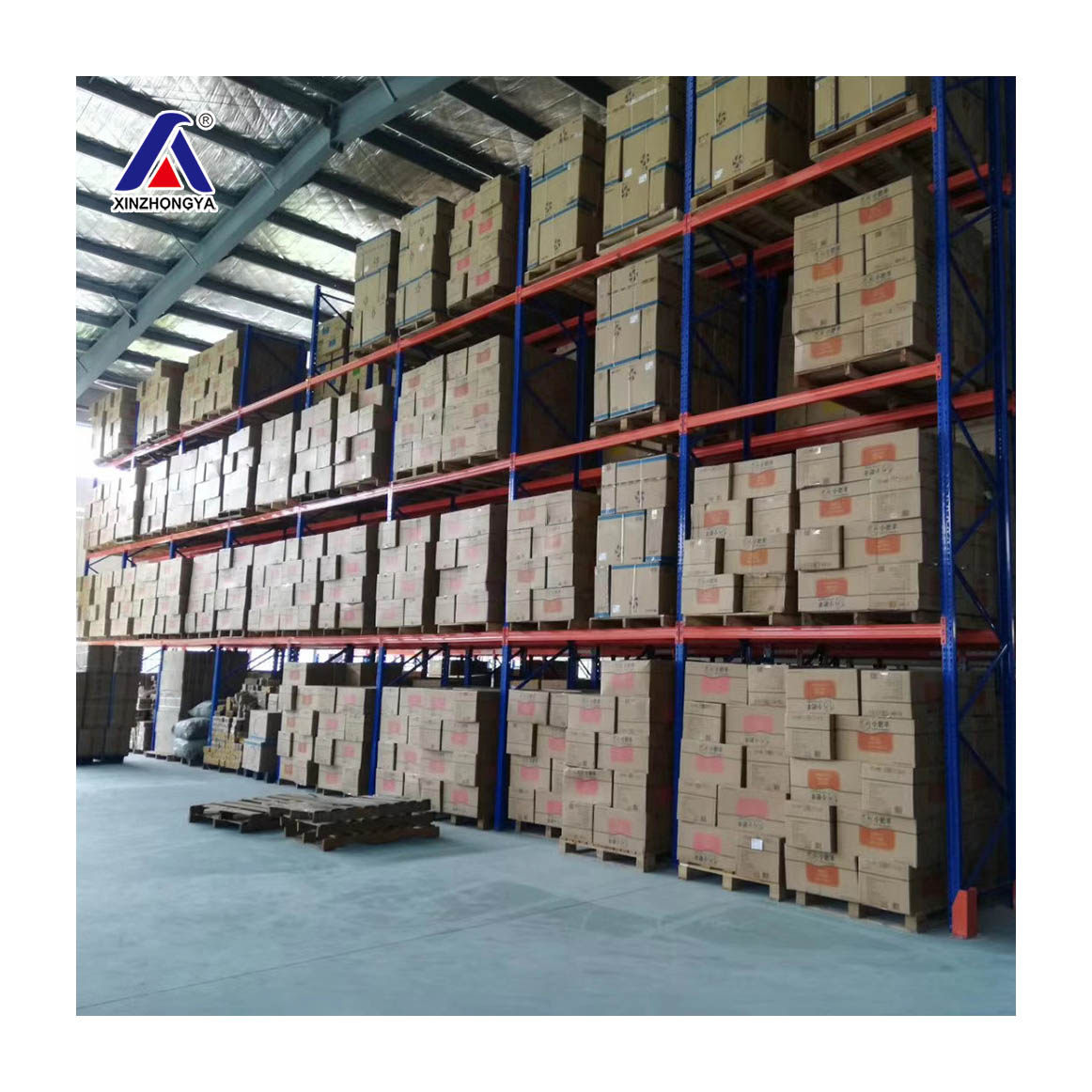

Storage Rack System

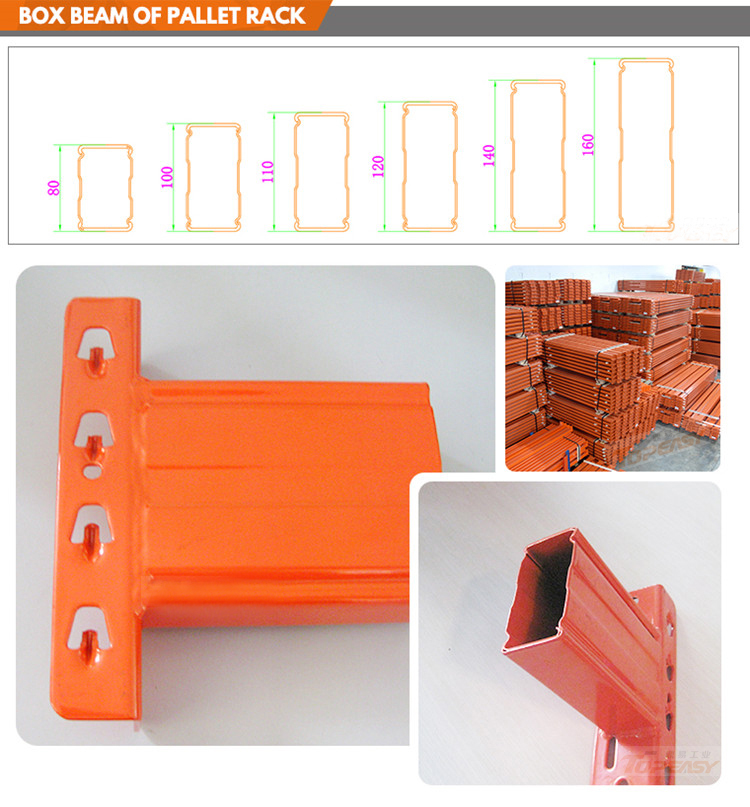

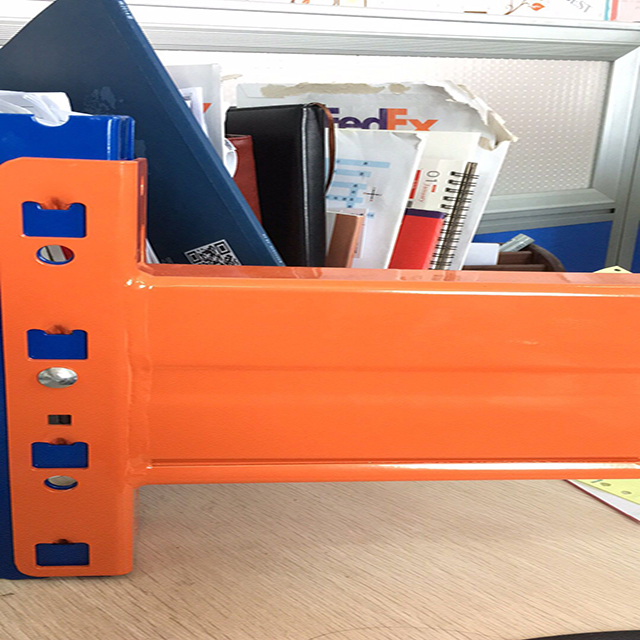

Post and Beam Connection
Safety Protection Accessories

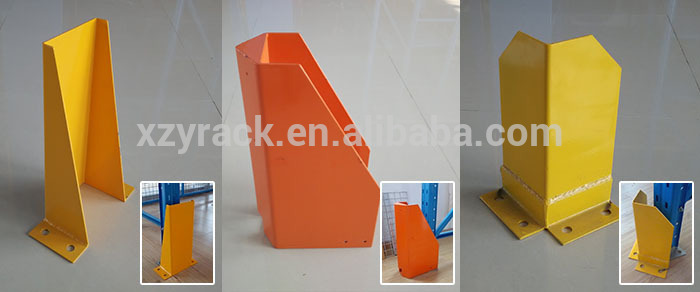

Post Protector
Frame Protector
Packaging, Loading & Factory View

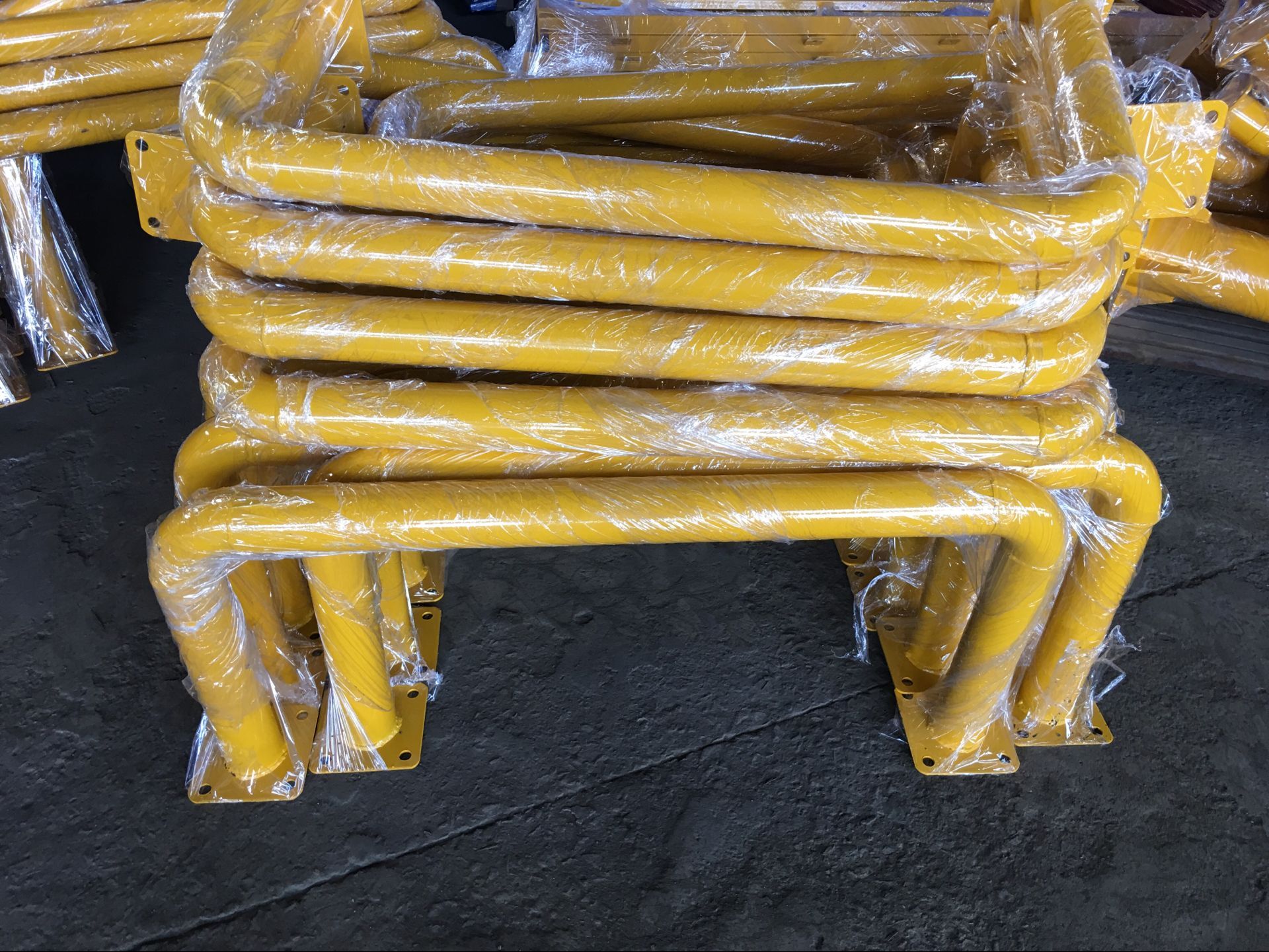

Package & Bundling

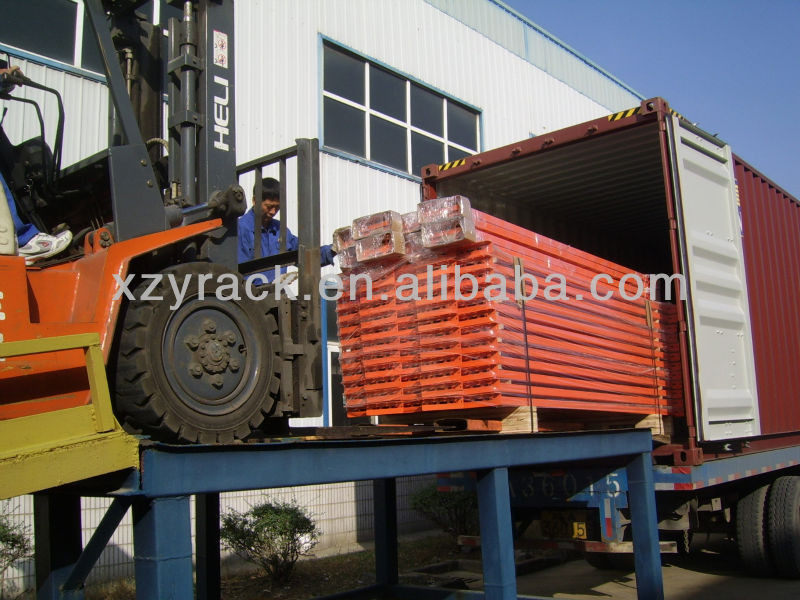

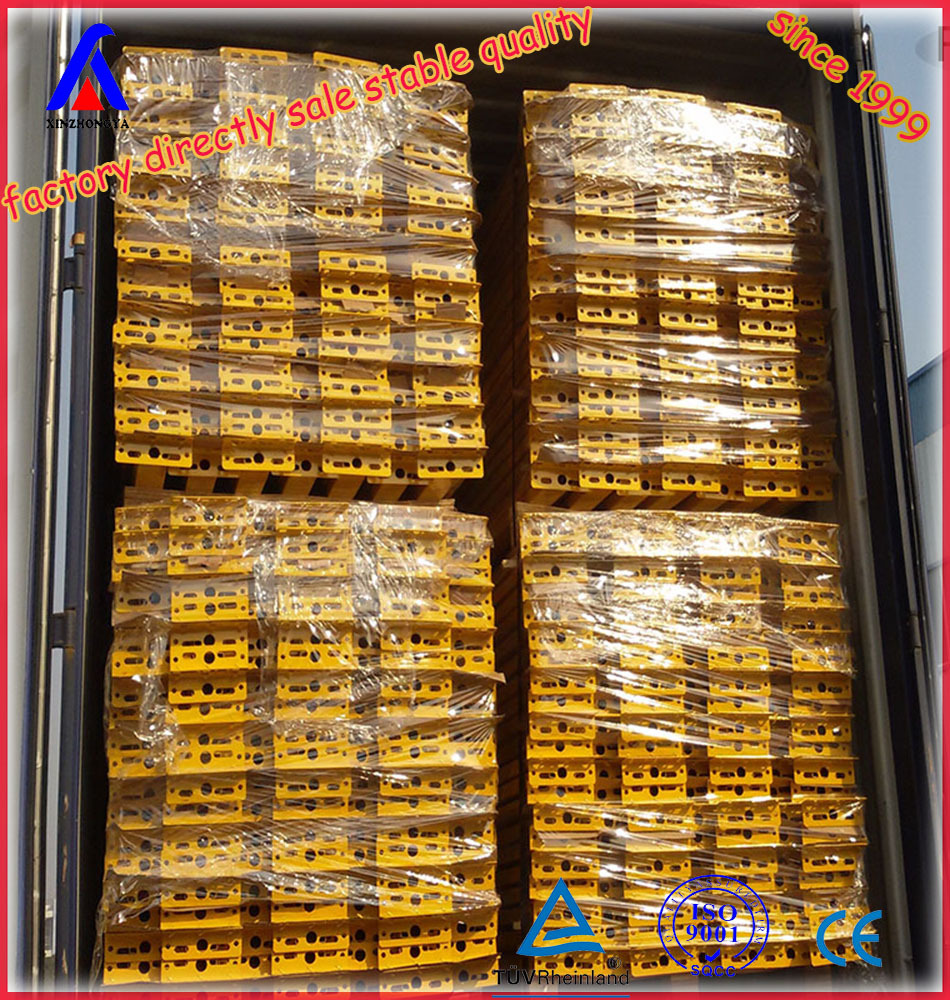

Container Loading

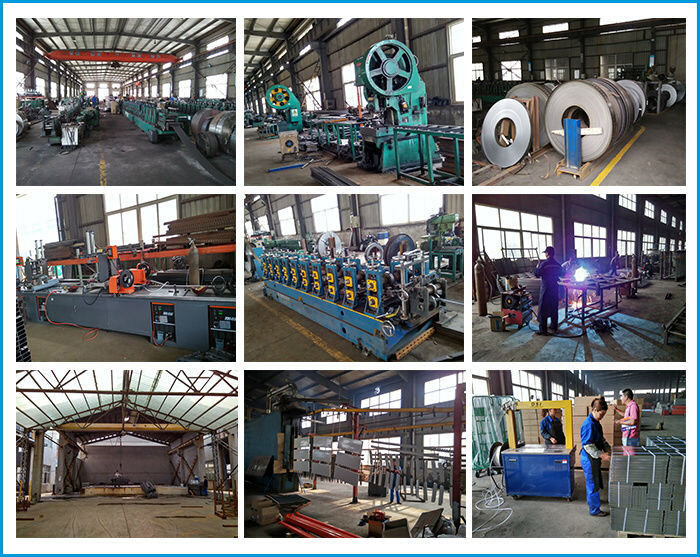

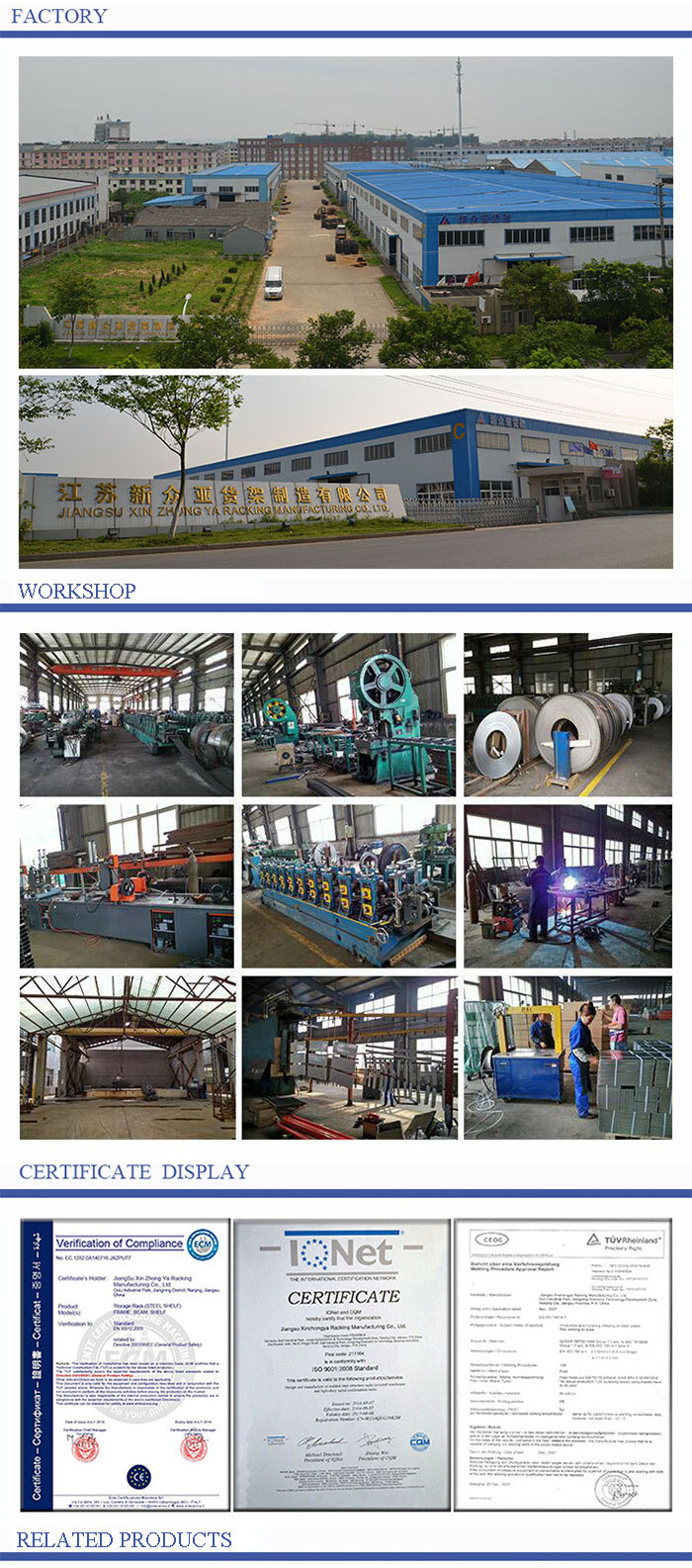

Workshop Inside View
Factory Outside View
Frequently Asked Questions
What is the standard loading capacity of the pallet racking system?
The loading capacity is up to 4,000 kg per level, with an entire rack load capacity supporting up to 13,500 kg depending on upright and beam choices.
Can the racking dimensions be customized to our warehouse?
Yes, we provide fully customized solutions including height (3,000–11,850mm), depth (838–1,200mm), and beam length (1,500–3,300mm) tailored to your storage facility.
What is the typical production and delivery lead time?
Backed by over 300 skilled workers, our factory guarantees efficient turnaround times, standard orders are typically fulfilled and dispatched within 20 days.
What surface treatment is used to prevent rust and corrosion?
All steel frames and components receive an electrostatic powder coating finish available in standard RAL colors (RAL 2004, 5005, 5015, 7035, 1003) for maximum corrosion resistance.
What warranty do you provide on your industrial pallet racks?
We stand by our manufacturing quality and offer an extensive 3-year quality guarantee on our steel pallet storage racking products.
