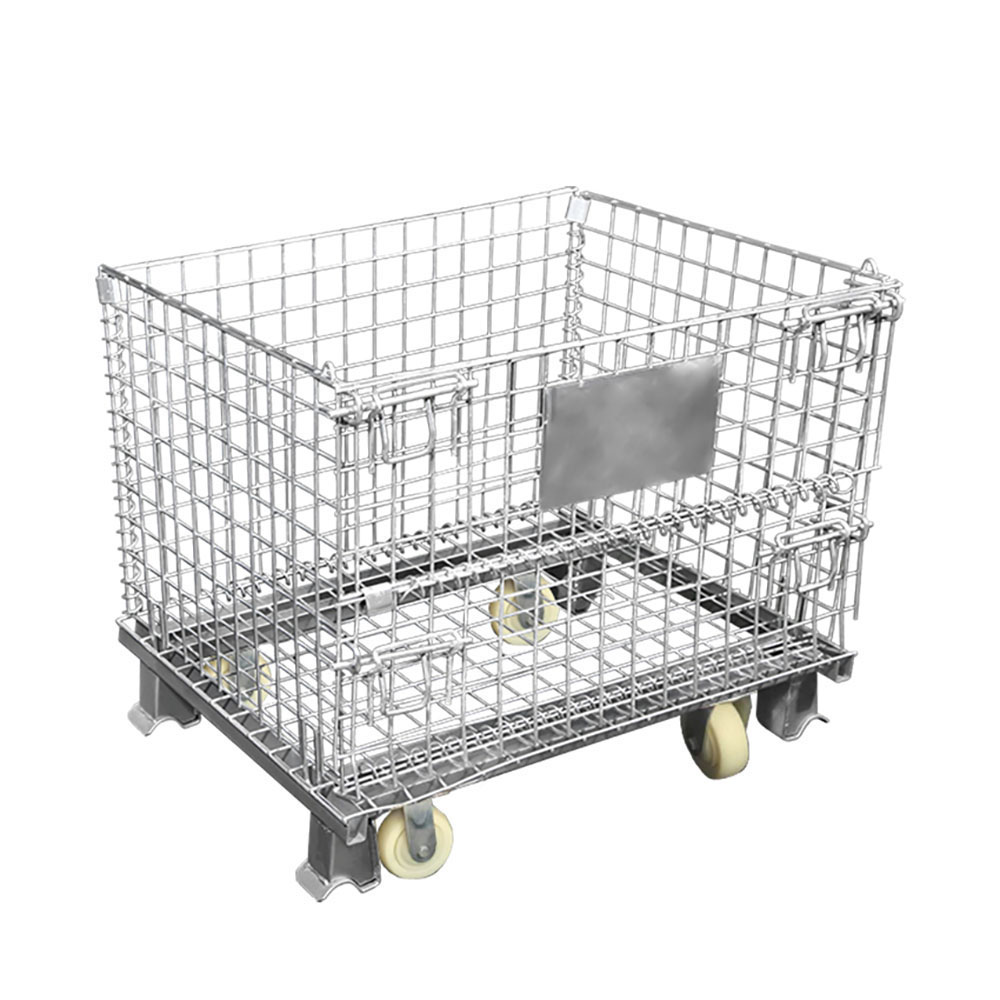

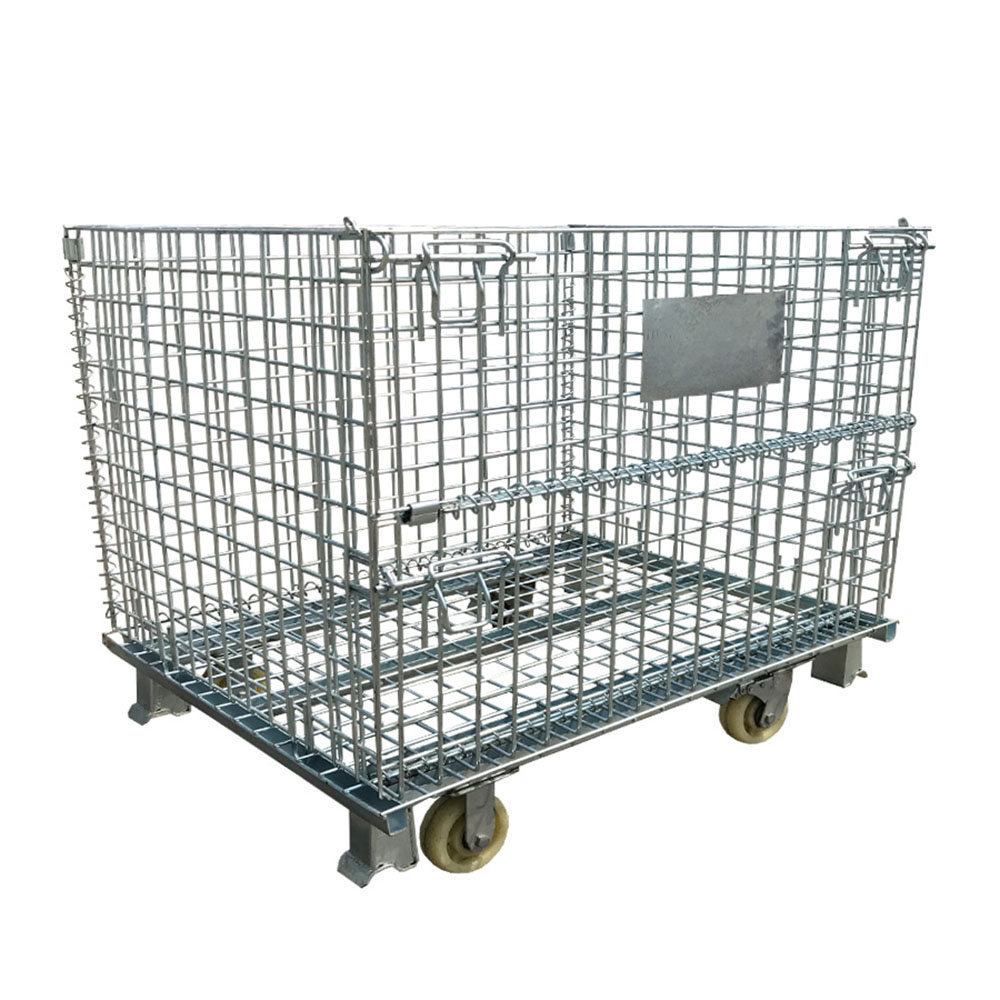

Warehouse Use Material Storage Stacking Galvanized Steel Wire Pallet Mesh With Wheel
Product Description
Product Description
Item Name:
Wire Mesh Container
Raw Material:
Carbon Steel
Surface Treatment:
Galvanized
Gate:
Fold-down
Forklift Entry:
4-way
Forklift Entry Height:
100 mm
Name Plate:
255x155 mm
Stackability:
4 High
Feature:
Foldable / Stackable
Wheels:
Optional
Shipping:
Assembled
Application:
Warehouse / Industrial / Workshop
Product Sizes
| Model No. | Outside Dimension (mm) |
Inside Dimension (mm) |
Wire Dia. (mm) |
Mesh Pattern (mm) |
Load Capacity (kg) |
|---|---|---|---|---|---|
| LX-MC01 | 800*600*640 | 750*570*500 | 5.6 | 50*50 | 600 |
| LX-MC02 | 800*600*640 | 750*570*500 | 4.8 | 50*50 | 400 |
| LX-MC03 | 1000*800*840 | 950*770*700 | 6.2 | 50*50 | 1800 |
| LX-MC04 | 1000*800*840 | 950*770*700 | 6.0 | 50*50 | 1500 |
| LX-MC05 | 1000*800*840 | 950*770*700 | 5.8 | 50*50 | 1200 |
| LX-MC06 | 1000*800*840 | 950*770*700 | 5.6 | 50*50 | 1000 |
| LX-MC07 | 1000*800*840 | 950*770*700 | 5.6 | 50*100 | 800 |
| LX-MC08 | 1000*800*840 | 950*770*700 | 4.8 | 50*50 | 600 |
| LX-MC09 | 1000*800*840 | 950*770*700 | 4.8 | 50*100 | 400 |
| LX-MC10 | 1000*800*500 | 950*770*360 | 6.0 | 50*50 | 1000 |
| LX-MC11 | 1200*1000*890 | 1150*970*740 | 5.8 | 50*50 | 1500 |
| LX-MC12 | 1200*1000*890 | 1150*970*740 | 5.6 | 50*50 | 1200 |
| LX-MC13 | 1200*1000*890 | 1150*970*740 | 5.6 | 50*100 | 1000 |
| LX-MC14 | 1200*1000*890 | 1150*970*740 | 4.8 | 50*50 | 600 |
| LX-MC15 | 1200*1000*890 | 1150*970*740 | 4.8 | 50*100 | 400 |
| LX-MC16 | 1200*800*840 | 1150*770*700 | 5.8 | 50*100 | 1000 |
| LX-MC17 | 800*500*540 | 750*470*400 | 4.5 | 25*25 | 800 |
| LX-MC18 | 800*500*540 | 750*470*400 | 4.5 | 50*50 | 400 |
Frequently Asked Questions
Q1What's your MOQ?
10pcs, sample is acceptable.
Q2What's your payment terms?
30% prepaid, balance paid before shipment.
Q3How about the leading time?
Generally 15-20 working days since initial payment clears.
Q4Can it be customized?
Both OEM and ODM are available.
Q5How are the containers stacked safely in warehouse operations?
The containers are designed with reinforced stacking legs that lock securely onto the top rim of the container below, allowing safe stacking up to 4 units high.
Q6Can optional casters/wheels be installed on all models?
Yes, industrial wheels (PU, PP, or nylon) can be fitted to facilitate manual maneuvering and workshop transit based on customer requirements.
