Engineered for extreme structural integrity, high throughput, and seismic safety compliance. Inspect our factory-direct standard and custom racking equipment portfolio below.
Components
Custom injection-molded high-density polypropylene foot assemblies engineered for automated sorting tracks, AGV shuttles, and transport rack bases.

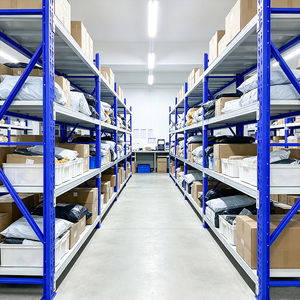

Picking Rack
Heavy-duty corrosion-resistant beam structure with modular steel panels. Engineered specifically for manual carton picking, spares storage, and distribution hubs.

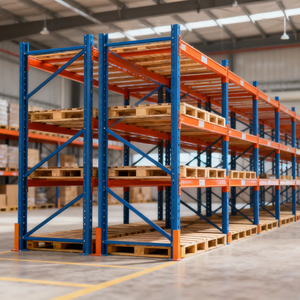

Pallet Rack
Industrial selective racking with interlocking box beams and upright omega frames. Electrostatically powder-coated for severe logistics environments.

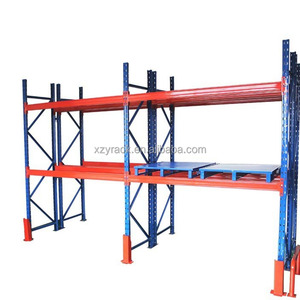

Structural Part
Seismic-rated heavy gauge steel feet designed for structural box beams and upright anchoring to withstand shear stress and forklifts impacts.

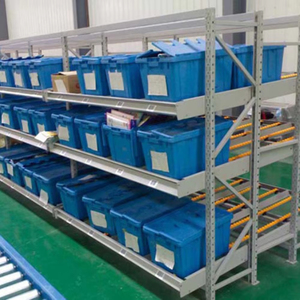

Dynamic FIFO
Strict First-In-First-Out (FIFO) roller-track pallet system featuring integrated speed dampers and separation separators for FMCG and pharmaceutical warehouses.

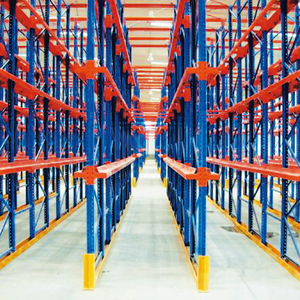

High Density
Filo high-density lane configuration minimizing aisle requirements. Fabricated with continuous cold-rolled cantilever corbels for high-capacity cold storage.
Modular Post
Portable modular post pallets designed for seasonal agricultural surges, temporary staging, and heavy component buffering without dedicated upright bolts.

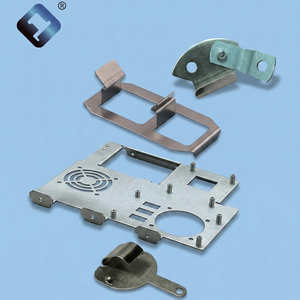

Precision OEM
High-precision laser-cut CNC-bent server rack enclosures, control boxes, and distribution panels manufactured from SPCC cold-rolled and stainless steel.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved into an authoritative tier-one manufacturer of industrial warehouse pallet racking, heavy cantilever storage, structural mezzanine platforms, and automated logistics hardware. Operating from our 30,000 m² state-of-the-art production hub in Guangdong, we integrate structural calculation, custom roll forming, robotic welding, and automated surface engineering under one unified quality management umbrella.
Unlike standard commercial middlemen or light fabricators, Heda maintains complete metallurgical traceability with mill test certificates (MTC 3.1) from premier steel mills (such as Baosteel and Shougang). Our manufacturing facility complies strictly with ISO 9001:2015 Quality Management System No. 18624Q00169R0M, CE Mark Certification No. 2435-CPR-8605159, and RoHS eco-production directives.
Eliminating intermediary markup delivers direct 25–40% CAPEX savings on commercial logistics expansions.
In-house team of 30+ licensed engineers delivering finite element analysis (FEA) and site-specific load charts.
Engineered to satisfy Australian AS 4084, New Zealand NZS 1170.5, and US RMI steel storage racking standards.
GEMA Swiss automated powder lines deliver 80–120μm electrostatic coatings with 500-hour salt spray test certification.
Industrial racking failure risks operational shutdown and severe worker injury. Our engineering methodology combines certified high-tensile structural coil forming with validated stress mitigation.
| Engineering Parameter | Heda Shelves Industrial Standard | Generic Commodity Racking | Technical Impact & Compliance Value |
|---|---|---|---|
| Primary Steel Grade | Q235B / Q355B Hot-Rolled Coils | Recycled scrap mix / uncertified Q195 | Yield strength $f_y \ge 355\text{ MPa}$; prevents sudden catastrophic brittle failure under dynamic shock loads. |
| Upright Omega Profile | Continuous multi-bend 11-fold geometry | Basic 7-fold profile | Significantly higher section modulus ($Z_x$) and moment of inertia ($I_x$), increasing buckling resistance by 32%. |
| Beam Deflection Limit | $\delta \le L / 200$ (Conservative Design) | $\delta \le L / 150$ or unrated | Ensures automated shuttle clearance and eliminates permanent plastic deformation over years of continuous load. |
| Connector Claw Assembly | 4 or 5-tooth cold-stamped forged claws | 3-tooth welded plate | Enhanced interlocking moment capacity preventing beam disengagement during vertical forklift tines catch. |
| Corrosion Pretreatment | 8-Stage Pickling, Phosphating & Passivation | Basic manual solvent wipe | Guarantees paint-to-metal chemical bonding; prevents micro-rust blistering under high-humidity conditions. |
| Seismic Anchor Engineering | Dual M12/M16 Hilti-equivalent anchors + thick footplate | Single central pin / 2mm thin sheet | Absorbs ground shear acceleration compliant with NZS 1170.5 and AS 1170.4 seismic hazard spectra. |
Heda upright frames feature an engineered 11-fold omega cold-roll profile. This multi-flange cross section optimizes torsional rigidity, distributing axial vertical loads down through precision CNC-punched 50mm or 75mm teardrop/diamond slots without localized stress concentrations.
Our heavy-duty pallet beams utilize twin C-channels interlocked and continuous seam-welded via Panasonic robotic welding arms. This creates a hollow closed structural box beam delivering unmatched horizontal deflection resistance and rotational stiffness under concentrated dual-pallet footprints.
Warehouses situated in active tectonic regions (e.g., New Zealand, Pacific Rim, South America) require custom ductility calculations. We supply finite element modeling, oversized footplates, and cross-bay portal bracing designed to absorb seismic energy without frame collapse.
From raw steel slitting to final container dunnage packing, every pallet rack component passes through rigorous digital monitoring to ensure exact mechanical tolerances on site.
Ultrasonic thickness verification and spectral composition analysis of structural coils.
High-speed coil uncoiling and precision shearing to fractional millimeter width tolerances.
Multi-ton hydraulic punching lines establishing 50mm/75mm slot uniformity along uprights.
24-stage roll forming mill shaping high-yield steel coils into rigid omega frame geometries.
3D laser tube profiling cutting box beams and structural bracing with zero thermal warpage.
Panasonic automated robotic cells executing consistent weld bead penetration on beam end connectors.
8-stage degreasing, ultrasonic pickling, and zirconium phosphating for extreme coating adhesion.
Swiss GEMA automatic reciprocating spray booths applying durable polyester thermoset finishes.
200°C curing ovens cross-linking powder resin for impact toughness and scratch prevention.
ISPM-15 certified timber buffering and custom steel stillages protecting frames during sea transit.
Global supply chain directors must anticipate automation compatibility, decarbonization targets, and changing logistics dynamics when procuring long-term racking infrastructure.
Manual forklift bays tolerate ±5mm deviations; automated shuttle racking (ASRS) requires ±1.0mm verticality across 30-meter high-bay installations. Future procurement is pivoting toward laser-straightened uprights and sensor-integrated shuttle rail brackets capable of handling 24/7 robotic throughput without jam-related shutdowns.
With pharmaceutical and frozen food logistics expanding rapidly, racks operating at -30°C face severe steel embrittlement risks. Sourcing trends prioritize specialized killed structural steels with validated Charpy V-notch impact toughness at sub-zero temperatures, paired with anti-condensation powder chemistries.
Under the EU Carbon Border Adjustment Mechanism (CBAM) and corporate Scope 3 emission audits, global buyers increasingly require low-carbon electric arc furnace (EAF) steel sourcing, non-toxic heavy-metal-free powder coatings, and recyclable packaging that reduces warehouse facility carbon footprints.
Next-generation distribution centers are piloting wireless piezoelectric strain sensors embedded directly into lower uprights and row-end protectors. These transmit real-time deflection and impact alerts directly to warehouse management systems (WMS), preventing overloading disasters before they occur.
Exporting structural steel racking demands far more than basic freight booking. Racking components are heavy, long, and susceptible to in-transit vibration abrasion. Heda Shelves engineers custom container packing arrangements using 40ft High Cube (40HQ) containers to maximize cubic capacity while adhering to maritime road weight limits (typically 26,000–28,000 kg gross weight).
Direct departures from Guangzhou / Shenzhen / Nansha ports with major container carriers (COSCO, Maersk, MSC, ONE):
Clear answers addressing technical compliance, structural certification, OEM capabilities, and procurement safety.
