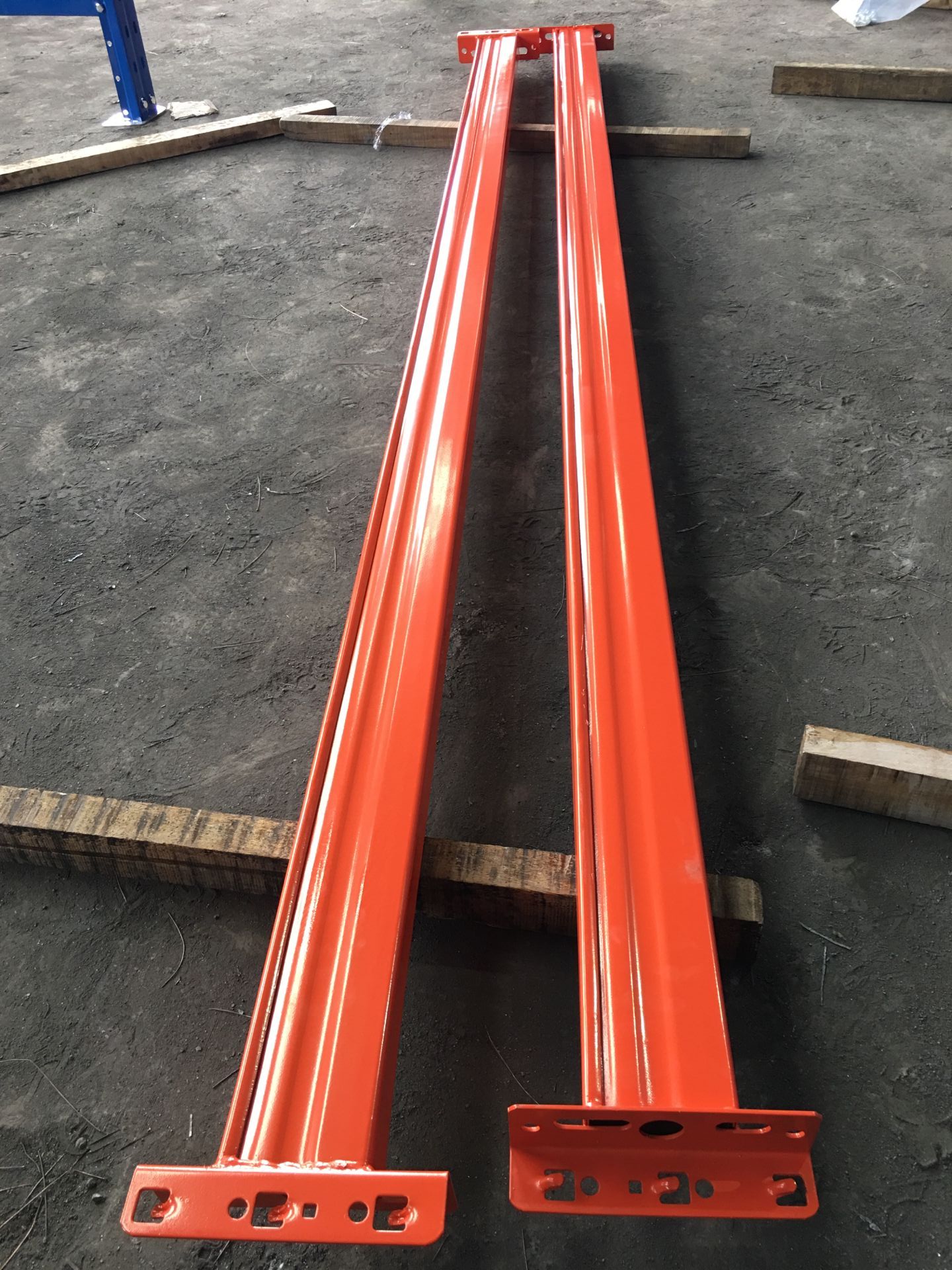

Pallet Rack Steel Feet for Pallet Rack Pallet Racking Box Beam
Product Description
Product Description

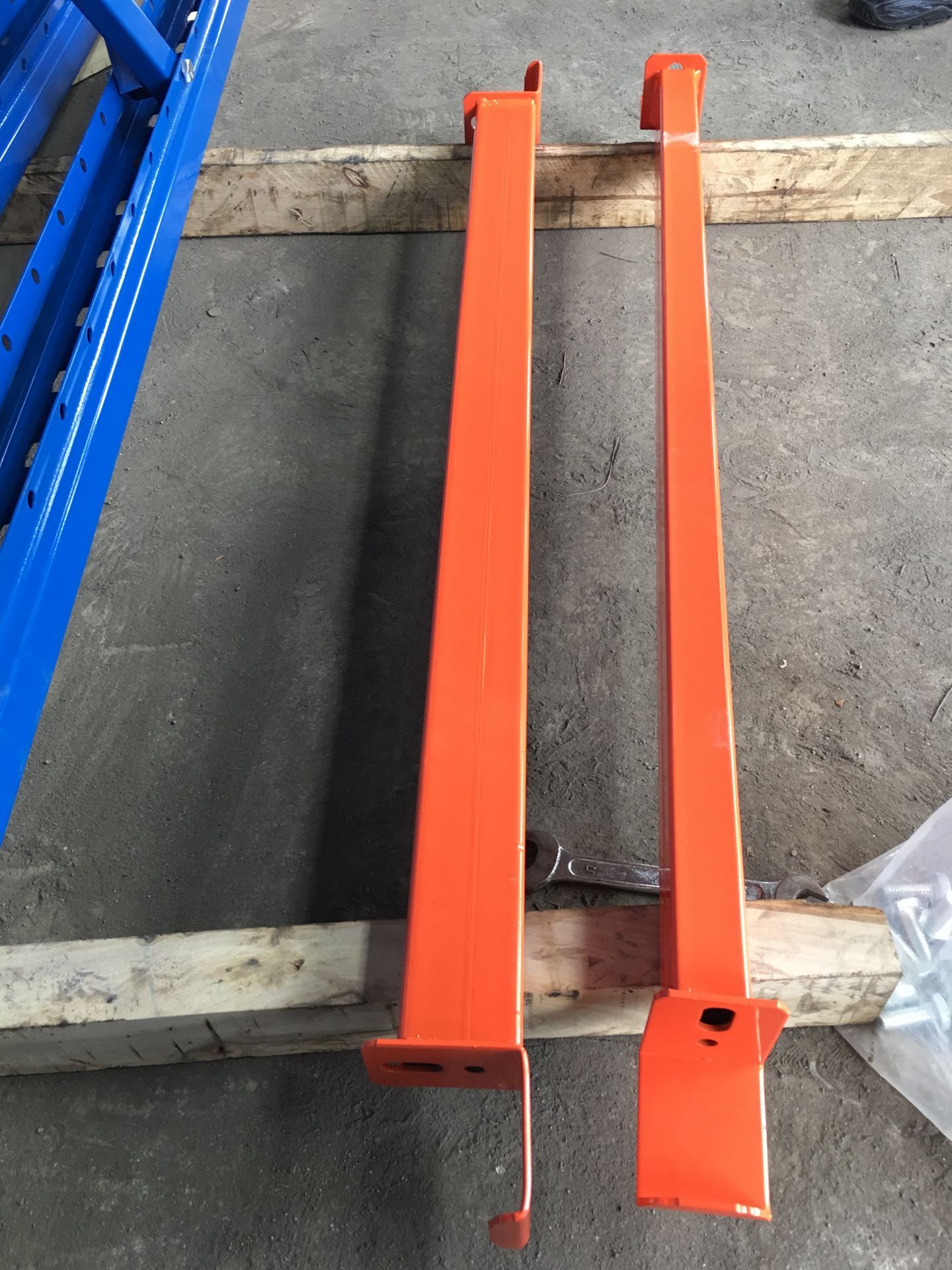

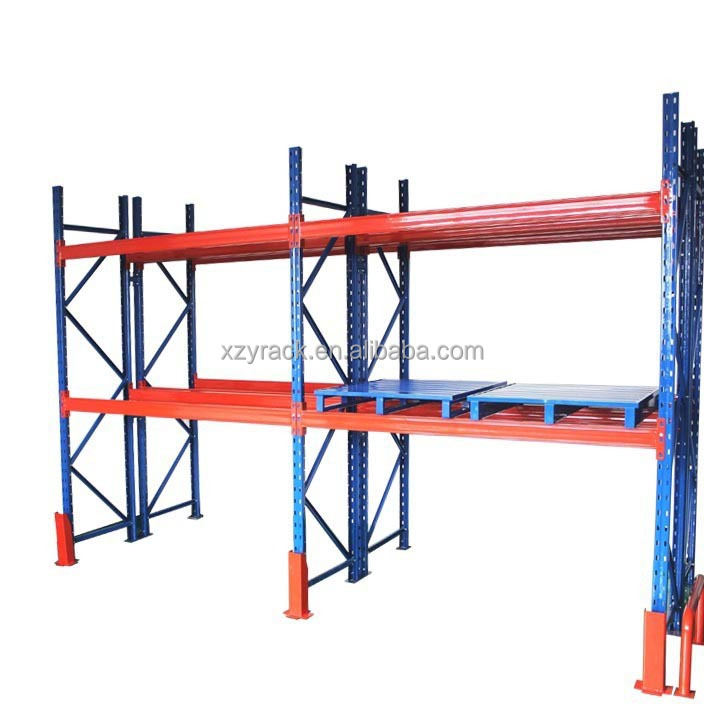

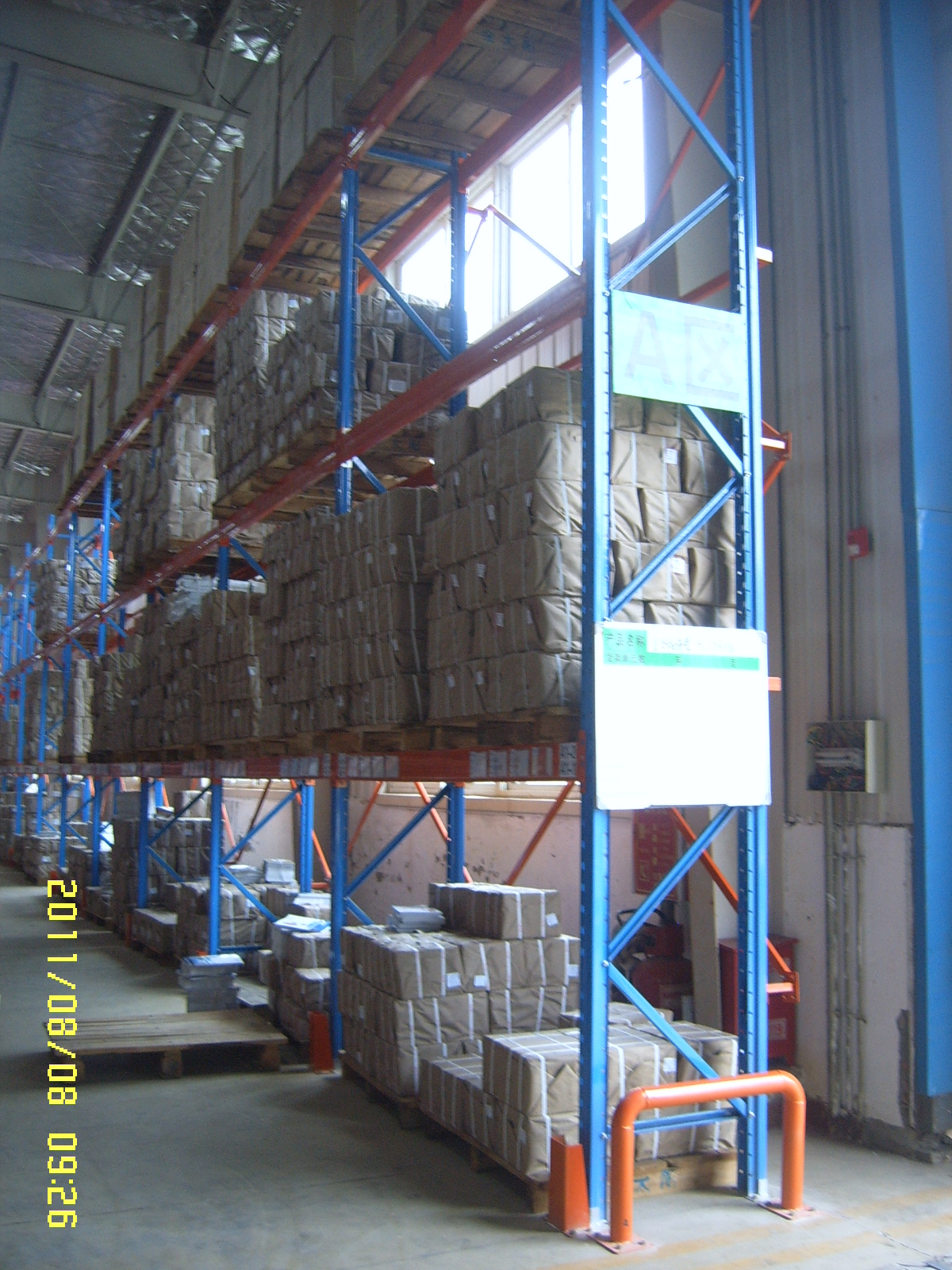

Pallet Rack Steel Feet for Pallet Rack & Pallet Racking Box Beam
Heavy duty racking has a high efficiency storage and is unlimited by the order of the goods in and out of the warehouse. This kind of racking is adjustable and suitable for the forklift working. The aisles can be distinguished by traditional (3000 mm around) and narrow (1700 mm around) types, the narrow one needs special narrow forklift.
Key Characteristics
- This kind of racking is made of special shaped section post, which improving the loading capacity.
- Beams can be adjusted up and down flexible as a unit of 75mm.
- Assembled frame structure together with safe accessory make it easy to assemble and disassemble and comfortable for spare parts, after-sale maintenance and replacing.
- It usually uses Epoxy electrostatic powder coating for surface treatment which with a high ability of rust-proof.
- You can add brace, back spacer, steel panel, foot protector, rack protector, back mesh as your requirement.
Product Specifications
Technical Details:

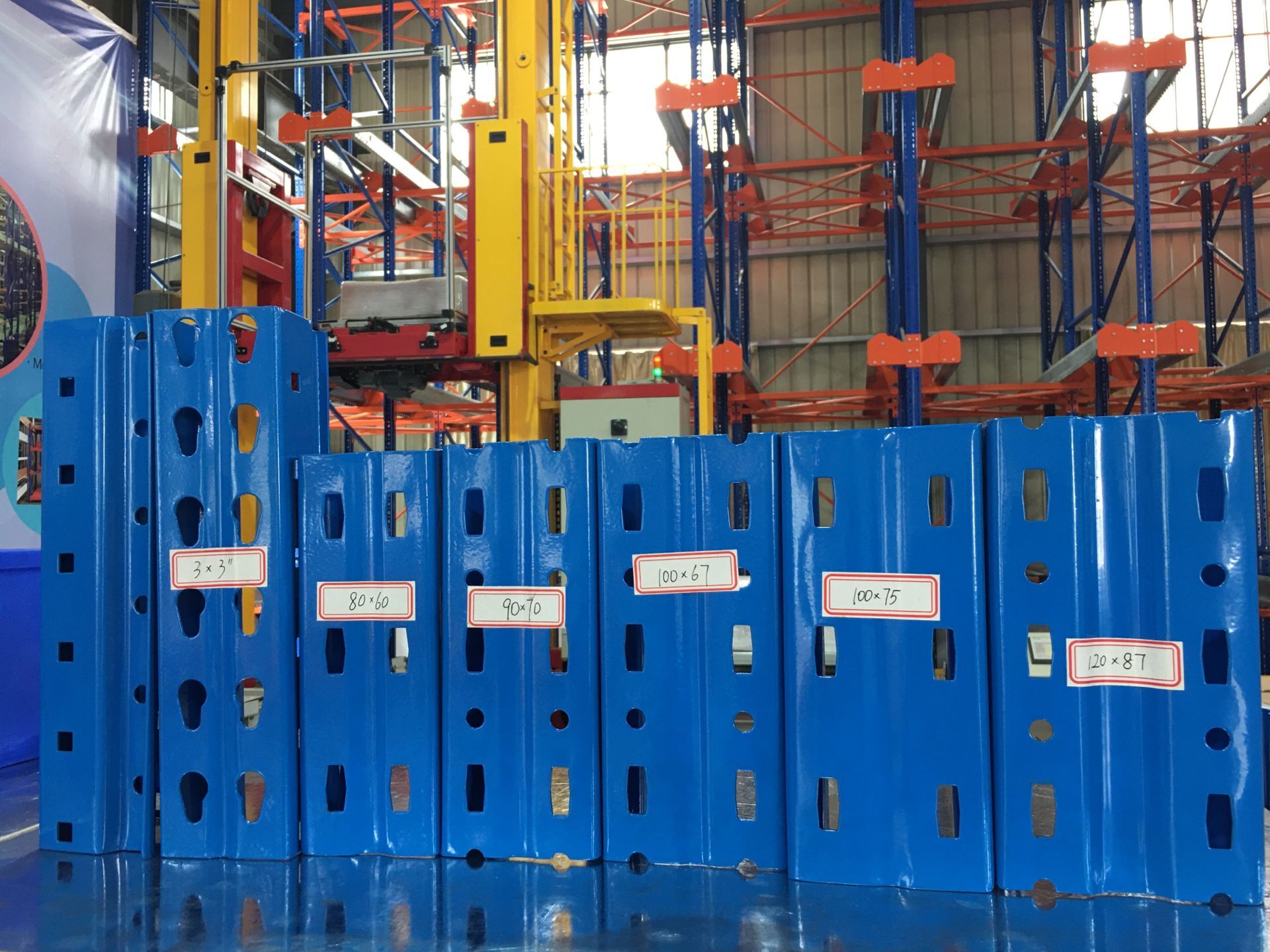

- Upframes Post: 80*60*2.0, 90*75*2.0, 100*70*2.0, 120*75*2.0
- Horizontal & Aslant Cross Braces: 40*24*1.3, 40*34*1.3
- Beam Sizes: 100*50*1.5mm, 110*50*1.5mm, 120*50*1.5mm, 130*50*1.5mm, 140*50*1.5mm, 160*50*1.5mm
- Level Loading Capacity: Less than 4 Ton / level
- Total Loading Capacity: 12T per section

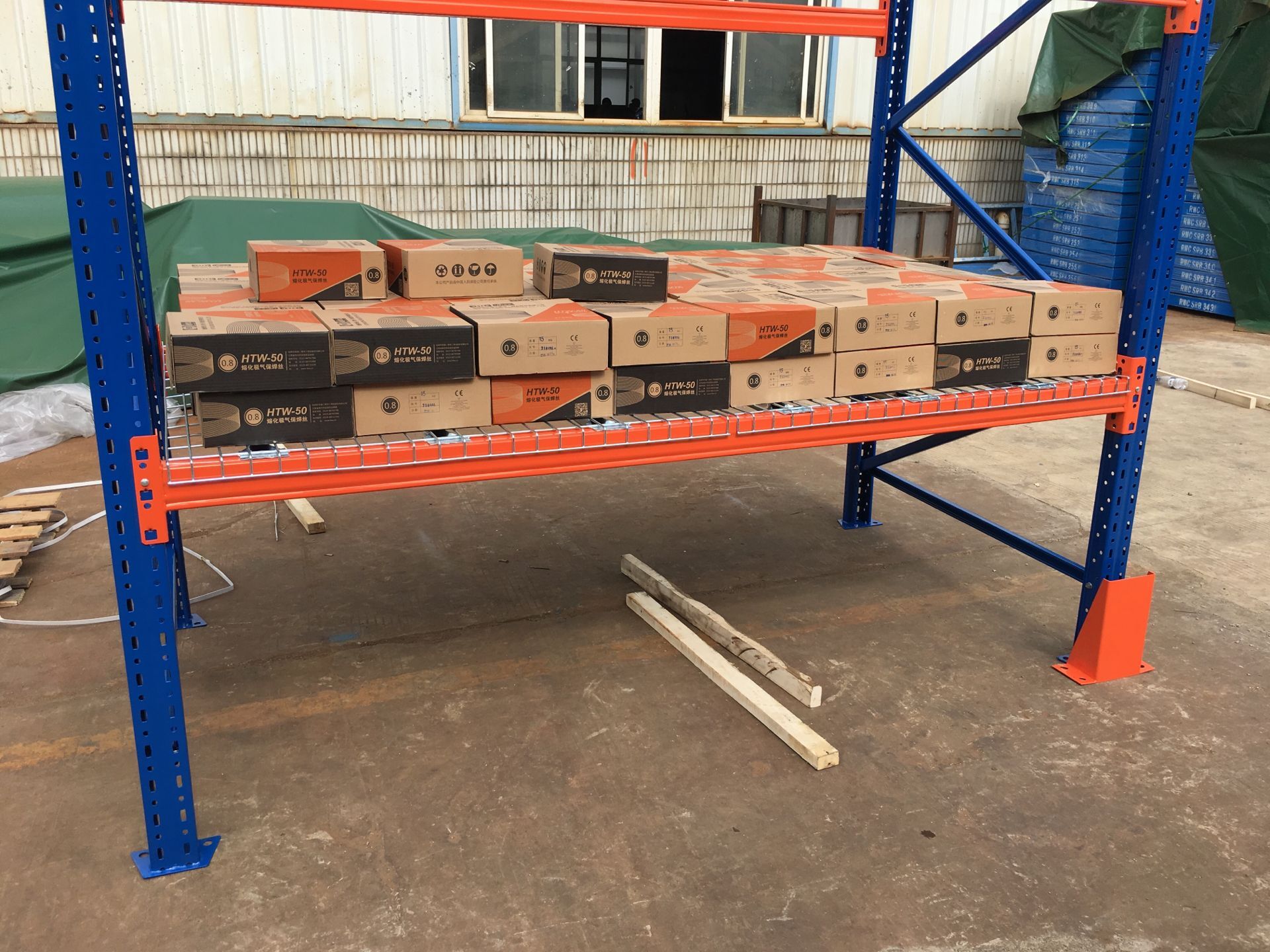

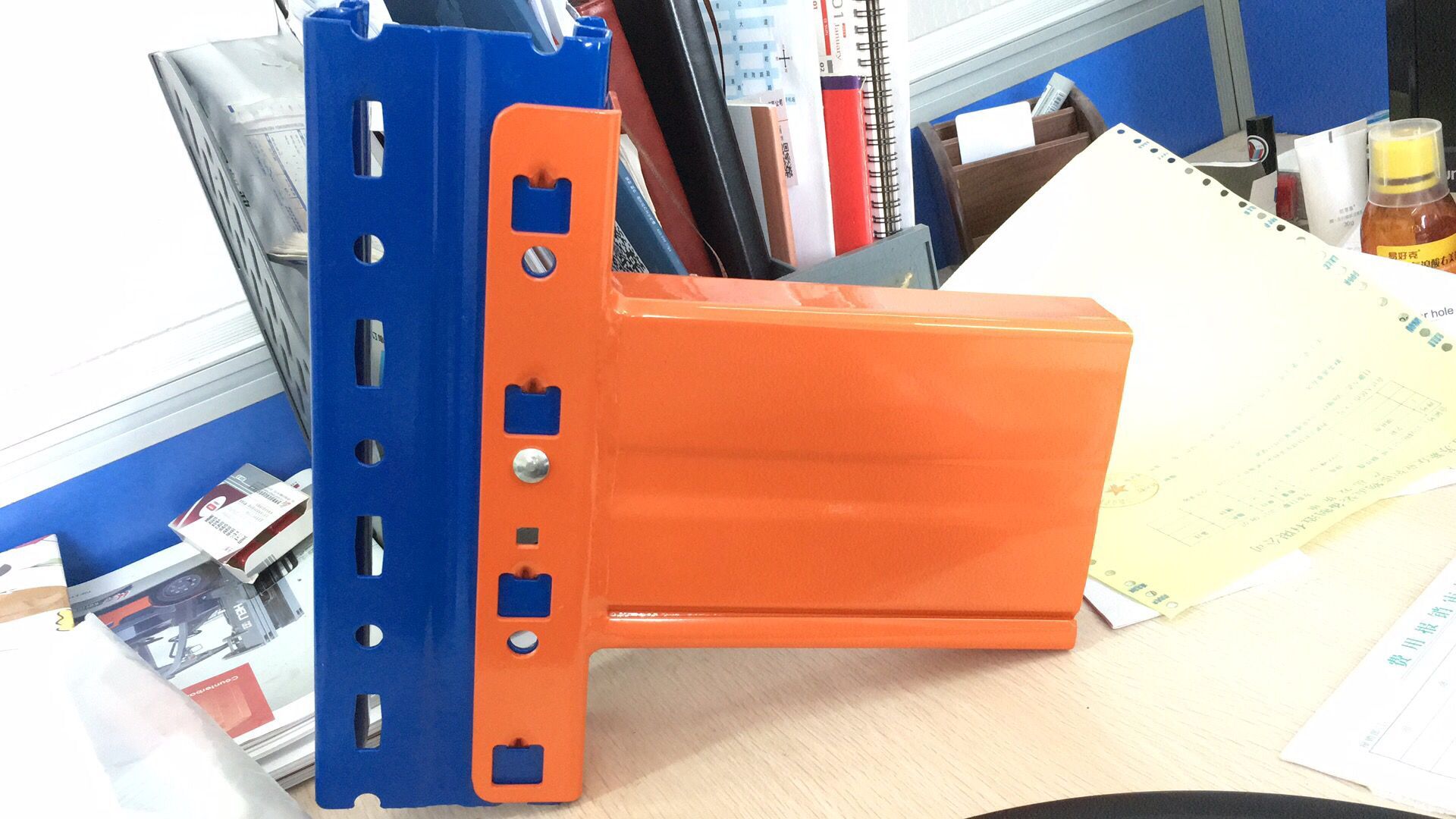

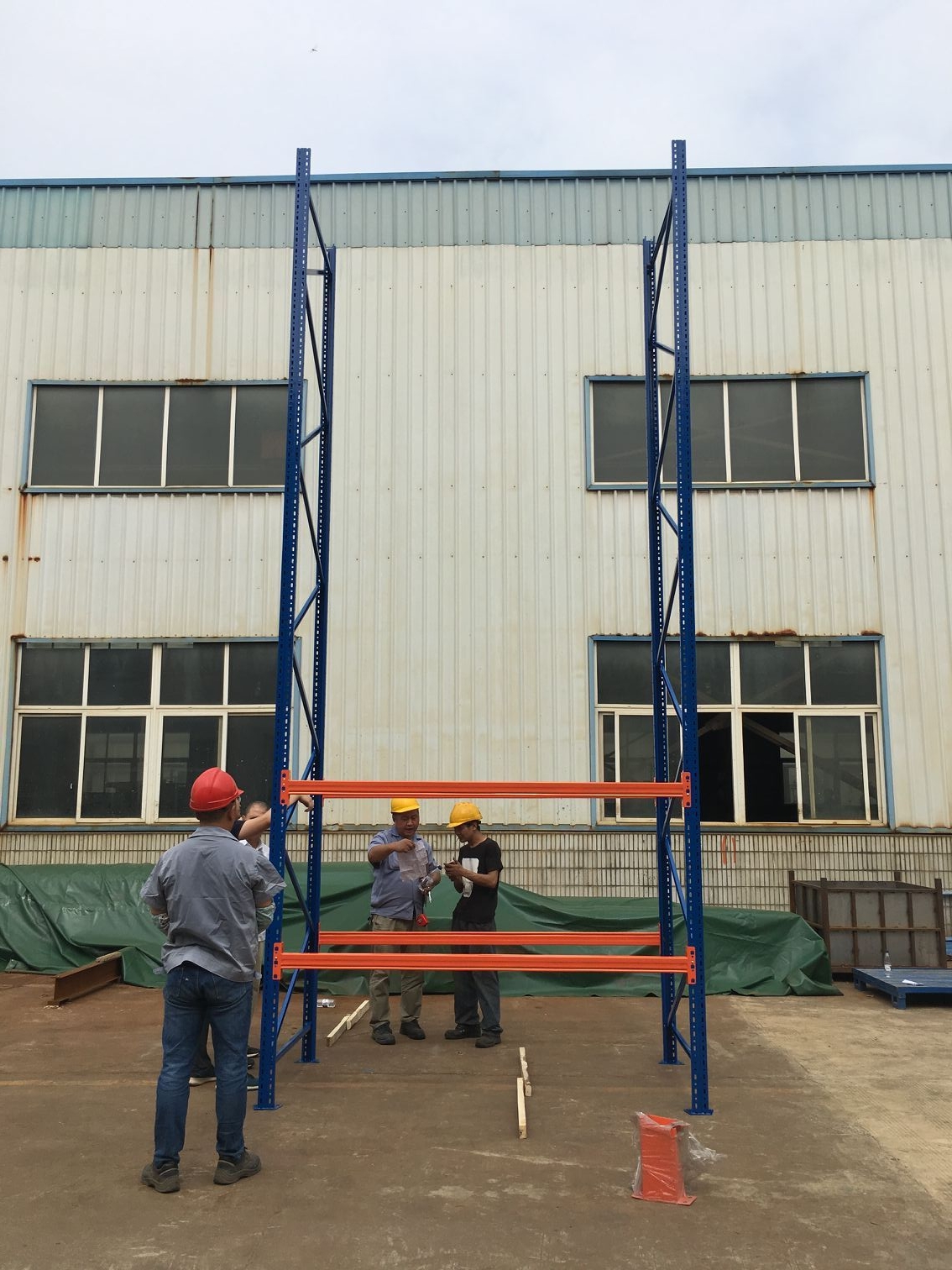

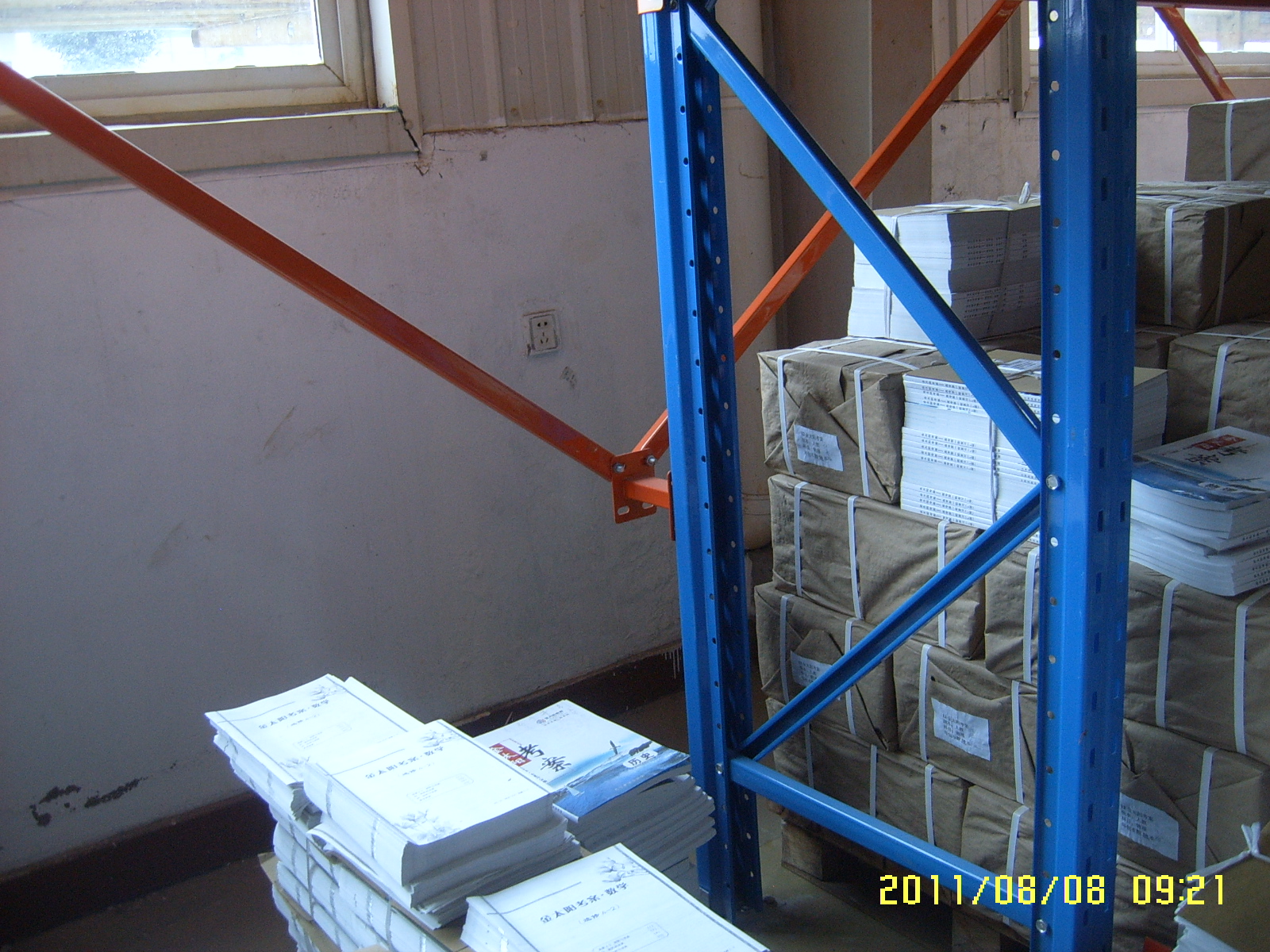

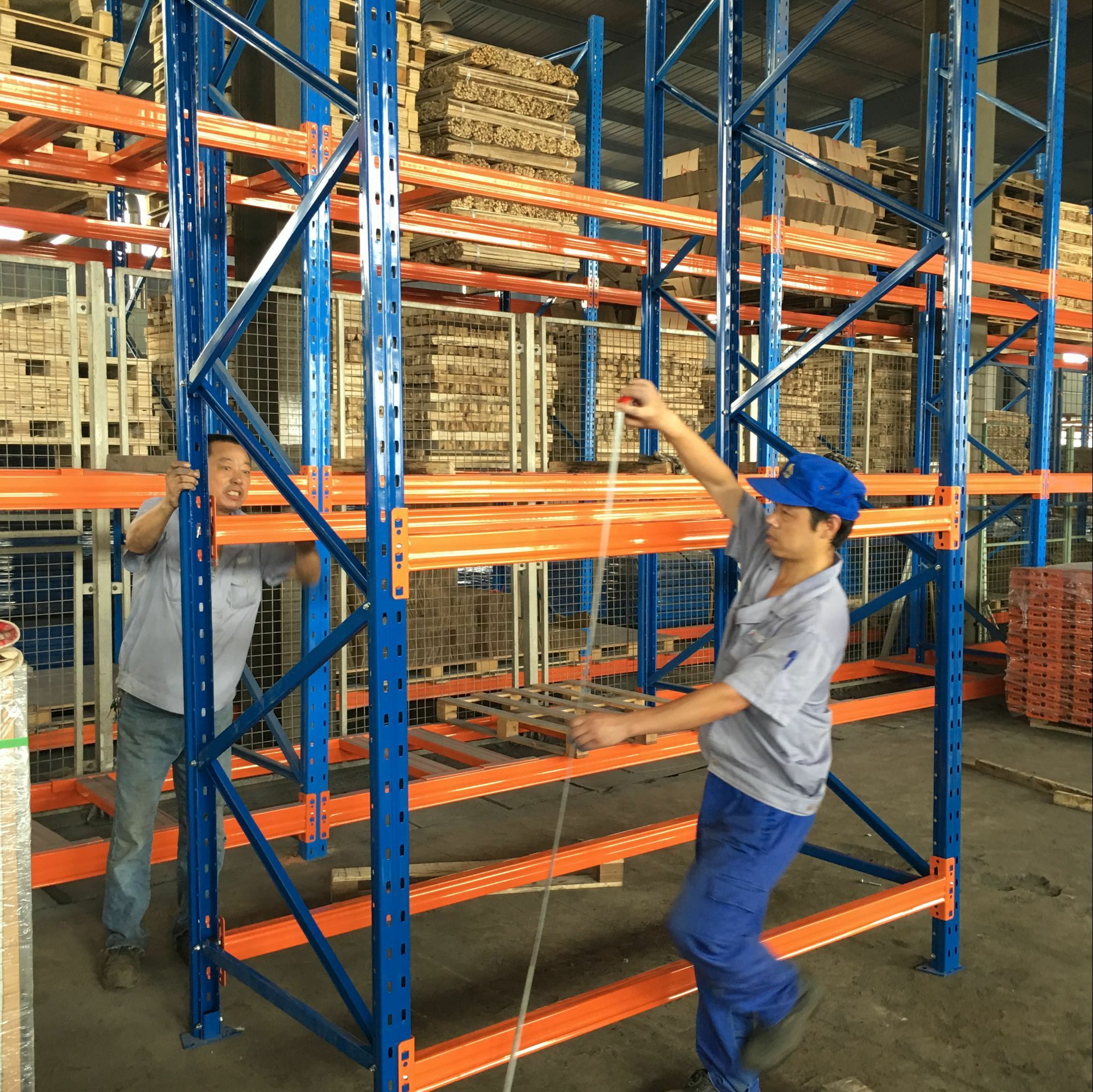

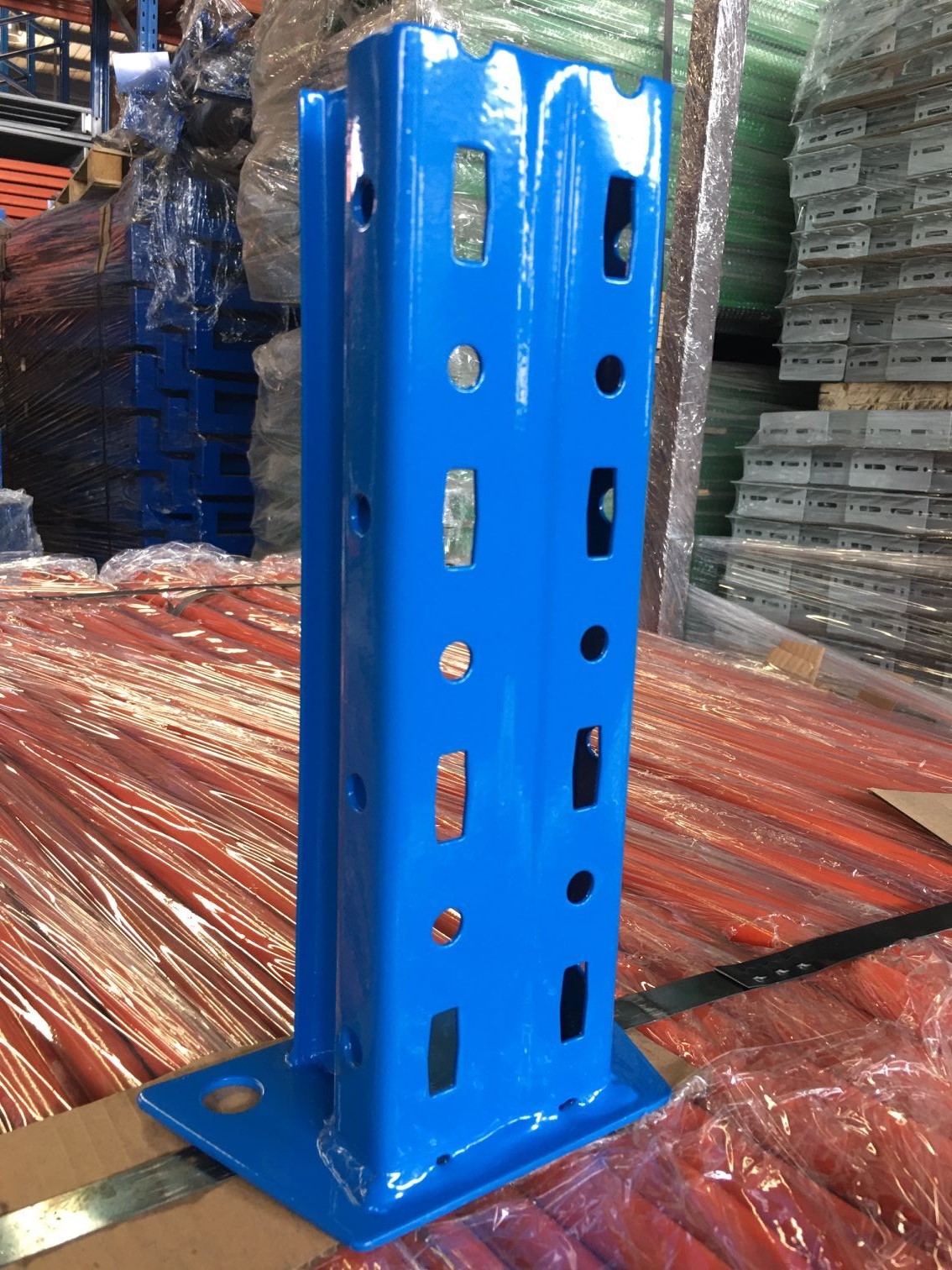

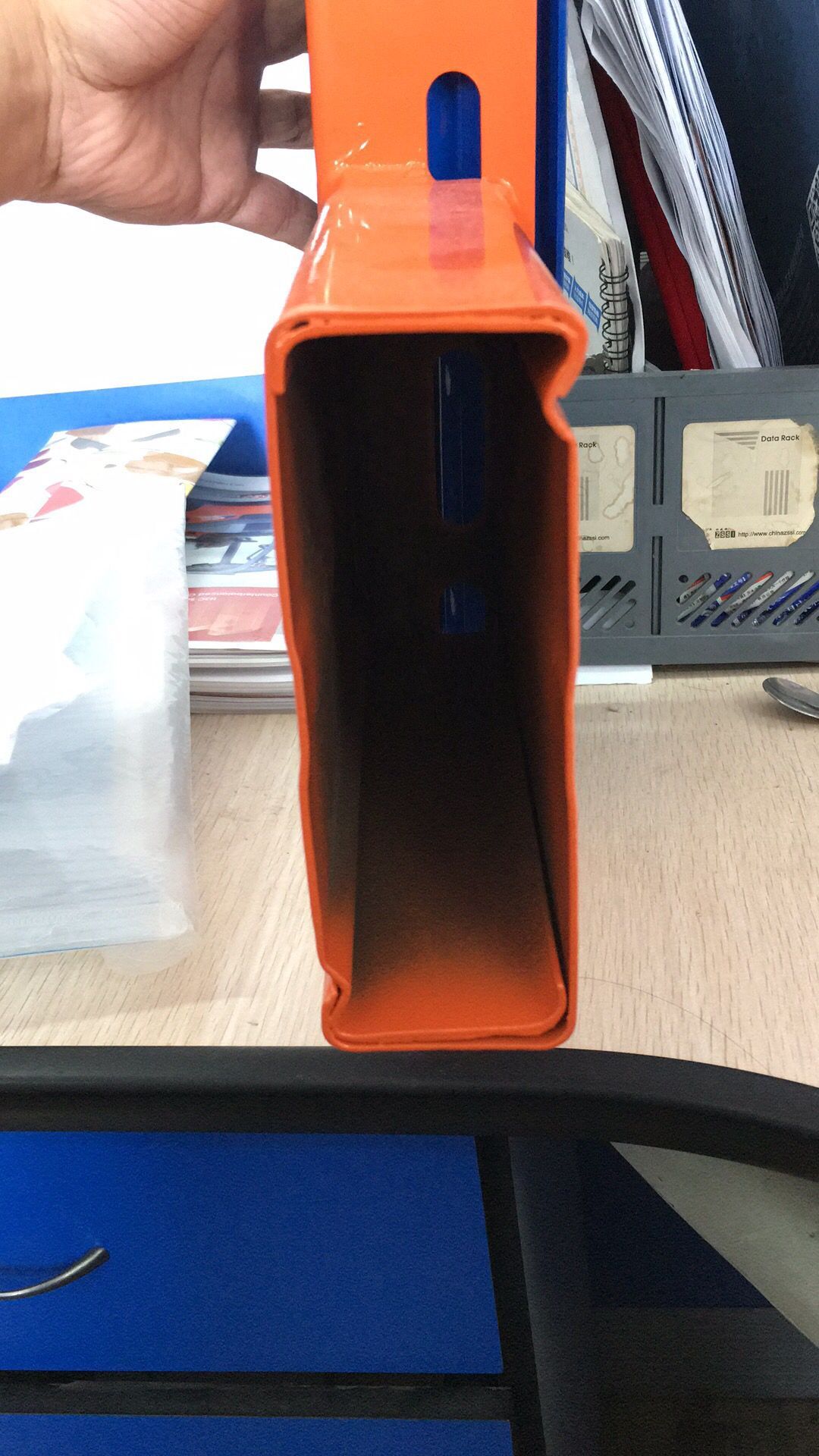

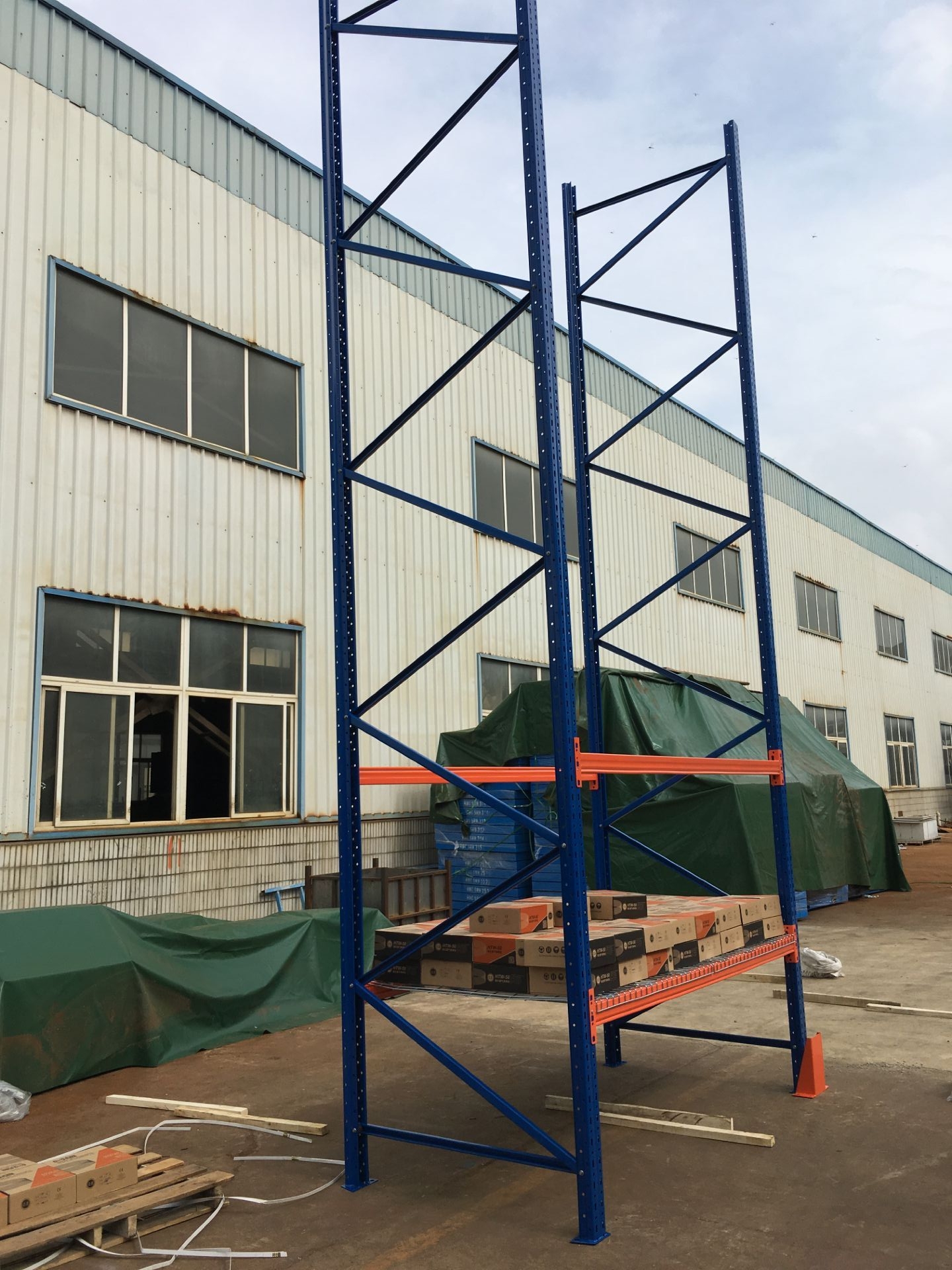

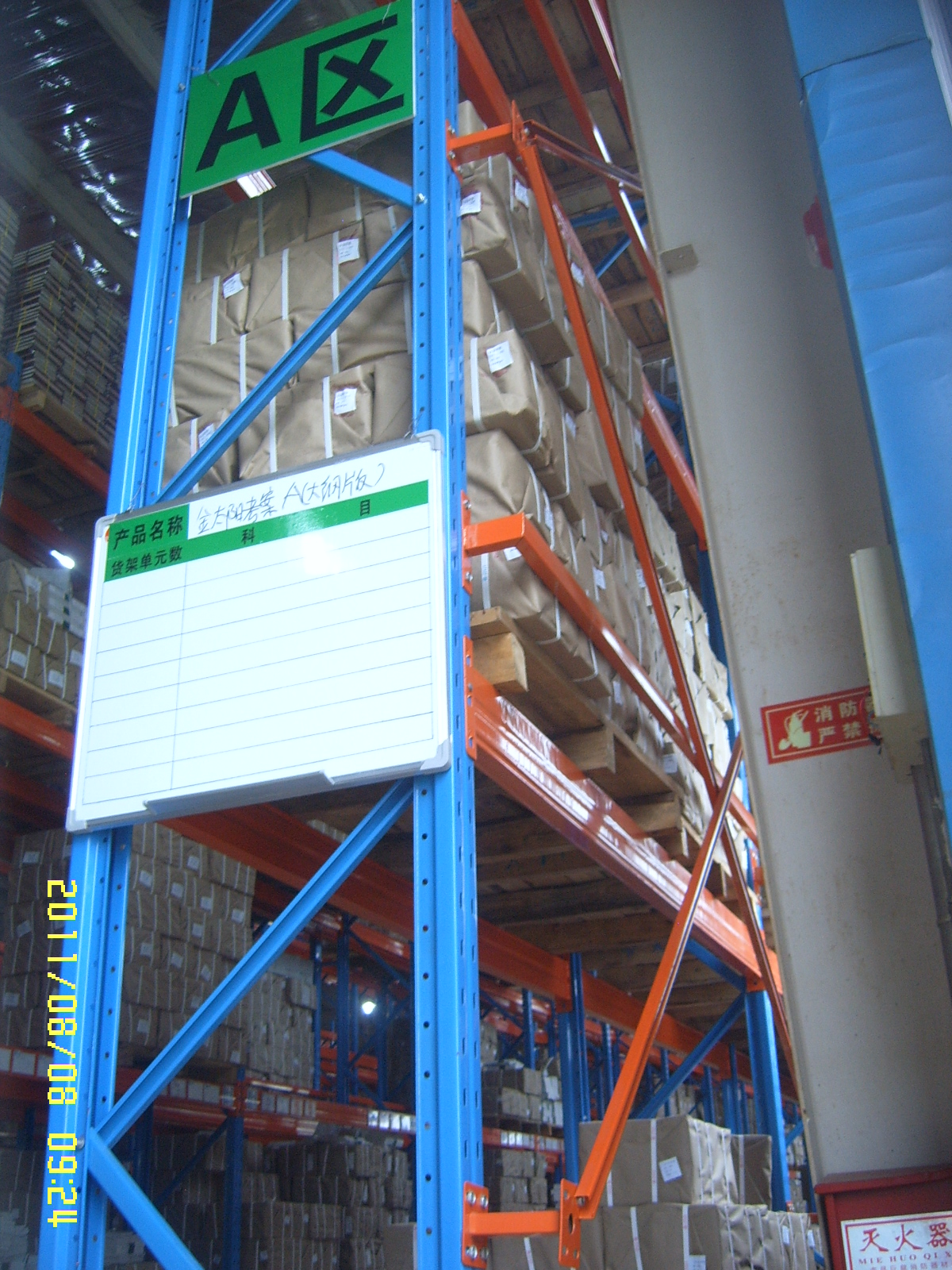

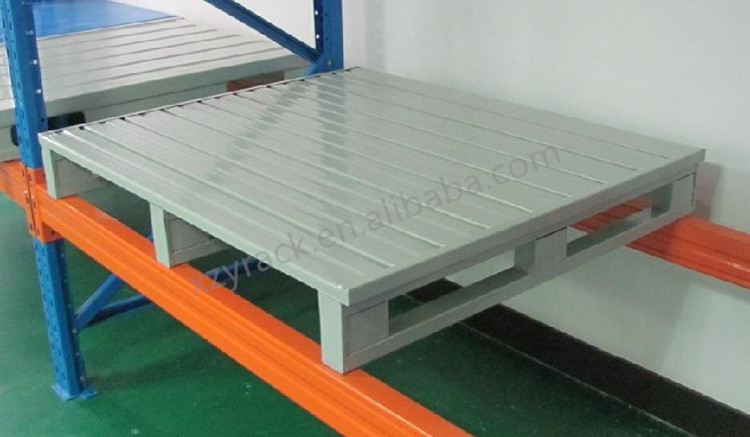

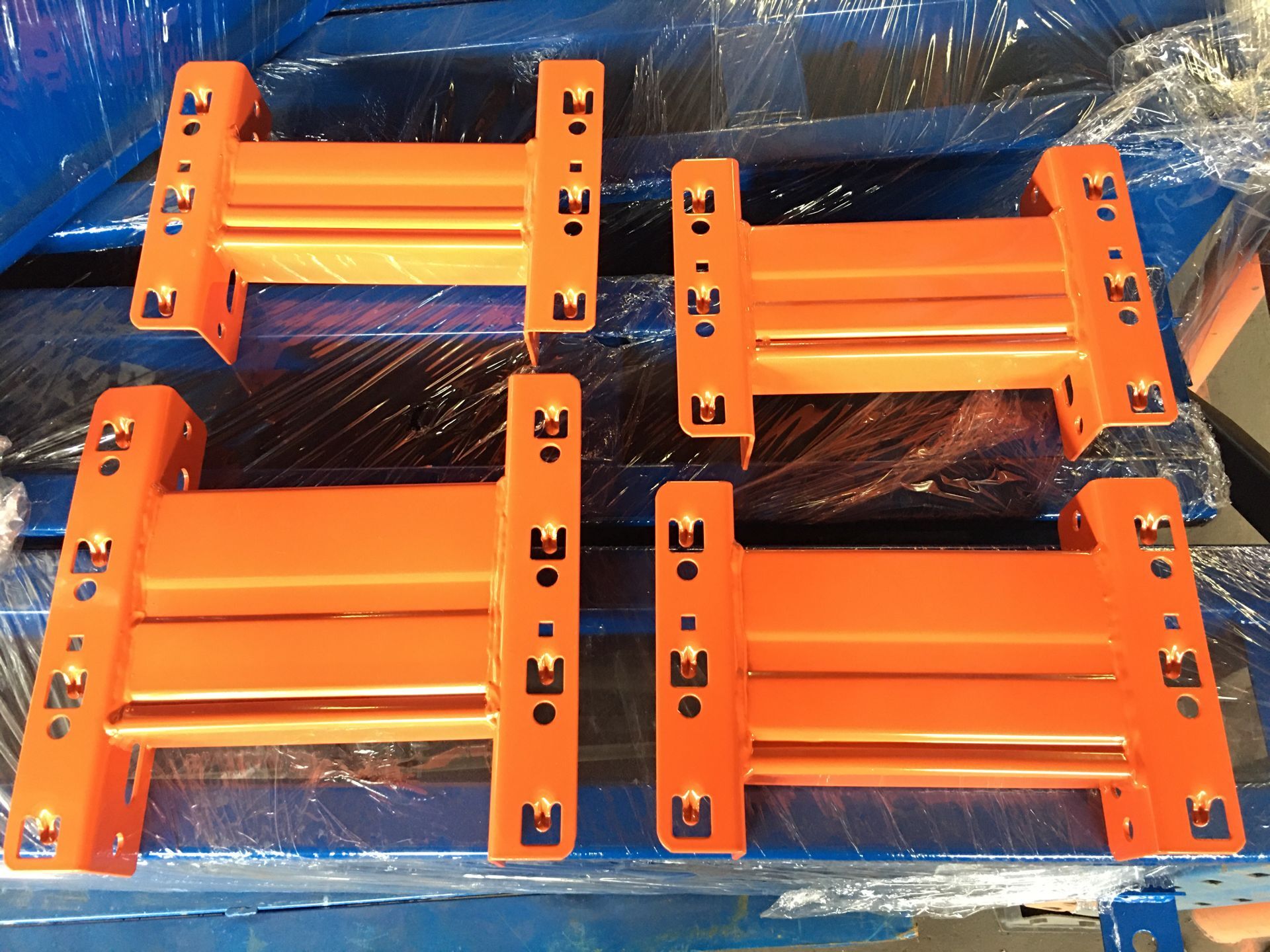

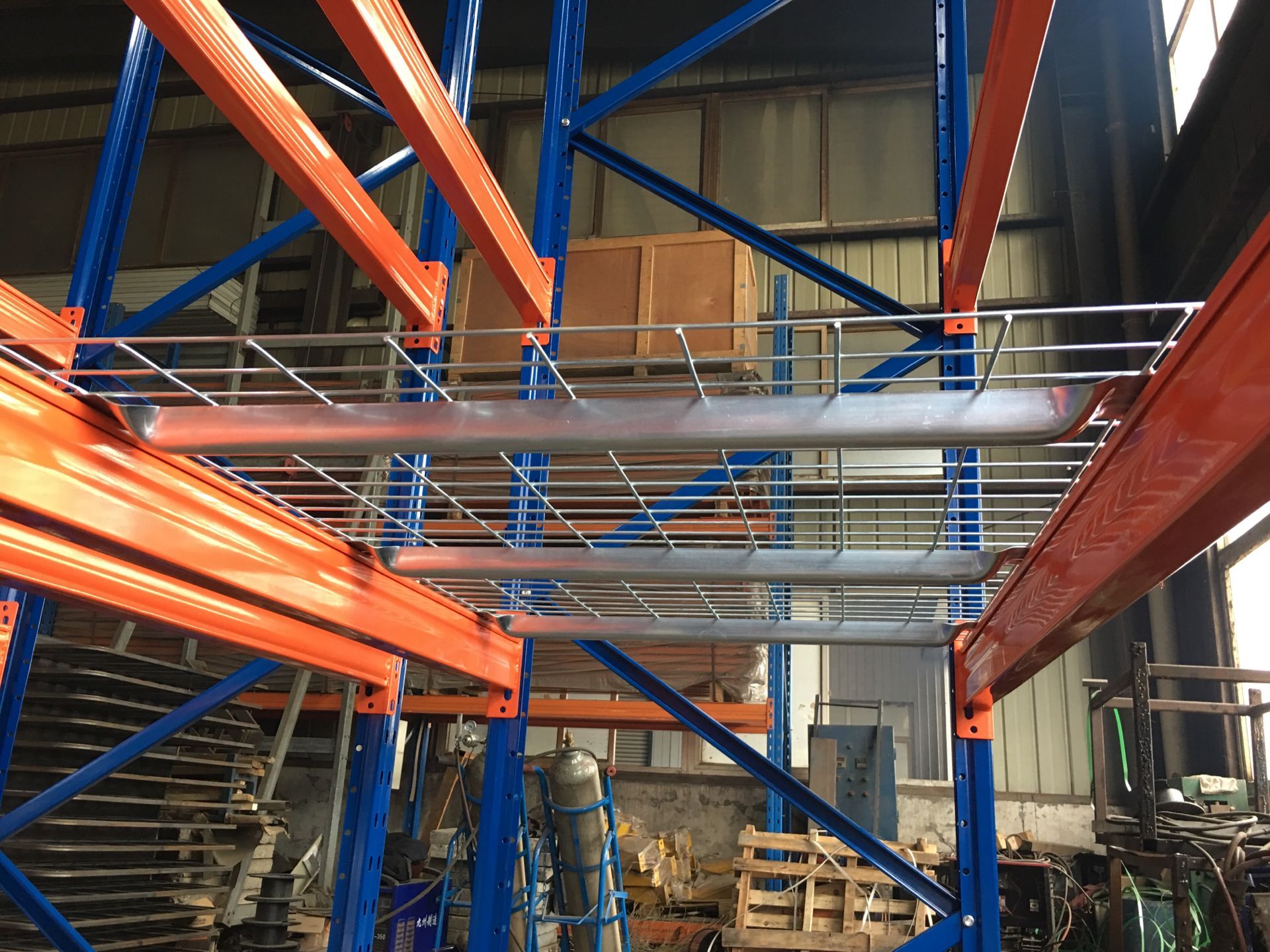

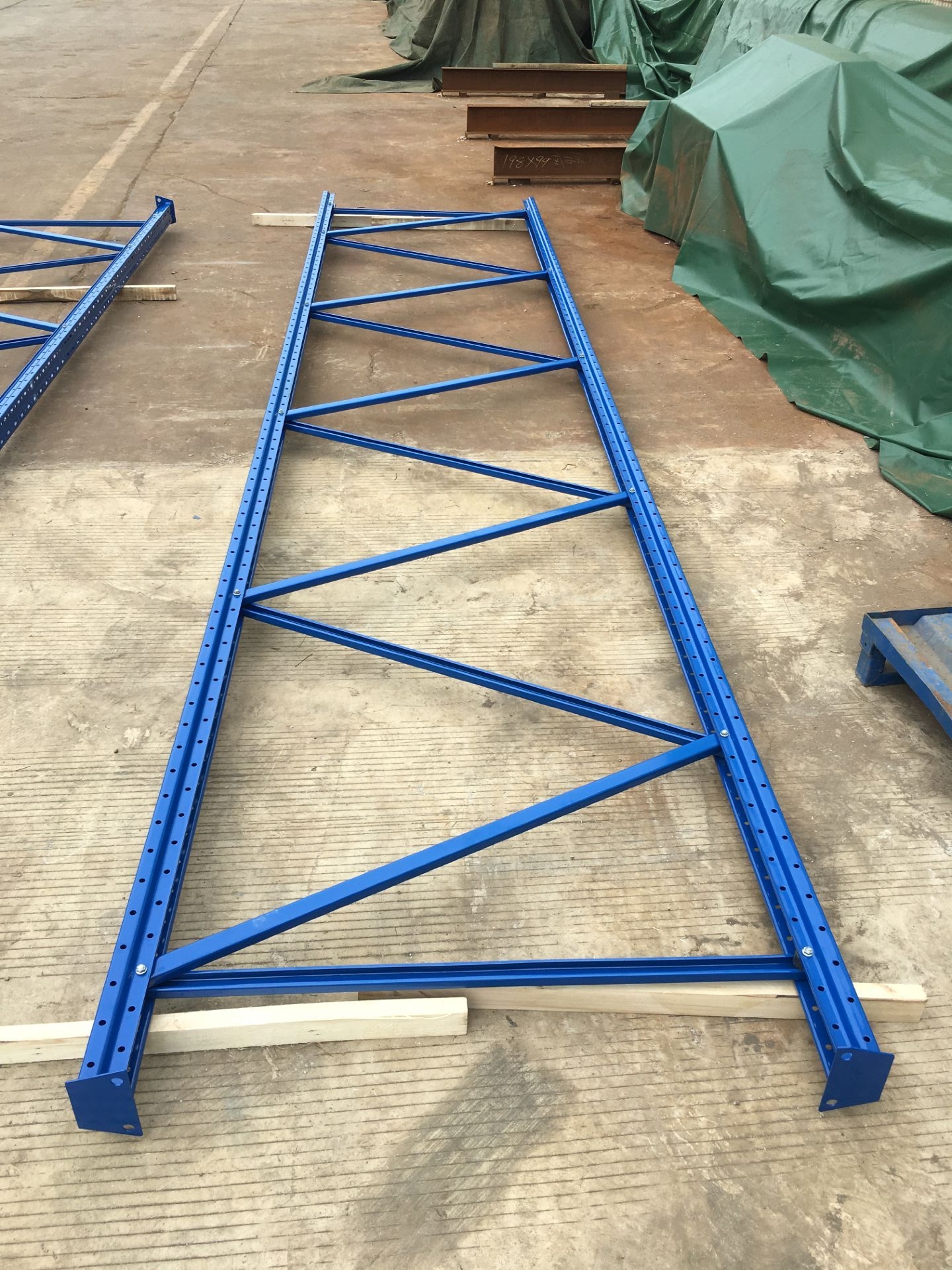

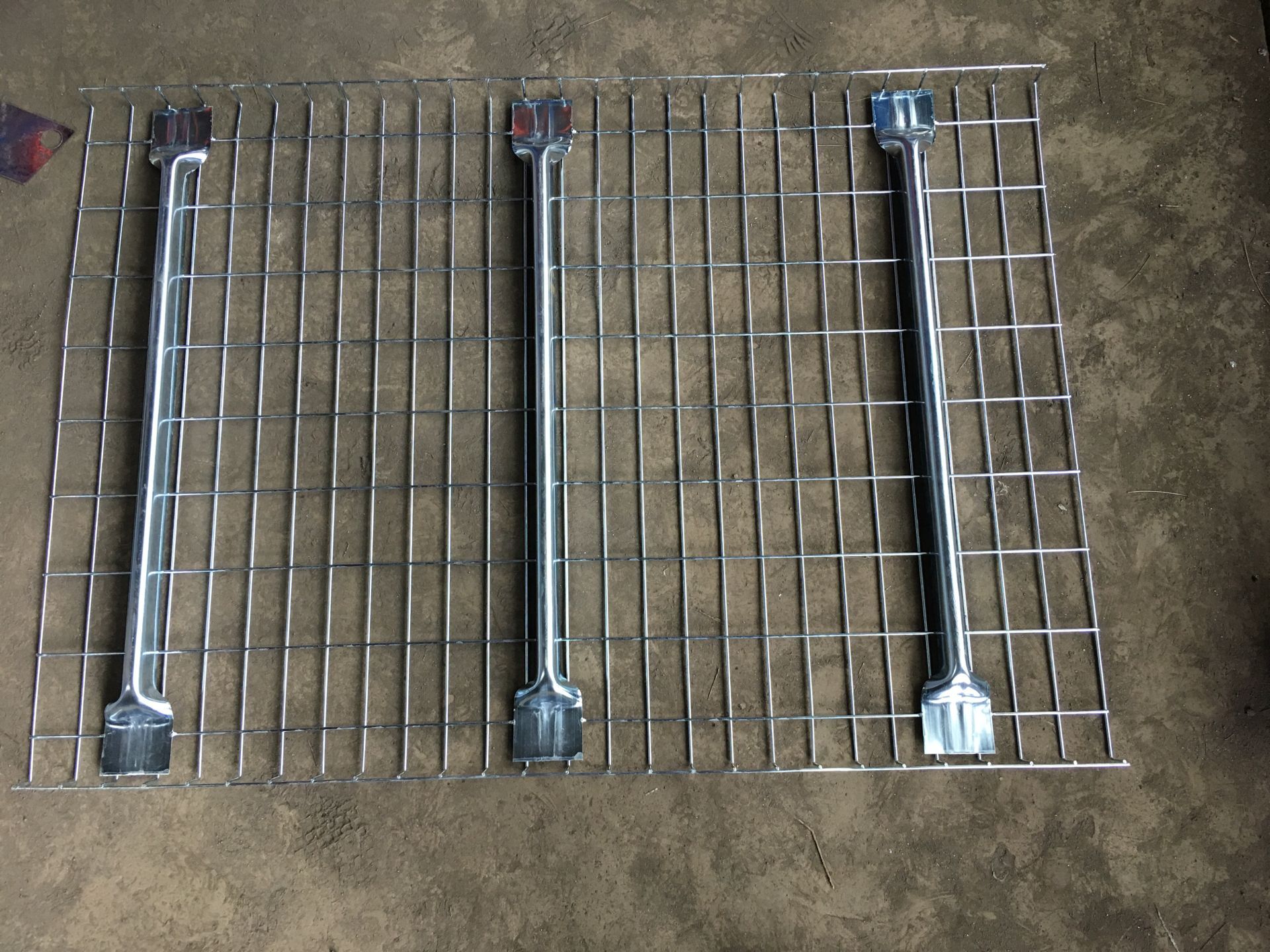

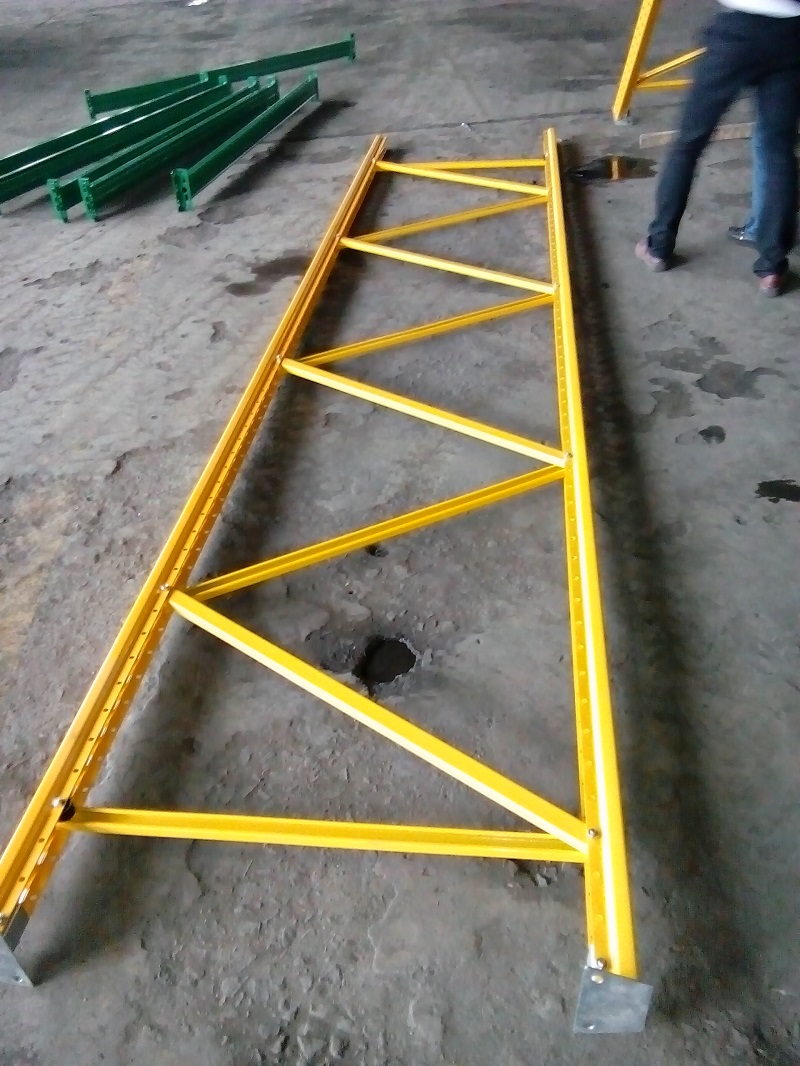

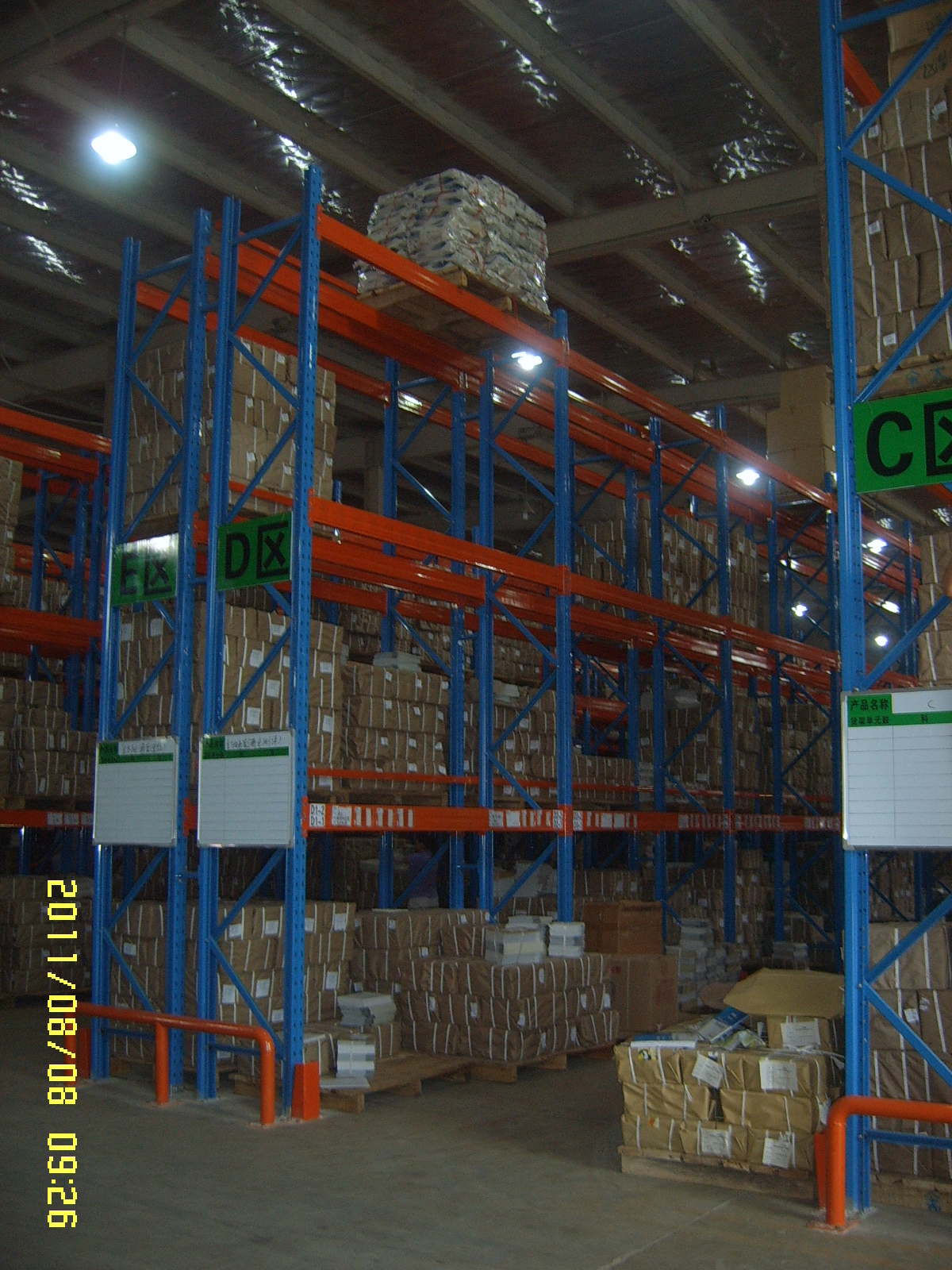

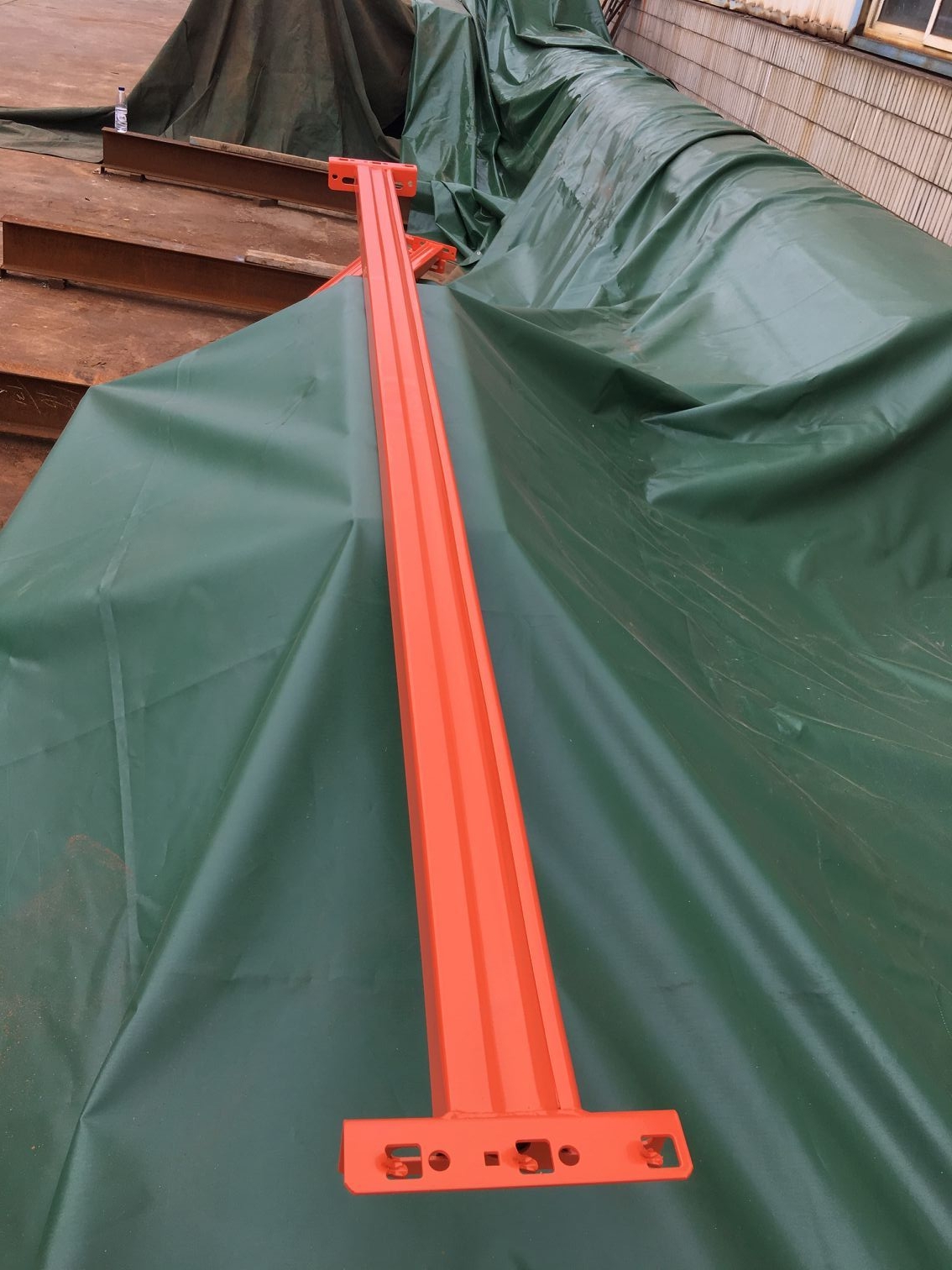

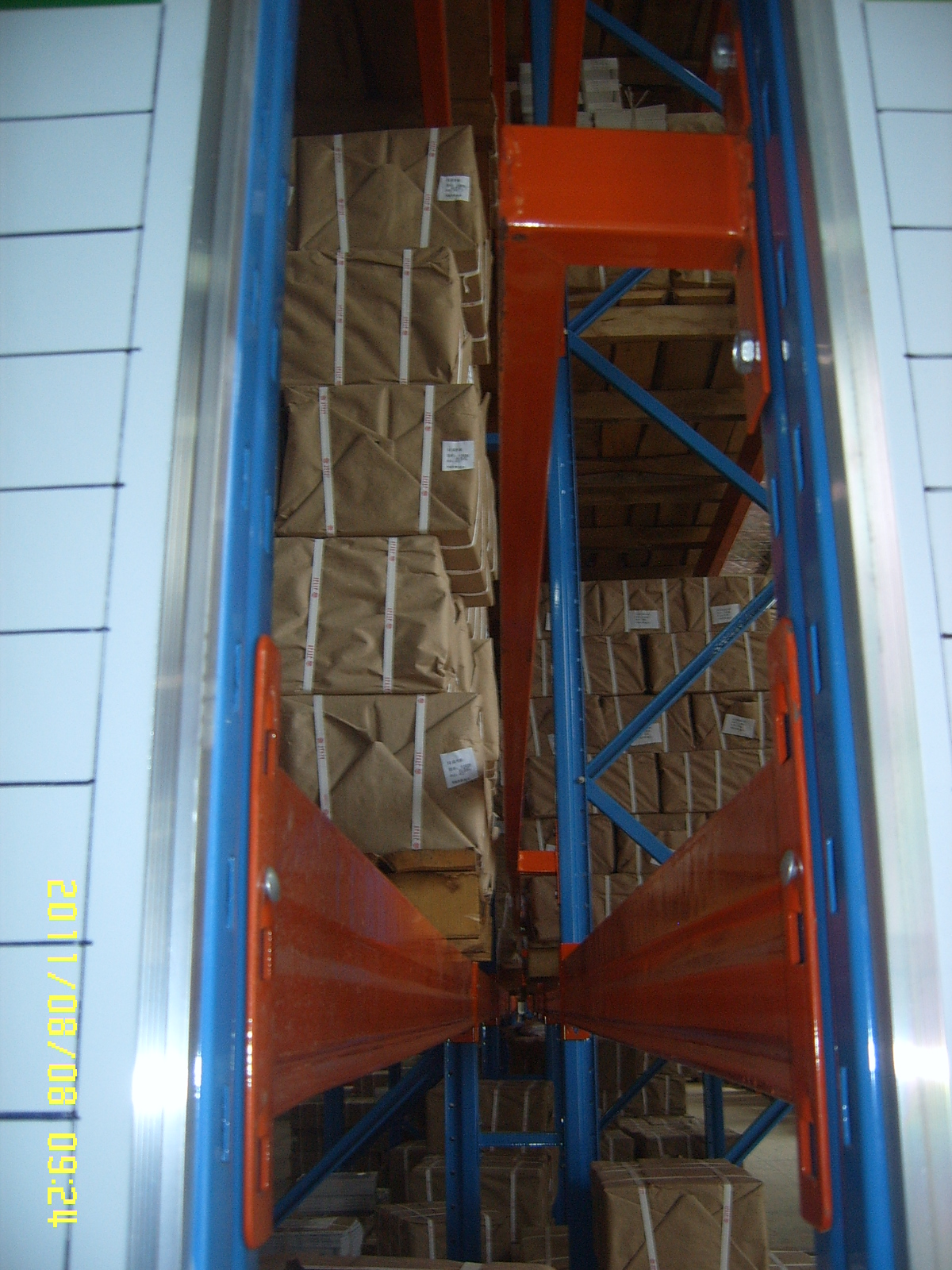

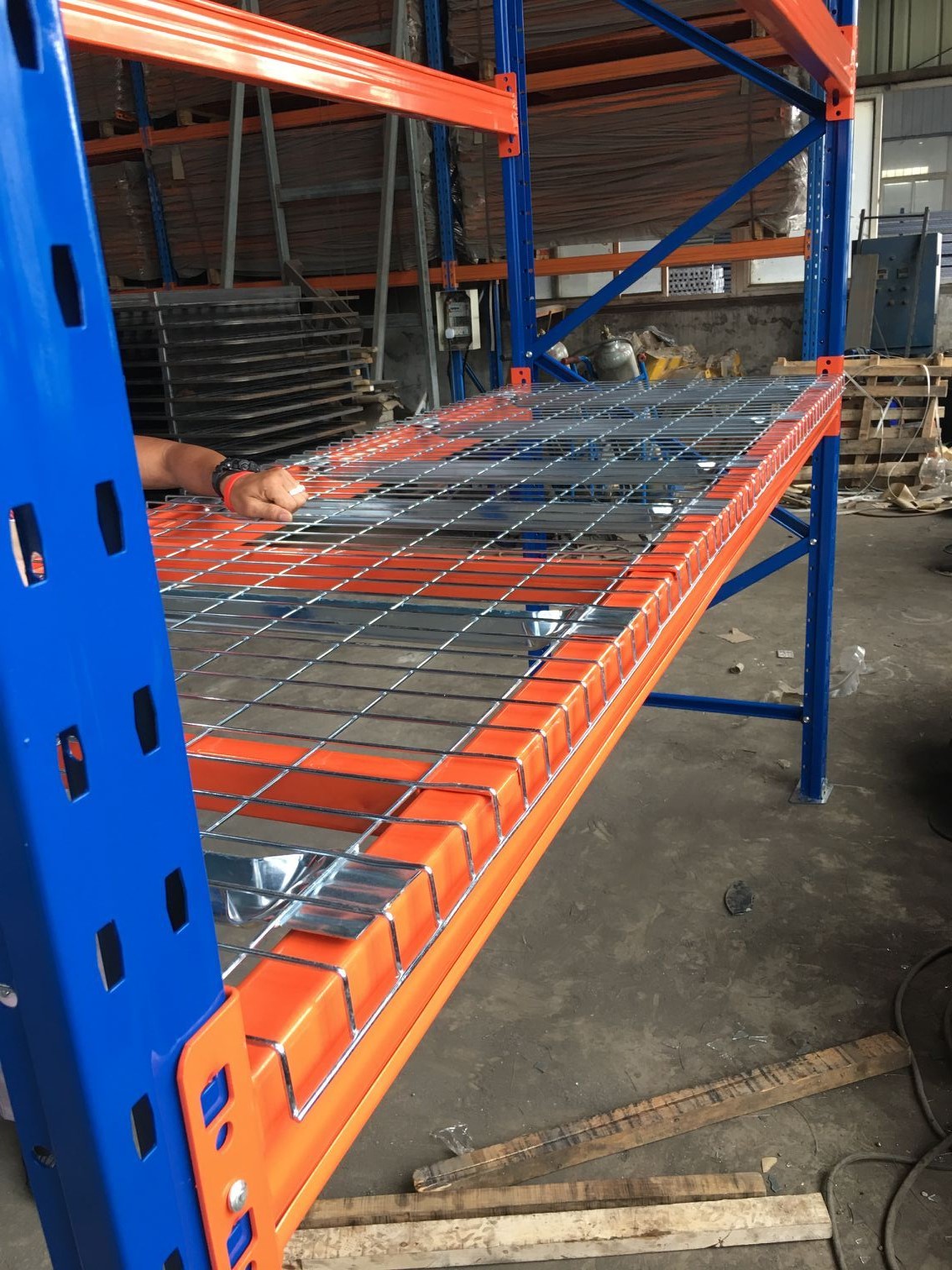

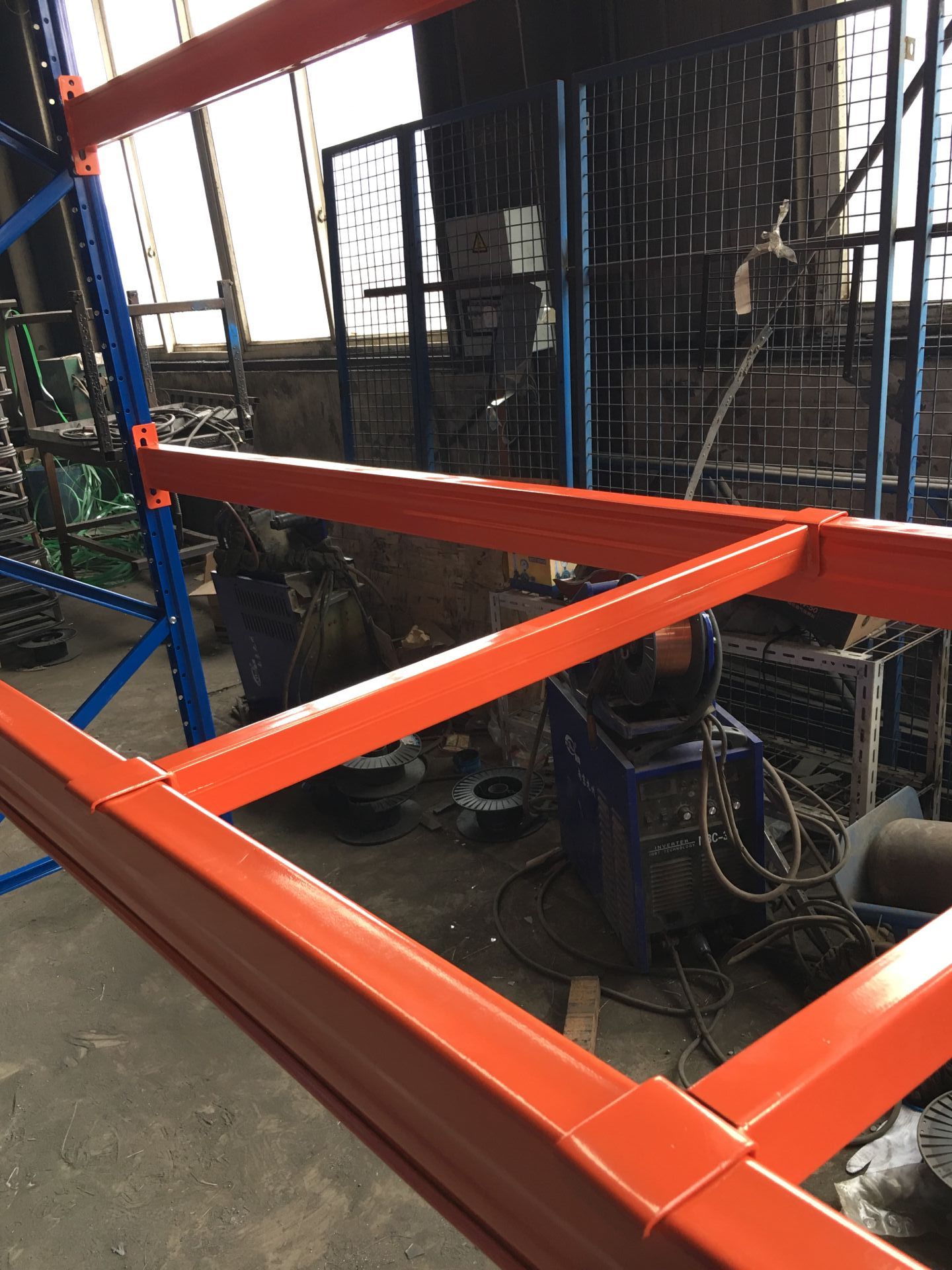

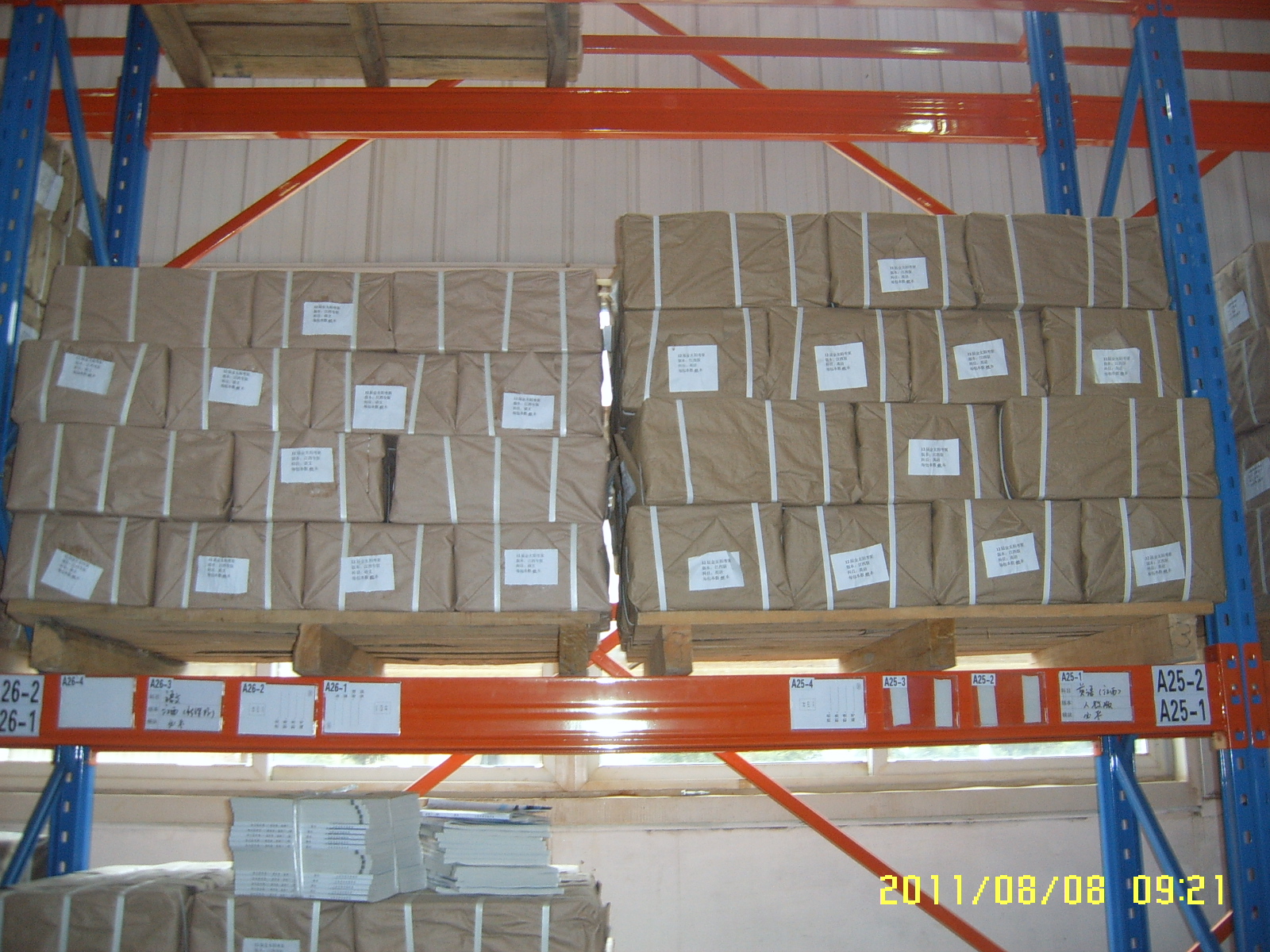

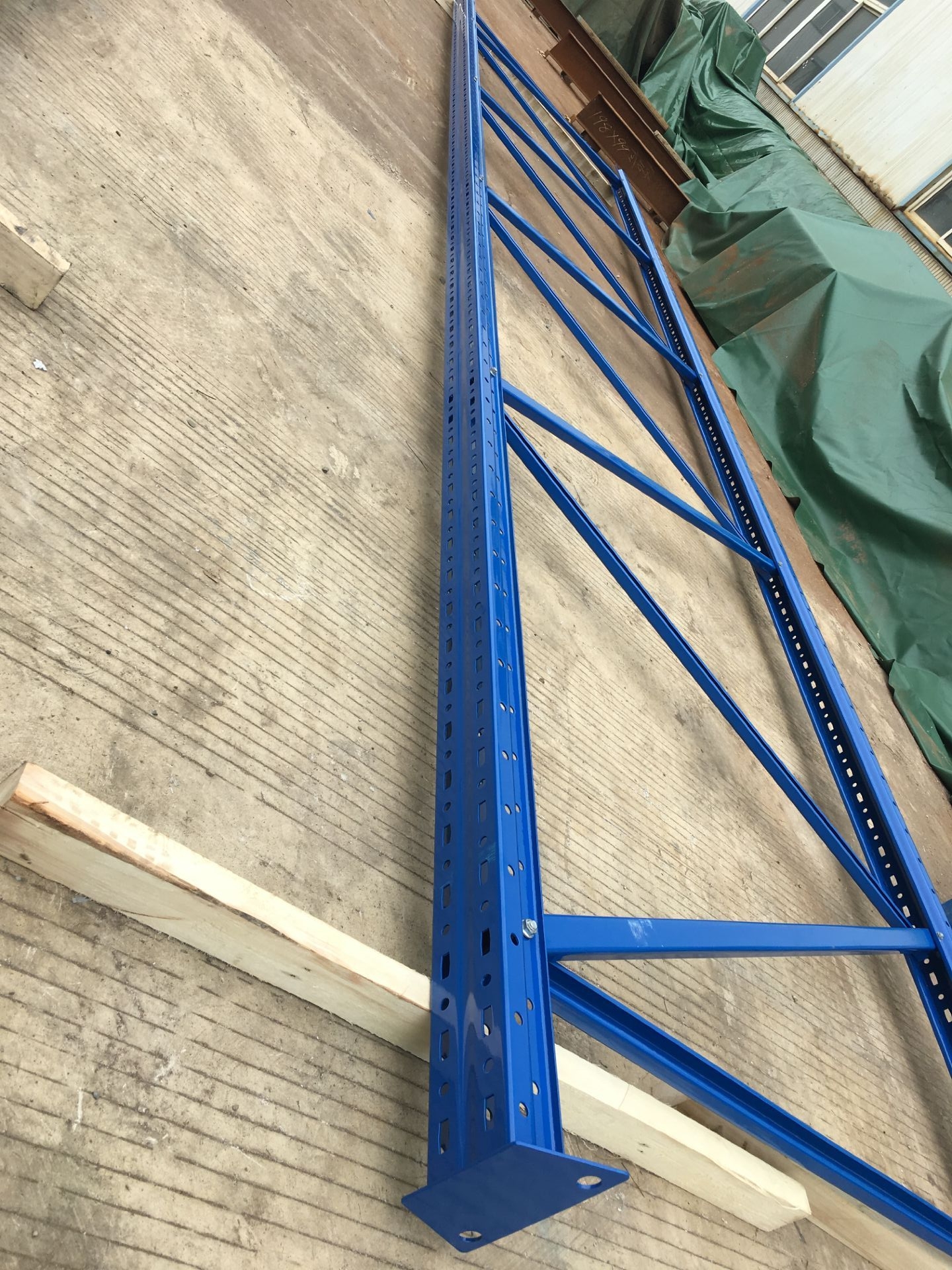

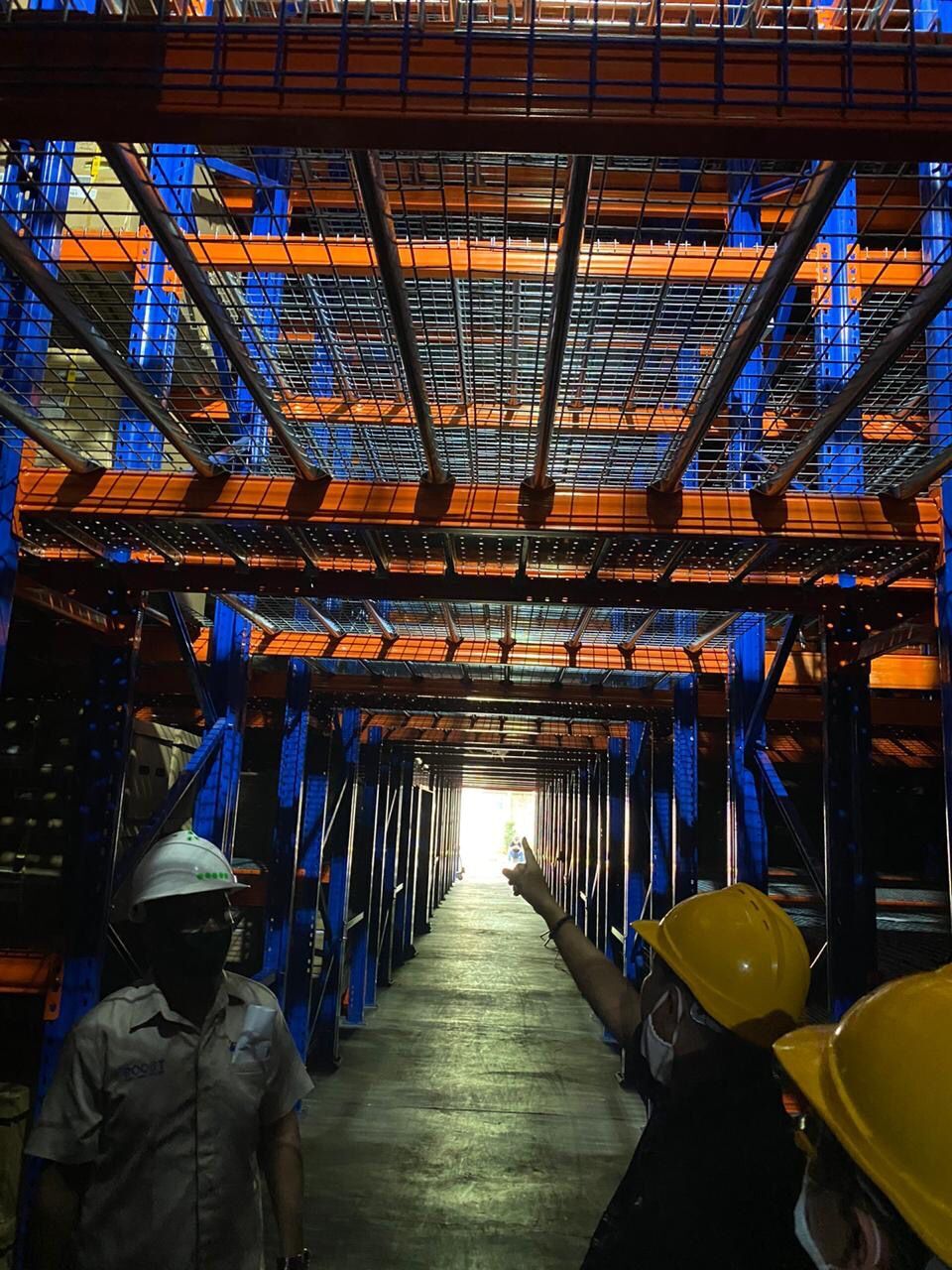

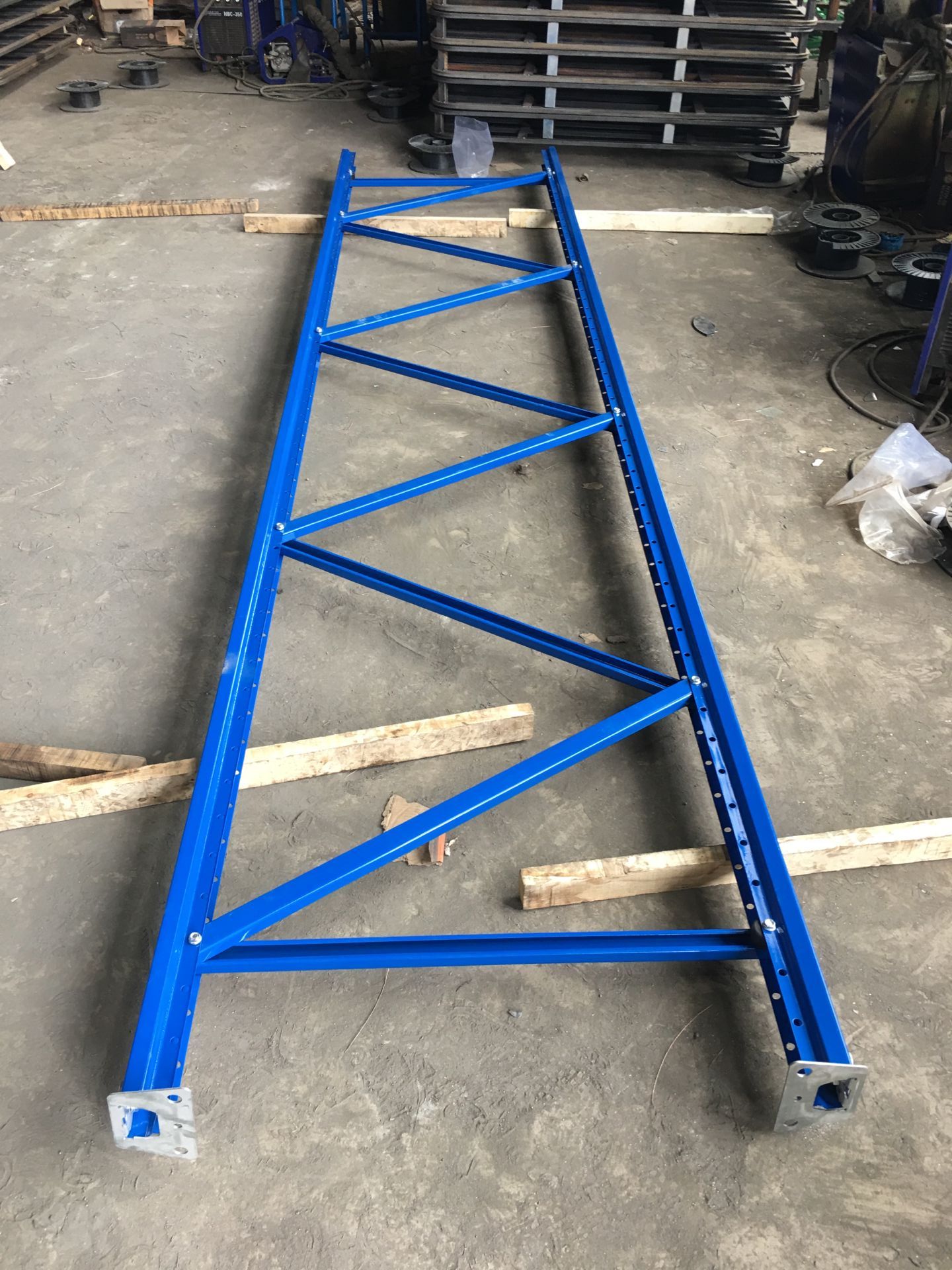

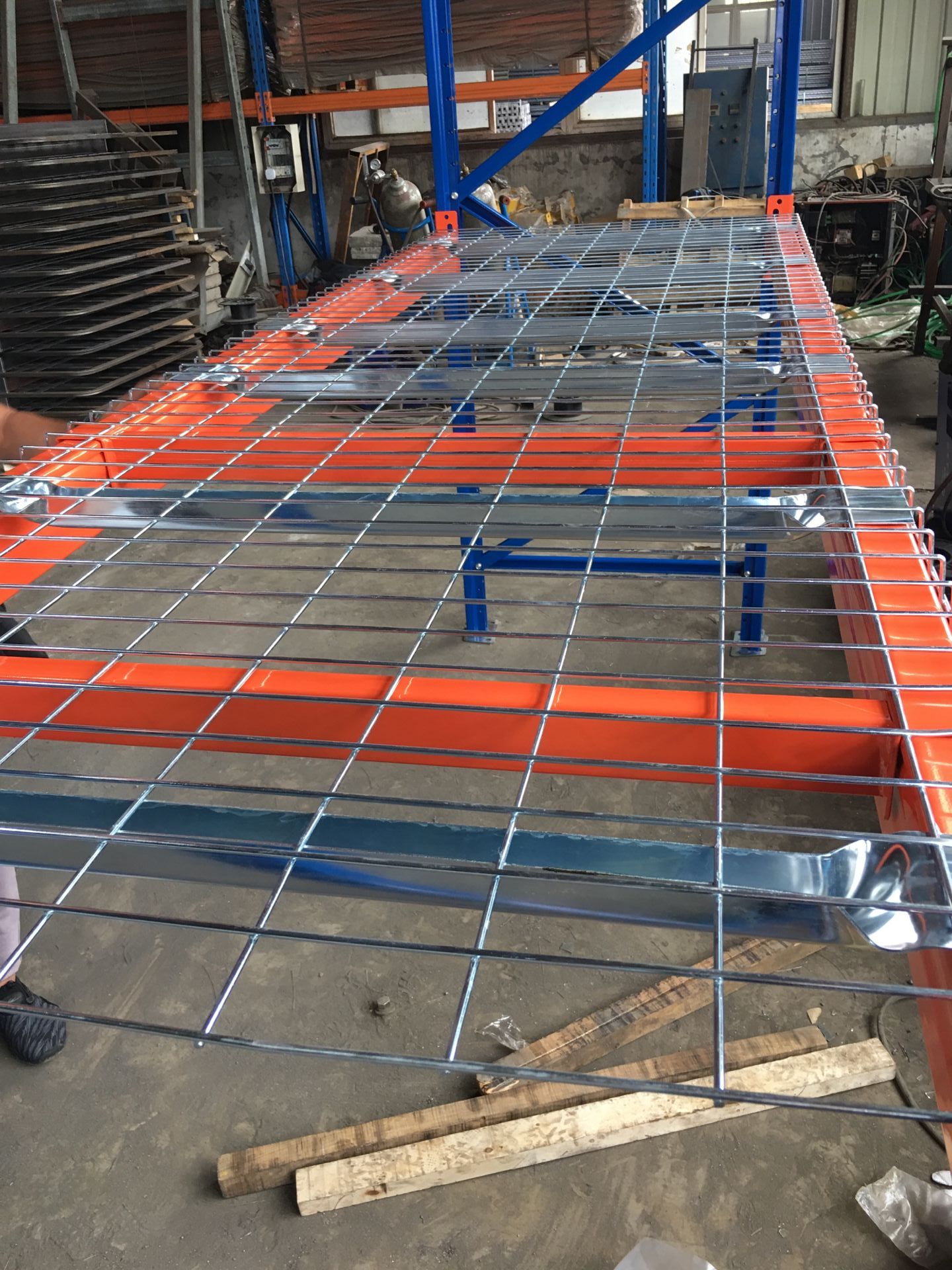

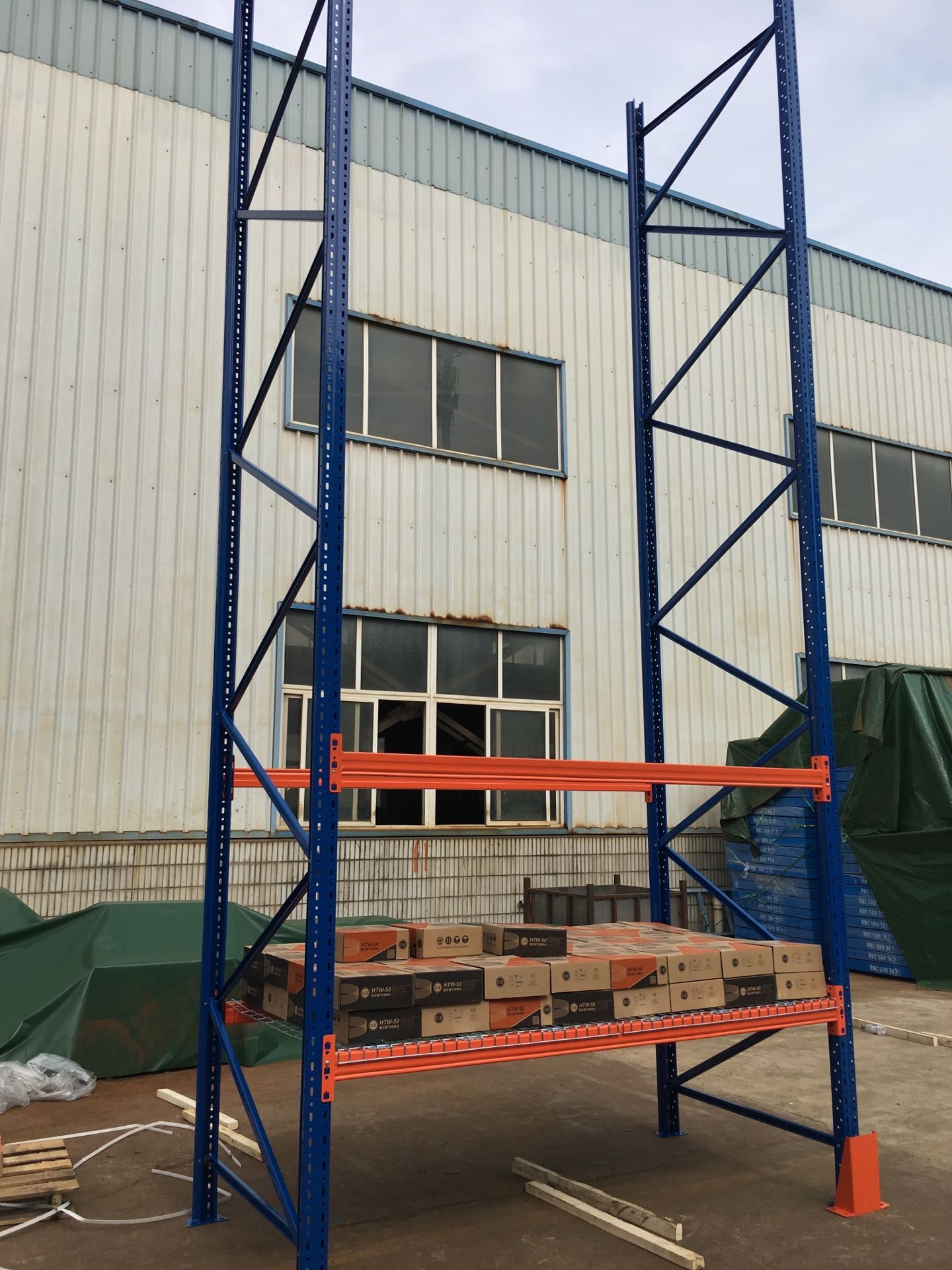

Photo Show & Parts Showroom
Packaging & Shipping
Our Services & Quality Guarantee
We specialize in the design, manufacture, and installation of a variety of storage racking systems, such as drive-in racking, movable racking, and heavy duty racking. These products are widely used in warehouses, supermarkets, enterprises, banks, hospitals, libraries, and many other industries.
🛡️
10-15 Years Guarantee
Long-term quality commitment for all racking components.
🔄
Free-Return Policy
We provide convenient free returns within 1 year for eligible items.
⚙️
Professional Design
Customized, scientific layouts tailored to your storage facility needs.
Company Information
Jiangsu Xinzhongya Racking Manufacturing Co., Ltd. (previously known as Nanjing Xinzhongya Racking Manufacturing Co., Ltd.) was founded in 1999. It is a top brand in the professional racking manufacturing industry of China and a leading manufacturer of storage and accessory facilities.

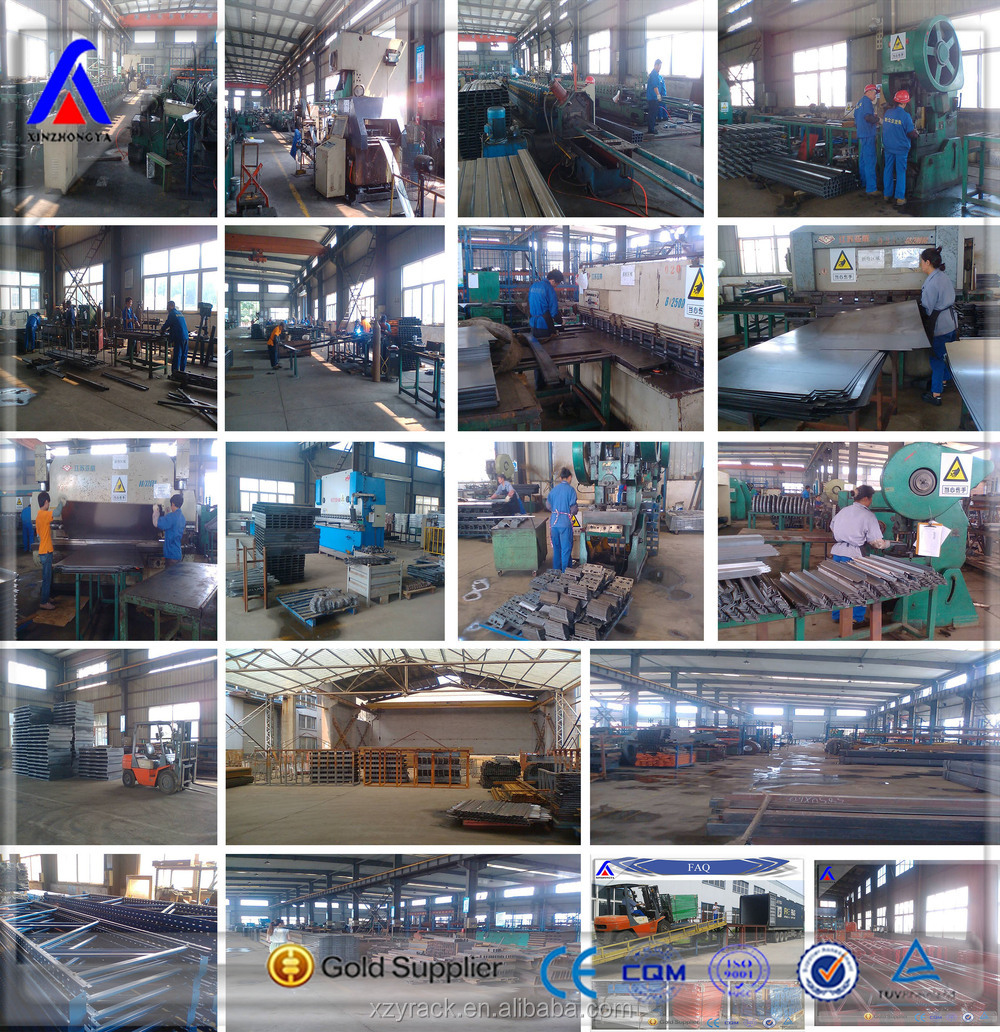

We feature a professional, advanced, and complete production procedure, including rolling shaped materials, racking processing, acid-cleaning and phosphorous manipulation, varnish-baking, and electrostatic powder painting. Our installation and after-sales services are recognized as highly professional and efficient.
Frequently Asked Questions
What is the standard loading capacity of this racking system?
The loading capacity is less than 4 Tons per level, with a total maximum loading capacity of 12 Tons per section, depending on beam and upright specifications.
Can the beam height be adjusted after installation?
Yes, the beam levels can be adjusted flexibly up and down in standard pitch units of 75mm to accommodate different pallet heights.
What surface treatment is used to prevent rust?
The steel components undergo acid-cleaning, phosphorous treatment, and high-quality electrostatic epoxy powder coating for superior rust protection and durability.
What are the recommended aisle widths for forklifts?
Traditional aisles require approximately 3000 mm for standard forklifts, while narrow aisle configurations require around 1700 mm and require specialized narrow forklifts.
What optional safety accessories can be added to the racks?
You can customize your system with additional accessories including row spacers, steel panels, foot protectors, upright frame protectors, back mesh, and extra horizontal/aslant braces.
What warranty and return services are provided?
We offer a 10 to 15-year guarantee on our racking systems, along with a 1-year free return policy for covered parts.
