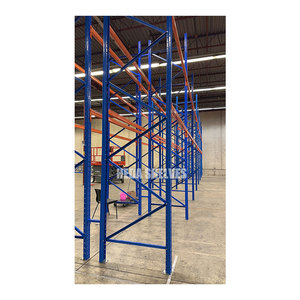

Heavy Duty
4-Layer 600kg Warehouse Stacking Case Flow Rack
- Capacity: 600 kg/tier uniform load
- Track: High-impact polymer rollers
- Application: Heavy spare parts sorting
Direct Factory Catalog
Engineered Case Flow & Gravity Roller Storage Systems
Manufactured to ISO 9001:2015 and CE standards from high-tensile Q235B cold-rolled steel. Explore our certified case flow modules configured for distribution centers, manufacturing cells, and automated picking tunnels.
Heavy Duty
Modular Lean
Industrial Aluminum Profile Framing Flow Stand
- Material: Anodized 6063-T5 aluminum
- Track: Low-friction aluminum skate rails
- Application: Lean assembly line stations
Dynamic FIFO
Gravity Carton Flow Rack for Box Storage
- Gradient: Adjustable 2.5° to 4.5°
- Bed Width: Custom 1200–2700 mm
- Application: High-turnover carton pick
5-Tier High-Density
Industrial 5-Layer Heavy-Duty Flow Rack
- Height: Up to 3.5m vertical pick wall
- Dividers: Full-length zinc steel separators
- Application: FMCG & e-commerce fulfillment
Boltless Quick-Fit
Corrosion-Resistant Steel Flow Shelving System
- Assembly: Clip-on modular frame
- Finish: 80μm electrostatic epoxy
- Application: Pharmaceutical cold stores

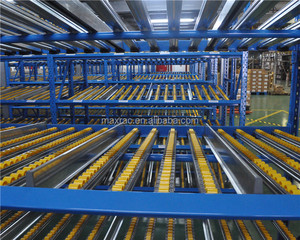

Maxrac System
Maxrac Carton Flow Rack for Dense Storage
- Roller Pitch: 28mm / 38mm / 50mm
- Load: Up to 250 kg per square meter
- Application: Multi-SKU retail replenishment
Multi-Level
Adjustable Multi-Level Heavy-Duty Flow Rack
- Pitch Adjust: 50mm perforated step
- Steel: Continuous roll-formed uprights
- Application: 3PL logistics picking tunnels
Bin Integration
CE/ISO Gravity Flow Rack with Kitting Bins
- Certification: CE & ISO 9001:2015
- Accessories: Plastic tote guide tracks
- Application: Automotive lean manufacturing
Case Flow Rack Engineering Architecture: Mechanics, Kinematics & Picking Velocity
A Case Flow Rack—commonly termed a carton flow rack or gravity feed live storage system—is a dynamic storage apparatus engineered specifically for high-density split-case and full-case picking operations. Operating strictly on the mechanical principle of gravity feed, individual storage lanes are inclined slightly downwards from the rear replenishment aisle (charging face) to the front retrieval aisle (discharging face). As a picker extracts the frontmost carton or plastic tote, the successive containers immediately coast forward to replenish the pick face automatically, adhering strictly to First-In, First-Out (FIFO) stock rotation.
From an intralogistics engineering perspective, case flow systems fundamentally eliminate picker transit waste. In traditional static shelving, up to 70% of total operator shift duration is consumed by dead-heading travel and cross-aisle traversal. Integrating case flow racks condenses linear pick faces by as much as 80%, consolidating hundreds of active SKUs into a compact, ergonomically optimized pick plane. Forklift restocking traffic is isolated entirely at the rear aisle, eliminating pedestrian-equipment collision hazards and creating an asynchronous workflow where replenishment and picking occur simultaneously without cross-dock congestion.
Gravity Kinematics: Declination Angle & Dynamic Friction Mechanics
The operational reliability of a case flow rack depends entirely on precise kinetic modeling. If the track gradient is insufficient, static breakaway friction causes cartons to stall mid-lane; conversely, if the declination is excessive, accelerating cartons risk structural crushing upon impacting the front pick tray or bouncing out of the lane. Chinese manufacturers of high-tier case flow racks compute gravity kinematics using the governing friction-incline equation:
Tan(θ) > μs | Where θ is the rail pitch angle and μs is the static coefficient of friction.
Recommended declination: 2.5° to 4.5° (3.5% to 6.5% incline), tailored based on container bottom deflections and tare weights ranging from 2.0 kg to 50.0 kg.
Recommended declination: 2.5° to 4.5° (3.5% to 6.5% incline), tailored based on container bottom deflections and tare weights ranging from 2.0 kg to 50.0 kg.
Modern Chinese manufacturing facilities configure case flow racks with two primary dynamic conveyance configurations: Full-Width Steel/Polymer Roller Beds and Multi-Track Plastic Skate-Wheel Flow Rails. Skate-wheel tracks utilize staggered wheels mounted inside cold-formed galvanized C-channels, delivering superior flexibility for variable carton footprints. Conversely, continuous cylindrical roller tracks with precision ball bearings provide continuous surface support, essential for corrugated cartons with structural belly sagging or non-rigid tote geometries.
Zero Energy Gravity Feed
Requires zero electrical power or motorized drives. Operates purely on gravitational potential energy, achieving lifelong operational cost neutrality with negligible carbon footprints.
400% Pick Velocity Gain
Condenses dozens of linear meters of static shelving into compact vertical pick windows. Pick rates increase from 60–80 lines/hour to over 250–350 lines/hour per picker.
Strict FIFO Integrity
Eliminates stock aging, batch expiration, and shrinkage in perishable goods, pharmaceuticals, cosmetics, and cold-chain distribution centers through physical lane segregation.
Engineering Audit: Comparative System Matrix for High-Throughput Intralogistics
Selecting an optimal order-fulfillment infrastructure requires evaluating volumetric storage density against equipment CapEx and labor throughput. The engineering comparative matrix below models how heavy-duty case flow racks compare against alternative warehouse storage typologies across critical material handling variables:
| Storage Architecture | Stock Rotation | Pick Face Density | CapEx / Pick Face | Replenishment Interference | SKU Selectivity | Maintenance Lifecycle |
|---|---|---|---|---|---|---|
| Carton / Case Flow Rack | Strict FIFO (100%) | Ultra-High (80% Aisle Reduction) | Moderate ($45 - $95 / lane) | Zero (Dedicated Rear Charge) | 100% Immediate Face Access | Low (Self-lubricating rollers) |
| Static Industrial Shelving | LIFO / Random | Low (Extensive aisle footprint) | Lowest ($15 - $35 / shelf) | High (Same-aisle blockages) | High (Manual search required) | Negligible (Static structure) |
| Selective Pallet Racking | FIFO / LIFO by Bay | Low (Requires forklift aisles) | Moderate ($65 - $120 / pallet) | Severe (Forklift aisle closures) | Restricted to pallet face | Low (Subject to impact damage) |
| AS/RS Mini-Load System | System Automated | Maximum (Vertical cube utilization) | Extremely High ($800k+) | Zero (Crane automated) | Sequential Crane Cycle | High (Complex mechatronics) |
| Push-Back Rack (Carts) | Strict LIFO | High (Aisle consolidated) | High ($140 - $220 / position) | Moderate (Single face charge) | Low (Single SKU per lane) | Moderate (Cart tracks & stops) |
Why China Leads Global Case Flow Rack Manufacturing: Supply Chain Metallurgy & Tooling
China has established unchallenged global leadership in the engineering, fabrication, and export of industrial gravity flow systems. Operating at the confluence of upstream metallurgy and advanced cold-roll forming automation, premier Chinese rack manufacturers like Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) provide industrial engineering firms worldwide with structural advantages that domestic Western fabricators cannot match on lead times or cost-to-performance metrics.
The manufacturing process begins with structural-grade Q235B and Q355B cold-rolled carbon steel coils procured from Tier-1 integrated mills including Baosteel and Ansteel. Q235B provides an optimal yield strength threshold ($f_y \ge 235 \text{ MPa}$) with high elongation ductility, preventing structural embrittlement or micro-cracking during deep cold-roll forming operations. Upright profiles feature precision continuous-hole matrix stamping executed on automated high-speed CNC pressing lines, ensuring universal tolerance consistency within ±0.5mm across entire 12-meter production runs.
Furthermore, Chinese manufacturers lead in roller compound formulations. Rollers feature high-impact acrylonitrile butadiene styrene (ABS) or pure high-density polyethylene (HDPE) infused with anti-static agents and UV inhibitors. Roller axles feature cold-drawn galvanized steel rods fitted with self-lubricating nylon bush bearings or precision shielded steel ball bearings capable of operating flawlessly in temperature extremes ranging from -30°C in industrial blast freezers to +50°C in ambient distribution hubs.
2001
Year Established
30,000m²
Modern Production Facility
30,000t
Monthly Steel Output
10,000+
Global Projects Installed
10-Step Automated Case Flow Rack Manufacturing Workflow
Achieving defect-free roller alignment and structural integrity across multi-tier case flow installations requires an unyielding production regime. At HEDA Shelves, every batch undergoes an automated 10-stage fabrication protocol overseen by our internal quality control department:
Raw Material UT Testing
Laser CNC Steel Slitting
Automated CNC Punching
Continuous Cold Bending
Beam Profile Roll Forming
Deburring & Edge Polishing
Robotic CO2 Shielded Welding
9-Tank Acid Phosphating
Electrostatic Powder Coating
Load QA & ISPM-15 Packing
Future Procurement Trends: Autonomous Intralogistics & Modular Case Flow (2025–2030)
The intralogistics landscape is experiencing rapid evolutionary pressure driven by labor scarcity and accelerated order-to-delivery Service Level Agreements (SLAs). Global procurement managers must account for three structural innovations when specifying case flow rack systems from China over the coming decade:
1. Direct Autonomous Mobile Robot (AMR) & AGV Tunnel Coupling
The traditional human-dominated case flow picking face is rapidly converging with Autonomous Mobile Robots. Leading distribution architectures position case flow racks above or flanking autonomous transport corridors. AMR units navigate down central pick tunnels beneath rack-supported platforms, autonomously loading totes delivered from elevated gravity-feed roller shelves. Chinese factories have engineered specialized flush cantilevered pick trays with integrated laser-guided optical sensors and mechanical docking latches tailored specifically for robotic gripper end-effectors.
2. Tool-Less Universal Drop-In Track Modularization
Legacy case flow shelves required labor-intensive bolting or screw-fastened track assemblies, severely inhibiting lane reconfiguration when carton dimensions changed during seasonal retail shifts. Next-generation systems feature tool-less clip-on aluminum track retainers that snap into place on 10mm increment lateral pitch bars. Warehouse operators can resize lane widths, insert full-length zinc dividers, or convert from single skate-wheel tracks to heavy full-width rollers within seconds without mechanical tools.
3. IoT-Integrated Weight Telemetry & Dynamic Pick-to-Light (PTL)
Advanced Chinese case flow racks now offer factory-prewired extruded profile channels designed to conceal data cabling for Pick-to-Light (PTL) and Put-to-Light visual displays. Coupled with miniature piezoelectric load cells placed underneath front discharge stops, the rack autonomously logs pick confirmation via carton weight differential, transmitting real-time inventory decrements to the Warehouse Management System (WMS) without requiring manual barcode scans.
Verified International Credentials & Standards Compliance
Industrial structural safety permits zero tolerance for manufacturing variance. All case flow systems produced by HEDA Shelves carry documented, third-party verified accreditations confirming adherence to rigorous mechanical load testing and global environmental protocols:
CE Certification
Ref: No. 2435-CPR-8605159
ISO 9001:2015
Cert: No. 18624Q00169R0M
RoHS Compliant
Heavy Metals & VOC Controlled
Structural Test Report
SGS Verified Dynamic Deflection
For international supply agreements, our structural calculations cross-reference AS 4084-2023 (Australian Standard for Steel Storage Racking), EN 15512:2020 (European Standard for Adjustable Pallet and Carton Racking Systems), and site-specific seismic parameters adhering to NZS 1170.5 for projects across New Zealand and the Pacific Rim.
Global Project References & Multi-Tier Case Flow Installations
Review real-world high-throughput installations demonstrating how custom-engineered flow beds resolve heavy-load handling, multi-level integration, and rapid order picking challenges:
Hazardous Storage
Hazardous Chemical & Lubricant Case Flow
Corrosion-proof electrostatic powder-coated uprights with spark-resistant polymer rollers engineered for classified chemical processing facilities.
Rack-Supported Floor
Mezzanine-Supported Picking Tunnel
Two-tier carton flow pick tower integrating overhead structural catwalks, doubling floor pick facings without expanding building footprint.
Automotive Logistics
High-Density Automotive Parts Sorting
Multi-lane flow racks featuring heavy-duty steel separator dividers and integrated kitting totes engineered for rapid OEM spare parts retrieval.
Frequently Asked Questions (FAQ) for Global Procurement Engineers
Key technical and commercial inquiries submitted by supply chain directors, industrial architects, and racking distributors importing case flow racking from China:
What declination angle is recommended for carton flow racks, and how is line stalling prevented?
Standard gravity declination is engineered between 2.5° and 4.0° (approx. 3.5% to 5.5% slope). For rigid plastic totes, a 2.5° slope ensures fluid glide. For corrugated boxes with uneven cardboard sagging or weights over 25 kg, a 3.5° to 4.0° gradient is specified. To prevent runaway acceleration on deep lanes exceeding 3.0 meters, our engineers integrate mechanical centrifugal brake rollers and custom rubberized decelerator sleeves directly onto the roller tracks.
Can case flow rack beds be retrofitted into existing standard pallet racking uprights?
Yes. HEDA Shelves engineers universal bracket adapters compatible with teardrop, slotted, diamond, and European hook-profile upright columns. These custom mounting brackets secure front and rear hanger beams into your existing pallet rack bays, instantly converting lower pallet beam levels into dynamic carton pick faces while preserving upper beam levels for bulk reserve pallet storage.
How do your roller materials perform in sub-zero cold storage and blast freezers?
For cold storage environments down to -30°C, standard polypropylene rollers become brittle and crack. We utilize cold-stabilized high-impact polyoxymethylene (POM) or high-density polyethylene (HDPE) polymer blends combined with low-temperature synthetic lubricant inside stainless steel shielded bearings. Track frames are protected by hot-dip galvanization or high-adhesion zinc-rich primer with epoxy powder topcoats to prevent frost-thaw galvanic corrosion.
How does HEDA Shelves comply with international biosecurity and timber packaging regulations?
All export shipments bound for Australia, New Zealand, North America, and Europe are packed using structural steel stillages or 100% heat-treated timber bearing the official ISPM-15 IPPC stamp. This guarantees rapid clearance through Australia’s DAFF, New Zealand’s MPI, and US CBP agricultural inspections, eliminating costly port quarantine delays, fumigation penalties, or container rejections.
What documentation is provided to support local engineering sign-off and building permits?
With every order, our senior engineering department delivers an exhaustive Engineering Data Pack. This includes full 3D CAD general arrangement drawings, structural section properties ($I_x, I_y, Z_x$), beam load deflection tables under maximum uniformly distributed load (UDL $\le L/200$), anchor shear/pullout calculations, and raw steel Mill Test Certificates (MTC EN 10204 Type 3.1) verify chemical composition and mechanical tensile limits.
What is the standard production lead time and minimum order quantity (MOQ)?
Standard modular configurations carry a flexible MOQ of 5 bays or one 20GP shipping container (ideal for consolidating freight economies). Production lead times for standard powder-coated case flow systems range from 15 to 22 business days from final 3D CAD drawing sign-off. High-volume distribution center orders exceeding 100 bays are typically staged and completed within 30 to 35 business days.
Request an Engineered 3D CAD Layout & Factory-Direct Quotation
Accelerate your warehouse throughput with custom case flow systems engineered to your exact product dimensions, picking velocities, and seismic zone parameters. Share your warehouse floor plan today for a free design audit within 24 hours.
- Free 3D Modeling & Elevation Drawings
- AS 4084 & EN 15512 Load Calculations
- Direct OEM/ODM Pricing from Guangzhou Factory
- Complete Export Shipping & Biosecurity Prep
