ENGINEERED PORTFOLIO
High-Capacity Industrial Racking & Dynamic Systems
Manufactured using high-tensile cold-rolled steel profiles, automated robotic welding, and anti-corrosive electrostatic polymer coating. Tailored for heavy multi-tier density and harsh distribution environments.

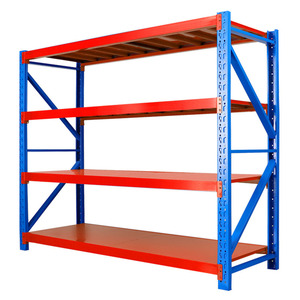

Heavy-Duty Boltless 4-Level Steel Storage Rack Industrial System
Steel Structure Mezzanine Floor Rack Multi-Tier Platform
Modular Cold Room Heavy Duty Pallet Racking System CE Certified
Heavy Duty Warehouse Storage Rack Q235B Steel for Logistics Hubs

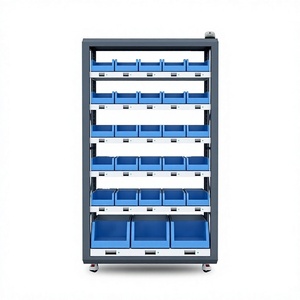

Smart Lighting Fast Picking Material Shelves Digital WMS System

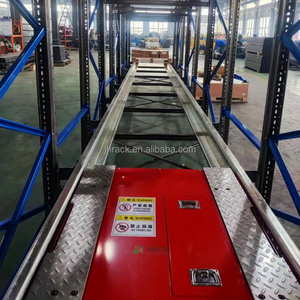

Automated Warehouse ASRS Pallet Shuttle Heavy Duty System
Gravity Carton Flow Roller Storage Racking With Plastic Bin Track
2001
Established Since
30,000 m²
Production Footprint
30,000 t
Monthly Throughput
10,000+
Global Projects Built
TECHNICAL WHITEPAPER & METALLURGY
Engineering Integrity: Cold-Rolled Mechanics, Load Factors & Design Standards
A rigorous review of structural steel selection, moment-resisting connections, Finite Element Analysis (FEA), and global seismic compliance for modern logistics facilities.
Certified Structural Metallurgy
We mandate mill-certified prime structural steel (Q235B and Q355B equivalent to ASTM A36 and ASTM A572 Grade 50). Yield strengths are consistently certified at ≥235 MPa and ≥355 MPa respectively, delivering optimal ductility under severe seismic displacement without brittle failure.
Omega Column Cold-Forming
Uprights are fabricated via continuous multi-stage rolling cassettes forming a rigid 11-13 fold open omega section. This geometry concentrates mass at perimeter corners, substantially elevating the moment of inertia along both primary loading axes ($I_x$, $I_y$) while preventing torsional buckling under asymmetrical pallet configurations.
Global Code Alignment
Calculated strictly to Australian Standard AS 4084-2023, European Racking Federation EN 15512:2020, and American RMI/ANSI MH16.1. Every installation kit is backed with full cross-sectional properties, design moment capacities, and localized seismic verification documents (NZS 1170.5).
| Storage Racking System | Primary Steel Profile | Typical Beam Load | Pallet Density Index | Forklift Compatibility | Target Logistics Environment |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Cold-Formed Omega | 1,000 – 4,500 kg / level | Medium (100% Selectivity) | Counterbalance, Reach, VNA | Fast-moving FMCG, Retail DCs, 3PL Providers |
| Drive-In / Drive-Through | Q355B Heavy Structural Rail | 1,000 – 1,500 kg / pallet | Very High (LIFO / FIFO) | Reach, Counterbalance | Cold Storage, Seasonal Stock, Low SKU Count |
| Pallet Radio Shuttle | Galvanized High-Tensile Rail | 500 – 2,000 kg / pallet | Maximum (Automated Lane) | Automated Shuttle + Lift Fleet | Deep Freeze (-30°C), High-Throughput Buffering |
| Rack-Supported Mezzanine | Structural RHS / Heavy Omega | 300 – 1,200 kg / m² Floor | Vertical Space Multiplier | Pedestrian, Conveyor, AGV | Auto-Parts Sorting, E-Commerce Fulfillment |
| Dynamic Carton / Pallet Flow | Heavy Roller / Split Gravity Bed | Up to 1,200 kg / pallet | High (Strict First-In-First-Out) | Turret, Reach, Manual Pick | Pharmaceuticals, Perishable Foods, Assembly Lines |
MANUFACTURING AUDIT
10-Step High-Precision Racking Production Workflow
From metallurgical verification of incoming raw structural coils to finished automated electrostatic coating, every operation is performed in-house at our 30,000 m² Guangzhou production facility.
Raw Steel Quality Verification
CNC Slitting & Precision Shearing
High-Speed Punching Stations
Precision Cold-Bending Forming
Automated Continuous Roll Forming
Deburring, Polishing & Prepping
Robotic Connector Welding
10-Bath Pickling & Phosphating
Electrostatic Powder Curing
Final Dimensional QC & Bundling
MARKET INTELLIGENCE
Emerging Procurement Trends in Global Warehousing Infrastructure
Strategic analysis for logistics engineering leads, supply chain directors, and overseas procurement managers adapting to automated, sustainable fulfillment hubs.
1. Convergence with Autonomous Mobile Robots (AMR/ASRS)
Traditional static racking is increasingly procured with precision-machined tolerances for integration with Autonomous Mobile Robots (AMRs), automated shuttles, and stacker cranes. Floor runouts, vertical alignment limits, and beam deflection must conform to stringent DIN 15185 and FEM 9.831 criteria (±1.5mm tolerance limits) to prevent sensor occlusion and robot localization drift.
2. Green Steel & Scope 3 Decarbonization Mandates
Global enterprise tenders across Europe, Australasia, and North America now demand environmental product declarations (EPDs) reflecting embodied carbon. As an OEM partner, HEDA Shelves optimizes structural section weight via FEA geometry without compromising safety, utilizing recyclable powder coatings and certified steel sourced from mills employing scrap-based Electric Arc Furnace (EAF) processes.
3. Digital Twin Modeling & Real-Time Structural Telemetry
Procurement teams are prioritizing smart infrastructure: racking structures integrated with load-cell arrays, optical verticality sensors, and IoT strain gauges. These feeds communicate directly with enterprise WMS platforms to provide real-time overload alerts, fork-impact notifications, and pre-emptive seismic structural health reports.
4. Cold Chain Expansion & Cryogenic Steel Stability
With pharmaceutical and fresh-protein cool chains growing globally, racking steel must resist low-temperature ductile-to-brittle transitions. Sourcing trends heavily favor customized OEM hot-dip galvanizing (ISO 1461) and modified impact-resistant alloy formulations certified down to -30°C blast freezer duty cycles.
EXPORT LOGISTICS MASTERY
Overcoming Global Customs, Biosecurity & Containerization Hazards
International racking procurement fails when logistics and biosecurity regulations are handled casually. Discover how HEDA guarantees door-to-port integrity without demurrage penalties.
DAFF & MPI Biosecurity Compliance
To eliminate costly quarantine delays at ports such as Sydney, Melbourne, Auckland, and Tauranga, shipments strictly use ISPM-15 compliant heat-treated dunnage or 100% welded steel stillages. All packaging complies fully with Australian Department of Agriculture, Fisheries and Forestry (DAFF) and NZ Ministry for Primary Industries (MPI) bio-risk protocols.
40ft High Cube Container Optimization
Racking components are modularly nested to maximize volumetric cube utilization, reaching up to 26–28 tons per 40ft HC. Components are securely bound in polyester-strapped steel cradles with moisture-absorbing desiccants and protective film barriers to prevent transit abrasion and ocean-freight condensation damage.
Preferential Tariff Documentation
We provide full customs documentation packs including certified Mill Test Certificates (MTCs), raw material chemical assays, HS code 7308.90 classifications, and Preferential Certificates of Origin under bilateral agreements (such as ChAFTA and RCEP), maximizing tariff efficiency for local importers.
TECHNICAL FAQ
Frequently Asked Questions on OEM Racking Procurement
Essential guidance covering structural certification, seismic analysis, beam deflection thresholds, and custom manufacturing schedules.
How does HEDA Shelves ensure compliance with local engineering codes (e.g., AS 4084, NZS 1170.5, EN 15512)?
Our dedicated technical engineering department analyzes your site-specific layout, floor slab properties, clear building ceiling heights, and seismic hazard acceleration parameters. We provide full structural calculation packages, sectional moduli ($Z_x, Z_y$), connection stiffness characteristics, and finite element limit state evaluations. This ensures your local independent structural certifier or registered engineer (CPEng/RPEQ) can verify and sign off on site building permits with complete confidence.
What is the permissible beam deflection ratio under full static load conditions?
In accordance with international structural guidelines (including EN 15512 and AS 4084), standard pallet racking beams are engineered for a maximum allowable vertical deflection of $\delta \le L/200$, where $L$ represents the clear distance between column uprights. For automated shuttle rails, crane-served ASRS systems, or delicate automated carton flow systems, we tighten fabrication criteria to $\delta \le L/300$ or $L/400$ to maintain absolute operational reliability without binding.
Can you customize pallet beam spacing and profiles for regional non-standard pallet footprints?
Yes. We regularly OEM customize systems for Australian standard pallets (1165 × 1165 mm), European Euro pallets (1200 × 800 mm), North American GMA pallets (48 × 40 inches), and custom industrial steel skids. Upright column depth, front-to-back crossbar positions, heavy-duty wire mesh decking, and pallet guide rails are engineered to match your exact fork clearance tolerances and entry configurations.
What anti-corrosion coating options are recommended for coastal or high-humidity facilities?
For standard climate-controlled or inland dry facilities, our 10-bath chemical pre-treatment (degreasing, zinc-phosphating) followed by an electrostatic thermosetting polyester powder coating (60–90 μm dry film thickness) offers durable impact and salt-spray resistance. For sub-tropical, marine, coastal, or agricultural chemical atmospheres, we offer continuous pre-galvanized coils or complete batch hot-dip galvanizing to ISO 1461 (>65 μm zinc thickness), providing decades of sacrificial protection against rust.
What is the standard production lead time and typical ocean transit window?
Average factory manufacturing time ranges from 15 to 25 days depending on project tonnage, bespoke profile tooling, and color runs. With direct loading at our production base and rapid trucking to major South China ocean ports (Nansha, Yantian, Shekou), sea freight transit takes roughly 12–18 days to Australia/NZ, 18–25 days to the Middle East, and 25–35 days to Europe and North American ports.
Fast-Track Your High-Density Storage Engineering
Submit your warehouse floor layout, ceiling clear heights, and pallet specifications. Our licensed structural engineering team will deliver a comprehensive 3D CAD proposal, load capacity matrix, and firm FOB/CIF quotation within 24 hours.
