Direct manufacturer export programs featuring certified Q235B/Q355B structural steel, automated punching lines, continuous multi-stage roll-forming, and high-performance powder coating lines engineered for global intralogistics distribution.

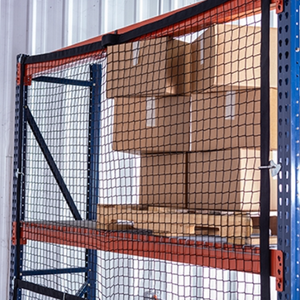

Safety Netting
High-tenacity knotted and knotless polyamide nylon retention netting engineered with reinforced sewn borders and galvanized snap hooks to mitigate high-bay flue spill hazards.
Automated ASRS
Ultra-precise vertical tolerances engineered for stacker cranes, high-speed automated shuttles, and WMS integration up to 40 meters ceiling clear height with minimal deflection.
Double Deep
Engineered for pantograph deep-reach trucks, increasing pallet volumetric storage density by up to 30% over standard single selective rack while sustaining certified 2000kg bay limits.
Gravity Flow
Dynamic FIFO rolling track with centrifugal speed brakes, entry guide separators, and heavy-duty zinc-coated steel roller tracks designed for strict cold chain rotation schedules.
Drive-In Racking
Maximum spatial optimization eliminating interior access corridors for seasonal or cold storage bulk batch holding, featuring rolled heavy-duty cantilever support arms and floor guide rails.
Shuttle & Crane
Complete turnkey intralogistics infrastructure integrating multi-tier vertical shuttle runners, electric busbar cabling channels, optical positioning reflectors, and rigid floor anchors.
Selective Rack
Universal industrial standard offering 100% individual pallet accessibility, 75mm/50mm pitch adjustable teardrop or diamond beam connections, and standard safety locking pins.
Slotted Shelving
Modular multi-tier light-to-medium slotted profile framework for manual inventory picking, spare parts compartmentalization, and flexible mezzanine floor support systems.
Precision procurement mandates verifiable metallurgical data sheets. Our OEM cold-rolled profiles undergo strict chemical spectrographic analysis, Charpy impact testing, and tensile testing to guarantee conformance across global jurisdictions.
| Structural System | Base Material & Grade | Yield Point (ReH) / Tensile (Rm) | Max Design Deflection | Surface Treatment Options | International Compliance Standards |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / S235JR Equivalent | ≥ 235 MPa / 370–500 MPa | L / 200 (Span Length) | Thermosetting Epoxy-Polyester (60–80μm) | AS 4084-2023, EN 15512, RMI MH16.1 |
| Heavy-Duty ASRS High Bay | Q355B / S355JR High-Strength | ≥ 355 MPa / 470–630 MPa | L / 350 to L / 500 (Crane Criteria) | Electrostatic Powder or Pre-Galvanized | FEM 10.2.02, ISO 9001:2015, CE Certified |
| Double Deep Racking | Q235B Continuous Cold-Roll | ≥ 235 MPa / 370–500 MPa | L / 200 | Epoxy Powder Coat / High-Visibility Safety Orange | AS 4084, ANSI MH16.1 |
| Pallet Gravity Flow Lanes | Q235B Steel + Zinc Rollers | ≥ 235 MPa / 370–500 MPa | L / 250 (Incline Stability) | Hot-Dip Galvanized / Heavy Zinc Plate | EN 15620, DIN EN 15635 |
| Drive-In Bulk Cold Store | Low-Temp Impact Q355B / Q235B | ≥ 355 MPa (Impact at -20°C) | L / 200 | Hot-Dip Galvanized to ISO 1461 (>65μm) | AS 4084, NZS 1170.5 Seismic Compliance |
| Rack-Supported Mezzanine | Q235B Uprights / Heavy C-Section | ≥ 235 MPa / 370–500 MPa | L / 300 (Live Decking Tolerances) | Powder Coating with Non-Skid Galvanized Deck | BCA Class 7b / 8, AS/NZS 1170 |
In modern automated logistics facilities and global supply chain hubs, industrial pallet racking transcends basic steel shelving: it functions as a highly stressed, dynamically loaded structural framework. When selecting an experienced custom OEM shelving for pallet racking exporter, B2B procurement engineers, logistics real estate developers, and third-party logistics (3PL) directors must balance structural elastic deformation, seismic dampening topographies, and floor slab bearing limitations.
At Guangzhou Heda Shelves Co., Ltd., our engineering methodologies integrate Finite Element Analysis (FEA) to verify the behavior of perforated upright columns subjected to concurrent axial loading and torsional shear. Each teardrop, diamond, or hex-slot perforation patterns along our roll-formed uprights is cold-stamped utilizing automated progressive dies before roll forming, preventing residual micro-fractures along cold-worked flanges.
Structural reliability begins with raw coil procurement. We exclusively partner with tier-one domestic steel mills to secure certified prime Q235B and Q355B low-carbon micro-alloyed steel. The chemical carbon equivalent (CEV ≤ 0.38%) ensures unyielding weldability across our robotic automated beam end-connector stations. Beam connectors utilize multi-prong cold-forged locking hooks stamped from heavy gauge steel, eliminating localized yield distortion under concentrated forklift impact.
Corrosion mitigation represents an equally pivotal engineering factor. Our 30,000 m² Guangzhou production facility deploys an automated 9-stage surface treatment sequence: pre-degreasing, alkaline immersion degreasing, ultrasonic water rinsing, acid pickling to strip scale, phosphating to establish an active crystalline zinc barrier, followed by demineralized water washing and controlled convective drying ovens. Finally, our electrostatic powder coating booths apply lead-free, RoHS-compliant thermosetting polyester-epoxy powders cross-linked at 180°C–200°C. This delivers an impact-resistant, uniform dry film thickness (DFT) of 60 to 80 microns, passing rigorous ASTM B117 salt spray exposure tests up to 500 hours.
The global industrial storage landscape is undergoing structural shifts influenced by automated material handling systems (AMHS), sustainability frameworks, and strict occupational safety regulations. Importers and procurement executives must accommodate several emergent trends:
Modern distribution centers are rapidly retrofitting Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Autonomous Storage and Retrieval Systems (ASRS). Racking tolerances can no longer rely on conventional manual warehouse variances (±5mm). OEM exporters must supply continuous profile tolerances under ±1.5mm to prevent laser reflection misalignments and shuttle jamming along long-stroke runs.
Global logistics managers are transitioning away from short-sighted initial purchase price valuations toward lifetime TCO modeling. Factors including structural resilience, modular expandability, beam-level field adjustability without bolt extraction, and field-replaceable collision sleeves dramatically reduce warehouse lifecycle downtime, ensuring maximum return on capital investments.
Enterprise tenders in Europe, Oceania, and the Americas increasingly mandate cradle-to-gate Environmental Product Declarations (EPD). Exporters must provide traceable supply chains that document electric arc furnace (EAF) recycling content, reduced carbon footprint rolling protocols, and non-volatile organic compound (zero-VOC) powder finishing lines.
As warehouse ceiling heights push upward to 15m–40m clear heights, structural engineers are pioneering transformative topological advancements:
Established in 2001, Guangzhou Heda Shelves Co., Ltd. stands as a premier Chinese industrial racking and custom OEM shelving manufacturer for worldwide exporters. Anchored by our extensive 30,000 square meter industrial complex, we deploy state-of-the-art manufacturing automation overseen by over 300 seasoned engineers, robotic specialists, and quality assurance inspectors.
Our monthly processing capability exceeds 30,000 metric tons of structural steel profiles. Heda maintains rigorous international management credentials, including ISO 9001:2015 Quality Management System Certification (No. 18624Q00169R0M), complete CE Factory Production Control Certification (No. 2435-CPR-8605159), and verified RoHS environmental safety conformance. With more than 10,000 landmark warehouse installations executed across Oceania, Southeast Asia, Europe, the Middle East, and the Americas, our end-to-end capabilities deliver uncompromising reliability.
Bespoke CAD and 3D architectural layout planning optimized to your facility's clear height, bay spans, forklift types, and pallet footprints (e.g., Australian 1165×1165mm, Euro 1200×800mm, US 48×40in).
Rigorous structural verification calculating frame stability, shear factors, beam deflections (L/200), and site-specific seismic coefficients referenced to AS 4084, FEM, and RMI codes.
In-house continuous roll-forming, automatic CNC punching, multi-axis robotic welding cells, 9-stage pre-treatment, and automated polyester powder electrostatic coating lines.
Steel stillages, ISPM-15 heat-treated dunnage for seamless Australian DAFF and NZ MPI biosecurity clearance, component part numbering, and full bill of lading documentation.
Direct technical and operational answers to essential questions asked by international project engineers, logistics buyers, and regional distributors.
Partner directly with Guangzhou Heda Shelves Co., Ltd. Share your architectural floor plan, clear ceiling height, forklift fleet parameters, and pallet specifications. Our senior structural applications team will prepare a full 3D CAD layout, structural capacity report, and complete factory-direct FOB/CIF quotation within 24 hours.
