Column Upright Protector
Anti-collision TUV & SGS certified modified HDPE engineering shield designed to dissipate high-impact forklift energy.
Enterprise Product Portfolio
High-Performance Structural Storage & Protective Assemblies
Engineered for high-throughput logistics terminals, seismic endurance, extreme loading capacity, and high-density industrial warehousing.
Truck Tire Stacking Rack
Q235B structural tube stackable frame system supporting multi-tier dynamic tire warehousing with maximum footprint usage.

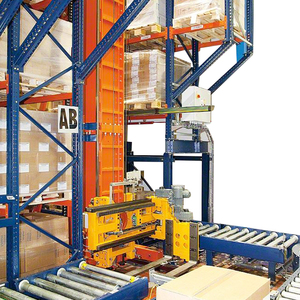

Automated Pallet Shuttle Rack
Ultra-dense deep-lane structural channels optimized for automated 24V/48V mother-baby radio shuttle cart navigation.
ASRS High-Bay Structural Rack
Millimeter-precision welded vertical columns engineered for robotic stacker cranes, high elevation, and maximum verticality.
Industrial Selective Pallet Rack
Multi-layer high-yield bolted uprights and interlocking box beams offering 100% immediate pallet SKU accessibility.

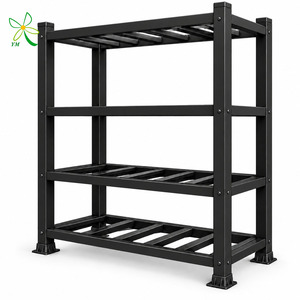

Anti-Corrosion FRP Shelving
Lightweight fiberglass composite storage profile designed for acidic, high humidity, marine, and harsh chemical environments.
Heavy Steel Base Footings
Seismic-grade base plates with multi-anchor bolt points for uniform slab stress transfer in high-load structural racks.
Aluminium FIFO Flow Rack
Modular lean workshop gravity flow assembly fitted with precision roller tracks for continuous automotive assembly replenishment.
Whitepaper: Engineering Specifications
Structural Steel Racking vs. Standard Roll-Formed Solutions
In high-throughput, heavy-duty distribution centers, supply chain engineering teams frequently encounter critical structural decisions regarding rack fabrication methodologies. While standard cold roll-formed uprights offer an economical entry point for low-turnover facilities, hot-rolled structural steel C-channels remain the industry standard for durability, impact resistance, and maximum structural integrity.
Operating as an OEM/ODM primary manufacturing facility, Guangzhou Heda Shelves Co., Ltd. supplies structural steel racking fabricated with heavy-duty structural channel columns and structural steel beams bolted directly with Grade 5/Grade 8 high-strength hardware. This construction provides high resistance to repeated forklift mast collisions, seismic shock, and structural twisting.
| Performance Metrics | Hot-Rolled Structural Racking (OEM/ODM) | Conventional Cold Roll-Formed Racking |
|---|---|---|
| Primary Steel Grade | ASTM A36 / Q235B / Q355 Structural C-Channel | Light-gauge Cold Rolled Coil (12 to 16 Gauge) |
| Forklift Impact Resistance | High: Thicker structural steel corners resist crushing | Moderate to Low: Prone to buckling and tear damage |
| Connection Interface | Direct high-strength bolted connections | Teardrop or slotted hook tabs with safety pins |
| Freezer / Cold Storage Fit | High resistance to brittle fracture in sub-zero setups | Subject to stress fractures under extreme thermal shifts |
| Seismic Damping Ratio | Higher moment resistance and torsional stiffness | Lower structural yield capacity requiring extra bracing |
| Total Cost of Ownership (TCO) | Lower maintenance and reduced upright replacements | Higher lifetime costs from upright repairs |
Industry Analysis
Next-Gen Warehouse Sourcing & Procurement Trends
Logistics engineering is shifting from isolated pallet racks toward interconnected automation-ready racking infrastructure. As a direct exporter serving international distributors, EPC contractors, and global 3PL operators, we see three primary technical trends shaping global procurement tenders:
ASRS & Shuttle-Ready Engineering
Modern tenders demand tighter structural deflection tolerances (1/500 to 1/1000) to allow automated shuttles and cranes to operate without laser-guidance calibration errors.
Dynamic Seismic Site Customization
With warehouse expansion in seismically active regions, structural engineering now requires tailored modal analysis, thicker baseplates, and high-tensile anchor engineering under AS 4084 and NZS 1170.5.
Advanced Surface Treatments
Cold chain facilities and humid coastal warehouses increasingly specify specialized hybrid finishes: zinc-rich primers, thermoset electrostatic powders, or full hot-dip galvanization (HDG).
Factory Direct Value
Guangzhou Heda Shelves Co., Ltd. Manufacturing Advantage
Founded in 2001, Guangzhou Heda Shelves operates an expansive 30,000 m² high-precision manufacturing hub with 300+ structural engineers, fabrication specialists, and international export technicians. We operate high-tonnage stamping, roll forming, and automated powder coating lines, delivering a stable monthly capacity of 30,000 metric tons directly to global logistics operators.
Direct OEM/ODM Customization
From custom beam connector angles and upright pitch specifications to private label branding and bespoke color powder formulation, our engineering team designs directly to your market requirements.
Verified International Compliance
Our quality management systems are certified under CE (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 (No. 18624Q00169R0M). Every production run includes mill test certificates and full structural calculation packages.
Export Logistics & Biosecurity Care
All international shipments use custom-welded steel stillages or fully ISPM-15 compliant heat-treated dunnage, ensuring smooth clearance through DAFF (Australia), MPI (New Zealand), and global customs inspection regimes.
Standardized 10-Stage Production & Quality Control Workflow
01
Raw Steel Spectrometry
02
Precision CNC Cutting
03
Automated Pitch Punching
04
Hydraulic Cold Forming
05
Roll Profile Shaping
06
Robotic MIG Welding
07
Deburring & Surface Shot
08
Acid Pickling & Phosphating
09
Electrostatic Powder Cure
10
Ultrasonic QC & Bundling
Direct Answers
Structural Racking Procurement FAQs
Key technical, structural, and trade questions answered by our engineering and export team.
How do you verify seismic compliance for international building codes?
We work from the site parameters provided by your structural team (including spectral acceleration, soil class, and importance factors). Our engineers perform dynamic finite element analysis (FEA) and design within AS 4084, NZS 1170.5, or RMI standards. We supply load applications, section moduli, and connection moment capacity tables for local engineering review.
What engineering documentation accompanies international OEM/ODM shipments?
Every commercial container release includes material mill test certificates (chemical analysis and yield strength reports), static design calculations, beam deflection test reports, certified coating thickness inspections, ISPM-15 fumigation documentation, and detailed assembly drawings.
Can standard roll-formed configurations be upgraded to structural steel?
Yes. Many clients use hybrid designs: structural steel channels at the lowest 2.5 meters of the upright column (the zone most vulnerable to forklift collisions) combined with roll-formed upper tiers, providing an effective balance of impact resistance and cost efficiency.
What are your standard lead times for international ocean freight projects?
Standard OEM/ODM manufacturing ranges from 20 to 35 days, depending on tonnage and finishes. Ocean transit from our southern China manufacturing hub to major international ports (such as Sydney, Melbourne, Auckland, Rotterdam, Long Beach) typically takes 14 to 30 days via direct lines.
How are container loads arranged to prevent transit damage and simplify unloading?
Uprights and heavy structural beams are bundled with steel strapping onto heavy-duty channel stillages, protected by protective corner edge-boards and moisture-resistant film. Small hardware items are packed in heavy-duty wooden crates labeled with item codes for organized site unloading.
What information is needed to receive a complete 3D layout and formal quotation?
Please share your warehouse architectural DWG/PDF drawings (including column grid spacing and clear height under obstacles), pallet details (width, depth, height, and maximum loaded weight), forklift make/model (turning radius and mast reach), and relevant environmental details (ambient, refrigerated, or seismic zone).
Request Engineering Calculations & Project Quotes
Connect directly with our engineering team for free 3D CAD layouts, structural analysis, load tables, and factory-direct volume pricing within 24 hours.
