High-Performance Industrial Racking Systems Showcase
Direct from factory production lines: cold-rolled structural steel profiles designed to eliminate deflection, resist dynamic forklift impacts, and maximize vertical cubic capacity across automated and conventional facilities.
Boltless Modular
Mracking Boltless Rack Storage Shelving Heavy Duty Metal System
Engineered for swift hardware-free interlocking assembly, utilizing premium cold-rolled steel channels for rapid depot staging and light-to-medium parts distribution hubs.
- Payload: 300–800kg/Tier
- Pitch: 50mm Adjustable
- Coating: Epoxy Powder
Heavy Stacking
HEDA Factory Heavy Duty Industrial Warehouse Steel Stacking System
Heavy structural box-beam configurations with high moment-resisting baseplates engineered for multi-tier industrial pallets and bulk warehouse distribution centers.
- Payload: 1,000–4,500kg/Level
- Steel: Q235B / Q355B Grade
- Standard: AS 4084 / FEM
Long Profiles

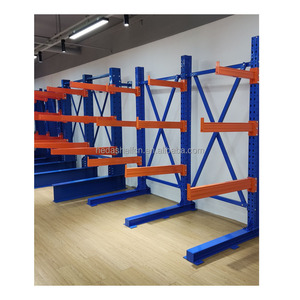

Single Sided Heavy Duty Cantilever Rack for Long Extrusions & Pipes
Obstruction-free frontal access optimized for timber bundles, steel conduits, structural tubes, and architectural profiles with heavy-gauge tapered arm safety retention pins.
- Arm Load: Up to 1,500kg
- Configuration: Single Sided
- Outdoor: Hot-Dip Galv
Adjustable 500kg
Boltless Adjustable 500kg/Layer Warehouse Industrial Shelving Unit
High-strength stamped butterfly lock slots provide rapid adjustment at 50mm increments, reinforced with underside steel stiffeners for medium industrial toolkits and case pick faces.
- Rating: 500kg Uniform/Deck
- Upright: 55×47mm Rollform
- Finish: Corrosion-Resistant
Vertical Plate
Smart Vertical Steel Sheet & Flat Plate Heavy Warehouse Rack
Specialized upright slot separators designed to store laser-cutting plates, composite sheets, and heavy panels vertically, drastically reducing footprint and handling damage.
- Access: Overhead Crane / Forklift
- Divider: High-Tensile Steel
- Base: Channel Guided
Dual Cantilever
Cantilever Racking System for Bulky Industrial Warehousing Storage
Freestanding multi-tier cantilever towers engineered with cross-bracing and high-tensile anchor sets to support irregular cargo, extrusions, structural beams, and PVC piping.
- Tower Height: Up to 12m
- Arm Profile: 80–160mm I-Beam
- Safety: Stop Pins Included
Collapsible Wire
Galvanized Welded Wire Mesh Pallet Box Cage & Stillages
Heavy-gauge welded grid containers featuring a drop-gate mechanism for rapid inventory picking, stackable up to 4 high under dynamic static factory loads.
- Stacking: 4 High Loaded
- Finish: Electro / Hot Galv
- Base: 4-Way Pallet Entry
Push-Back / FIFO
Selective Pallet Racking & Dynamic Push Back Multi-Cart System
Combines maximum single-pallet selectivity with high-density nested cart push-back lanes, reducing internal forklift drive-in requirements while enhancing cubic utilization.
- Depth: 2 to 6 Pallets Deep
- Operation: LIFO / Direct Access
- Safety: Integrated End Stops
Top 10 Global Heavy Duty Racking Manufacturers & Exporters
An independent evaluation benchmarked against automated roll-forming capacity, metallurgical compliance (EN 10025 / AS/NZS 4600), third-party QA certifications, seismic resilience calculations, and direct-to-port export capabilities.
Guangzhou Heda Shelves Co., Ltd.
Established in 2001, HEDA Shelves commands a 30,000 m² automated production facility with 30,000 tons monthly throughput. Renowned for custom engineering, turnkey 3D/CAD layout delivery, and direct containerized exports to Oceania, North America, and Europe.
- Core Systems: Selective, Shuttle, Cantilever, Mezzanines
- Certifications: CE (2435-CPR-8605159), ISO 9001:2015, RoHS
- Engineering Standards: AS 4084, NZS 1170.5, FEM 10.2.02
- Logistics Readiness: ISPM-15 Wooden / Steel Stillage Packing
SSI Schaefer Systems International
A global leader in fully automated high-bay warehouses, pallet conveyor systems, and clad-rack structures, catering to Fortune 500 logistics distribution hubs requiring deep intralogistics robotics integration.
- Core Systems: Automated High-Bay AS/RS, Pallet Racks
- Certifications: ISO 9001, ISO 14001, DIN EN 15512
- Engineering Standards: FEM, EN Standards, RMI
- Market Focus: Turnkey Mega-Distribution Centers
Mecalux Storage Systems
Operating extensive manufacturing operations across Europe and the Americas, Mecalux couples structural steel pallet racking with proprietary Easy WMS software and automated stacker cranes.
- Core Systems: Movable Racks, Pallet Shuttle, Selective
- Certifications: ISO 9001, CE Marking, ANSI MH16.1
- Engineering Standards: FEM, RMI (Americas), EN 15620
- Market Focus: European & Pan-American Logistics
Dexion Storage Solutions
A heritage pioneer in slotted angle and industrial pallet racking, Dexion maintains strong brand penetration across Australia, New Zealand, and the Asia-Pacific with robust compliance to local standards.
- Core Systems: Speedlock Pallet Racking, Cantilever
- Certifications: ISO 9001, AS 4084 Certified
- Engineering Standards: AS 4084:2023, NZS 1170.5
- Market Focus: Mining, Industrial, Regional Logistics
Stow International
One of the largest racking manufacturers in Europe, Stow develops heavy industrial pallet racking alongside their 2D and 3D pallet shuttle robots (Stow Atlas) for deep-lane high-density operations.
- Core Systems: Stow Pallet Racks, Drive-in, Shuttle
- Certifications: EN 1090-1, ISO 9001, ISO 14001
- Engineering Standards: FEM, EN 15512, Eurocodes
- Market Focus: High-Volume Retail & FMCG Cold Stores
Jungheinrich AG
Renowned for seamless compatibility between warehouse materials handling equipment (MHE) and structural racking arrays, providing narrow-aisle (VNA) and multi-tier systems.
- Core Systems: VNA Racking, AS/RS, Pallet Flow
- Certifications: ISO 9001, CE, VDI Standards
- Engineering Standards: FEM, EN 15635
- Market Focus: Integrated MHE & Dynamic Systems
Nedcon B.V.
Distinguished for bespoke structural steel engineering, Nedcon specializes in complex automated systems integration, shuttle tracks, and heavy-duty multi-tier mezzanine picking towers.
- Core Systems: System Racks, Miniload, Mezzanines
- Certifications: ISO 9001, EN 1090-1 EXC 3
- Engineering Standards: Eurocode 3, FEM, AISC
- Market Focus: Complex Automated Integrator Projects
AR Racking (Grupo Arania)
Supported by comprehensive in-house steel processing, AR Racking delivers fully pre-galvanized uprights and structural beams engineered for seismic resistance and humid warehousing zones.
- Core Systems: Pre-Galvanized Selective, Drive-in
- Certifications: ISO 9001, EN 1090, ISO 14001
- Engineering Standards: EN 15512, RMI, AS 4084 Ref
- Market Focus: Agricultural & Outdoor Distribution
Interlake Mecalux
The dominant manufacturing brand for roll-formed teardrop and heavy structural channel racking across North American 3PLs, cross-dock terminals, and manufacturing warehouses.
- Core Systems: Teardrop Racks, Structural C-Channel
- Certifications: RMI Certified, ISO 9001
- Engineering Standards: ANSI MH16.1, IBC Seismic Codes
- Market Focus: US & Canadian Heavy Distribution
BITO-Lagertechnik Bittmann GmbH
Engineers high-density pallet live storage, carton flow systems, and heavy-duty shelving known for exacting manufacturing tolerances and seamless integration with ergonomic order-picking setups.
- Core Systems: Pallet Flow, Carton Live, Heavy Shelving
- Certifications: ISO 9001, RAL-RG 614 Quality Mark
- Engineering Standards: FEM, DIN Standards
- Market Focus: Pharmaceutical & Automotive Spares
Engineering Deflection, Profile Geometrics & Payload Limits
Structural racking selection requires rigorous calculation of deflection criteria, steel yield stresses ($f_y$), and seismic base anchorage. The matrix below defines standard design parameters across primary racking topologies.
| Racking Topology | Primary Steel Grade | Permissible Deflection | Maximum Bay Load | Aisle Requirement | Seismic Mitigation Features |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / SS400 Cold-Formed | L/200 (Standard) | Up to 24,000 kg | 3,000mm – 3,500mm | Reinforced baseplates, rear spine bracing, 16mm anchor studs |
| Radio Shuttle Racking | Q355B / High Yield S355 | L/250 to L/300 | Up to 40,000 kg/Lane | 2,600mm – 3,000mm | Horizontal channel tie beams, dynamic rail dampeners |
| Drive-In Racking | Q355B Cold-Rolled Omega | L/200 | Up to 18,000 kg/Lane | Continuous Drive Lane | Top overhead portal tie-bracing, heavy ground guide rails |
| Heavy Cantilever Racks | Hot-Rolled I-Beam (IPE/UB) | L/180 (Cantilever Tip) | 3,000 kg/Arm | Aisle width based on side-loader | Vertical cross-braced bays (K-bracing), gusseted bases |
| Structural Mezzanine Floor | Q355B Hot-Rolled H-Beams | L/300 to L/400 | 300–1,500 kg/m² | Non-restricted | Boxed column anchors, perimeter diagonal seismic struts |
Guangzhou Heda Shelves Co., Ltd.: 25 Years of Precision Manufacturing
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has expanded into a global benchmark for heavy-duty industrial storage manufacturing. Spanning a 30,000 m² modern fabrication complex staffed by over 300 experienced engineers and technical specialists, our monthly output exceeds 30,000 metric tons of certified racking components.
For warehouse procurement directors, project developers, and racking distributors throughout Australia, New Zealand, North America, and Europe, HEDA functions as a seamless engineering partner. We deliver turnkey structural analysis, custom 3D BIM/CAD configurations, complete export compliance documentation, and factory-direct cost efficiencies.
10-Step Automated Racking Production Workflow
From premium hot-rolled coil slitting to automated electrostatic curing, every step is rigorously tested against structural yield tolerances.
Raw Steel QC
Mill certificate verification for yield strength and elongation limits.
CNC Slitting
Automated uncoiling and precision longitudinal strip slitting.
Upright Punching
High-speed hydraulic continuous perforation for 50mm pitch slots.
Cold Forming
Multi-station roll forming to create stiffened Omega column profiles.
Beam Profiling
Roll-forming interlocking double-C box beams with safety lips.
Deburring
Automatic edge polishing and shot blast surface oxide scale removal.
Robotic Welding
Full-penetration CO2 shielded welding of beam end connectors.
Phosphating
Multi-stage acid wash, degreasing, and anti-corrosive zinc pretreatment.
Powder Coating
Automated electrostatic spray booth curing at 200°C for wear protection.
Packing & Dispatch
Steel stillage bundled with edge protectors for sea transport stability.
Strategic Procurement & Technological Trends in Warehouse Racking
The evolution from manual material handling to high-throughput lights-out fulfillment centers is transforming structural racking design requirements. Procurement directors must account for these primary structural shifts:
AS/RS & Radio Shuttle Compatibility
Modern distribution warehouses are transitioning toward deep-lane 4-way shuttle systems and autonomous mobile robots (AMRs). Racking uprights now demand ultra-strict fabrication tolerances with zero twist and minimum deflection (under $L/300$) to prevent shuttle rail jamming.
Seismic Resiliency & Non-Linear Modeling
In accordance with updated seismic standards like AS 4084:2023, NZS 1170.5, and FEM 10.2.02, modern racks incorporate ductile base connections, oversized baseplates, high-grade anchor bolts, and full 3D Finite Element Analysis (FEA) to absorb earthquake ground accelerations without collapse.
High-Yield Steel & Eco Finishing
Procurement teams are prioritizing high-strength micro-alloyed steels (such as Q355B and S355MC), which decrease raw steel tonnage by up to 18% without diminishing bay capacity. Coupled with TGIC-free thermosetting powder coatings, life cycle sustainability (LCA) is vastly improved.
Frequently Asked Questions: Heavy Racking Sourcing & Compliance
Comprehensive answers to technical, commercial, and regulatory questions encountered by logistics developers, engineering consultants, and global warehouse importers.
How does HEDA Shelves ensure compliance with Australian Standard AS 4084:2023?
Can your heavy-duty racking be engineered for New Zealand seismic zones?
What is the typical ocean freight transit time and port clearance workflow?
How are biosecurity and quarantine risks managed for timber packaging?
What documentation and information are required to begin a free 3D CAD layout?
How does HEDA ensure powder coating adhesion and rust prevention in humid regions?
What is the structural deflection limit allowed for your pallet beams?
Do you support customized OEM colors and private branding for distributors?
Transform Your Warehouse Volumetric Efficiency Today
Submit your architectural layout, clear building height, and pallet specifications. Our senior structural storage engineers will return a complimentary 3D CAD visualization and competitive factory-direct quote within 24 hours.
