Industrial Product Showcase
Engineered Warehouse Storage Racks & Systems
From standard boltless light duty shelving units to high-density heavy racking and modular multi-tier mezzanines, explore factory-direct storage hardware built to international safety standards.
2001
Established Year
30,000 m²
Factory Floor Area
30,000 t
Monthly Steel Output
10,000+
Global Projects Completed
Manufacturer Authority
Factory-Direct Engineering: Guangzhou Heda Shelves Co., Ltd.
Operational scale, precision roll-forming technology, and structural engineering compliance for global logistics networks.
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an elite Chinese manufacturer of warehouse storage solutions, operating across a comprehensive 30,000 square meter modern facility. Supported by an in-house engineering and production staff exceeding 300 technical professionals, HEDA Shelves integrates end-to-end industrial manufacturing—from high-grade cold-rolled steel profiling to automated robotic welding, environmental multi-stage pre-treatment, and electrostatic powder coating lines. As an authority in international storage systems, we specialize in high-precision light duty storage racks, boltless rivet shelving, multi-tier mezzanine floors, and heavy industrial pallet racks, producing up to 30,000 tons of structural steel components monthly.
Full Turnkey Layout & 3D CAD
We provide architectural spatial mapping, calculation sheets, and 3D visual mockups tailored to your building constraints, forklift aisles, and SKU velocity prior to steel cutting.
Verified Global Certification
Production integrity validated via official CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M), and full RoHS compliant powder finishes.
Export Packing & Biosecurity
Export consignments utilize heavy-gauge custom steel stillages or fully heat-treated ISPM-15 compliant timber, ensuring seamless inspection clearance across Australian DAFF, New Zealand MPI, and EU ports.
Optimized Port Dispatch Logistics
Located in South China's maritime corridor, we coordinate integrated container stuffing, customs clearance under regional FTAs (such as ChAFTA), providing direct shipments to worldwide maritime hubs within 2 to 4 weeks.
OEM / ODM Custom Manufacturing
Customized hole-punch pitching (teardrop, butterfly, diamond, keyhole), structural steel gauges, corporate RAL color matches, and private labeling support for overseas industrial rack distributors.
Structural Seismic Compliance
Racks engineered in alignment with AS 4084, FEM 10.2.02, and regional seismic provisions (including NZS 1170.5), delivering structural cross-bracing schedules and certified base plate calculations.
Technical Specification
Light Duty Shelving Engineering: Structural Principles & Materials
An overview of cold-formed steel profiles, deflection criteria, and boltless interlock mechanics.
Light duty warehouse shelving units—frequently designated as longspan shelving, boltless metal storage racks, or industrial bin units—form the structural foundation of manual order fulfillment operations. In high-efficiency e-commerce fulfillment centers, automotive spare parts hubs, and wholesale inventory rooms, light duty racks bridge the operational gap between loose carton storage and dense pallet racking. The typical distributed loading threshold spans from 100 kg to 350 kg per beam level under uniformly distributed load (UDL) conditions, engineered with a minimum structural safety coefficient of 1.5 conforming to international cold-formed steel standards.
| System Classification | Load Capacity (UDL) | Standard Upright Section | Decking Substrate | Optimal Warehousing Environment |
|---|---|---|---|---|

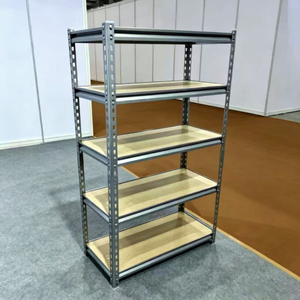

| Light Boltless (Rivet / Keyhole) | 100 kg – 150 kg / Layer | 1.0 mm – 1.2 mm Angle Post | MDF Board / High-Density Particle | Garage stockrooms, small retail reserves, office archives |
| Industrial Medium-Duty Tier | 200 kg – 500 kg / Layer | 1.5 mm – 1.8 mm Omega Profile | Cold-Rolled Steel Shelf Panels | Automotive replacement parts, micro-fulfillment centers |
| Rack-Supported Multi-Tier Mezzanine | 300 kg – 800 kg / Floor m² | 2.0 mm – 2.5 mm C-Profile Upright | Perforated Steel Planks / Plywood | High-cube e-commerce picking galleries, parcel hubs |
| Dynamic Carton Flow Tracks | 50 kg – 120 kg / Track Lane | Roller Tracks on Incline Beams | Engineered ABS / Alloy Wheel Beds | Fast-moving retail split-case picking (FIFO control) |
Structural integrity is heavily governed by the steel metallurgy utilized in cold-roll forming. Leading Chinese suppliers rely on certified Q235B or equivalent high-tensile hot-rolled steel strip, which undergoes continuous uncoiling, automatic edge leveling, progressive CNC cold-bending forming, and high-speed mechanical punching. By introducing multiple stiffening ribs along upright flanges and shelf decks, modern light duty shelving achieves exceptional strength-to-weight ratios without dead-load weight penalties.
Procurement Forecasting
Future Purchasing Trends in Warehouse Shelving (2025–2030)
How global enterprise buyers are reconfiguring supply agreements, compliance safeguards, and factory-direct partnerships.
Shift to Modular & Boltless Interlocks
Rising overseas labor costs are driving procurement teams away from traditional nut-and-bolt framing. Modern facilities prioritize teardrop or butterfly slotted uprights with click-in double-rivet horizontal beams, accelerating facility setup times by over 65% without specialized field tools.
Total Cost of Ownership (TCO) Sourcing
B2B procurement has advanced past FOB unit price comparisons. Procurement managers now factor steel coil gauge verification, long-term corrosion resistance (salt-spray test thresholds), nested container packing density to lower per-bay ocean freight, and modular reconfigurability as warehouse footprints evolve.
Sustainable Metallurgy & Low-VOC Finishes
Corporate Environmental, Social, and Governance (ESG) criteria are driving procurement toward suppliers that deploy zero-discharge wastewater recycling, heavy-metal-free phosphate pre-treatments, and thermosetting powder coatings with minimal VOC emissions.
Industry Roadmap
Technological Development Trends in Industrial Storage
From static steel storage racks to dynamic, sensor-integrated, and AMR-compatible warehouse infrastructure.
AMR & AGV Robotic Synergy
Light duty shelving units are increasingly engineered to accommodate autonomous mobile picking robots (AMRs). Modifications include precision floor clearance for chassis entry, optical QR code alignment markings along shelf beams, and reinforced base plates engineered to handle cyclic robotic interaction.
Ultra-High Strength Thin-Walled Cold-Forming
Through advanced finite element modeling (FEM), manufacturers are implementing optimized beam profiles with localized cold work hardening. This enables higher allowable bending moments while utilizing less overall raw steel, lowering product weight and reducing carbon intensity per storage bay.

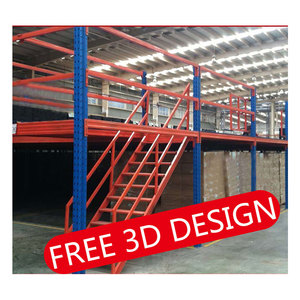

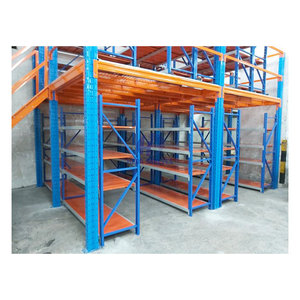

High-Cube Multi-Tier Mezzanine Optimization
With urban land costs surging globally, warehouses are expanding vertically. Light duty racking now serves as the modular load-bearing chassis for 2-tier and 3-tier catwalk platforms, unlocking hundreds of cubic meters of small-item pick faces without requiring new real estate acquisitions.
Production Lifecycle
Direct Manufacturing & Global Fulfillment Roadmap
The complete engineering-to-delivery pathway managed by HEDA Shelves for overseas enterprise clients.
01
Design & Layout
We review architectural plans, aisle widths, pallet dimensions, and operational throughput to produce free 3D CAD layouts and structural engineering calculations.
02
Precision Cold-Forming
High-grade steel coil is laser-cut, roll-formed into specialized upright geometries, punched with micro-tolerances, and seam-welded by automated robotic lines.
03
Chemical Pre-treatment
Components undergo automated pickling, phosphating, and de-greasing baths to ensure maximum surface adhesion before entering the electrostatic powder coating curing line.
04
Packaging & Shipping
Components are strapped onto custom steel stillages or ISPM-15 timber with protective plastic wrapping, container-stuffed, and dispatched through international sea freight channels.
Technical & Commercial FAQ
Frequently Asked Questions for Warehouse Shelving Procurement
Answers to common inquiries regarding engineering compliance, loading verification, production lead times, and global shipping.
What defines "light duty" shelving, and how do I calculate the correct safety factor?
Light duty warehouse shelving is engineered for manual piece-picking or small carton storage, with load ratings ranging from 100 kg to 350 kg per beam level under uniformly distributed load (UDL) conditions. Structural capacity is calculated following international standards (such as EN 15512 or ANSI MH16.1), incorporating a structural safety coefficient between 1.5 and 1.65 against permanent plastic deformation. Buyers should always confirm that floor slab capacities and upright frame cross-bracing match the total accumulated weight across all vertical levels.
Can HEDA Shelves produce custom hole pitches, upright profiles, and specific RAL colors?
Yes. With dedicated tooling workshops and flexible roll-forming machinery, we offer comprehensive OEM and ODM support. We manufacture teardrop, butterfly, diamond, keyhole, and hexagonal slotted patterns to ensure compatibility with existing installations. In addition, our automated powder coating lines can accommodate custom RAL colors, distinct upright-to-beam color schemes, and private branding labels for regional wholesale distributors.
What are the lead times for custom production and containerized sea freight?
Standard production turnaround for a 20ft or 40ft high-cube container typically ranges between 15 and 25 working days, depending on custom profile requirements and coating specifications. Maritime transit from our South China production base to major destination ports (such as Sydney, Melbourne, Auckland, Rotterdam, Long Beach, or Jebel Ali) ranges from 12 to 28 days. Our logistics team provides complete documentation packages—including Bills of Lading, Packing Lists, Certificates of Origin, and mill test certificates—for rapid customs processing.
How does HEDA ensure biosecurity and cargo protection during ocean transit?
We adhere to strict export packaging standards designed for transoceanic shipping. Steel structural members are bundled using protective cardboard corner protectors, heavy-duty banding, and moisture-barrier shrink wrap. For dunnage and palletized loads, we use structural steel stillages or ISPM-15 certified, heat-treated wood with authentic stamp marks. This prevents moisture ingress and corrosion, while ensuring compliance with biosecurity regulations enforced by agencies such as Australia's DAFF and New Zealand's MPI.
What documentation is provided to support regional engineering and structural sign-offs?
Every engineered order is accompanied by a technical data package that includes CAD layout diagrams, upright profile section modulus calculations, maximum allowable beam deflections (typically L/200), steel mill material certificates (validating tensile strength and yield point), and factory load testing reports. These documents allow local structural engineers and certifiers to quickly complete site-specific safety and seismic compliance reviews.
Design & Source Your Warehouse Shelving Directly from the Factory
Submit your architectural floor plan, target load capacities, and ceiling height details. Our structural engineering team will deliver a comprehensive 3D CAD proposal and factory-direct price quotation within 24 hours.
