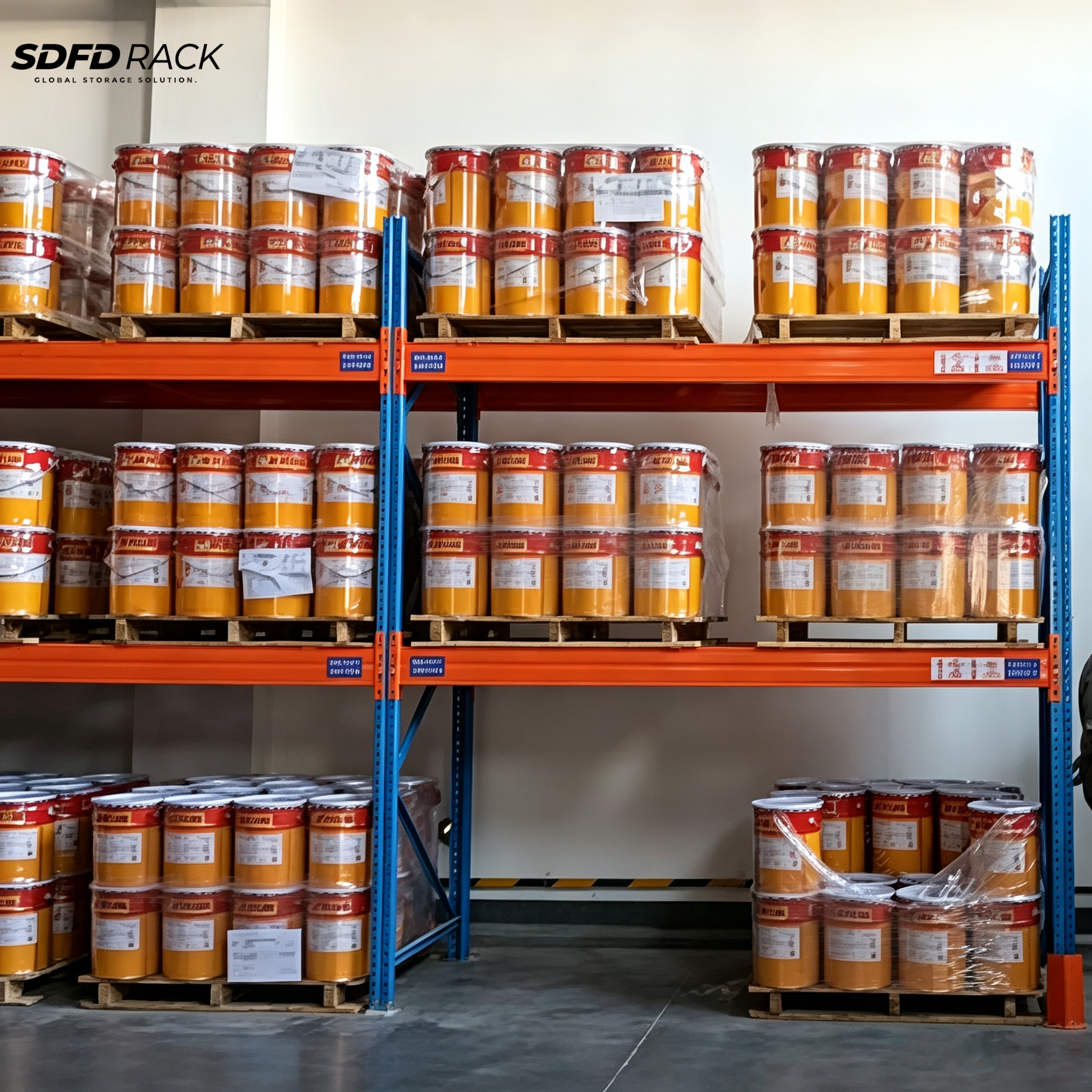

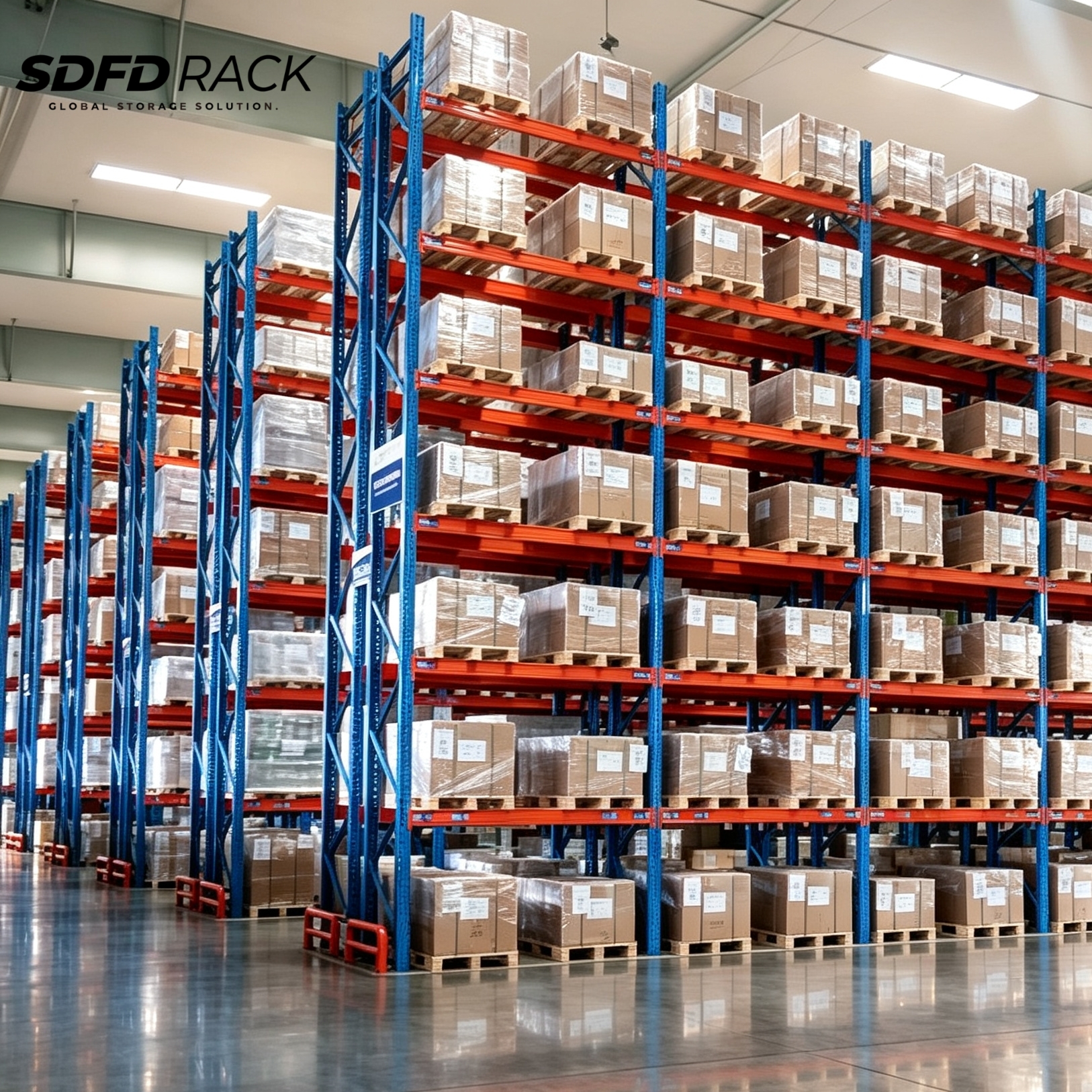

SDFD Heavy Duty Pallet Racking System Steel Durable Adjustable Box Beam Multi-layer Selective Pallet Rack For Warehouse Storage
Product Description
▣
Products Description

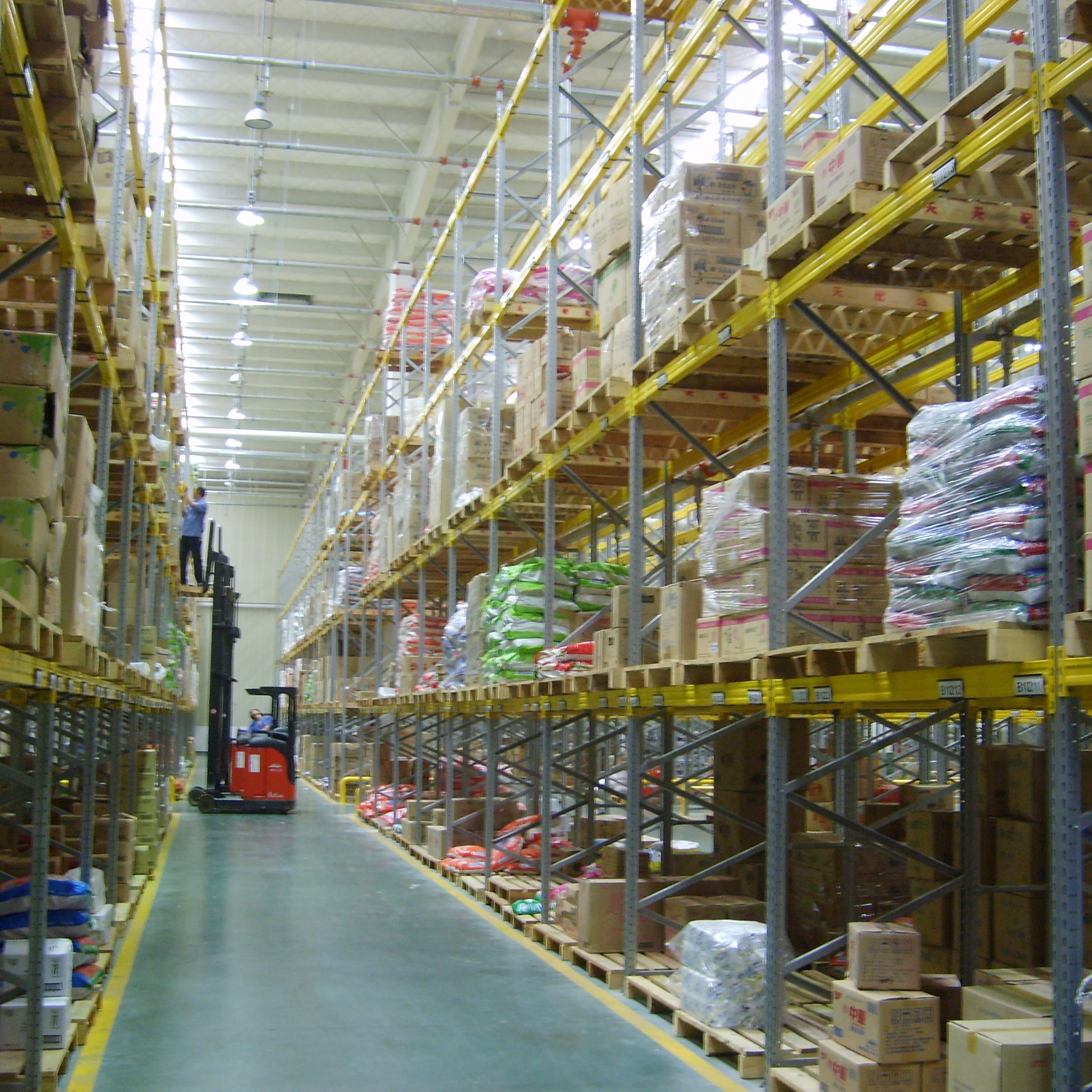

Storage shelves heavy duty warehouse racking selective pallet rack

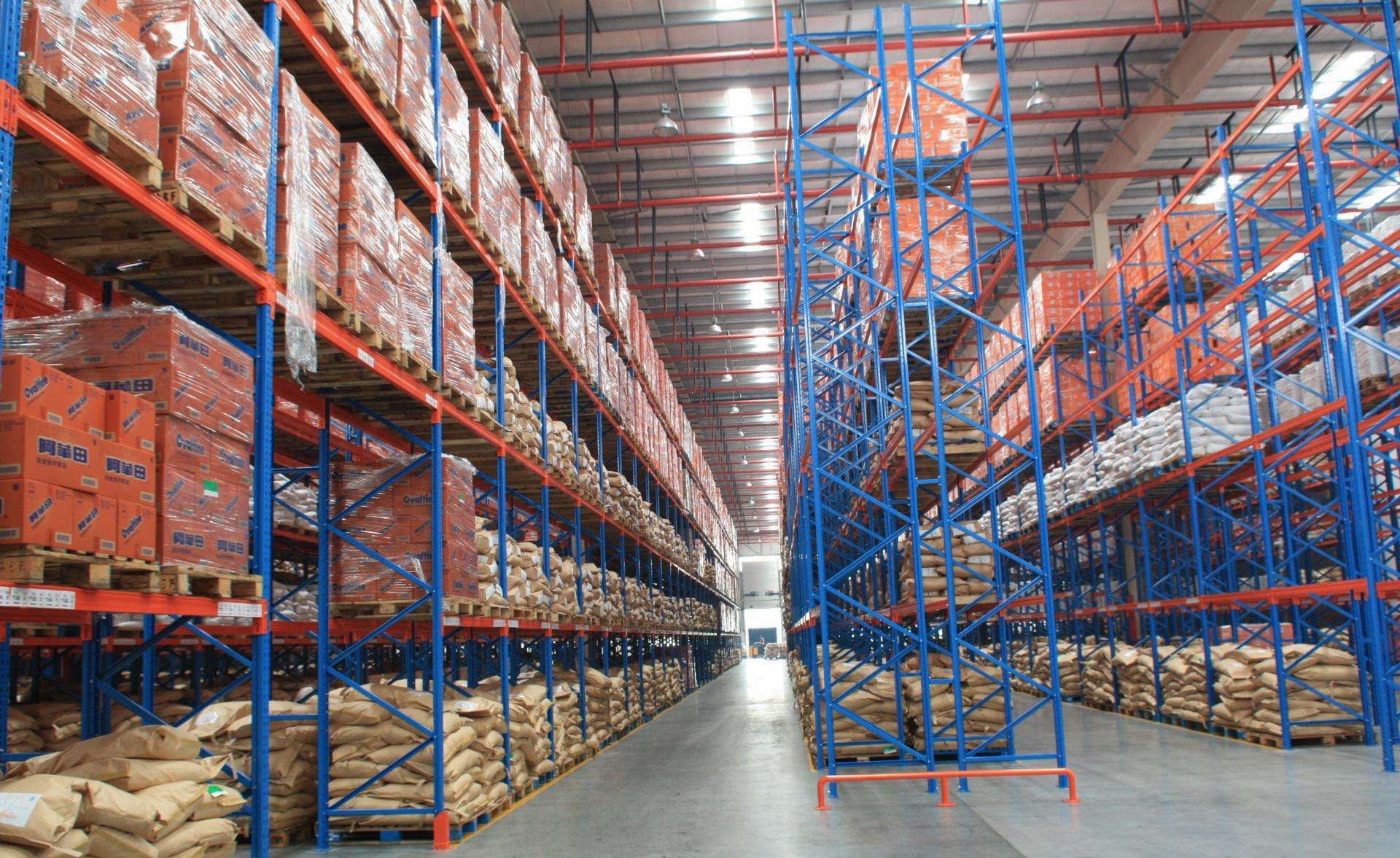

Industrial pallet racks can easily store large individual items and palletized goods, providing a effective storage system that can be widely used in warehouses and factory environments.

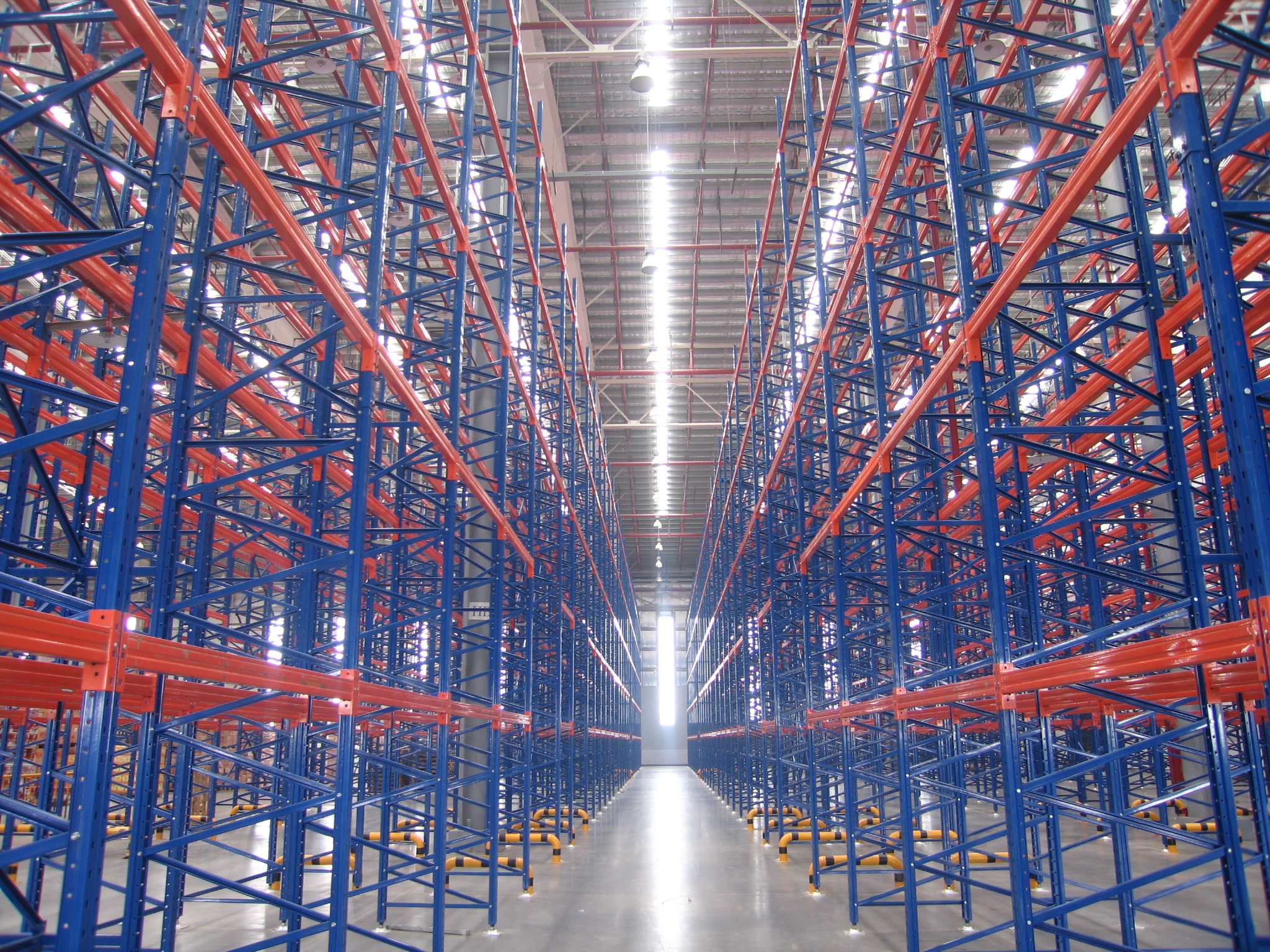

The key to a successful storage operation is an effective storage layout, which contains enough storage capacity to meet the demand during busy periods, then enhance the company profits. Our standard pallet racking system provides a cost effective way to store large amounts of inventory in a warehouse.

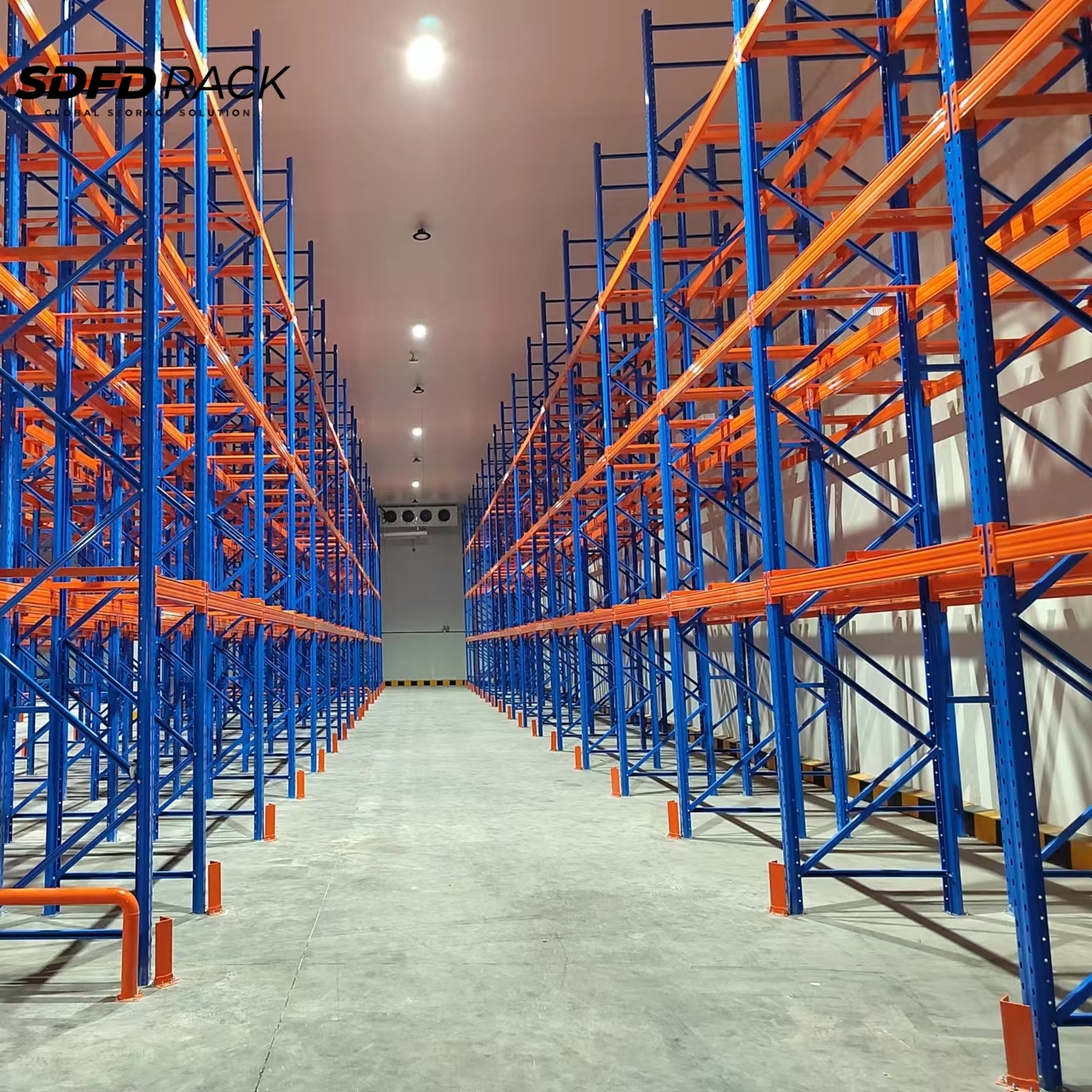

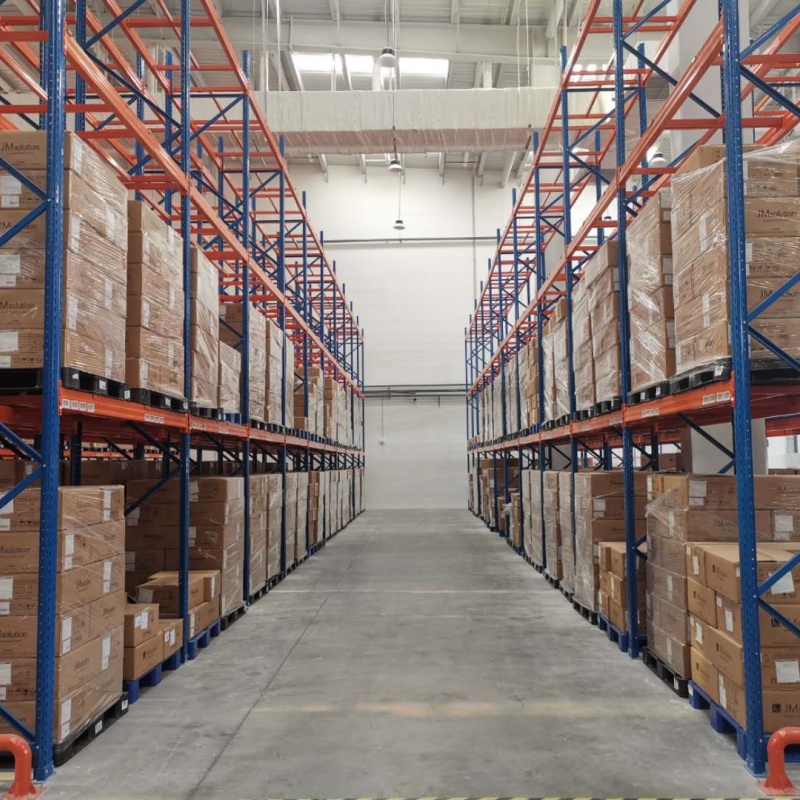

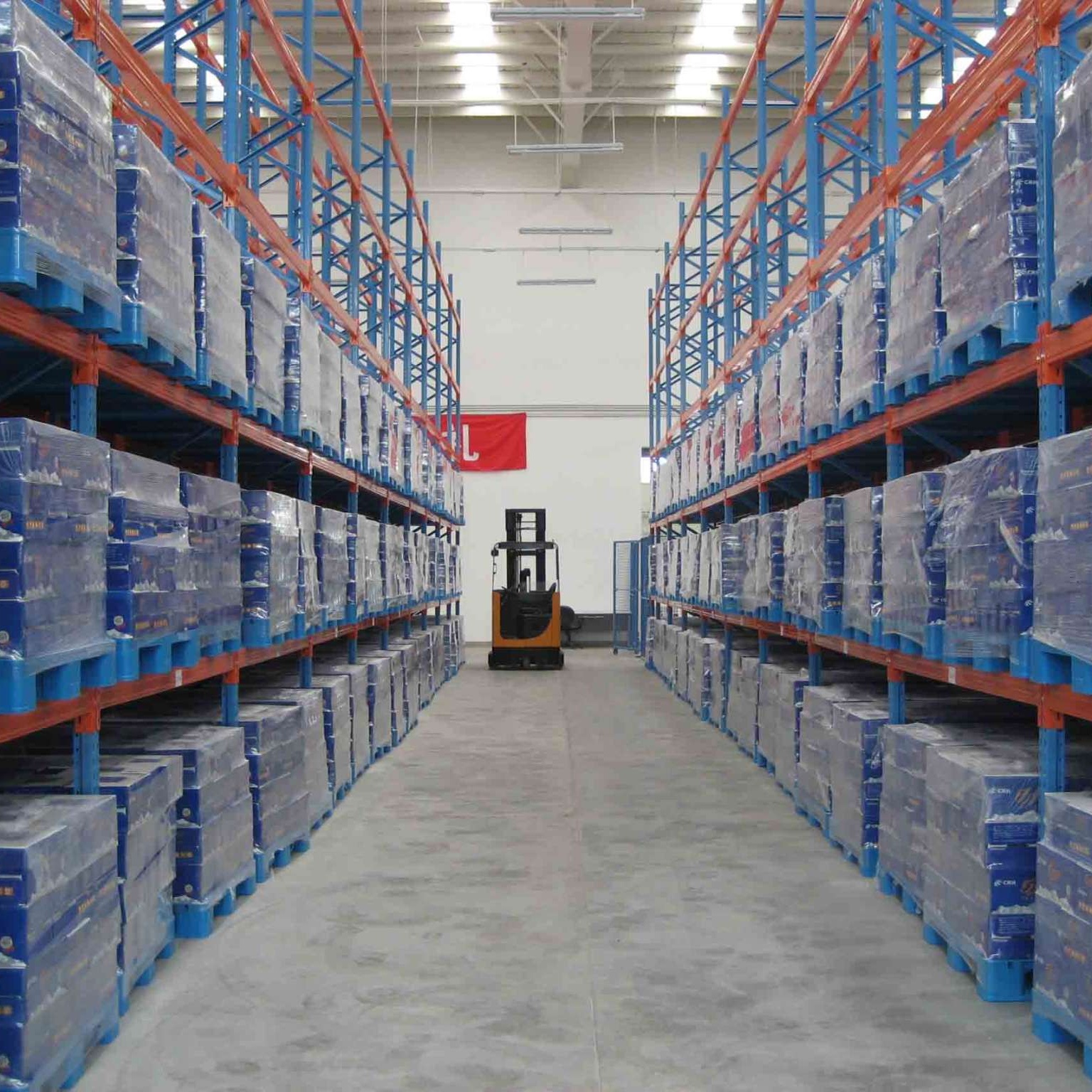

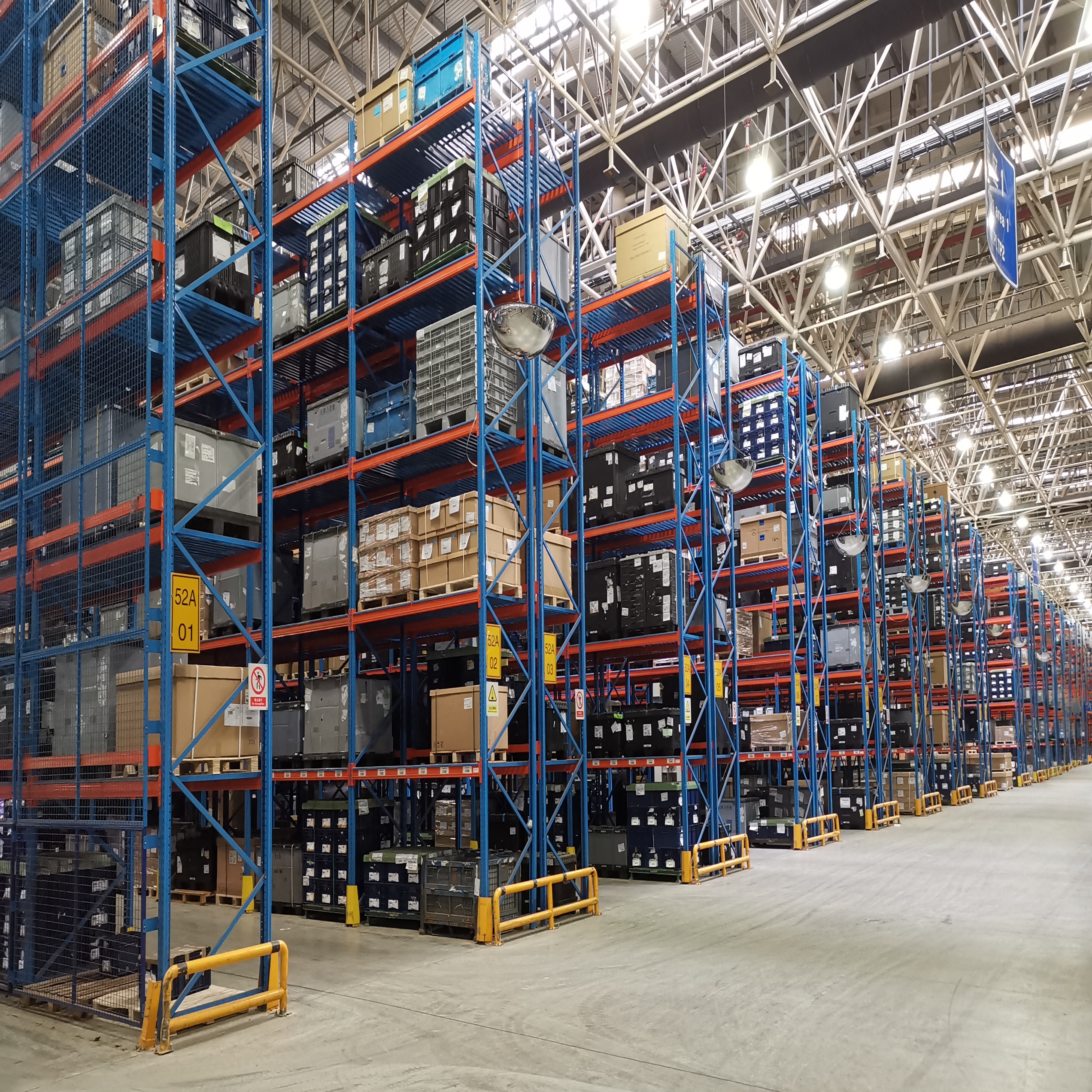

Selective pallet racking is the most commonly and popular heavy duty warehouse storage racking system. Heavy duty pallet racking system can store goods of various specifications and sizes. Its size is flexible and can be changed according to the pallet and product, thus greatly increasing the storage capacity of the warehouse.

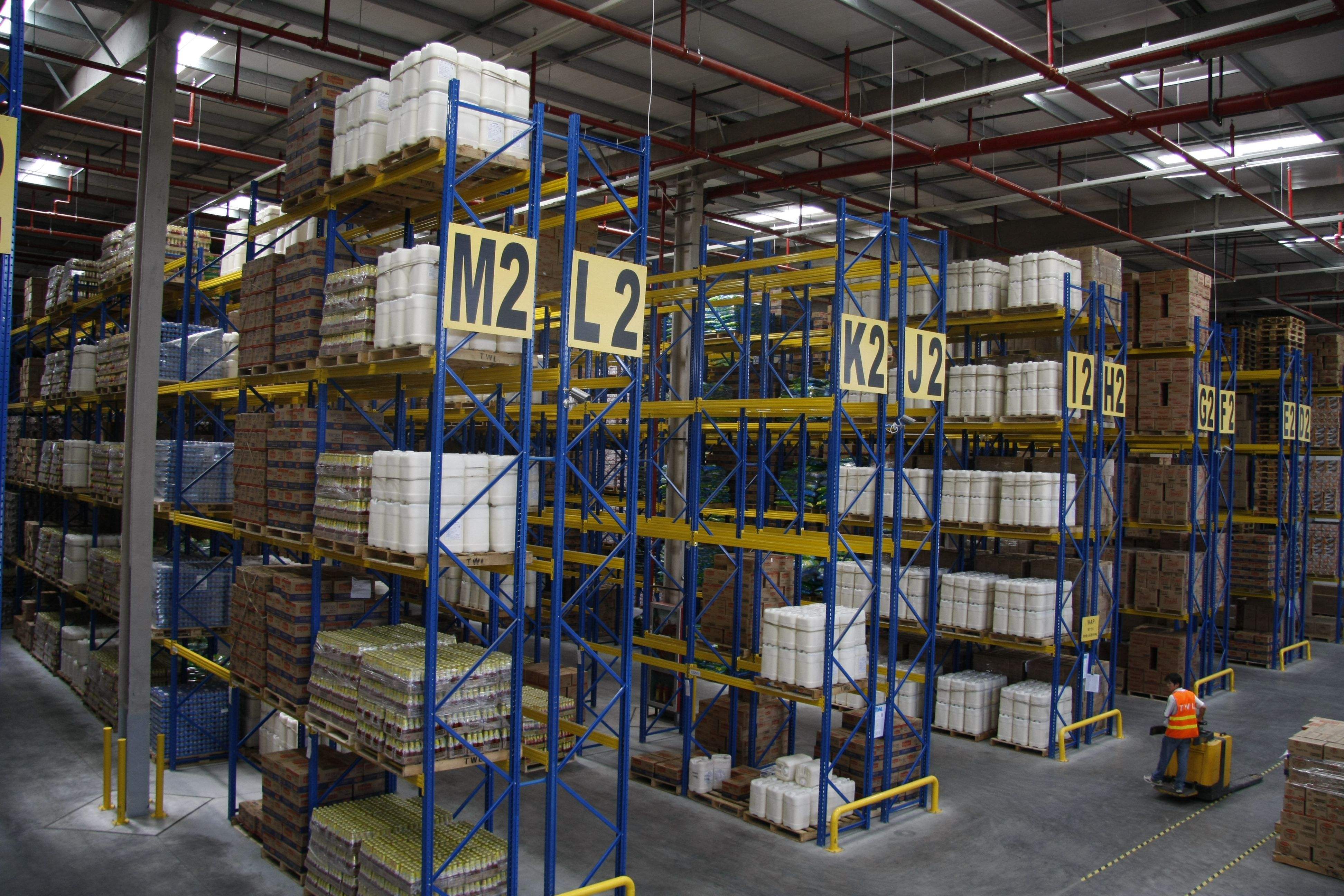

The forklift can directly access the individual pallets you need to load or unload. This makes the transportation process fast and convenient. Inventory management is also very simple

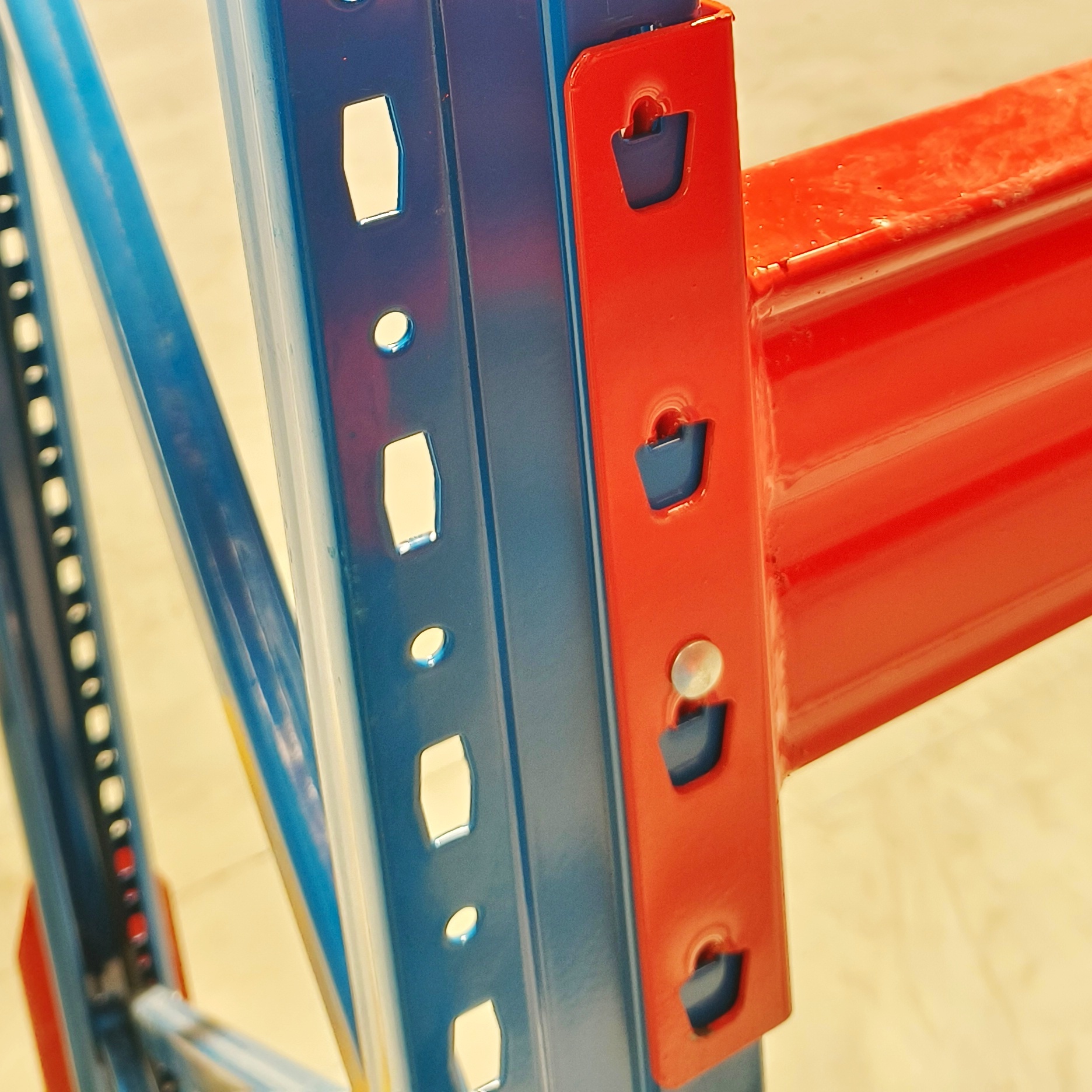

The double-locking structure—after the hooks are inserted into the column holes, they are locked again with bolts. This effectively prevents the crossbeam from falling off due to impact or vibration.

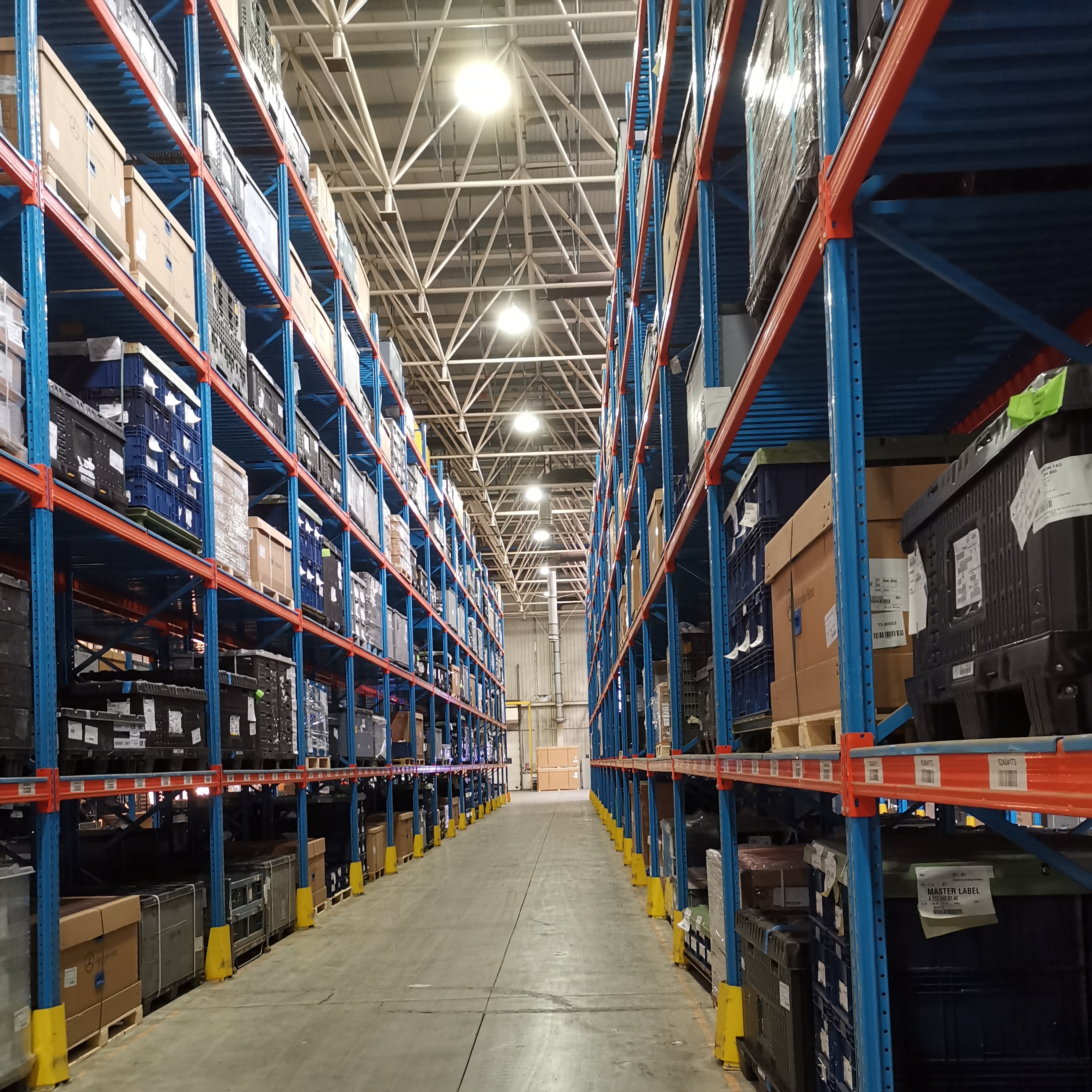

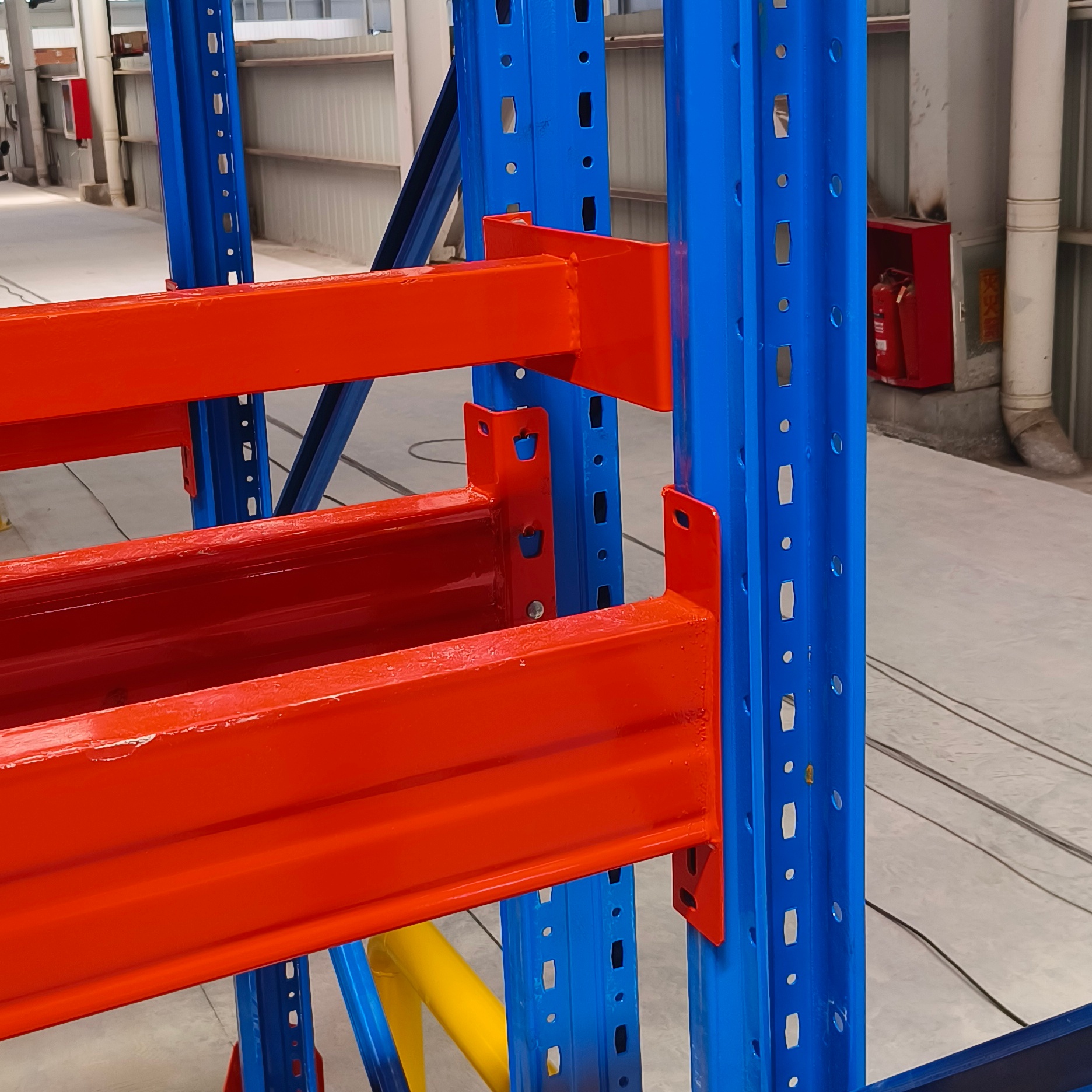

The crossbar structure is mostly a "welded beam" structure. The columns are cold-formed sections with a "C" or "U" cross-section, and have hexagonal or teardrop-shaped hanging holes evenly distributed on the surface.

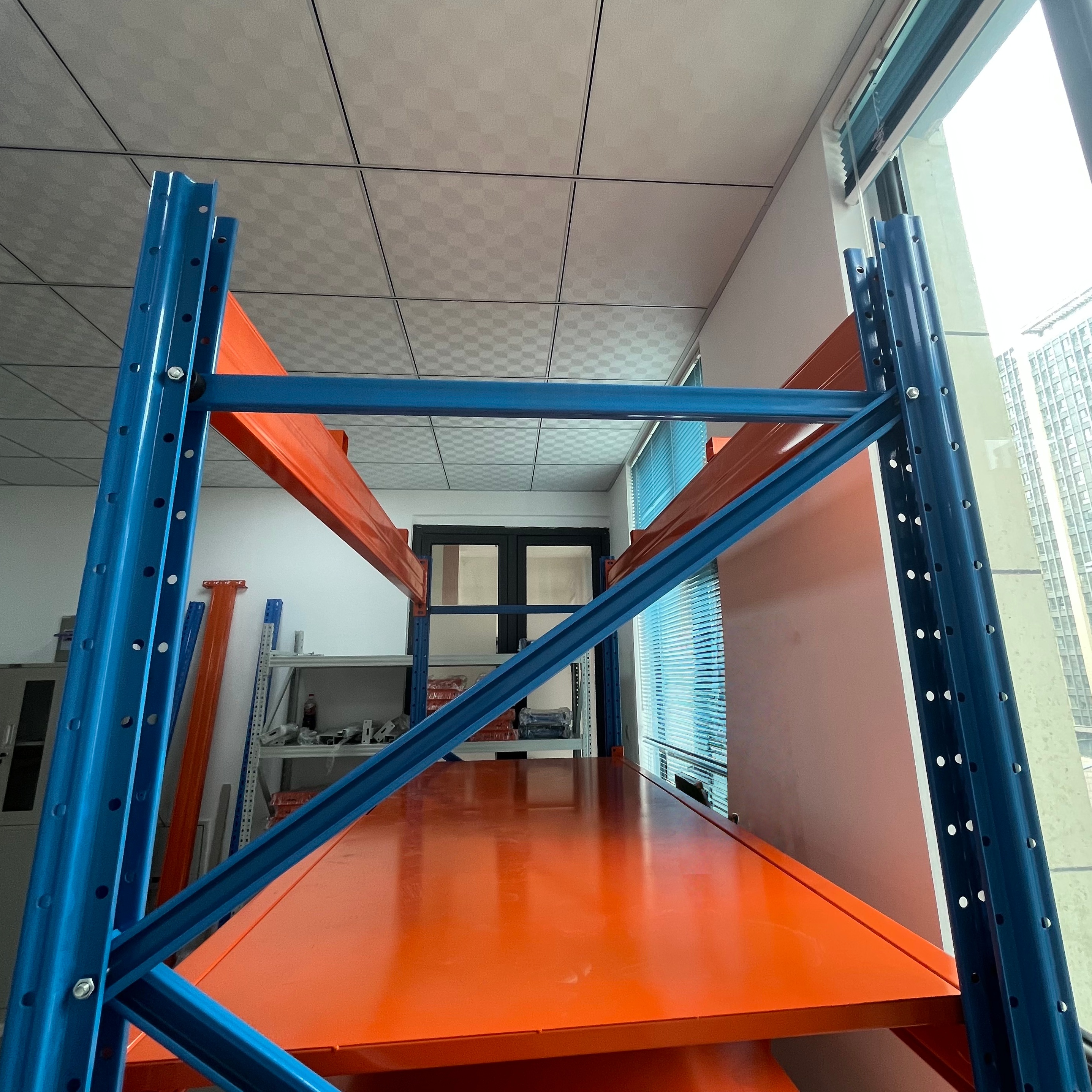

Brackets (horizontal braces) and diagonal braces (diagonal braces) are installed between the columns of a row of shelves every two to three layers, forming a triangular stabilization structure to prevent the shelves from tipping over.
⚙
Product Parameters
| Material | The raw material brand of our normal temperature warehouse is carbon steel Q235b, or other types of steel can be customized according to your needs. |
| Load Capacity | Typically 1,000 kg to 3,000 kg per level (depending on the system configuration) |
| Rack Height | Customizable, typically 2000mm to 12000mm or more, depending on warehouse space |
| Beam Length | Typically 2,000mm(79in) to 3,500mm(138in), adjustable for pallet sizes and weight |
| Rack Depth | 1,000mm(40in) to 1,500mm(60in), depending on pallet dimensions and load weight |
| Column Size | Typically 90mm x 70mm to 120mm x 120mm, based on load requirements |
| Forklift Access | Double-deep forklift required for rear pallet access |
| Aisle Width | Typically 2.5m to 3.5m (optimized for reach trucks or narrow-aisle forklifts) |
| Safety Features | Anti-collapse bars, end stops, locking pins, and impact protection |
| Finish | Powder-coated or galvanized for added strength and longevity |
| Adjustability | Beams are adjustable in 50mm/75mm increments for flexibility |
| Environmental Suitability | Ideal for ambient temperature, low-temperature storage options available with adjustments |
★
Why Choose Us
- With a monthly production capacity of up to 3,000 tons, we are the ideal choice for clients with large-scale projects and strict delivery requirements.
- Our professional technical team can quickly provide you with the optimal solution, providing drawings, on-site measurements, and installation guidance.
- We offer customized services. With a variety of materials, we can meet diverse specifications and load-bearing requirements based on your warehouse size and pallet conditions.
Please feel free to contact our sales engineers!
- Our sales engineers have extensive export experience and professional product knowledge, and can quickly confirm customer needs and arrange shipment. This truly provides one-stop service.
- We hold SGS, ISO9001, and grinding test certifications, as well as numerous patents. FANGDING is a fully-fledged factory with strong R&D capabilities.
- Our principles are sustainable development, integrity management, and safety first.
- Our product quality, delivery time, and service have been recognized by customers worldwide.
✈
Packaging & Shipping
Cargo Fixation
Ropes, straps, frames and other devices secure mezzanine rack components in transport to avoid movement/collision from vibration, sudden stops or turns. Heavier parts (uprights, beams) use multi-layer reinforcement for stability.
Vibration Damping
Rubber pads, foam boards and other shock absorbers are placed at the base and around goods to absorb transit vibration, protecting the rack's surface and structure—critical for preventing coating damage on treated racks.
Rain & Moisture Protection
Transport vehicles use high-quality waterproof tarpaulins to cover goods from rain. Desiccants are added in packaging during transit through humid areas or long trips to keep metal components dry and rust-free.
🏢
Company Profile
Shandong Fangding Warehouse EquipmenManufacturing Co., Ltd
Founded in 2008, Shandong Fangding is a professional manufacturer integrating the R&D, design, production, and installation of modern logistics technologies. Recognized as a specialized, innovative, and high-tech enterprise, the company boasts not only strong technical expertise and product development capabilities, but also advanced equipment such as cold-rolling lines for steel sections, automated powder coating lines, and automatic continuous punching lines for strip steel.
Its diverse product portfolio includes various types of racking, including pallet racking,heavy-duty racking,Medium-Duty Racking,asrs racking,drive-through racking,mezzanine racking,cantilever racking,wireless shuttle racking,vna racking,platform racking,flow racking,and long material racking.The company also provides comprehensive after-sales maintenance services. Its annual production capacity exceeds 20,000 tons, with an annual output value of 200 million RMB.
Welcome to visit our company.
Our Factory
Our Reception
Our Warehouse
Our Equipment
✔
Certifications
?
Frequently Asked Questions
Q:
Are you a factory or trading company?
We are a manufactory for storage rack
Q:
Where is your factory located? How can I visit there?
Our factory located in Dezhou City Shandong Province, China. You can contact our representative to arrange your itinerary and come for a visit directly. We sincerely welcome your visit!
Q:
What is the raw material of your products?
The raw material brand of our normal temperature warehouse is carbon steel Q235b, and the cold storage at minus 18 degrees Celsius or lower temperature adopts Q345D, or other types of steel can be customized according to your needs.
Q:
Do you have MOQ (minimum order quantity) limitation?
No, we do not have MOQ requirement for most of our products. Normally 1*20ft container order would be recommended to save cost and easy operation.
Q:
What is your delivery time?
It depends on the order quantity and racking types normally is 15 to 30 days after receipt of the deposit
Q:

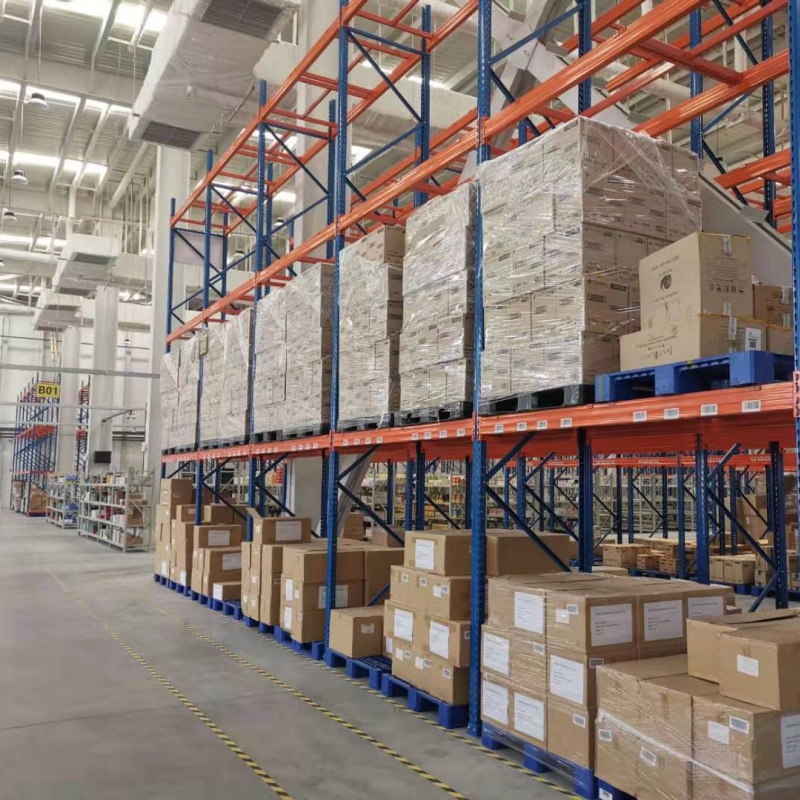

How will I install the racks?
We provide installation videos and installation drawings. If necessary, we can send an engineer to guide the installation or installation team to install on site.
