Is your pallet racking suitable for AS 4084 compliance in Australia?

Our engineers design racking with reference to AS 4084 (Steel storage racking) principles and supply section properties, load tables and layout calculations so your local engineer or certifier can verify the installation. Load signage can be produced to suit Australian site requirements.

Can racking and mezzanines be designed for New Zealand seismic zones?

Yes. For New Zealand projects we work from the site seismic parameters provided by your engineer (with reference to NZS 1170.5) and can increase frame bracing, base plates, anchors and row spacers accordingly. Final sign-off should be completed by a locally registered engineer.

How long does shipping to Australia or New Zealand take?

Sea freight from South China to major ports such as Sydney, Melbourne, Brisbane, Fremantle, Auckland and Tauranga typically takes around 2 to 4 weeks, depending on the shipping line and transhipment. Production time depends on order volume and finish.

How do you handle Australian and New Zealand biosecurity requirements?

Racking is packed on steel frames or ISPM-15 treated and marked timber to help simplify DAFF (Australia) and MPI (New Zealand) inspection. Packing lists, commercial invoices and certificates of origin are supplied with every shipment.

What information do you need to design a warehouse racking layout?

Please share your warehouse floor plan, clear height, pallet size (for example 1165 x 1165 mm Australian standard pallets), maximum pallet weight, forklift type and lift height, and the number of SKUs. With these details our team prepares a free 3D and CAD layout.

Top Trusted Heavy Duty Industrial Shelving Factories & Supplier

Factory-Direct Heavy Duty Inventory

Engineered Heavy Duty Industrial Shelving Systems

High-load steel structural units certified for automated distribution centers, hypermarkets, seismic zones, and temperature-controlled cold storages. All systems are manufactured with certified cold-rolled carbon steel.

Cold Chain Ready Heavy Duty Rust Resistant Steel Shelves Industrial Warehouse Storage Unit 6 Tier Wire Shelving Rack for Cold Storage

Heavy Duty Rust Resistant Steel Shelves Industrial Warehouse Storage Unit 6 Tier Wire Shelving Rack for Cold Storage

Up to 450 kg UDL per tier
Anti-microbial zinc/epoxy dual coat
Rated for -30°C freezer rooms

Specs & CAD → Inquire Now

ESD Cleanroom 4 Layers Industrial Chrome Wire Basket ESD Shelf Trolley With Handrail

4 Layers Industrial Chrome Wire Basket ESD Shelf Trolley With Handrail

Surface resistance: 10⁴–10⁹ Ω
Heavy-duty conductive PU casters
Ergonomic push rail design

Specs & CAD → Inquire Now

Commercial Grade Heavy Duty Steel Supermarket Shelving 6 Shelf Adjustable Single Sided Corrosion Protected Storage for Warehouse Retail Garage

Heavy Duty Steel Supermarket Shelving 6 Shelf Adjustable Single Sided Corrosion Protected Storage for Warehouse Retail Garage

High tensile cold rolled plate
Micro-pitch height adjustability
High salt-spray corrosion resistance

Specs & CAD → Inquire Now

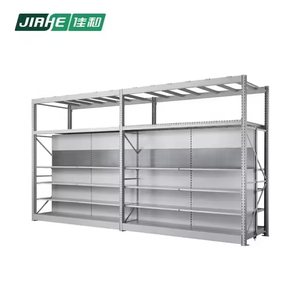

Integrated Racking Heavy Duty Hypermarket Shelving Industrial Shelving Warehouse Heavy Duty Storage Rack Integration Racking

Heavy Duty Hypermarket Shelving Industrial Shelving Warehouse Heavy Duty Storage Rack Integration Racking

Up to 3,000 kg/pallet bay load
Top storage + retail display combo
AS 4084 / FEM 10.2.02 compliant

Specs & CAD → Inquire Now

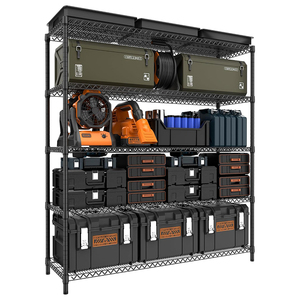

Mobile Heavy Unit MZG Industrial Wide Wire Shelving Garage Heavy Duty High Capacity Metal Wire Storage Shelves Unit Rack with Wheels

MZG Industrial Wide Wire Shelving Garage Heavy Duty High Capacity Metal Wire Storage Shelves Unit Rack with Wheels

Industrial 5-inch locking casters
Truss-reinforced wire deck frame
Tool-free snap-sleeve assembly

Specs & CAD → Inquire Now

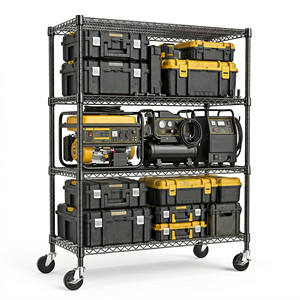

Overseas Stock MZG USA Warehouse Local Stock Easy Assembly Industrial Heavy Duty 4 Tier Wire Black Metal Storage Rack Shelving Unit

MZG USA Warehouse Local Stock Easy Assembly Industrial Heavy Duty 4 Tier Wire Black Metal Storage Rack Shelving Unit

Heavy textured carbon powder coat
Local hub dispatch available
NSF Food Equipment sanitation

Specs & CAD → Inquire Now

L-Gondola High Load Heavy Duty Durable L Type Wall Gondola Wire Shelving Single-Sided Metal Rack 5 Shelves 68W 200H 40D Vietnam Supermarket Shelves

Heavy Duty Durable L Type Wall Gondola Wire Shelving Single-Sided Metal Rack 5 Shelves 68W 200H 40D Vietnam Supermarket Shelves

Monolithic base foot stabilization
Mesh back-panel ventilation
OEM export specifications

Specs & CAD → Inquire Now

Metal Logistics Skid Heavy Duty Steel Pallet Metal Skid Reusable Industrial Pallet for Warehouse Container Loading Cargo Transport

Heavy Duty Steel Pallet Metal Skid Reusable Industrial Pallet for Warehouse Container Loading Cargo Transport

Dynamic 2,500 kg / Static 6,000 kg
4-way forklift entry channel
100% recyclable fire-safe steel

Specs & CAD → Inquire Now

2001

Established Since (25+ Yrs)

30,000m²

Smart Plant Floor Area

30,000t

Monthly Cold Rolled Output

300+

Engineers & Technicians

Audited Enterprise Capability

Why Global Logistics Integrators Partner With HEDA Shelves

Offshore procurement of heavy industrial racking fails when structural integrity, documentation, or biosecurity are overlooked. Guangzhou Heda Shelves Co., Ltd. eliminates supply chain risks through end-to-end engineering governance.

01

Complimentary 3D & CAD Layouts

Our certified structural engineers produce custom AutoCAD and 3D architectural models within 24 hours. We optimize aisle clearance, turning radii, and vertical clear heights for reach trucks, counterbalance units, and VNA narrow forklifts before cutting any steel.

02

Certified AS 4084 & Seismic Design

Engineering calculations adhere directly to AS 4084-2023, FEM 10.2.02, and US RMI MH16.1 codes. For active seismic regions across New Zealand (NZS 1170.5) and the Pacific Rim, we engineer enlarged baseplates, heavy frame bracing, and certified chemical anchor packages.

03

Extreme Environment Coatings

From multi-temperature blast freezers down to -30°C to coastal warehouses with high relative humidity, our automated pre-treatment uses 7-stage pickling and phosphating, followed by 180°C electrostatic powder baking or ISO 1461 hot-dip galvanizing exceeding 85μm thickness.

04

Biosecurity & Customs Pre-Clearance

Every export container is packaged using certified ISPM-15 heat-treated dunnage or dedicated structural steel stillages. Shipments strictly satisfy Australia DAFF and New Zealand MPI bio-inspection standards, backed by full preferential FTA Certificates of Origin (ChAFTA / ASEAN).

05

Verified Credentials: CE & ISO 9001

We maintain active certifications: CE Factory Production Control (FPC) Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Quality Management System No. 18624Q00169R0M. Complete mill test certificates (MTC 3.1) and yield stress reports accompany every production run.

06

Precision Erection & OEM Kits

Components feature precision cold-punched teardrop or diamond slotting with numerical column stamping. Every bundle is barcode-labelled with comprehensive installation blueprints and fastener lists, reducing on-site mechanical contractor assembly hours by over 30%.

Industrial Metallurgy & QC Flow

10-Stage Precision Heavy Duty Racking Manufacturing Cycle

Every ton of structural steel passes through a calibrated cold-roll and chemical treatment line within our 30,000 m² facility, guaranteeing continuous deflection compliance under total rated loads.

Stage 01

Q235B/Q355B Coil Inspection

Stage 02

High-Speed Slitting & Blanking

Stage 03

CNC Upright Pitch Punching

Stage 04

Continuous Cold Roll Forming

Stage 05

Box & Step Beam Forming

Stage 06

Deburring & Laser Beveling

Stage 07

Robotic CO2 Gas Shield Welding

Stage 08

7-Tank Pickling & Phosphating

Stage 09

Electrostatic Thermoset Coating

Stage 10

Laser QC & Bundled Export Crate

Procurement Decision Matrix

Heavy Duty Industrial Shelving vs Storage Systems Comparison

Select structural storage configurations based on calculated floor slab capacities, required SKU density, access selectivity, and cold-room temperature variables.

Storage System Type	Maximum UDL Capacity	Structural Metallurgy	Selectivity Ratio	Deflection Limit	Ideal Industrial Environments
6-Tier Industrial Wire Shelving	Up to 450 kg / Tier	Cold Drawn Steel Rod & Tubular Post	100% Direct Manual	L / 180 Max Load	Cold Storage, Pharma cleanrooms, Food Distribution
Selective Pallet Racking	1,000–4,500 kg / Level	High-Yield Q235B / Q355B (EN 10025)	100% Forklift Access	L / 200 (AS 4084 / FEM)	3PL FMCG Logistics, Manufacturing Raw Reserves
Heavy Duty Drive-In Racks	Up to 1,500 kg / Pallet Position	Reinforced Upright Omega Profiles	Low (Strict LIFO)	L / 250 Structural	Blast Freezers, Batch Agricultural Produce Cold Store
Integrated Mezzanine Flooring	300–1,200 kg / m² Floor Deck	C-Section Purlins & Heavy I-Beams	Multi-Tier Pick Face	L / 300 Serviceability	Automotive Spares, E-Commerce Fulfillment, Assembly
Cantilever Timber/Steel Racks	500–3,000 kg / Arm	Hot Rolled Structural H-Beams	100% Unobstructed	L / 200 at Arm Tip	Timber Yards, Steel Pipe Wholesalers, Extrusion Yards

Strategic Industry Horizon

Procurement & Technology Trends in Industrial Storage

Modern distribution facilities are migrating from static racking towards modular, automation-ready infrastructure engineered for robotic interfaces and reduced lifecycle emissions.

AMR & AGV Floor Integration

Procurement now demands base beam heights, flue spaces, and aisle clearances engineered for autonomous mobile robots and radio-shuttle carriages, requiring millimeter-accurate roll-forming tolerances.

Decarbonized Circular Metallurgy

Leading Tier-1 operators require Environmental Product Declarations (EPD) and certified scrap-recycled steel compositions. Our low-energy powder curing ovens minimize embodied carbon by up to 22% per unit.

Seismic P-Delta Finite Analysis

Rising regulatory compliance in the Pacific and Americas necessitates 3D non-linear dynamic FEA modeling under total dead and live product loads, verifying frame ductility and floor anchor pull-out limits.

Modular Hybrid Sourcing Models

Procurement officers hedge against freight volatility by purchasing standardized upright frame sections and beam locks directly from verified factory sources, utilizing regional stock points for rapid modifications.

Engineering Due Diligence

Frequently Asked Questions by Industrial Sourcing Teams

Clear technical answers on load deflection standards, biosecurity import clearance, anti-corrosive selections, and concrete foundation criteria.

What deflection limits do HEDA heavy duty shelving and racking beams adhere to?

Our pallet rack beams and heavy-duty shelving units are engineered to a maximum vertical deflection limit of L/200 under Uniformly Distributed Load (UDL) in accordance with AS 4084-2023 and FEM 10.2.02. For automated crane-served and radio-shuttle systems, we engineer beams to a tighter L/300 deflection standard to avoid automated sensor collision errors.

When should we choose Hot-Dip Galvanizing over Electrostatic Powder Coating?

For indoor ambient warehouses, our 60–80μm electrostatic thermoset polyester powder coating provides superior scratch and chip resistance. However, for outdoor yards, tropical marine humidity, or aggressive wash-down food plants, we specify ISO 1461 Hot-Dip Galvanization with zinc bath immersion, yielding 85–100μm sacrificial metallurgical protection that resists rust for 25+ years.

How are Australian and New Zealand biosecurity regulations handled during shipping?

We avoid timber packaging where possible, packing shelving uprights and beams onto dedicated, reusable structural steel stillages. Where timber is required, it is strictly ISPM-15 compliant and heat-treated (HT) with official chamber stamps. Detailed packing lists, commercial invoices, and clean container certificates prevent costly quarantine delays at ports like Sydney, Melbourne, Auckland, and Tauranga.

What slab strength and floor flatness are required for heavy upright installations?

Standard heavy duty pallet racking requires a minimum concrete slab compressive strength of 25–30 MPa (3,500–4,500 PSI) with a minimum non-cracked thickness of 150–200 mm to support anchor pull-out ratings. For high-reach trucks above 8 meters, floor flatness should meet DIN 18202 Table 3 Group 4 or Concrete Society TR34 DM2 classification.

How can we verify the authenticity of your CE and ISO certifications?

We operate in total transparency. Our CE Certification for Steel Structures is officially registered under No. 2435-CPR-8605159, and our Quality Management System is audited under ISO 9001:2015 No. 18624Q00169R0M (valid through 2027). Verification certificates and raw steel heat numbers (MTC EN 10204 3.1) are dispatched directly upon project confirmation.

What data is required to receive a customized 3D layout and engineering quotation?

To generate your complimentary 3D and CAD layout within 24 hours, our engineering desk needs: (1) Warehouse architectural DWG/PDF showing columns and dock doors; (2) Clear internal height under lights or sprinklers; (3) Pallet dimensions (e.g., standard 1165×1165 mm AU or 1200×1000 mm ISO); (4) Maximum load per pallet; and (5) Forklift model, turning radius, and maximum reach height.

CE Structural Compliance

Certified FPC execution standard EN 1090-1 / EN 15512. Ref: 2435-CPR-8605159.

ISO 9001:2015 Certified

Audited Quality Management System for racking design and fabrication. Cert: 18624Q00169R0M.

RoHS & Heavy Metal Free

Non-toxic, food-safe electrostatic thermoset powder coatings for clean facilities.

Direct Factory Engineering Support

Plan Your Warehouse Storage Layout with HEDA Senior Engineers

Whether you are expanding a 3PL cold store, replacing aging selective pallet racking, or designing a high-capacity mezzanine platform, our technical desk provides structural validation, load-capacity tables, and complete budget costing within 24 business hours.

Free 2D CAD & 3D Photorealistic Views

Engineered to AS 4084-2023 & FEM Codes

Fast Containerized Ocean Freight

Complete Mill Test Certificates (MTC 3.1)

Click below to launch an immediate technical inquiry with our export engineering department.

Inquire Now

Direct email support: [email protected]
