Precision-Engineered Industrial Storage & Warehouse Structural Solutions
Direct factory manufacturing featuring high-yield Q235B and Q355B cold-rolled steel, customized seismic profile engineering, and ultra-durable electrostatic epoxy anti-corrosion coatings.
Automated Sheet Metal Drawer Retrieval Storage Rack
Motorized slide-out drawer mechanism engineered for thick steel plates, stamping dies, and sheet materials. Maximizes overhead crane and hoist accessibility while preventing surface damage.
Prefab Honeycomb Beam Steel Structure Warehouse
Castellated H-beam construction engineered for large-span logistics sheds and manufacturing plants. Decreases foundation tonnage while providing dedicated passages for integrated utilities.
Logistics Distribution Center Steel Structure
Engineered turnkey steel structure logistics facilities designed for multi-dock operations, continuous cross-docking flows, and seamless integration with high-bay selective racking arrays.

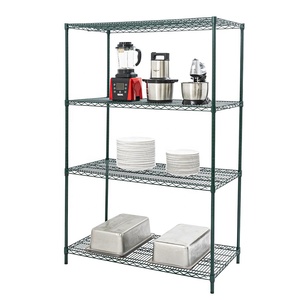

48"x24" Industrial 4-Tier Steel Wire Shelving
High-load commercial open-wire shelving treated with green anti-corrosion epoxy powder coating. Allows unobstructed sprinkler penetration, continuous air circulation, and dust-free picking.
Prefabricated Industrial Steel Warehouse Facility
Complete modular industrial building envelope optimized for high internal clear heights. Precision manufactured to interface directly with freestanding or rack-supported mezzanine floors.
Industrial Boltless Long Span Shelving Rack
Flexible medium-duty shelving utilizing interlocking stepped beams and solid steel or timber shelf inserts. Enables rapid reconfiguration for e-commerce fulfilment, small parts, and automotive retail.
Gravity Carton Flow Roller Storage Racking
First-In-First-Out (FIFO) gravity-fed roller tracks designed for split-case picking and high-velocity assembly lines. Eliminates redundant travel distances for order pickers with continuous carton replenishment.
Live Gravity Pallet Flow Storage Racking
Ultra-dense dynamic pallet flow system fitted with centrifugal speed-controller brake rollers. Ideal for temperature-controlled cold stores, perishable FMCG logistics, and zero-energy deep-lane buffering.
Standards-Compliant Structural Engineering
Every racking upright, shelf beam, and bracing connector is calculated using finite element analysis (FEA) compliant with Australian Standard AS 4084 (Steel Storage Racking), European EN 15512, and American RMI specifications.
- Engineering calculation dossiers provided for municipal certifier sign-off
- Custom site-specific seismic baseplate calculations (NZS 1170.5 & IBC)
- Verified steel material certificates (MTR) tracing carbon, silicon, and manganese
Full Export Compliance & Biosecurity Readiness
Eliminate clearing hold-ups and import duties risks. Our global shipping department manages end-to-end containerized export workflows tailored for strict border control frameworks worldwide.
- DAFF (Australia) and MPI (New Zealand) compliant ISPM-15 treated wood or steel stillages
- Preferential duty certificate documentation including ChAFTA & ASEAN-China FTA
- Precision color-coded, barcoded labeling with exploded 3D erection schematics
Factory-Direct Surface Chemistry & Metallurgy
Operate reliably across humid tropical ports, coastal warehouses, or sub-zero refrigeration blast freezers (-30°C) without premature flaking, peeling, or structural embrittlement.
- Automatic 7-stage chemical pickling and phosphating surface pre-treatment
- Electrostatic polyester powder coating (60–90μm film thickness, RoHS compliant)
- Hot-dip galvanization options conforming to ISO 1461 for external open yards
Technical Whitepaper: Structural Steel Performance Criteria in Modern Warehouse Racking
In high-density warehouse environments, storage racking functions not merely as steel furniture, but as an active structural frame supporting immense static and dynamic live loads. A failure in steel cross-sectional geometry, beam-to-column connector lockup, or weld ductility can precipitate catastrophic progressive collapse. Guangzhou Heda Shelves Co., Ltd. employs high-grade prime steel slit coils, advanced automated cold-roll forming, and high-precision CNC punch tooling to guarantee structural safety factors exceeding standard industrial margins.
The selection between cold-formed steel racks and structural hot-rolled sections depends heavily on operating impact frequencies, building codes, clear ceiling elevations, and warehouse seismic coefficient zoning ($S_s$ and $S_1$). Below is the structural comparison table utilized by our structural engineers during project feasibility appraisals:
| Racking System Architecture | Standard Steel Grade | Typical Load Rating (UDL) | Deflection Limit ($\delta$) | Stock Rotation Compatibility | Primary Application Sectors |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Cold-Formed | 1,000 kg – 4,500 kg / beam level | L / 200 (Standard) | 100% Direct Selectivity | General 3PL, FMCG, Retail Distribution |
| Drive-In / Drive-Through Rack | Q235B Uprights / Heavy C-Rail | 1,000 kg – 1,800 kg / pallet slot | L / 250 (Restricted) | LIFO (Drive-In) / FIFO (Drive-Thru) | Cold Storage, Beverage, Seasonal Bulk |
| Radio Shuttle High-Density Rack | Q355B Uprights & Rails | 500 kg – 2,000 kg / pallet unit | L / 300 (High Precision) | Configurable FIFO / LIFO | Food Processing, Meat Packaging, Freezers |
| Heavy Duty Cantilever Racking | Q235B / Q355B H-Beam Column | 500 kg – 3,500 kg / arm cantilever | L / 180 (Arm Tip Deflection) | Direct Open Access | Timber Yards, Steel Pipe, Sheet Extrusions |
| Rack-Supported Mezzanine Floor | Q235B Column / C&Z Purlins | 300 kg – 1,200 kg / m² surface | L / 300 (Sub-floor criteria) | Multi-Level Manual Pick | E-commerce Sortation, Auto Spare Parts |
Under cyclic seismic agitation, cold-formed upright profiles must demonstrate controlled plastic deformation at column bases without shear fracturing along perforation slotting. Heda Shelves utilizes an engineered omega profile ($\Omega$) featuring multiple return flanges and stiffening ribs, increasing structural section modulus ($Z$) by up to 28% compared to standard generic three-fold channel columns without adding excessive steel deadweight.
Future Procurement & Technological Trends in Industrial Shelving
Supply chain infrastructure is evolving rapidly under the pressures of automated guided vehicles (AGVs), automated storage and retrieval systems (AS/RS), carbon reduction mandates, and urban micro-fulfilment center growth.
Hybrid Shuttle & AMR Integration
Traditional static shelving is transitioning toward hybrid racking architectures optimized for Autonomous Mobile Robots (AMRs) and automated high-bay shuttles. Procurement schedules increasingly require tighter fabrication tolerances (±0.5mm) and standardized laser reflector mounting points directly on upright faces.
Scope 3 Carbon Accounting & Steel Auditing
Global logistics REITs and multinational buyers now evaluate steel manufacturers on carbon intensity per ton. Our factory has pioneered energy-efficient electric induction heating lines and non-toxic zinc-free powder formulations to assist global clients in achieving LEED, BREEAM, and Green Star facility accreditations.
Multi-Tier Micro-Hub Mezzanines
Industrial real estate rents in proximity to major metropolitan ports and city edges continue to escalate. Procurement data shows a sharp surge in multi-tier, structural steel mezzanine installations (3 to 5 levels) that unlock cubic vertical volume without triggering heavy civic development permits.
Digital Twin & Smart Collision Nodes
Racking operations are adopting integrated IoT impact sensors along column footplates. Next-generation systems supplied by Heda Shelves feature pre-drilled brackets designed for digital load monitoring pins, allowing fleet managers to track accidental forklift strikes in real-time via telemetry dashboards.
Frequently Asked Questions for Industrial Shelving Procurement
Comprehensive engineering, manufacturing, and logistical guidance addressing critical technical considerations for warehouse directors and international procurement officers.
How does HEDA ensure compliance with AS 4084 and international seismic standards?
Our in-house structural engineering department designs every project using cross-sectional geometry, material yield ratios ($f_y$), and moment connection stiffness values that satisfy AS 4084-2023, EN 15512, and RMI MH16.1. We generate complete engineering dossiers including baseplate shear anchoring calculations, frame bracing patterns, and load capacity safety notices suited for your regional certifier or structural engineer of record (SER).
What is the standard production lead time, and how is shipping handled?
Standard fabrication cycle for standard 40ft high-cube containerized orders (up to 300 metric tons) is typically 15 to 25 business days. Transit time by ocean freight directly from South China to major global ports (such as Sydney, Melbourne, Auckland, Rotterdam, Long Beach, or Jebel Ali) ranges between 14 to 32 days depending on the routing. Our logistics staff books vessels, submits ISF filings, and issues export documentation directly to your customs broker.
What steel grades and mill certifications are utilized during production?
We source prime cold-rolled coils (CRC) and hot-rolled coils (HRC) strictly from premier steel producers (such as Baosteel, Shougang, or Ansteel) adhering to grades Q235B and high-tensile Q355B (equivalent to ASTM A36 and ASTM A572 Grade 50). Full Mill Test Certificates (MTC / EN 10204 Type 3.1) stating chemical heat analysis, yield strengths, tensile strengths, and elongation values accompany every manufactured batch.
How does your factory protect export cargo from shipping corrosion and biosecurity rejections?
Components undergo strict automated powder curing with pre-treatment film testing to ensure resistance to salt-fog corrosion. For sea transport, racking packs are wrapped in multi-layer protective moisture-barrier stretch wrap, securely strapped onto bespoke steel stillages or ISPM-15 heat-treated, debarked timber skids. This guarantees seamless inspection clearance with agricultural biosecurity agencies like Australian DAFF and NZ MPI.
What information is required to receive an accurate CAD layout and price quotation?
To produce an optimized 3D CAD schematic and load-rated bill of materials, please provide: (1) Architectural floor plan showing column locations, dock doors, and building clearance height to lowest obstruction (sprinklers/lighting); (2) Pallet specifications (width, depth, overall palletized height, and maximum gross weight); (3) Material handling equipment specs (forklift mast type, maximum lift height, and minimum aisle turning radius); (4) Operating temperature conditions.
Can HEDA supply OEM/ODM manufacturing for established regional racking brands?
Yes. A substantial portion of our 30,000-ton monthly capacity is dedicated to private-label contract manufacturing for regional distributors, engineering integrators, and racking brands across North America, Australasia, and Europe. We support custom punch profiles (50mm, 75mm, 76.2mm / 3-inch teardrop pitches), proprietary beam connector designs, branded color matching, and custom client-branded packaging.
Ready to Engineer Your Industrial Storage Facility?
Connect directly with our senior racking engineering team for free 24-hour CAD layout proposals, structural load appraisals, and factory-direct export pricing.
