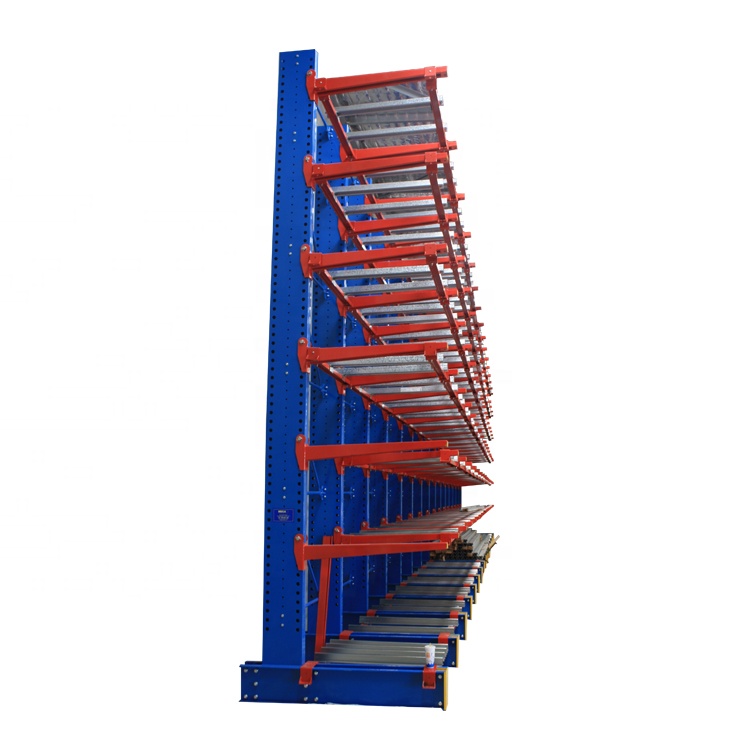

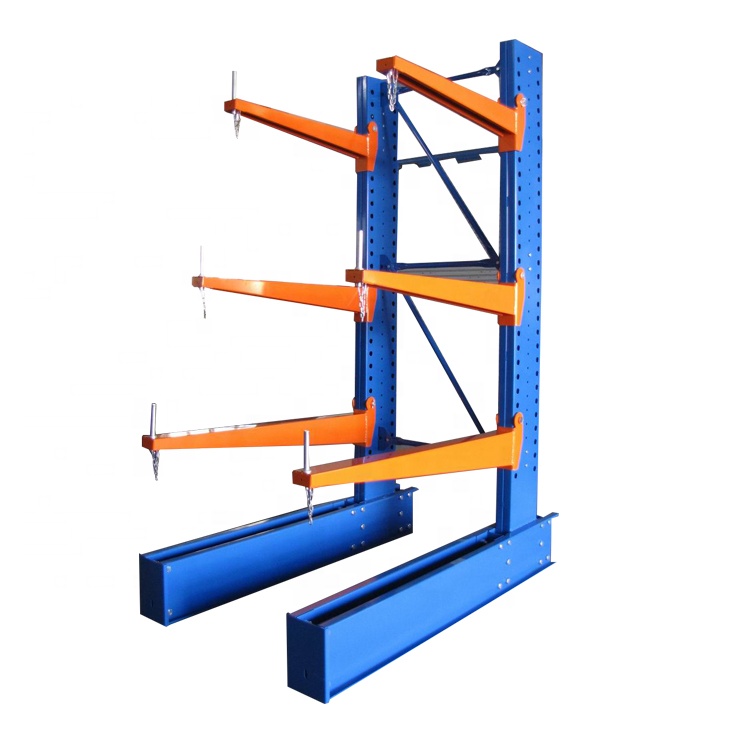

Warehouse Equipment Industrial Heavy Duty Cantilever Beam Racking For Steel Tube
Product Description
Product Description
Cantilever Racking
Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking and providing a clear opening in front of rack. Jracking cantilever racking is used around the world. We can tailor-make according to goods size and warehouse space. We can provide various column heights, arm lengths, base lengths (single or double sided) to ensure an ideal solution for your warehouse.
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Product Display
Brief Introduction

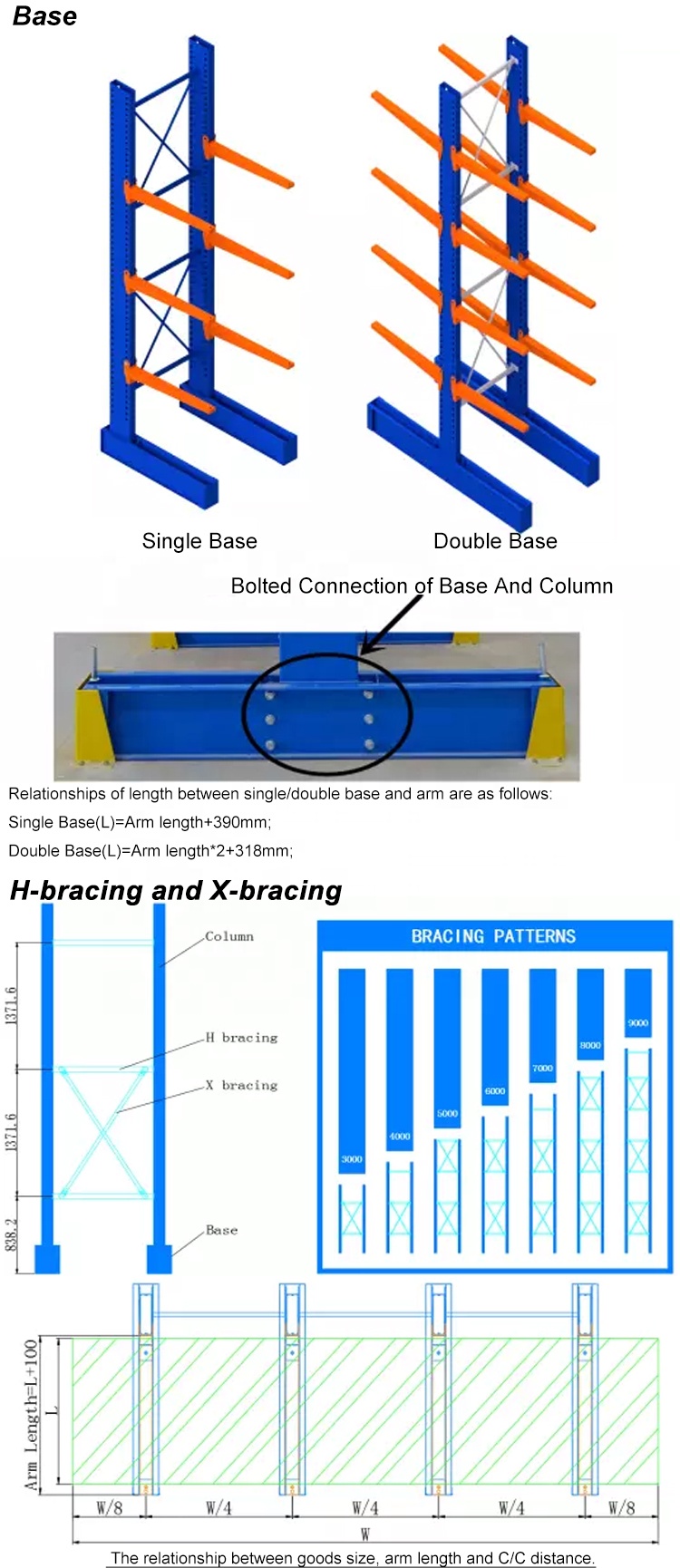

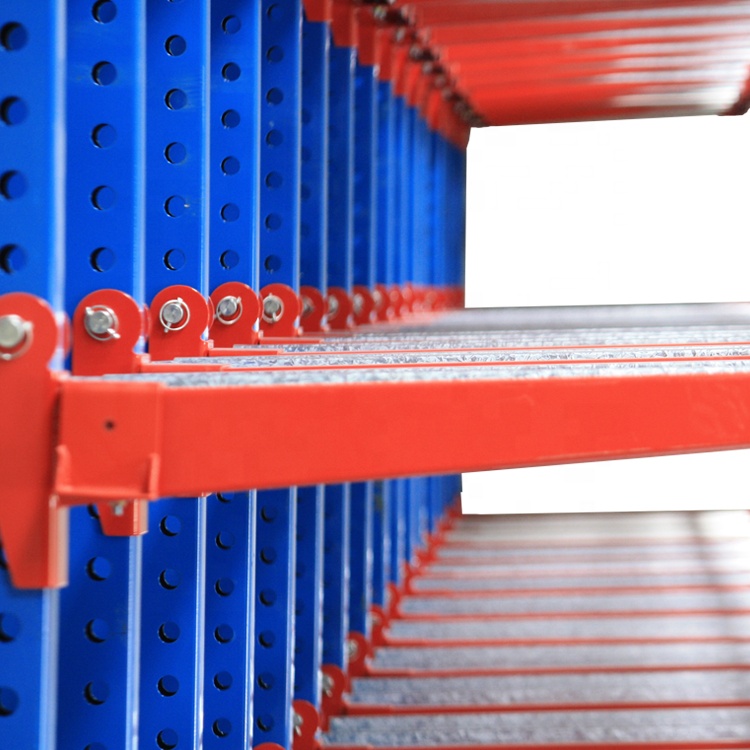

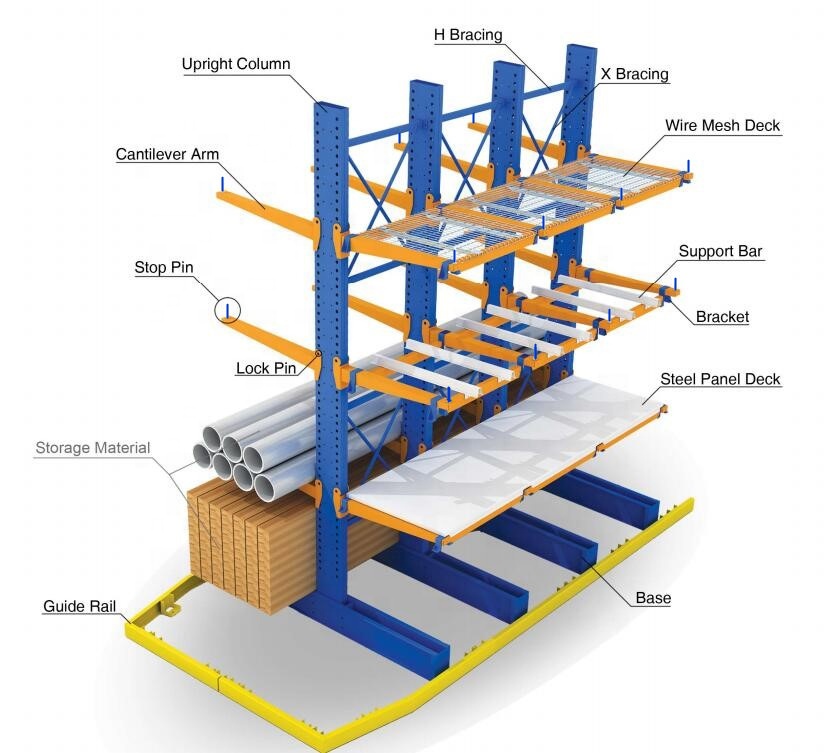

Jracking Cantilever Rack is designed with C/C roll-formed upright column of hot-rolled coil, while arm and column are bolted connected by lifting lug. The base is a welded single unit to be bolted with column. Adjustable diagonal flats and connecting bar is designed to improve the whole stability. Both single-side and double-side bases are available to meet different storage requirements.
Advantages
- Exceeding 6m height is available, the highest column is able to reach 10.5m.
- Heavy loading, loading of single-arm can up to 1500kg.
- Keep selling to Australia market more than 10 years.
- Long and irregular material goods stored.

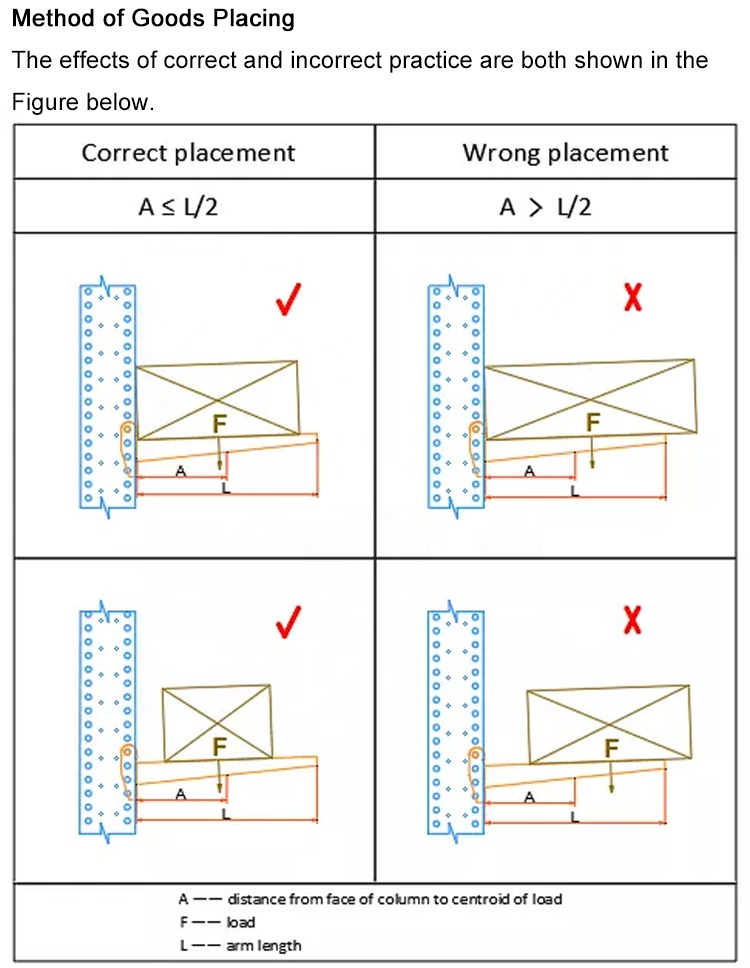

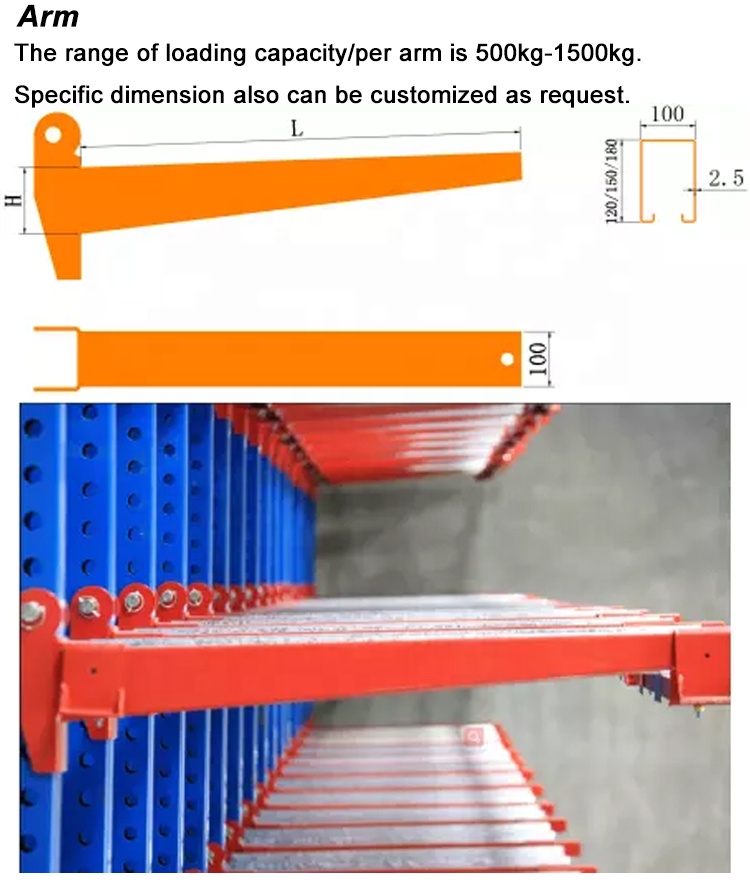

- Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
- Except from the regular size, the longest arm can last to 3m.

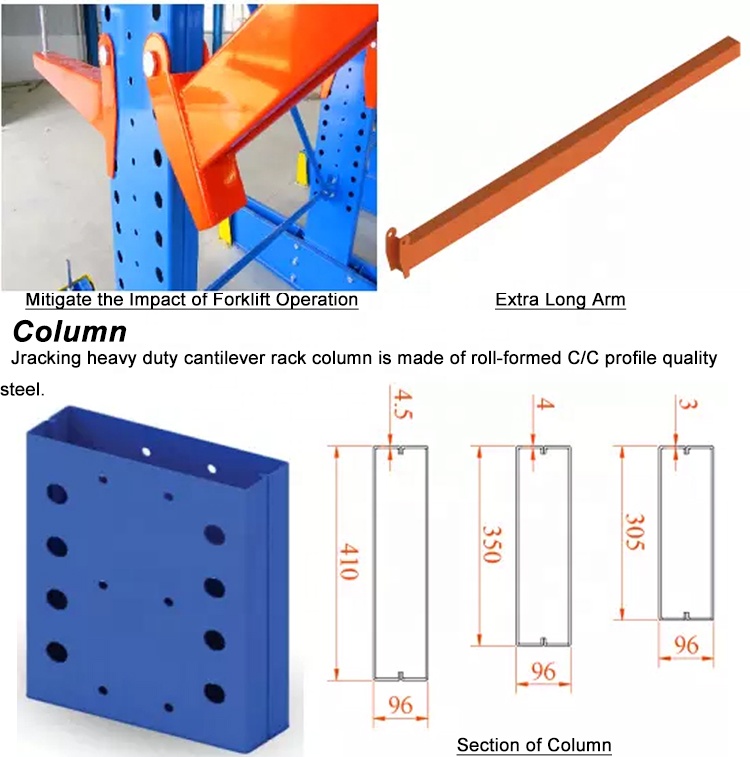

- The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.

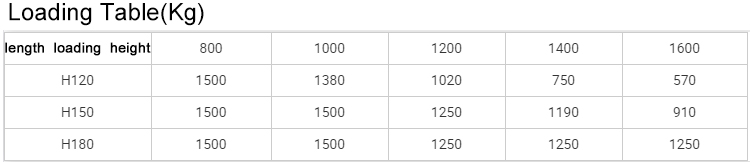

| Component | Specification | Length |
|---|---|---|
| Arm | H120 | 800-2000mm |
| H150 | ||
| H180 |
| Item | Dimension | C/C Distance |
|---|---|---|
| H-bracing | 60x30x2.5 | 500mm-2000mm |
| X-bracing | Φ32x1.5 |
C/C distance 1000, 1200, 1400, 1600, 1800, 2000.
Other specific dimension also can be customized as request.
Other specific dimension also can be customized as request.
Product Categories
Company Profile
Certifications
Production Process
FAQ
Q1: What types of products are best suited for cantilever racking?
Cantilever racking is ideal for storing long, bulky, or irregular loads such as timber, steel pipes, tubes, plastic profiles, and furniture, as it provides an unobstructed front opening without front column interference.
Q2: Can the cantilever racking system be customized for specific warehouse requirements?
Yes, we provide fully tailor-made systems according to your cargo dimensions and warehouse space, including customizable column heights up to 10.5m, arm lengths up to 3m, various arm profiles, and both single or double-sided configurations.
Q3: How does the 2° uptilt design on the arm enhance safety?
The arm is manufactured with an intentional 2° upward incline. When heavy cargo is loaded, the structural deflection will not cause the arm to dip below the horizontal line, effectively preventing goods from rolling off or slipping down.
Q4: What certifications and standards do your racking systems comply with?
Our products are engineered and manufactured strictly complying with global standards, certified under RMI, CE, ISO, TUV, and AS4084-2012 for the Australian market.
Q5: Are samples available before placing a bulk container order?
Yes, free samples of specific parts and profiles are available for quality evaluation, with the standard delivery freight covered by the buyer.
Q6: What surface treatments are available for anti-rust protection?
We offer electrostatic powder coating for indoor warehouse use in customized color options, as well as Hot-Dip Galvanizing (HDG) designed for outdoor applications or humid environments.
