Warehouse Pallet Rack System Heavy Duty Durable Steel Sheet Metal Anti-Rust Drawer Type Storage Industrial Shelving Racking
Product Description
PRODUCT HIGHLIGHTS

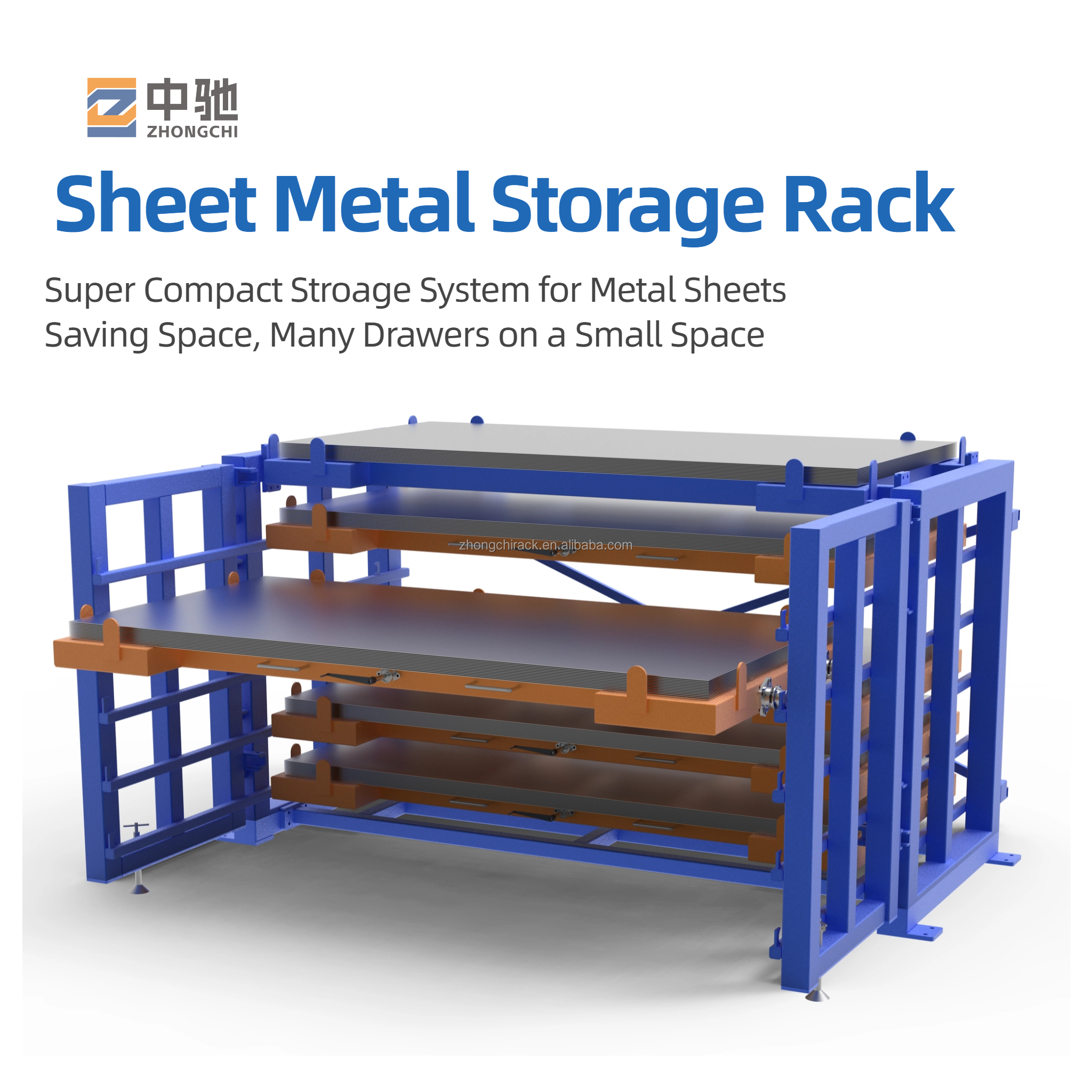

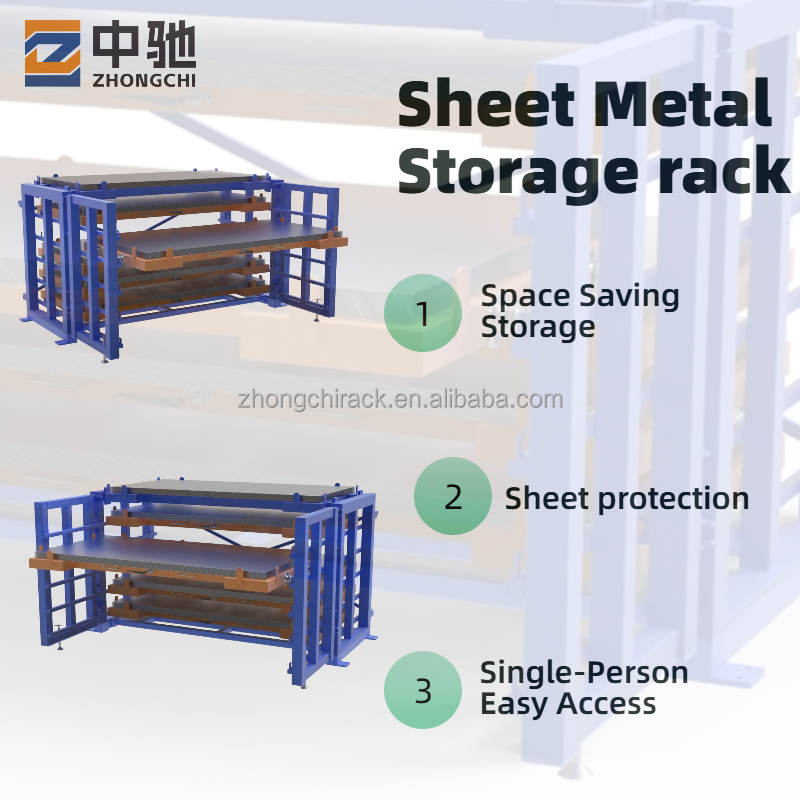

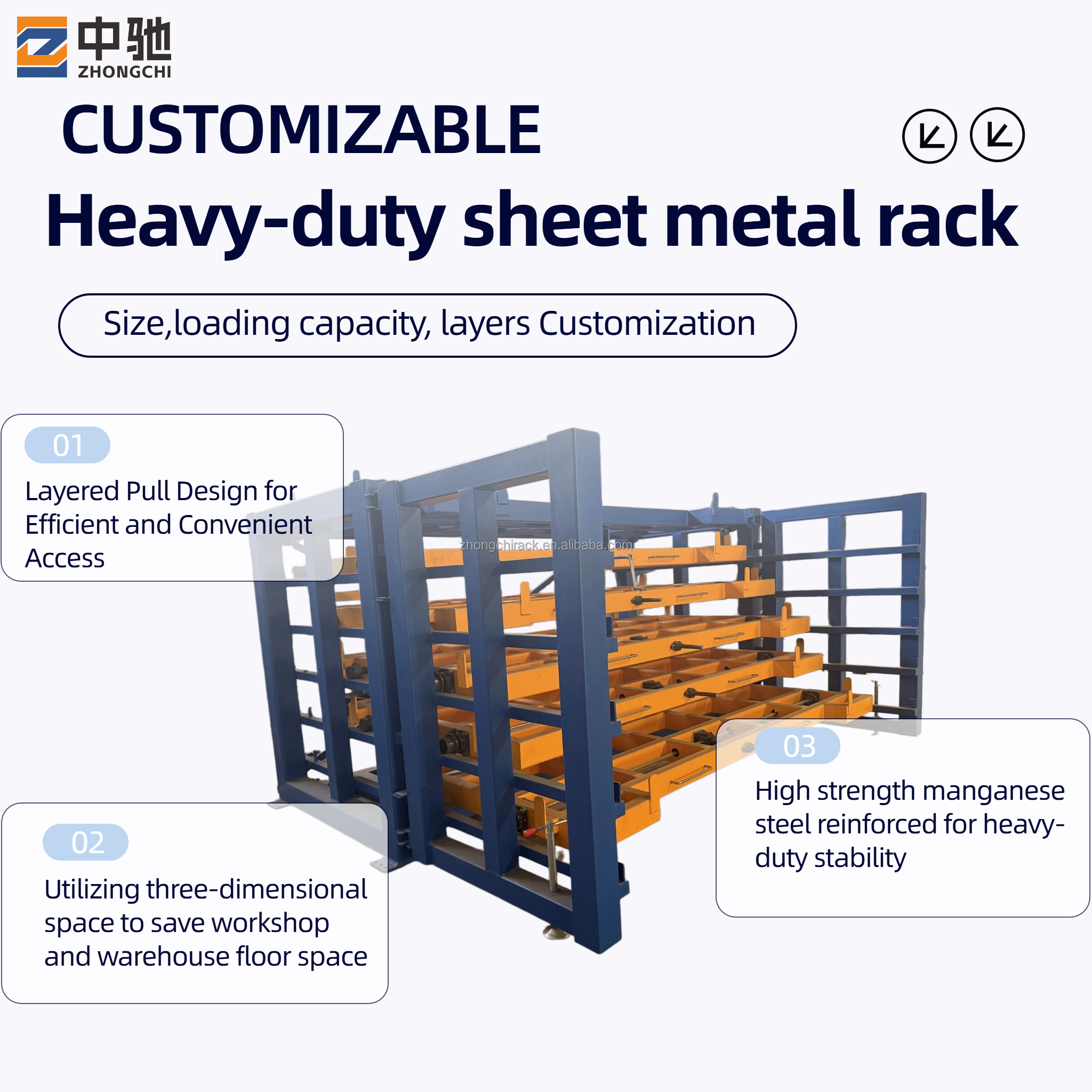

Drawer-type sheet metal storage rack is specially developed for large-size and heavy-load panels including steel sheets, aluminum sheets, stainless steel sheets, acrylic sheets and plastic sheets. Adopting pull-out drawer & tray structure with independent layered storage, it enables classified storage of raw plates and easy single-person access. It thoroughly solves common drawbacks of traditional stacking storage such as labor-intensive picking, surface scratch damage, inaccessible bottom-layer materials and low space utilization.
Size Customization
Custom-made rack height, layer quantity, drawer width & depth according to customers' sheet/pipe dimension & workshop layout.
Load Capacity Customization
Adjust bearing structure & thickened bearings to meet load range from 3 Ton~8 Ton per drawer.

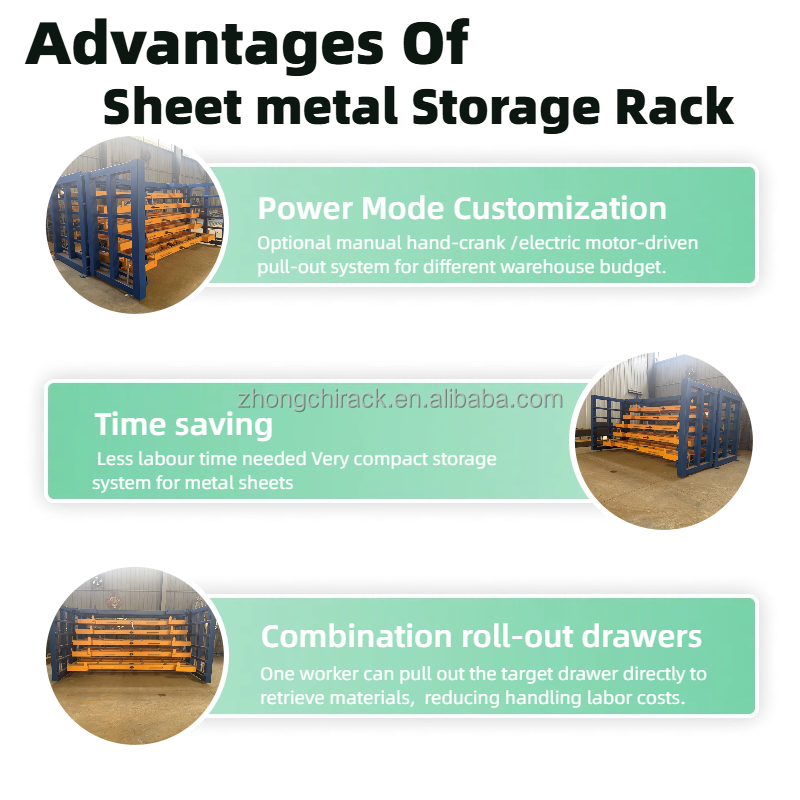

Power Mode Customization
Optional manual hand-crank / electric motor-driven pull-out system for different warehouse budget.
3D Model Provision
We provide customized 3D layout modeling & design drawings prior to manufacturing, helping clients preview overall rack layout and optimize warehouse space arrangement.
SPECIFICATIONS
| Item | Manual Drawer Tray Type Sheet Storage Rack |
| Rated load per single drawer tray | 0.5T / 1.0T / 2.0T / 3.0T or Customized |
| Available storage layers | 3 - 8 layers |
| Applicable sheet dimension | 1500X2000mm, 1500x3000mm, 1500x4000mm, 2000x3000mm, 2000*6000mm, Or Customized |
| Usable layer height | 100-200mm or customized |
| Drawer pulling stroke | 1.5m / 2.0m / or Customized |
| Operation mode | Manual push & pull |
| Power requirement | None |
| Pull-out speed | Manually controlled |

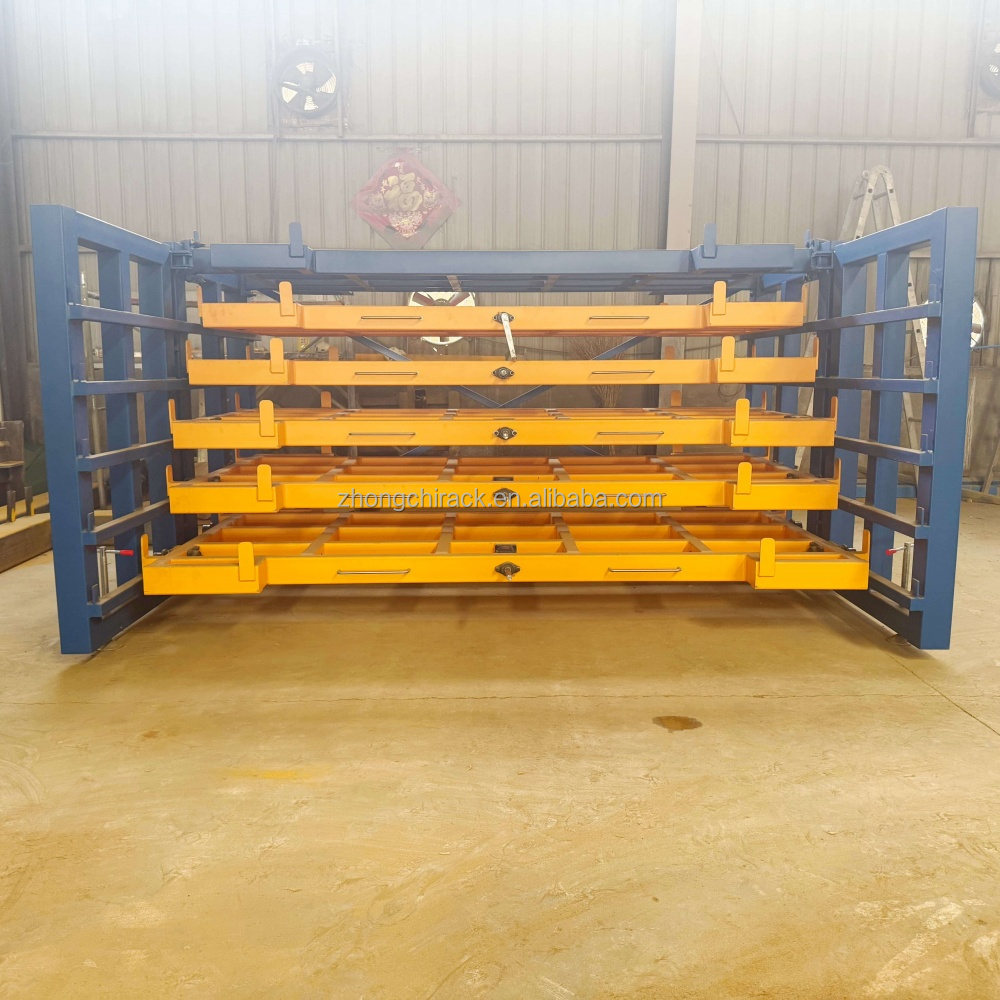

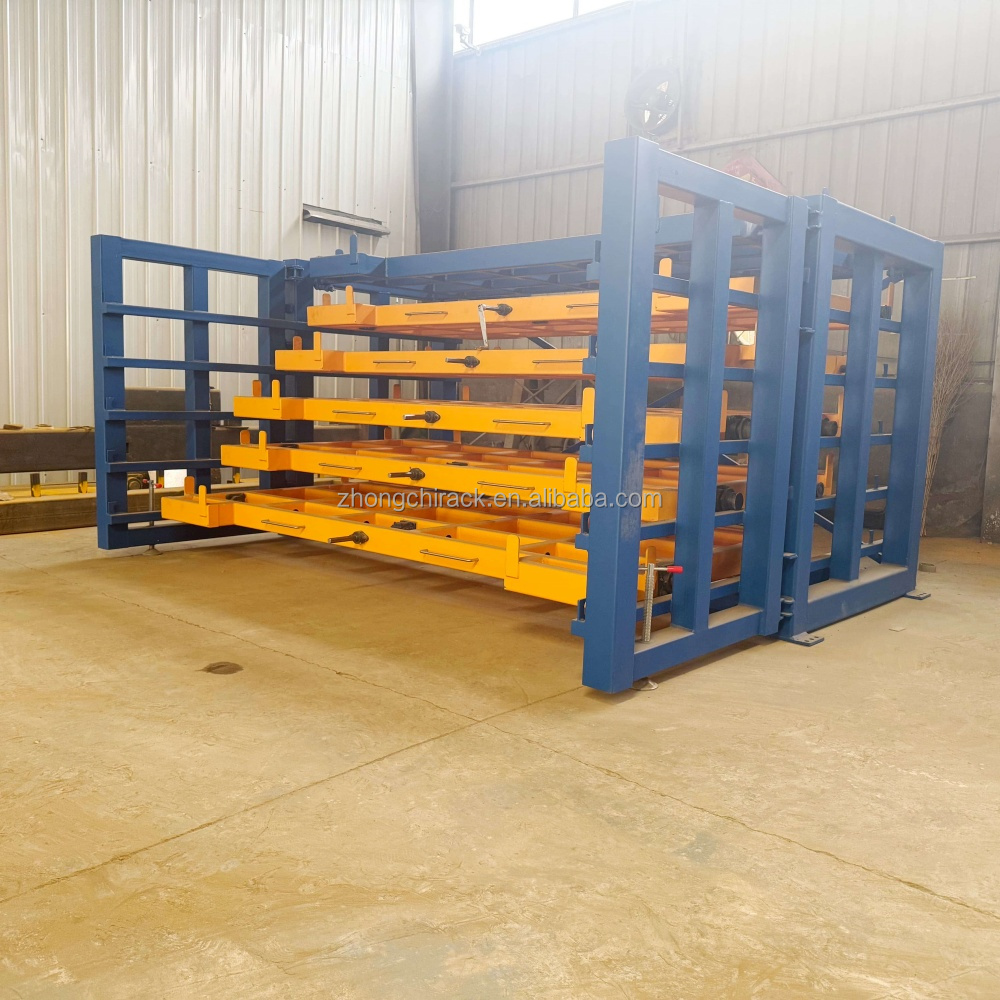

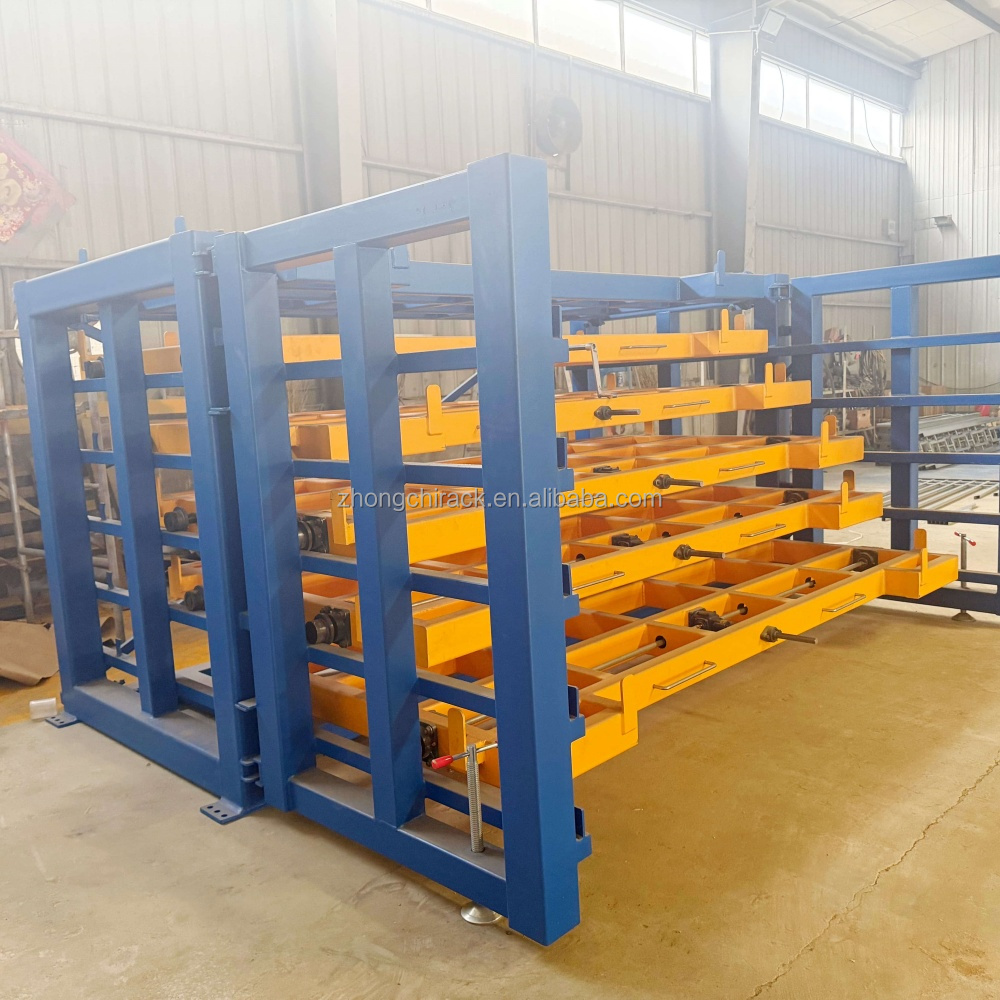

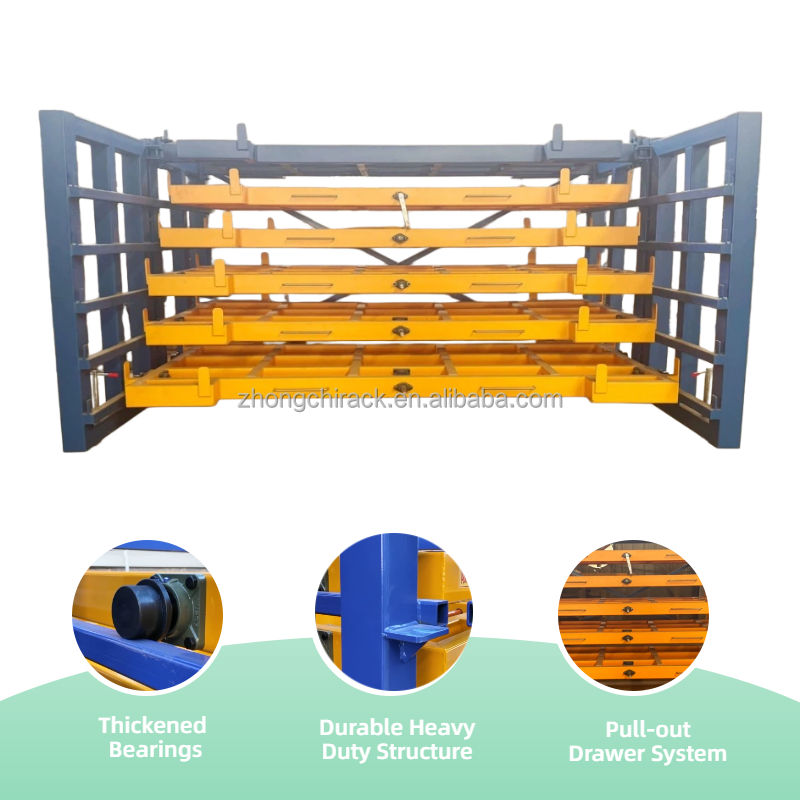

DETAIL SHOT

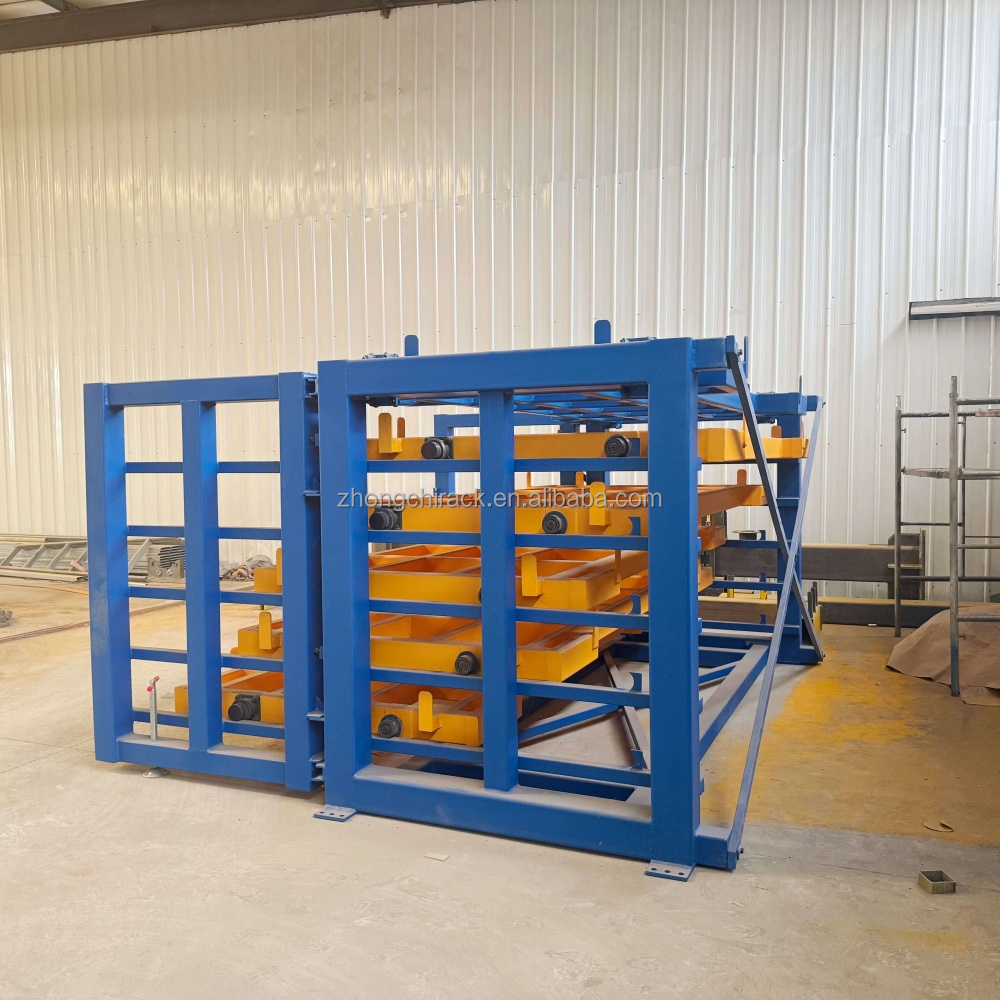

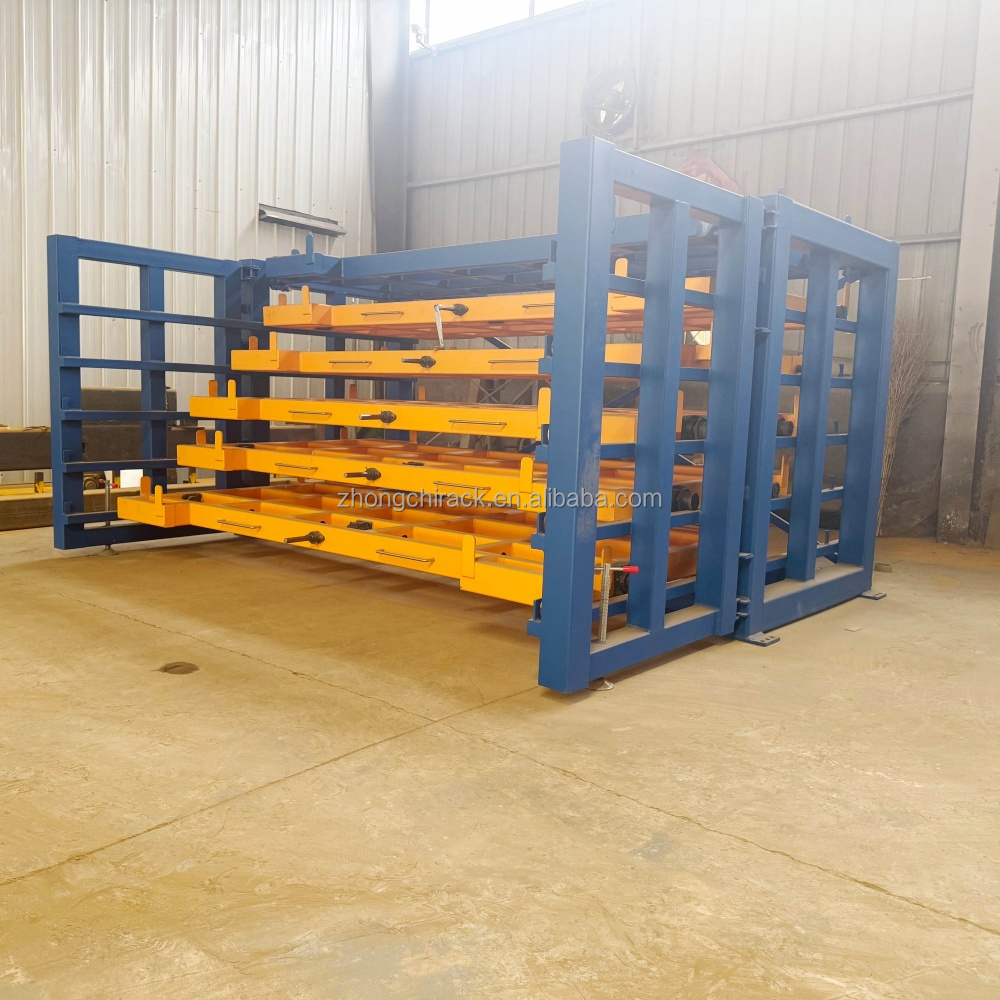

OTHER PRODUCT IMAGES
ABOUT THE SUPPLIER
Shandong Zhongchi Machinery Co., Ltd. is a modern intelligent manufacturing enterprise integrating R&D, production, sales, and service. Located in Jinan, Shandong Province, China.
Our main products includes:
- Intelligent warehouse unit
- Heavy-duty sheet metal rack
- Cantilever racks
- Drawer-type racks
- Loading and unloading equipment
- Sheet metal processing and auxiliary equipment
Those products can be matched with laser cutting machines, shearing machines and other metal processing equipment.
Zhongchi Machinery is equipped with standardized production workshops, advanced processing machinery, and a dedicated technical R&D team. We provide customized intelligent warehousing and metal processing solutions tailored to specific customer requirements. From initial design and manufacturing to installation, commissioning, and after-sales support, we offer a complete one-stop service.
Thanks to our reliable product quality, strict production management, and excellent after-sales service, our solutions are widely used in industries such as machinery manufacturing, mold processing, electronics and electrical appliances, and warehousing and logistics.
Committed to the philosophy of "survive on quality, grow through innovation," Zhongchi Machinery strives to deliver efficient, intelligent, safe, and durable industrial automation equipment to our customers. Our goal is to become a leading supplier of intelligent manufacturing equipment in China and beyond.
COMPANY OVERVIEW

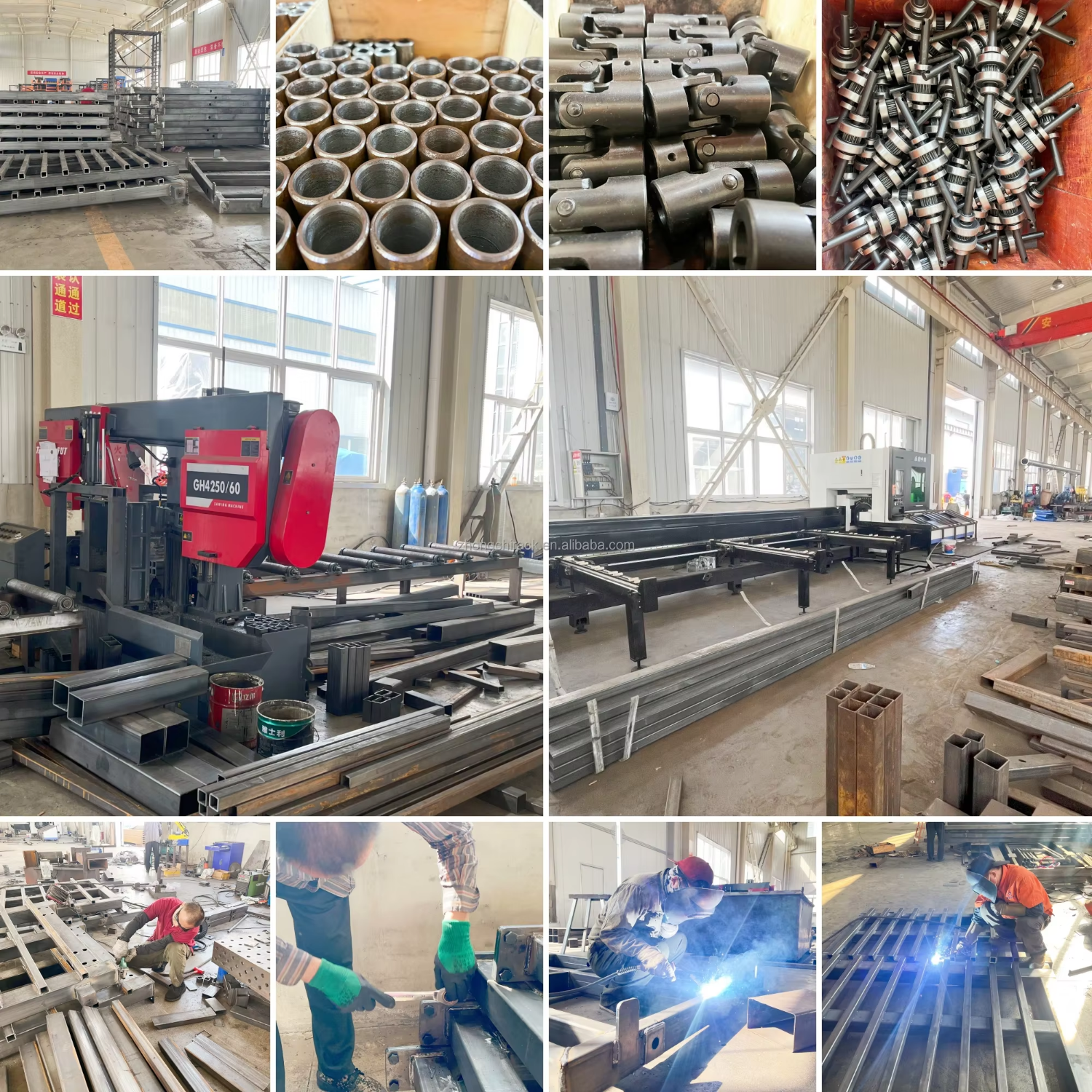

FACTORY PROFILE
CUSTOMIZATION CAPABILITIES
PACKAGING & SHIPPING SPECIFICATIONS
FREQUENTLY ASKED QUESTIONS
Q1 How to place an order?
You may send us your technical parameters and leave your contact information. Our sales team will contact you promptly and provide a formal quotation.
Q2 How to select suitable racks?
Please provide your material size, load capacity, required quantity and special requirements. We will customize the professional storage solution for you.
Q3 How do you guarantee product quality?
We have a professional engineering team and strict QC system under ISO9001 certification. All products are CE certified and undergo full load testing before delivery to ensure safety and stability.
Q4 Where is your factory located?
Our factory is located in Guowang Industrial Park, Jiyang District, Jinan, Shandong, China. We are a direct manufacturer with no middlemen. Factory video inspection and on-site visits are welcome.
Q5 What trade terms do you support?
We support FOB, CFR and CIF. EXW, DAP and DDP door-to-door terms are also available upon request. We can offer the most suitable solution according to your destination port.
Q6 Do you provide on-site installation and commissioning?
Yes, we can arrange professional engineers for on-site installation and commissioning until successful operation. Our projects have been successfully launched in the Netherlands, Saudi Arabia, Vietnam, South Korea and many other countries.
