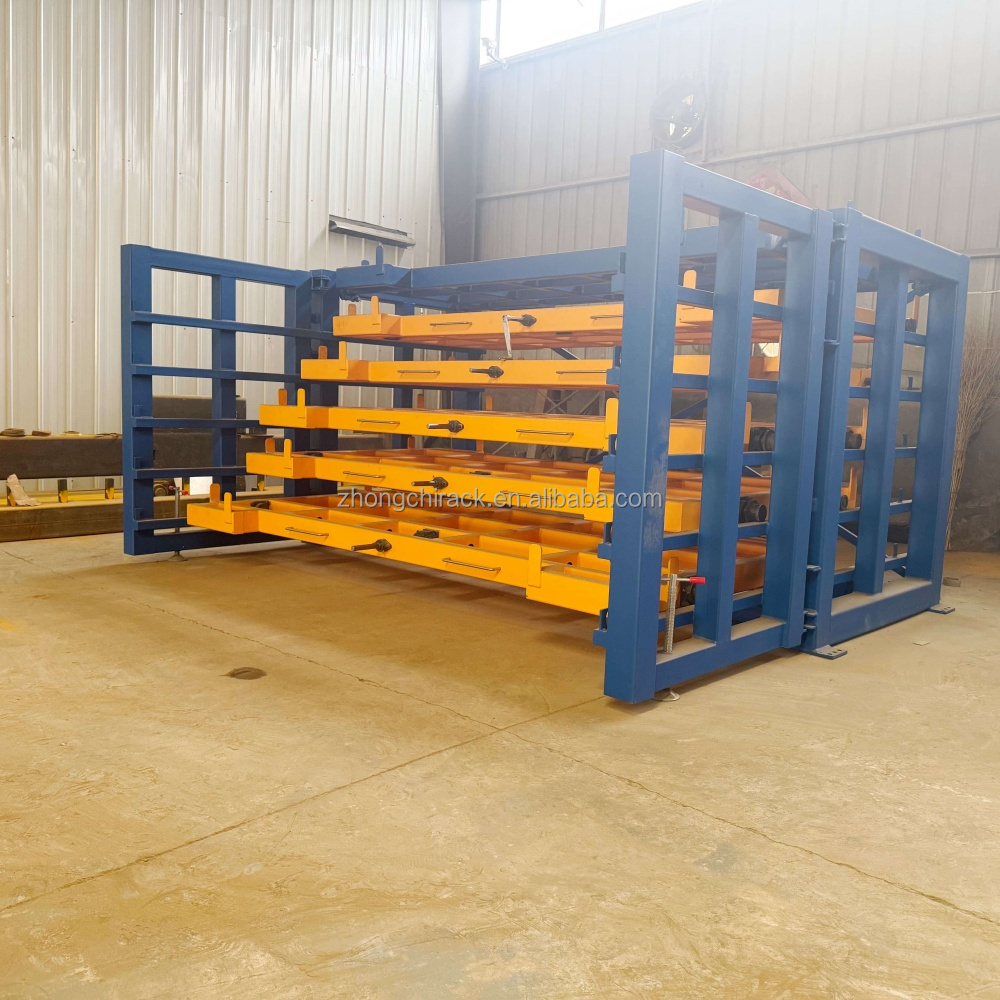

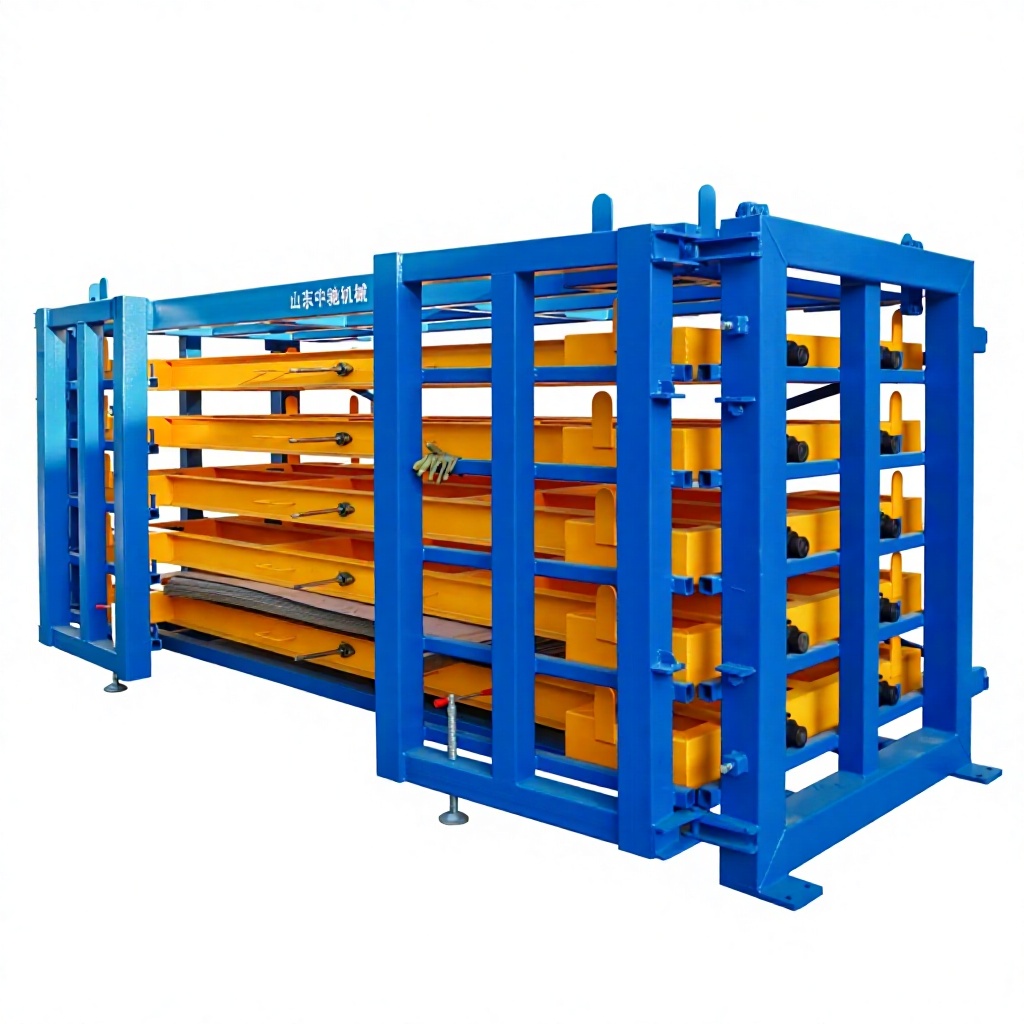

Heavy Duty Durable Steel Multi-drawer Anti-Rust Shelving Slide-out Sheet Metal Storage Drawers for Warehouse Racking Systems
Product Description
Product Highlights
Drawer-type sheet metal storage rack is specially developed for large-size and heavy-load panels including steel sheets, aluminum sheets, stainless steel sheets, acrylic sheets and plastic sheets. Adopting pull-out drawer & tray structure with independent layered storage, it enables classified storage of raw plates and easy single-person access.
Access & Usage Advantage
The drawer-style pull-out structure allows a single person to easily retrieve sheets. Each tray can be fully pulled out, enabling separate access to sheets from the top to the bottom layer.
Excellent Sheet Protection
Sheets are stored flat on individual trays, eliminating heavy stacking, overlapping, bumps, and scratches. Valuable materials such as stainless steel sheets, acrylic, and aluminum plates are less prone to deformation or scratching, reducing material waste.
Storage Space Advantage
Multi-tiered vertical storage saves over 70% of floor space, making efficient use of ceiling height in small workshops.
Structural Integrity & Safety
Reinforced thick steel frame + locking clips. Once pulled out, the tray can be locked in place to prevent accidental sliding. Heavy load capacity (0.5–3 tons per layer) ensures stable support for heavy steel plates.
Manual Operation
Manual operation requires no electricity, eliminating power outage risks. It can be placed in any area of the workshop and is suitable for sheet metal, advertising, and mold processing workshops.
Specifications
| Item | Manual Drawer Tray Type Sheet Storage Rack |
| Rated load per single drawer tray | 0.5T / 1.0T / 2.0T / 3.0T or Customized |
| Available storage layers | 3–8 layers |
| Applicable sheet dimension | 1500x2000mm, 1500x3000mm, 1500x4000mm, 2000x3000mm, 2000x6000mm, or Customized |
| Usable layer height | 100-200mm or customized |
| Drawer pulling stroke | 1.5m / 2.0m / or Customized |
| Operation mode | Manual push & pull |
| Power requirement | None |
| Pull-out speed | Manually controlled |

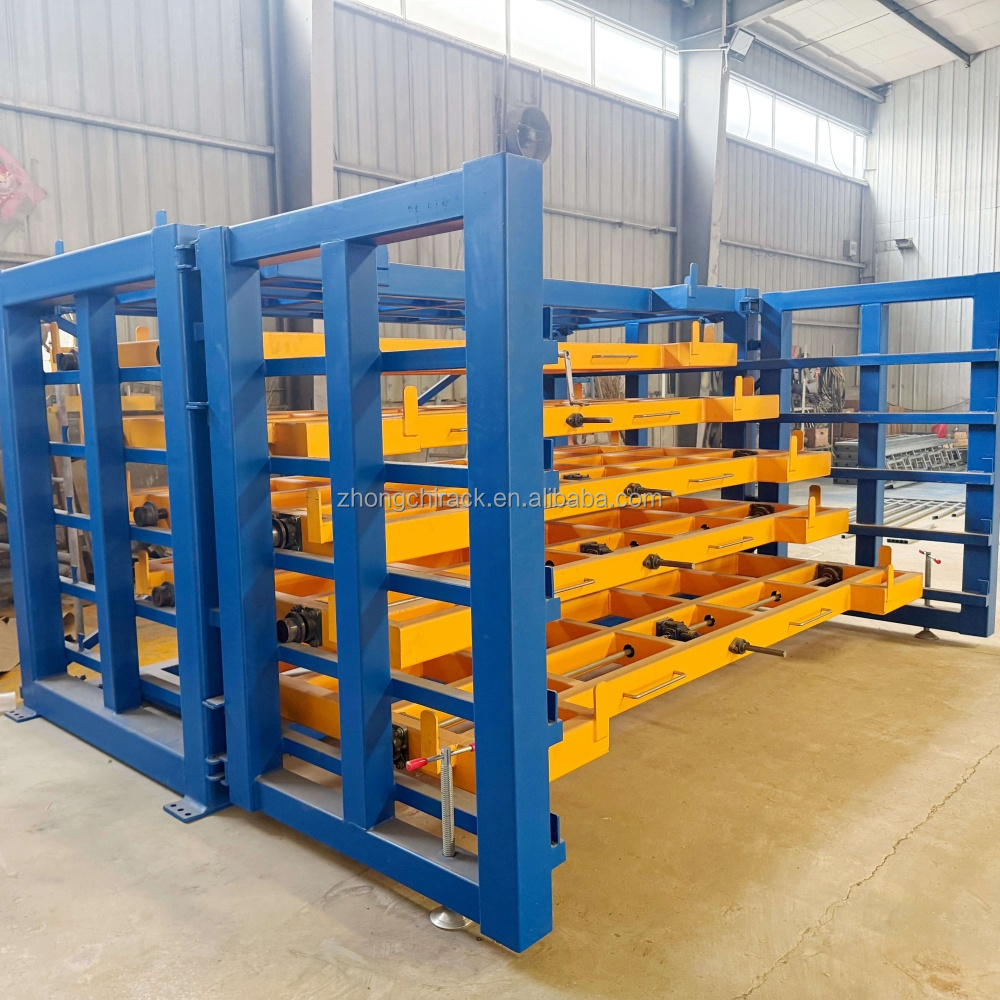

Detail Shot

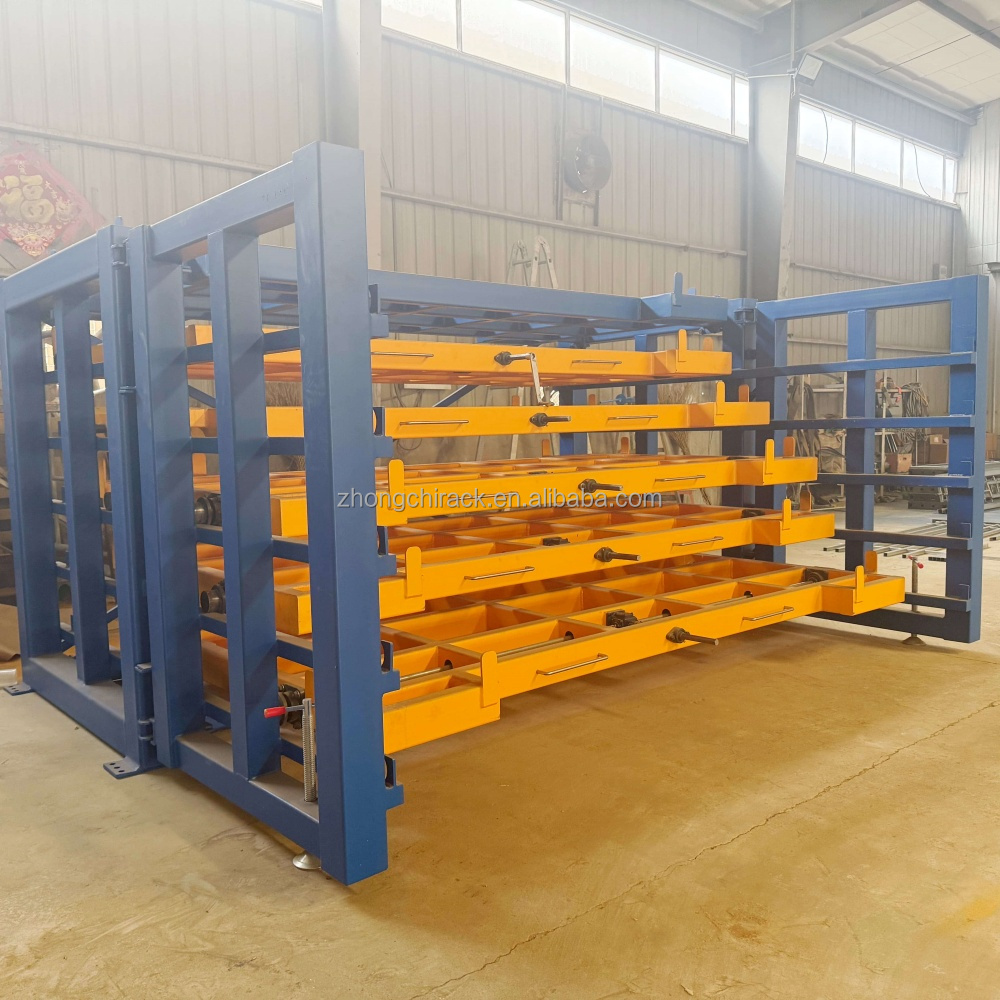

Pull-out Drawer System: Equipped with rotary handles; heavy loaded drawers can be easily pulled out to simplify sheet access and storage operation.

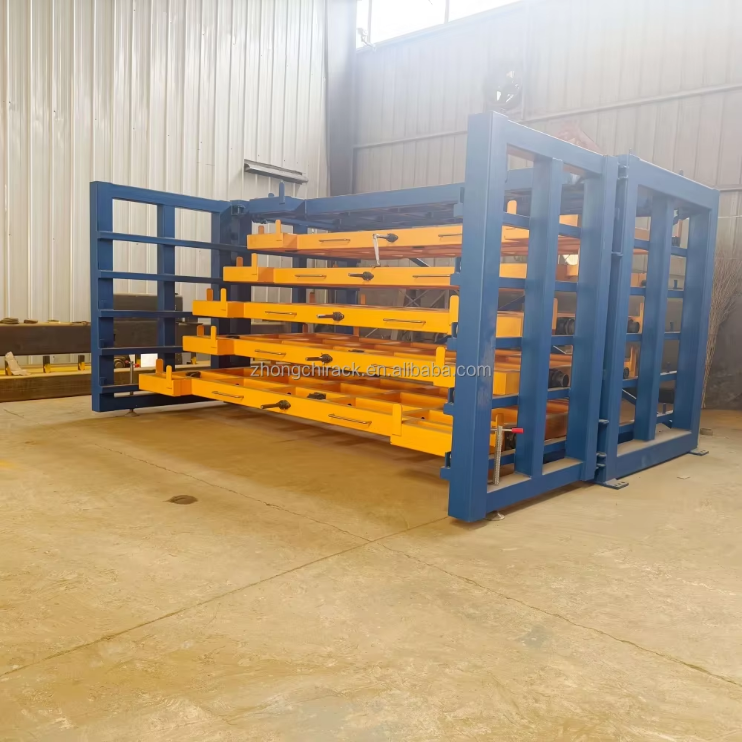

Anti-shake Adjustable Support Feet: Hand screw locking structure secures the whole rack firmly on ground, avoiding rack shaking during heavy material handling.

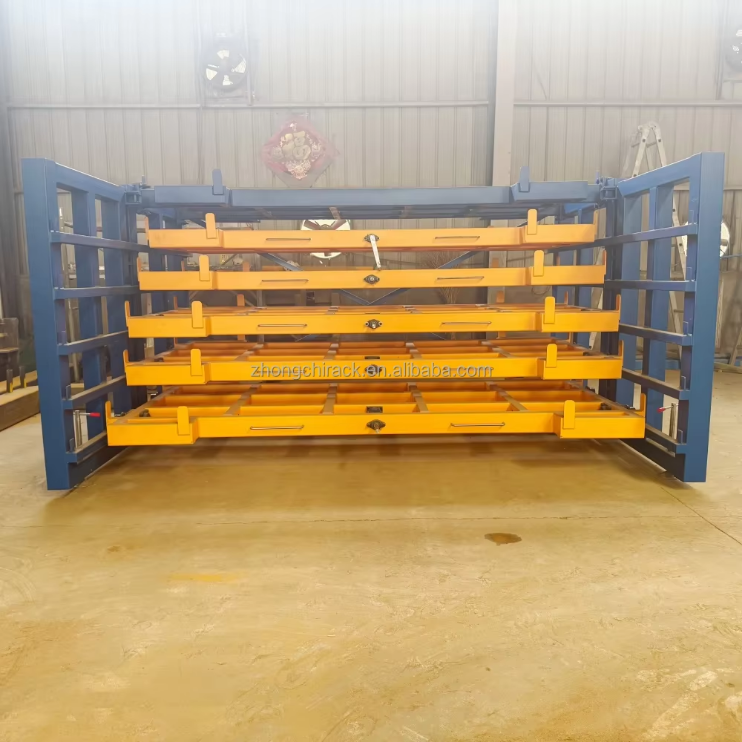

Heavy-load Bearing Set: Combined bearing design with superior load capacity enables smooth & effortless drawer pulling even for 3~8 tons heavy plates.
Guide Rail Bearings: Thickened heavy-duty bearings effectively reduce abrasion under repeated pull-out movement for robust durability and long service life.

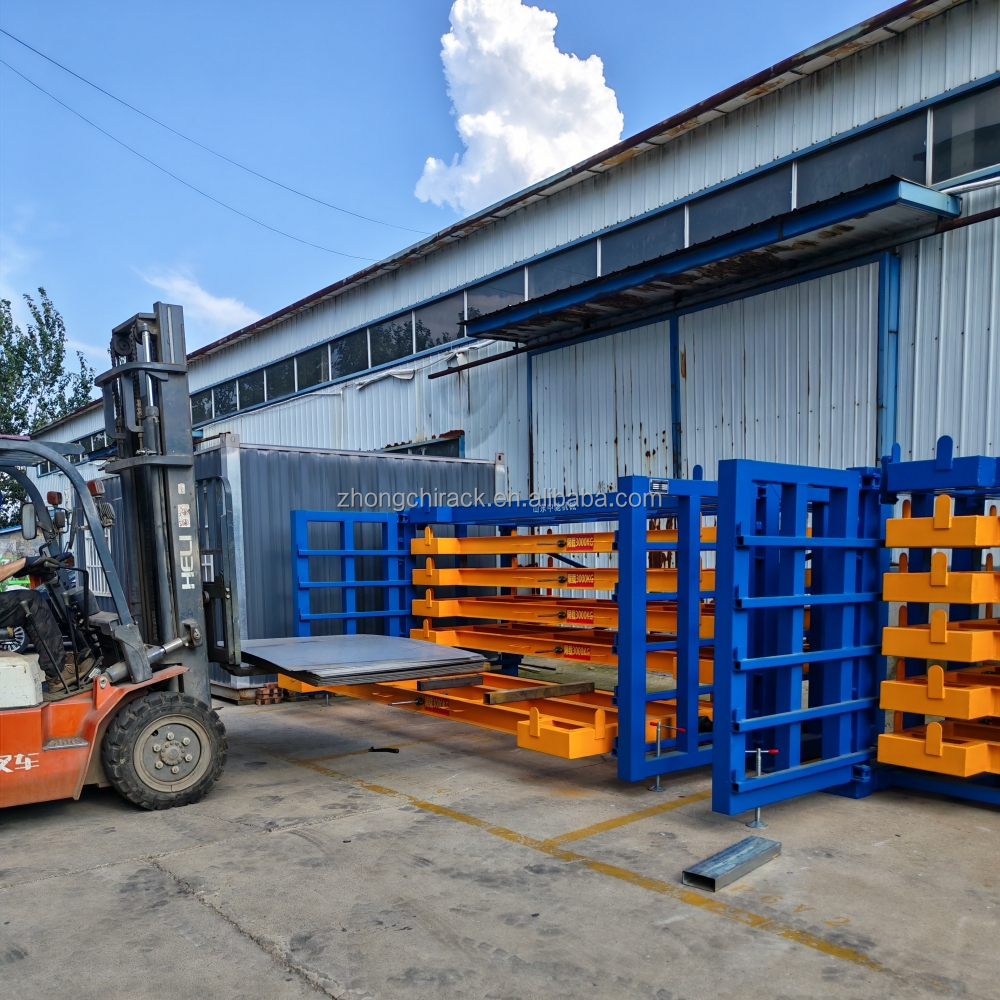

Other Product Images
About the Supplier
Shandong Zhongchi Machinery Co., Ltd. is a modern intelligent manufacturing enterprise integrating R&D, production, sales, and service. Located in Jinan, Shandong Province, China.
Our main products include:
- Intelligent warehouse unit
- Heavy-duty sheet metal rack
- Cantilever racks
- Drawer-type racks
- Loading and unloading equipment
- Sheet metal processing and auxiliary equipment
Those products can be matched with laser cutting machines, shearing machines and other metal processing equipment.
Zhongchi Machinery is equipped with standardized production workshops, advanced processing machinery, and a dedicated technical R&D team. We provide customized intelligent warehousing and metal processing solutions tailored to specific customer requirements. From initial design and manufacturing to installation, commissioning, and after-sales support, we offer a complete one-stop service.
Thanks to our reliable product quality, strict production management, and excellent after-sales service, our solutions are widely used in industries such as machinery manufacturing, mold processing, electronics and electrical appliances, and warehousing and logistics.
Committed to the philosophy of "survive on quality, grow through innovation," Zhongchi Machinery strives to deliver efficient, intelligent, safe, and durable industrial automation equipment to our customers. Our goal is to become a leading supplier of intelligent manufacturing equipment in China and beyond.

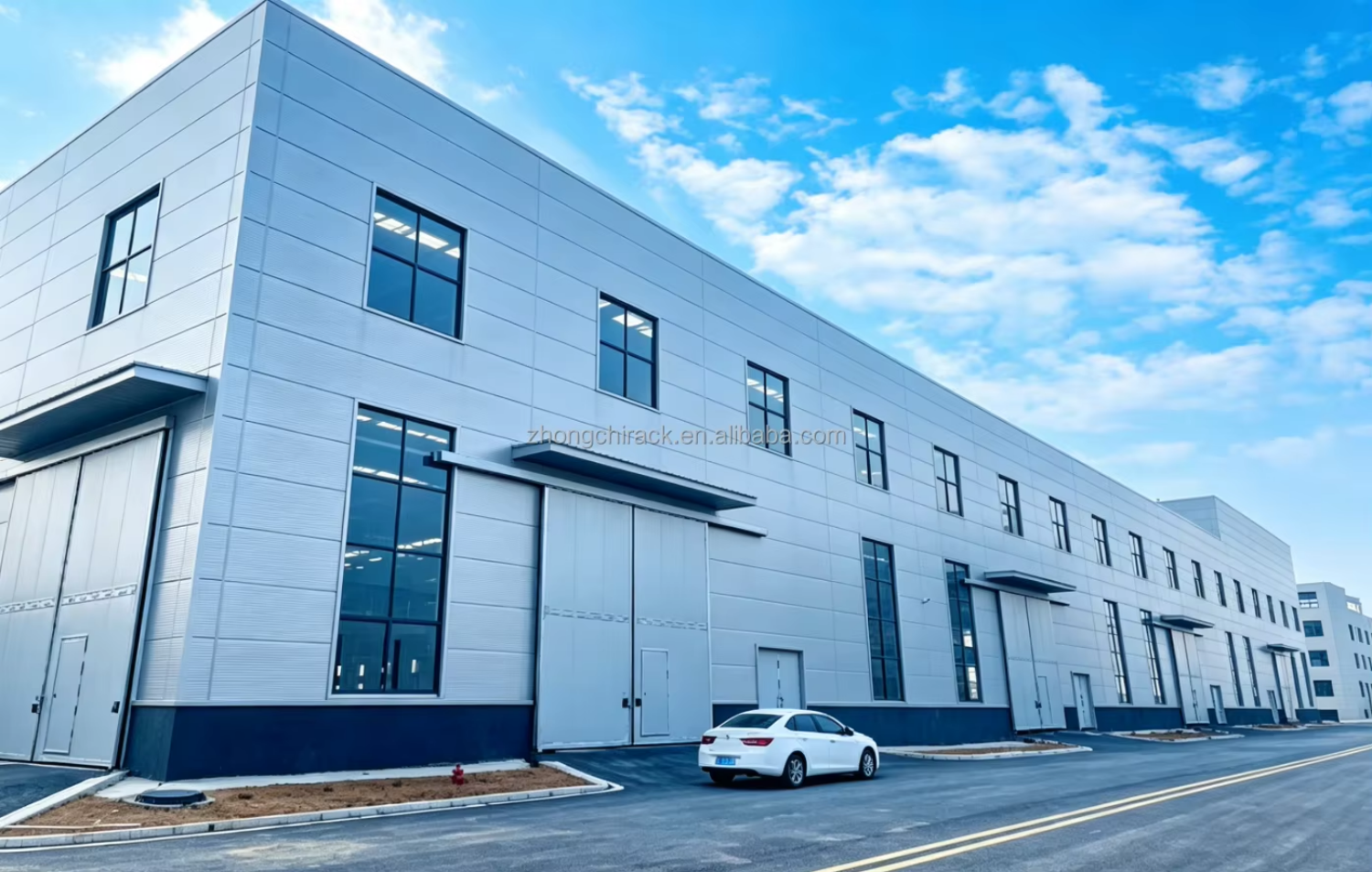

Company Overview

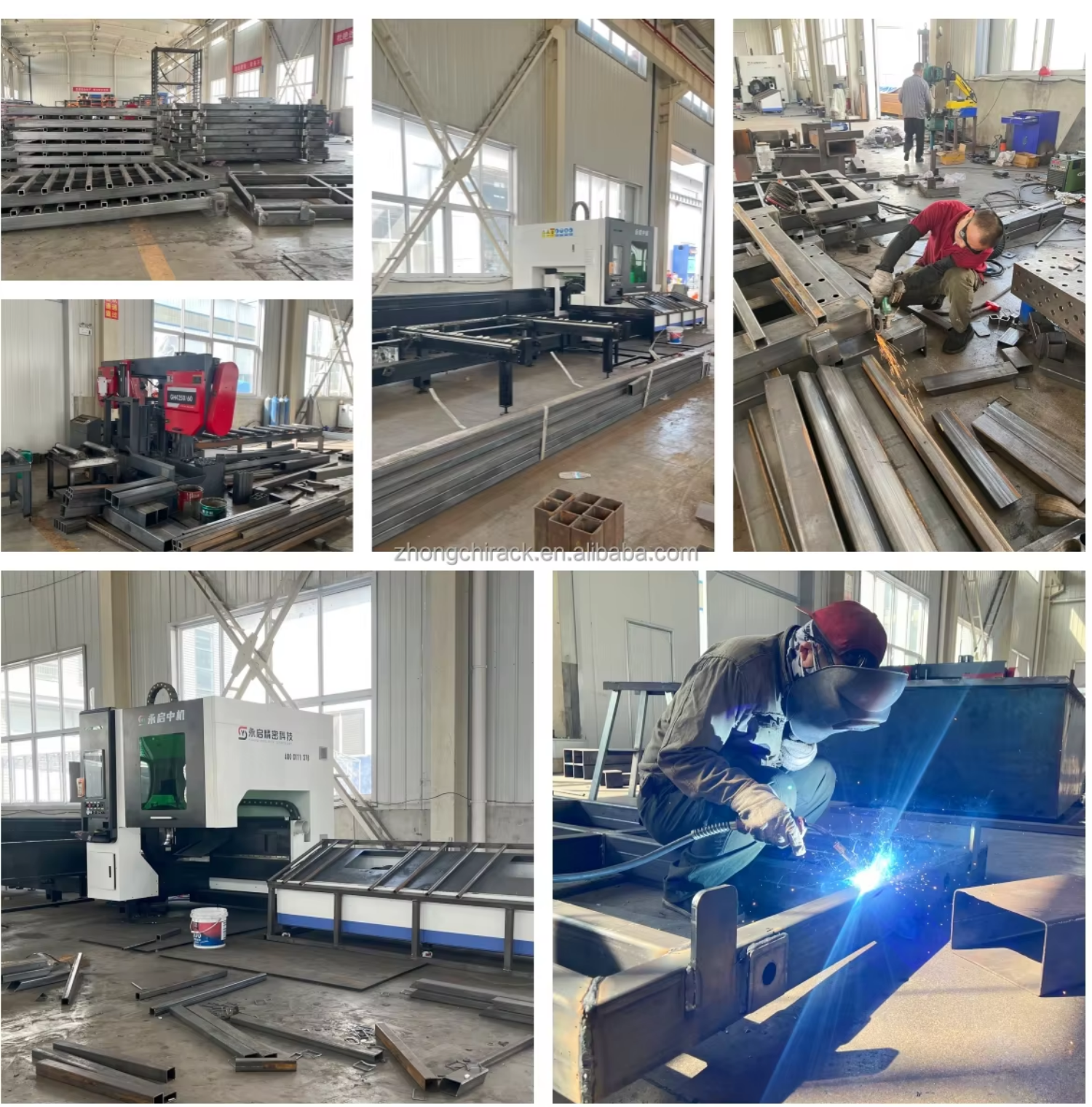

Factory Profile

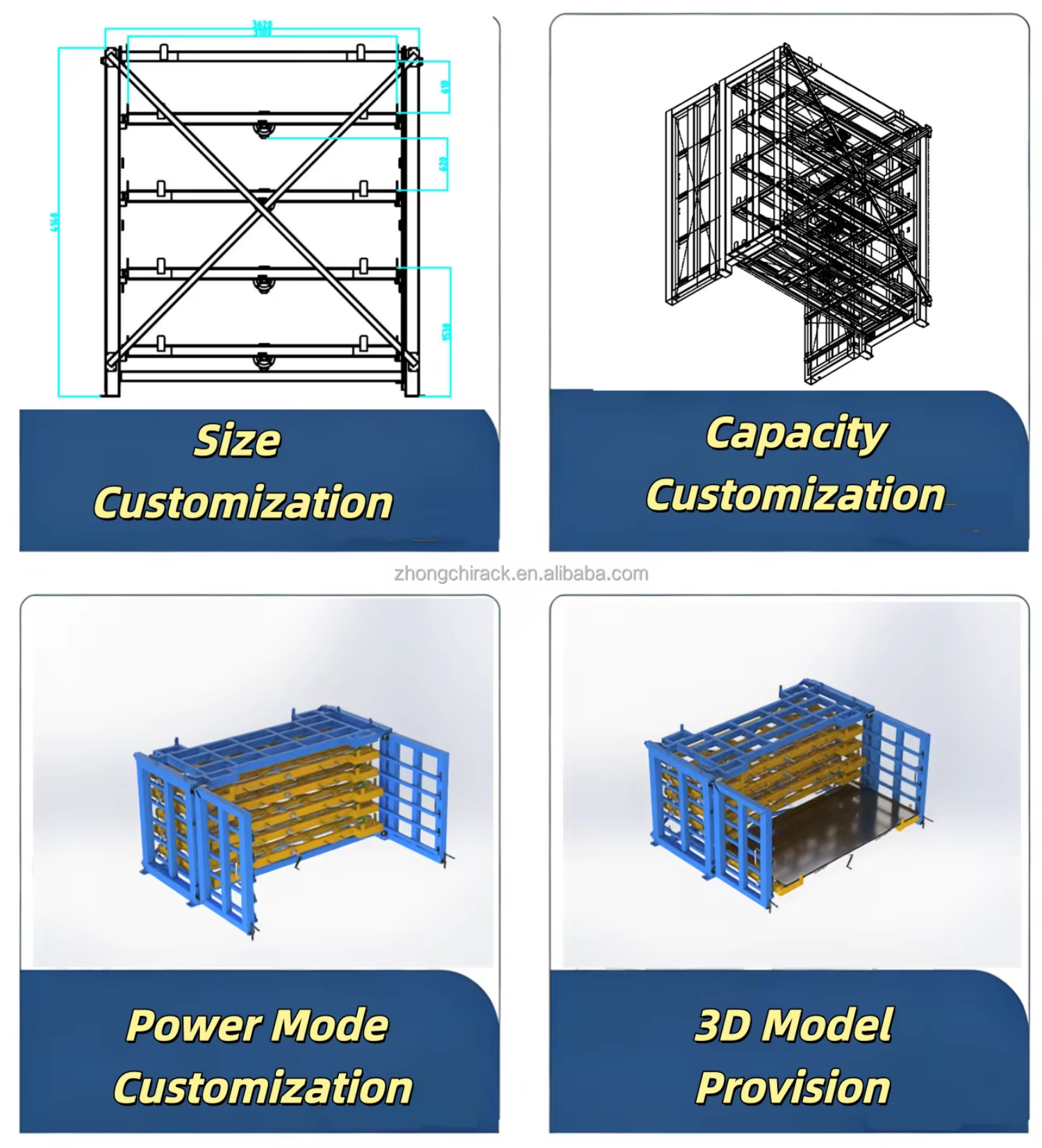

Customization Capabilities
Packaging & Shipping Specifications
Frequently Asked Questions
Q1
How to place an order?
You may send us your technical parameters and leave your contact information. Our sales team will contact you promptly and provide a formal quotation.
Q2
How to select suitable racks?
Please provide your material size, load capacity, required quantity and special requirements. We will customize the professional storage solution for you.
Q3
How do you guarantee product quality?
We have a professional engineering team and strict QC system under ISO9001 certification. All products are CE certified and undergo full load testing before delivery to ensure safety and stability.
Q4
Where is your factory located?
Our factory is located in Guowang Industrial Park, Jiyang District, Jinan, Shandong, China. We are a direct manufacturer with no middlemen. Factory video inspection and on-site visits are welcome.
Q5
What trade terms do you support?
We support FOB, CFR and CIF. EXW, DAP and DDP door-to-door terms are also available upon request. We can offer the most suitable solution according to your destination port.
Q6
Do you provide on-site installation and commissioning?
Yes, we can arrange professional engineers for on-site installation and commissioning until successful operation. Our projects have been successfully launched in the Netherlands, Saudi Arabia, Vietnam, South Korea and many other countries.
