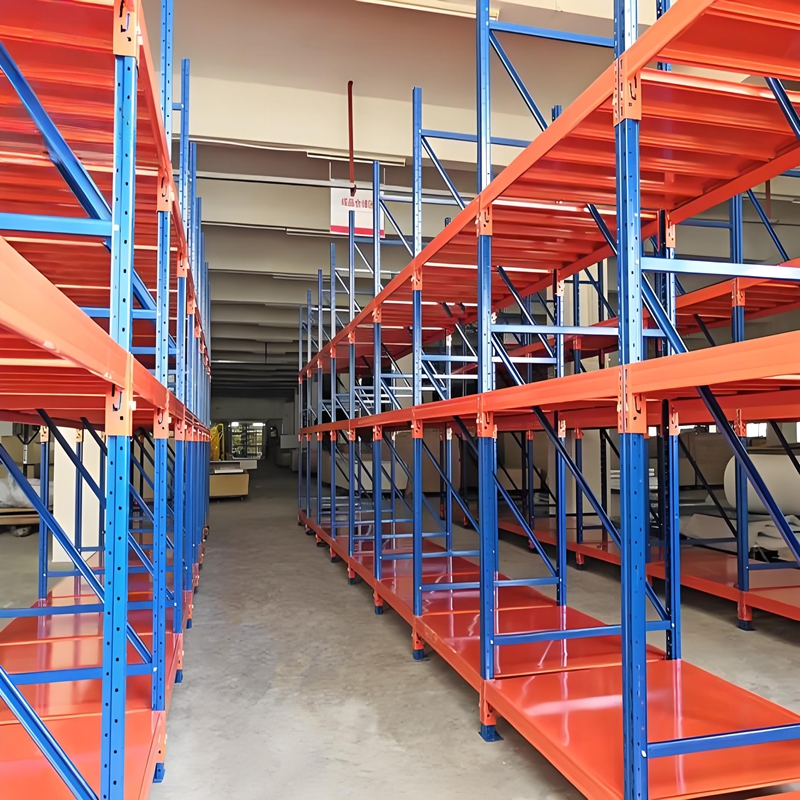

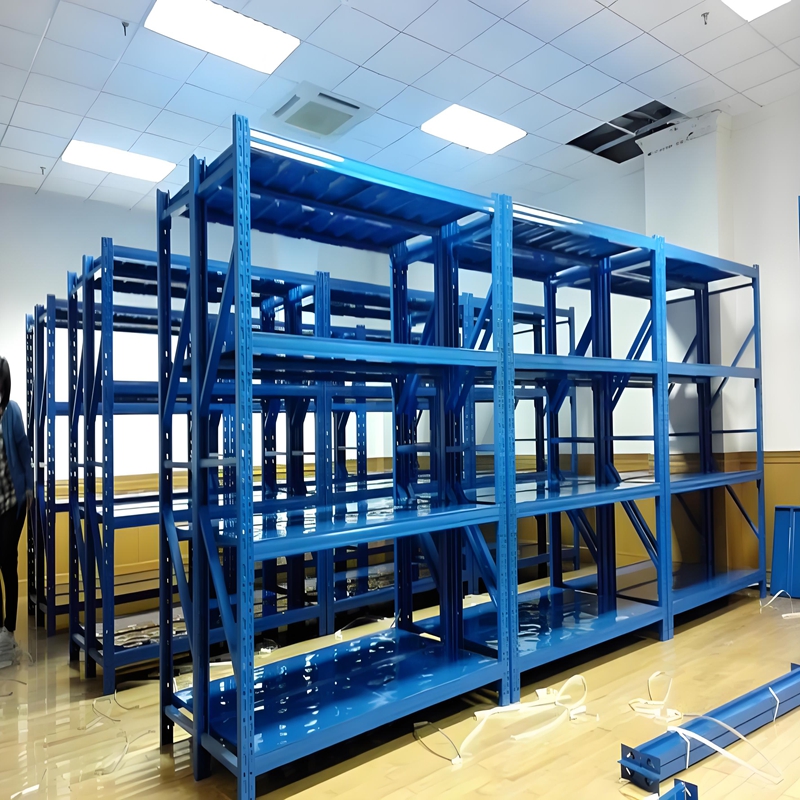

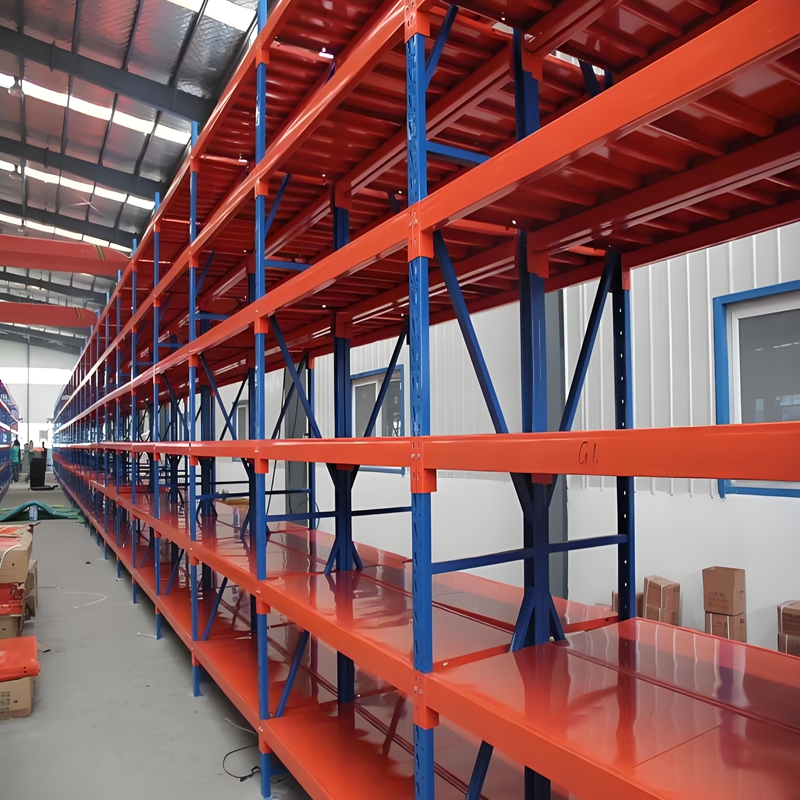

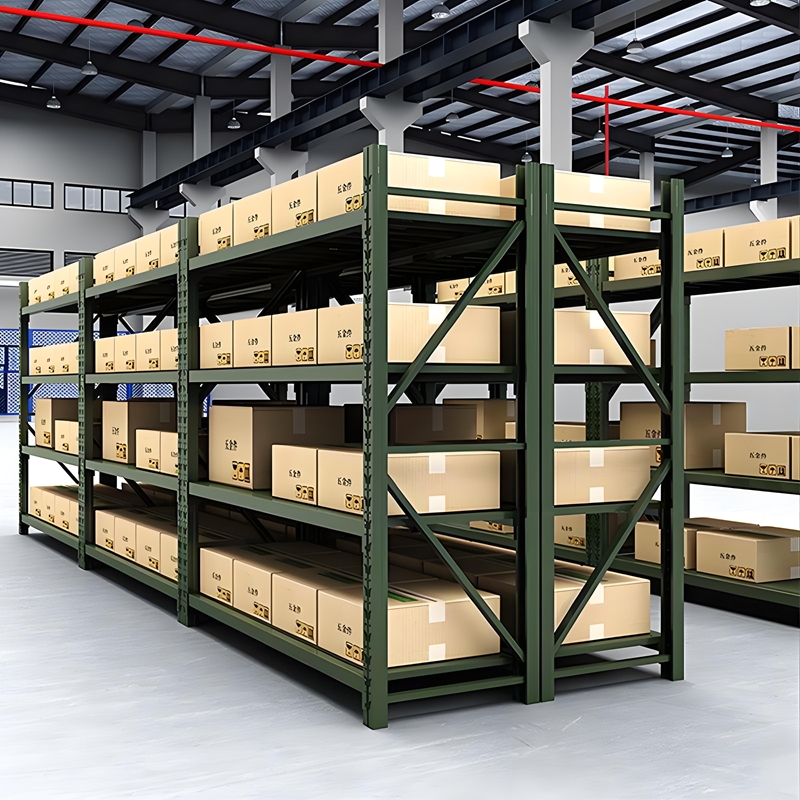

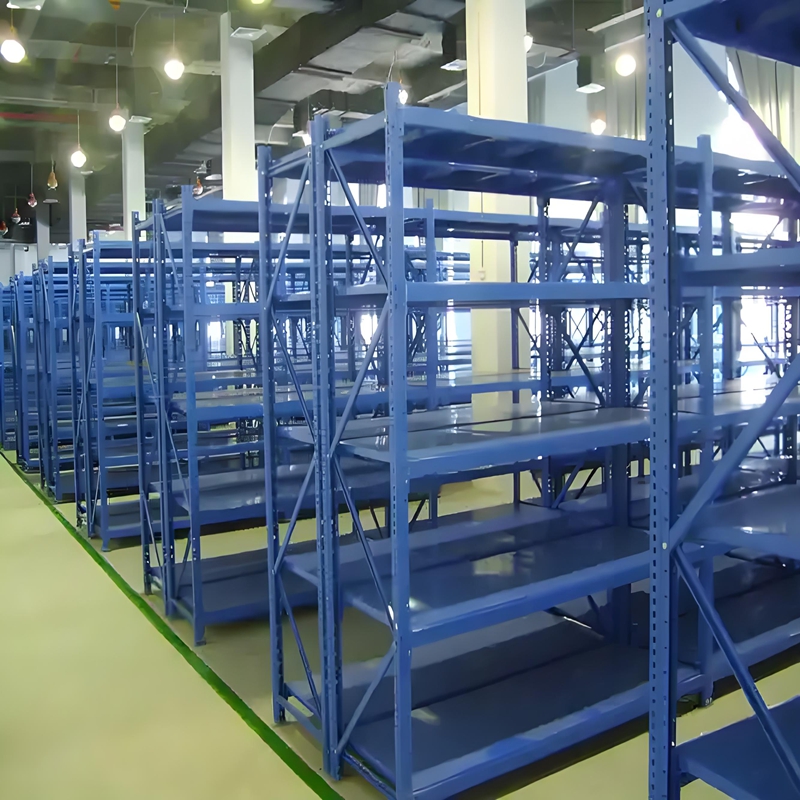

High Capacity Durable Steel Pallet Racks Medium Shelf New EU Standard Warehouse Rack System for Order Fulfillment
Product Description
Medium Duty Industrial Metal Shelving Rack for Storage Warehouses Stacking Racks & Shelves
Product Description & Structure

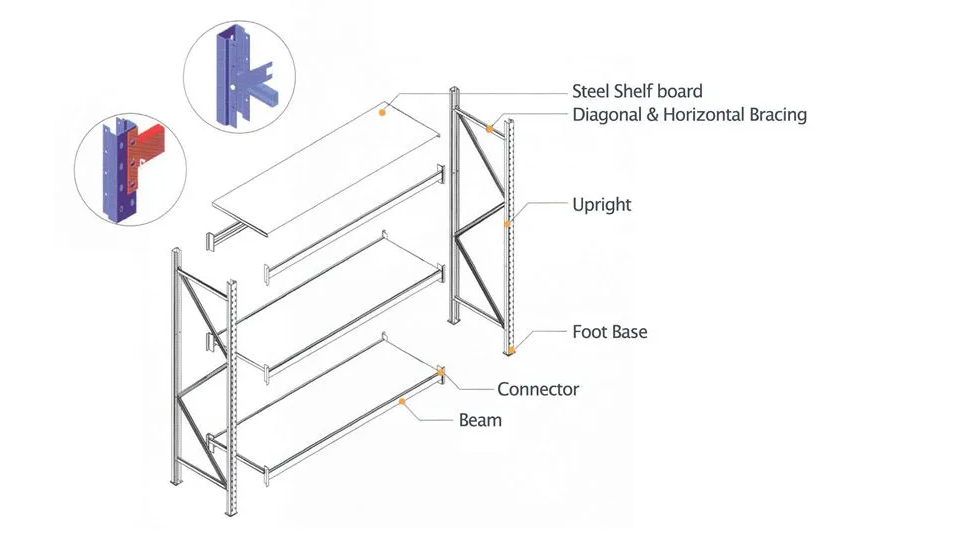

Medium Duty Rack Structure
1
Upright Columns: Made of cold-rolled steel shaped by a dedicated roll-forming machine. Upright column heads feature double-row holes at a 50mm pitch in a continuous straight line for beam installation. Two opposite columns assemble with horizontal connecting beams and diagonal bracing to form the rigid frame.
2

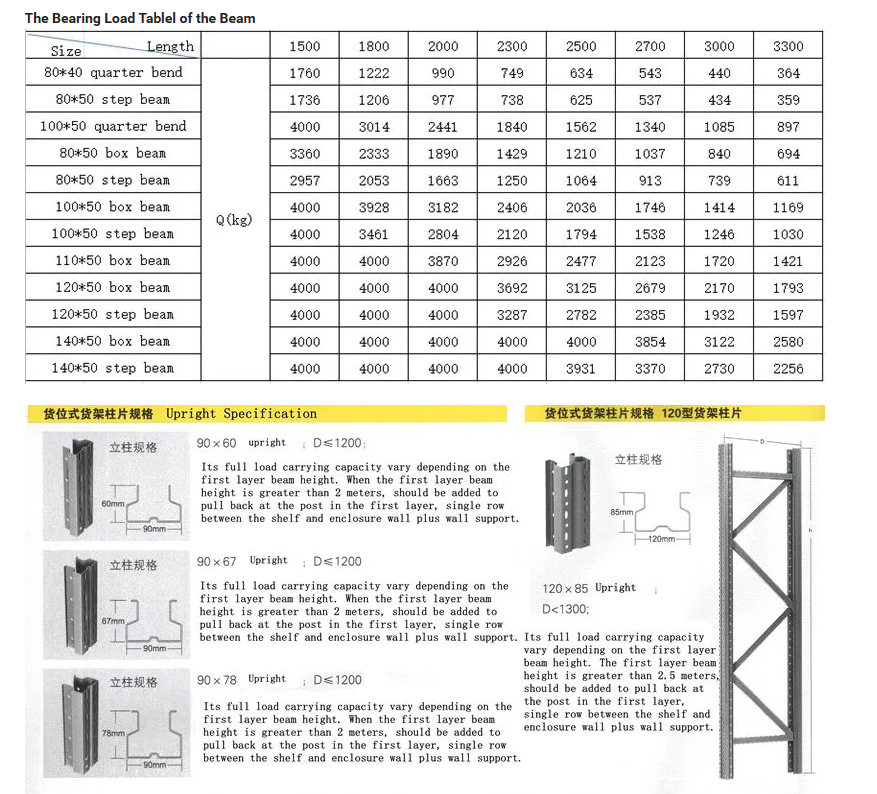

Beams: Engineered using "P" type profile pipes, commonly termed "ladder beams". The step height matches the deck plate height seamlessly.
3
Shelving Plates: High-grade cold-rolled steel panels, accurately edge-folded on all four sides according to dimension standards.
4
Frame Assembly: Beams and columns interlock to form structural bays, topped with steel shelf plates to complete the durable medium-duty storage set.
5
Surface Treatment: Precision-formed components undergo polishing, pickling, phosphating, and automatic electrostatic powder coating followed by heat drying. Yields a smooth, wear-resistant, anti-corrosive finish. Shelf levels adjust at 50mm intervals with hassle-free disassembly.
Key Structural Features
Fully Assembled Structure: Flexible combinations, convenient screwless installation, and rapid reconfiguration.
Safety Interlock System: Steel connector buckles slide between beams and columns, secured with safety pins to prevent accidental dislodgement.

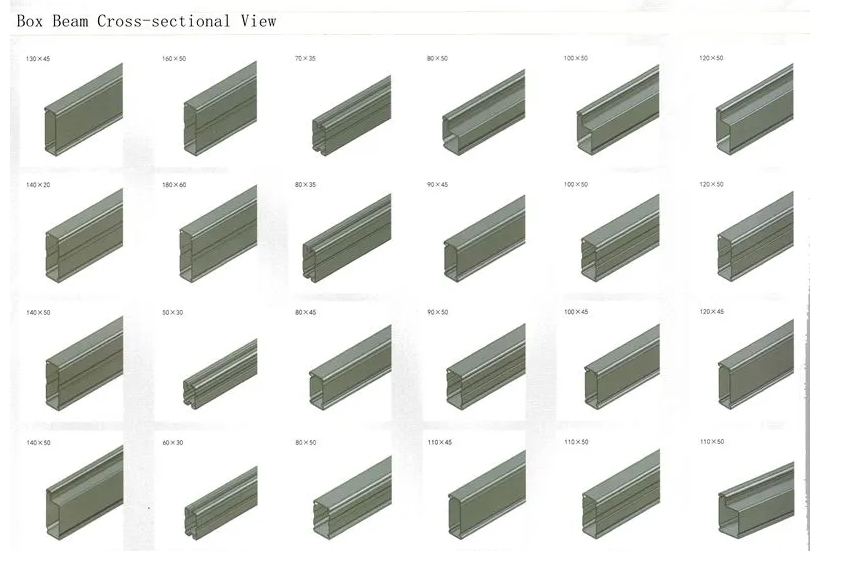

Optimized Load Profiles: Cross-section optimization with various heavy-gauge tube designs to significantly boost structural load capacity.
50mm Modular Pitch: Upright pitch holes permit dynamic vertical spacing adjustments matching diverse cargo dimensions.
Reinforced Base & Backing: Back-to-back bays connect via cross-ties; column baseplates bolt directly to the ground for seismic stability.
300kg/Layer Capacity: Designed for manual picking or bin stowage, handling up to 300kg per layer across continuous infinite add-on runs.
Product Specifications
| Product Name | Medium Duty Racking / Shelf | Type | Multi-Level Racking |
| Brand | Yuanjin | Mobility | Adjustable |
| Texture | Cold-Rolled Metal | Place of Product | Jiangxi Province, China |
| Certification | ISO9001 / ISO14001 / ISO45001 | Modes of Packing | Pallet Package or as Requested |
| Size | Sizes Can Be Customized | After-Sale Service | 10 Years Normal Use |
Product & Structural Details

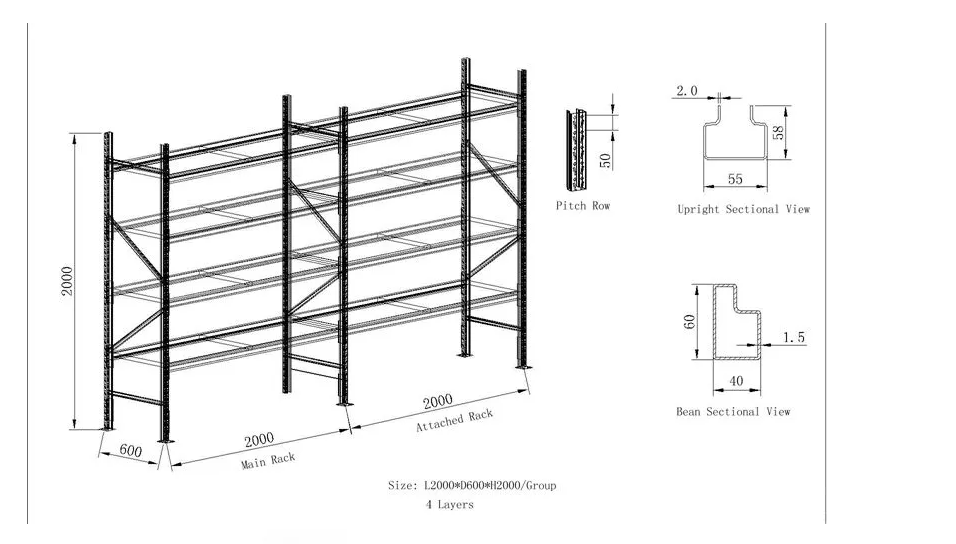

Composition of Medium-Duty Racks: Starter vs. Add-On

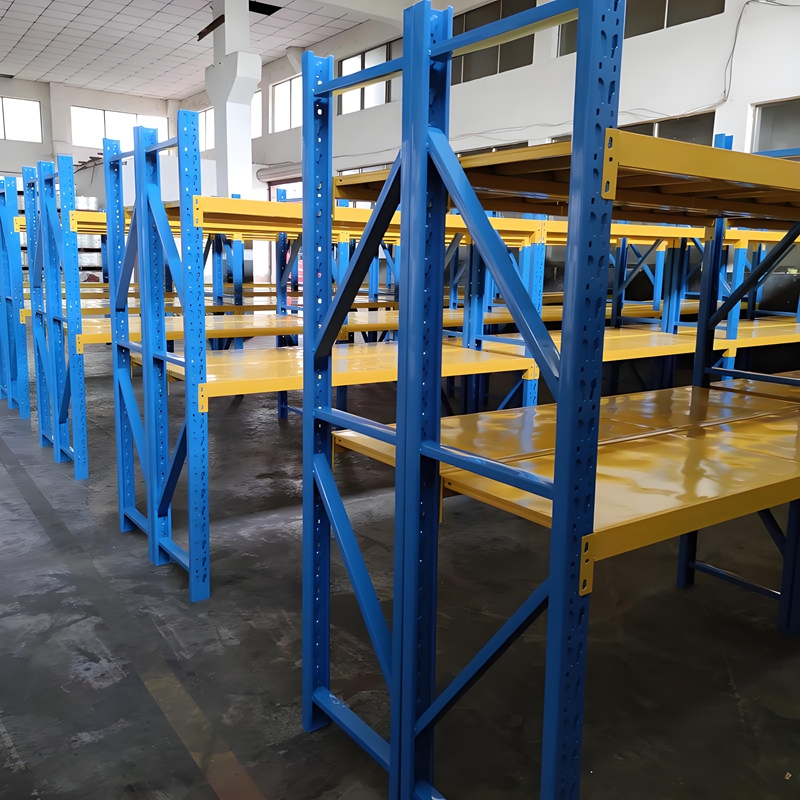

Medium Duty Racks are assembled by columns, beams, and laminates. An independent bay includes two pairs of upright columns, designated as the Main Frame (Starter). When multiple bays link continuously in a row, succeeding sections share the upright of the adjacent section; these are designated as Subframes (Add-on).
- Starter Bay: Two pairs of upright columns plus horizontal and diagonal bracing.
- Add-on Bay: One pair of upright columns plus horizontal and diagonal bracing.
- Beams: 2 pieces per layer, connecting front and rear columns securely.
- Shelf Board: Steel laminates placed directly on top of pairs of horizontal step beams.
Company Profile
About Us
Jiangxi Yuanjin Science & Technology Group Co., Ltd. (Yuanjin Group), established in October 2014, is headquartered at No. 88 Keji Road in Zhangshu Metal Furniture Industrial Park—a region recognized as China's metal furniture manufacturing hub. Covering over 70,000 square meters, we are a modern high-tech enterprise specializing in integrated R&D and production of manual and intelligent mobile shelving systems, smart museum display racks, security equipment, library facilities, and fully automated smart warehouse storage systems.
Factory Certification
Packing, Logistics & Advantages

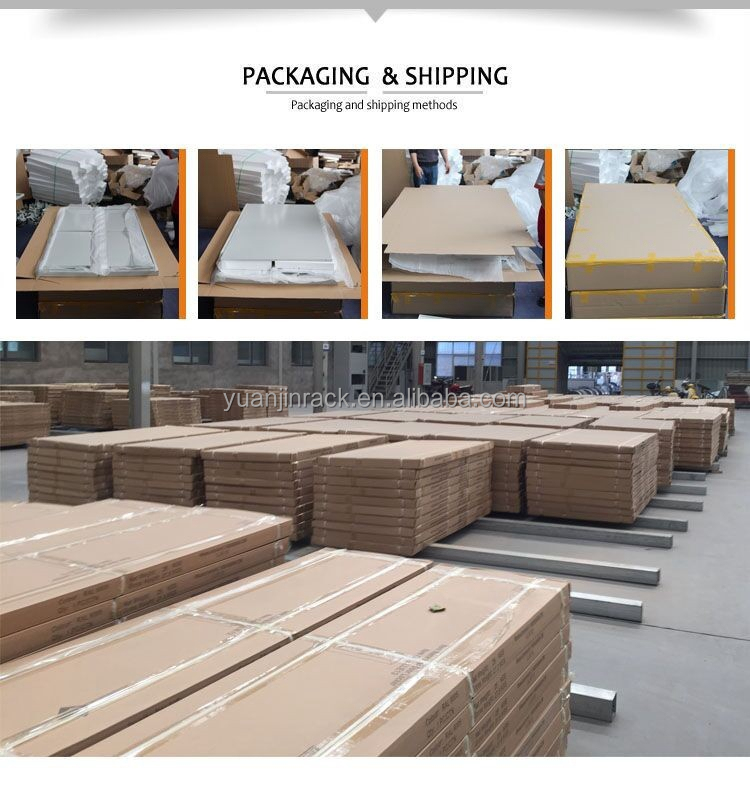

Packing & Shipping Standards
- Packaging Method: Full knock-down (CKD) format, standard export cartons with protective pearl foam and foam board lining.
- Custom Labeling: Client logo, model naming, piece counts, and exact dimensions printed per requirement.
- Product Identification: Assembly diagrams or line sketches printable directly on external packaging.
- Quality Guarantee: Certified factory inspection and load-test reports supplied upon request.
- Interior Protection: Moisture-barrier poly film combined with corner cushions for safe international transit.
- Flexible Shipping: Full support for EXW, FOB, CNF, and CIF terms with optimized container loading strategies.
Our Manufacturing Advantages
- Direct Manufacturer: Direct-from-factory pricing on metal office furniture, warehouse racking, vaults, and lockers.
- Verified Quality: Dependable material standards with full brand transparency from Yuanjin.
- One-Stop Supply: Extensive catalog eliminates multi-vendor coordination, lowering overall shipping overhead.
- Complimentary Engineering: Free custom layout solutions with inquiries answered within 24 hours.
- Extended Warranty: Standard 10-year service life coverage (up to 20 years on select systems).
- Rigorous Inspection: 100% finished-part quality verification before shipment.
- Punctual Delivery: Production schedules typically fulfilled within 15 days with zero dispatch delays.
Frequently Asked Questions (FAQ)
1. How can I obtain prices and formal quotes for your shelving products?
Please feel free to send us an inquiry directly through our website contact form or email. Our team will review your specifications and reply with a complete quotation within 24 hours.
2. How is courier freight calculated for product samples?
Courier freight is determined based on the total quantity of sample pieces, packaged gross weight, package volume dimensions, and your final destination address.
3. What packaging configurations are provided for export orders?
All items are flat-packed in heavy-duty knock-down export cartons with pearl foam and protective cushioning. Net weight and custom carton labeling can be configured per customer requirements.
4. How does your facility ensure quality control?
We attach vital importance to strict quality control from raw cold-rolled steel inspection through precision roll-forming, coating, packaging, and final dispatch with a 100% inspection pass standard.
5. What is the standard lead time for manufacturing and delivery?
Delivery generally takes between 7 to 30 days following receipt of your advance payment. Most standard shelving setups are ready for dispatch within 15 days, tailored to your exact order scale.
6. What warranty and after-sales service terms are provided?
We provide a 10-year warranty under normal operating usage for our medium-duty shelving lines, supported by technical assistance and component replacements whenever needed.
