Industrial Storage Shelves Roller Track Large Load Capacity Rolling Rails Aluminium Sheet Strip Flow Rack Design Pallet Storage
Product Description
Roller Track for Pipe Rack System Aluminum Flow Rails Plastic Roller Wheel Conveyor
We deal with conveyor technology for an uninterrupted flow of goods. We have a range of roller conveyor for all scenarios. All of our conveyors are customised to fit the space and use aluminium profiles to frame and support the conveyor in any configuration. Their various uses are extensive, from transporting goods between workbenches to large automated production facilities.
Product Description & Highlights
1. Durable loading capacity for heavy duty.
2. Easily assemble without any special skills requirements.
3. Providing joint for placons connecting lean pipe perfectly.
4. Low friction can deliver goods smoothly.
5. Excellent quality and reasonable price.
6. Short delivery time.
| Frame Material | Galvanized Steel / Aluminum Alloy |
|---|---|
| Model | GF-35, GF-40, GF-40A, GF-40B, GF-41, GF-44, GF-60A, GF-60B, etc. |
| Rollers Material | PE, ABS |
| Diameter of Rollers | Standard industrial diameters (32 mm / customizable) |
| Thickness of Frame | 1.0mm, 0.8mm or Customize |
| Width of Roller | 20 / 25 / 22.5 / 25 / 25 / 42 / 42 mm |

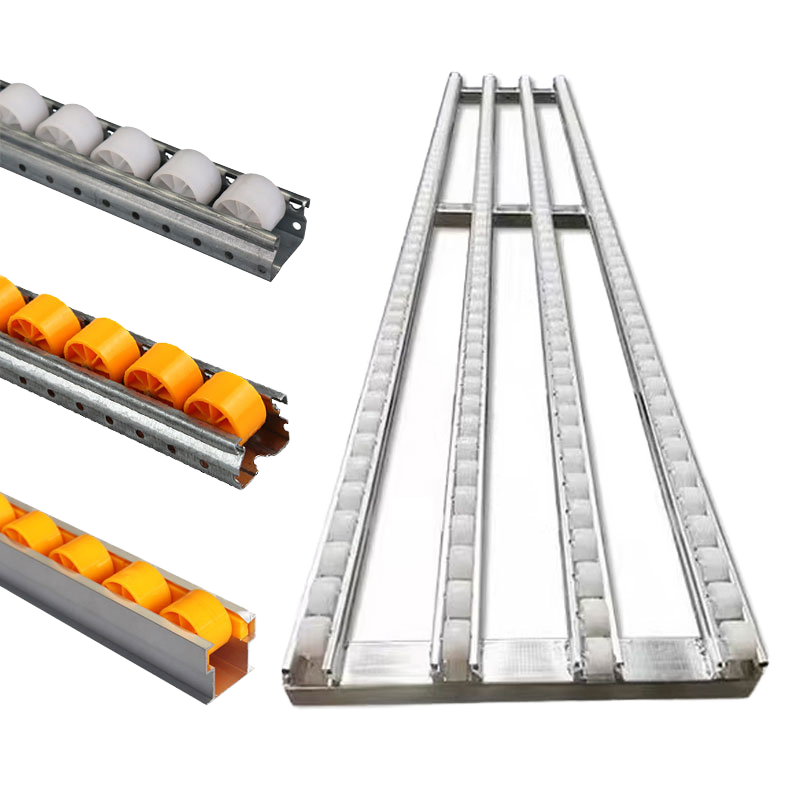

Product Features & System Types
1) For Simple Goods Transportation: Side Strip conveyors can be used.
2) Conveyors with Caster Rail: This system is flexible for manual work piece transport.
3) Roller Conveyors with Easy Running Castors: Designed for universal use. Can also use with Flanged wheel for guidance along Conveyor line or castor ball sets and EDS brush sets suitable for table tops that connected to your interlinked track.
4) Chain Driven Roller Conveyors: Robust power-driven transport system.
Industrial Roller Tracks Suitable for Most Applications
Fitted with the large-diameter 32 mm rollers suited to the majority of applications, the high density of 28 rollers per linear metre means only 2 mm spacing between rollers. This high density ensures a smooth flow. The zinc roller track can be used in many fields, such like: worktable, furnitures, pipe rack, production line, office facilities, storage racking equipments, and other house appliances, it can help to raise working efficiency.
A fluent bar is also called a slideway. There are mainly sheet metal fluency bars and aluminum alloy fluency bars. Because of its convenient installation and placed the articles above the running smooth and agile, as the name suggests it is called a fluency, many of them are used in the material rack of the workshop, etc.
Please contact us for more sizes and specification as per your request.

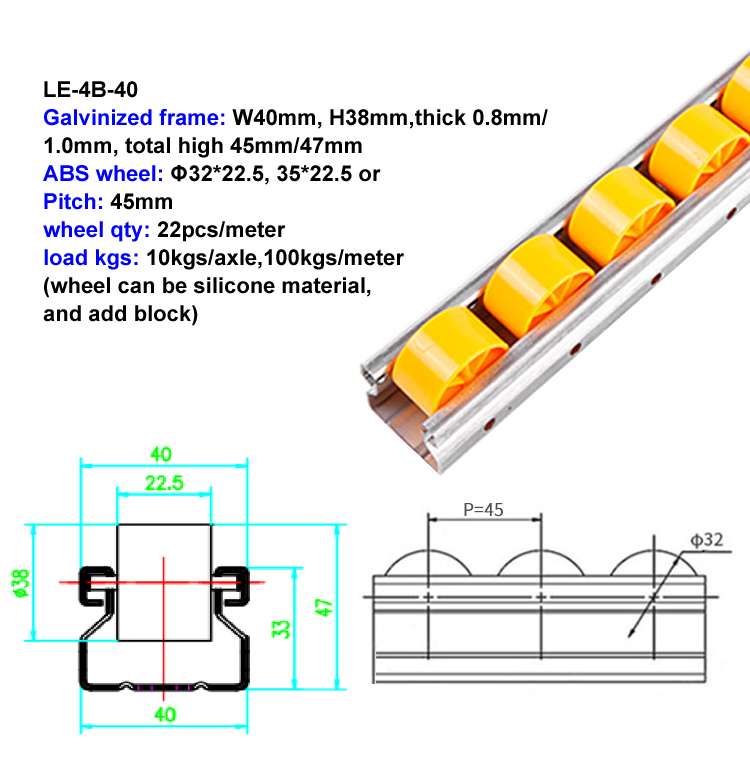

Product Specifications & Structure Showcase
Frequently Asked Questions (FAQ)
Q1
What kinds of supplier are we?
We were a standard t-slot and v-slot aluminum supplier, but we found this wasn't what our customers needed. Our customers needed a company who was willing to go the extra mile to help them from start to end. From there we found our niche by being a full-service custom industrial solutions provider. We believe that no project is too small, and we've never found a project too big to handle. From the very beginning, we've looked to serve the industry's needs and that's what we have continued to do over the past 10 years. We are not only provide materials, but also Professional Research & Design technical department, for all of your benefits.
Q2
What is the lead time for small orders and mass production?
There will need about 7 to 10 days to open new molds, then we will send customer trial samples for approval before mass production. After the sample is approved, it takes around 10 to 15 days for mass production for a normal 40 High Q container.
Q3
How can I get a quotation from your company?
In order to quote as soon as possible, please provide the following details: 1) Detail drawings (CAD/PDF/DWG/IGES/STEP); 2) Material specifications; 3) Quantity; 4) Surface treatment requirements; 5) Any special packaging or other requirements.
Q4
Can I get a sample for testing?
Yes, we offer free samples valued under $50. Customers are kindly requested to cover the international shipping cost. If you have a DHL or FedEx account, we can arrange shipment promptly.
Q5
What materials and dimensions are standard for your roller tracks?
Frames are made of Galvanized Steel or Aluminum Alloy with frame thicknesses of 0.8mm, 1.0mm, or custom sizes. Rollers are manufactured using durable PE or ABS plastic, typically featuring 32 mm diameters with high density (28 rollers per linear metre) and 2 mm spacing for optimal smooth flow.
Q6
Where are these roller tracks and slide rails most commonly used?
They are widely utilized in pipe rack systems, lean manufacturing workstations, assembly tables, warehouse flow racks, office furniture, automated production lines, and material handling systems to significantly increase work efficiency and optimize material flow.
