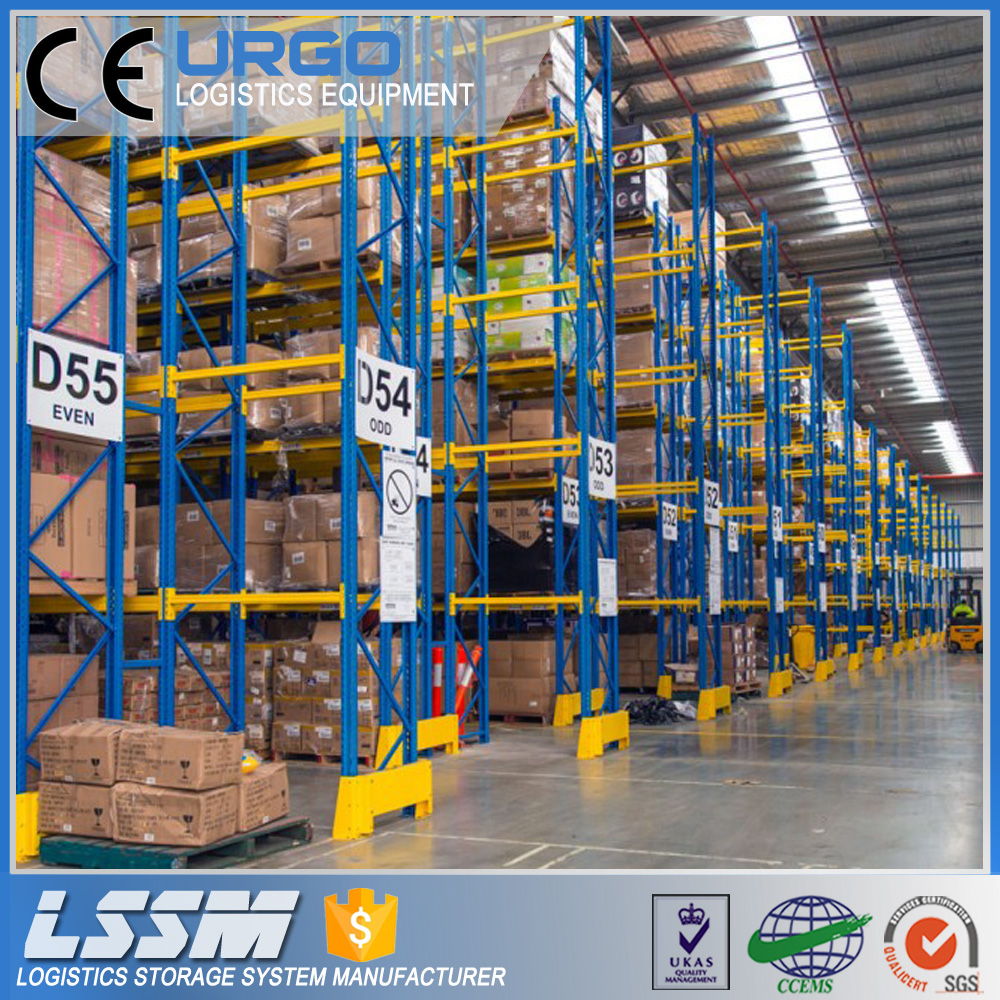

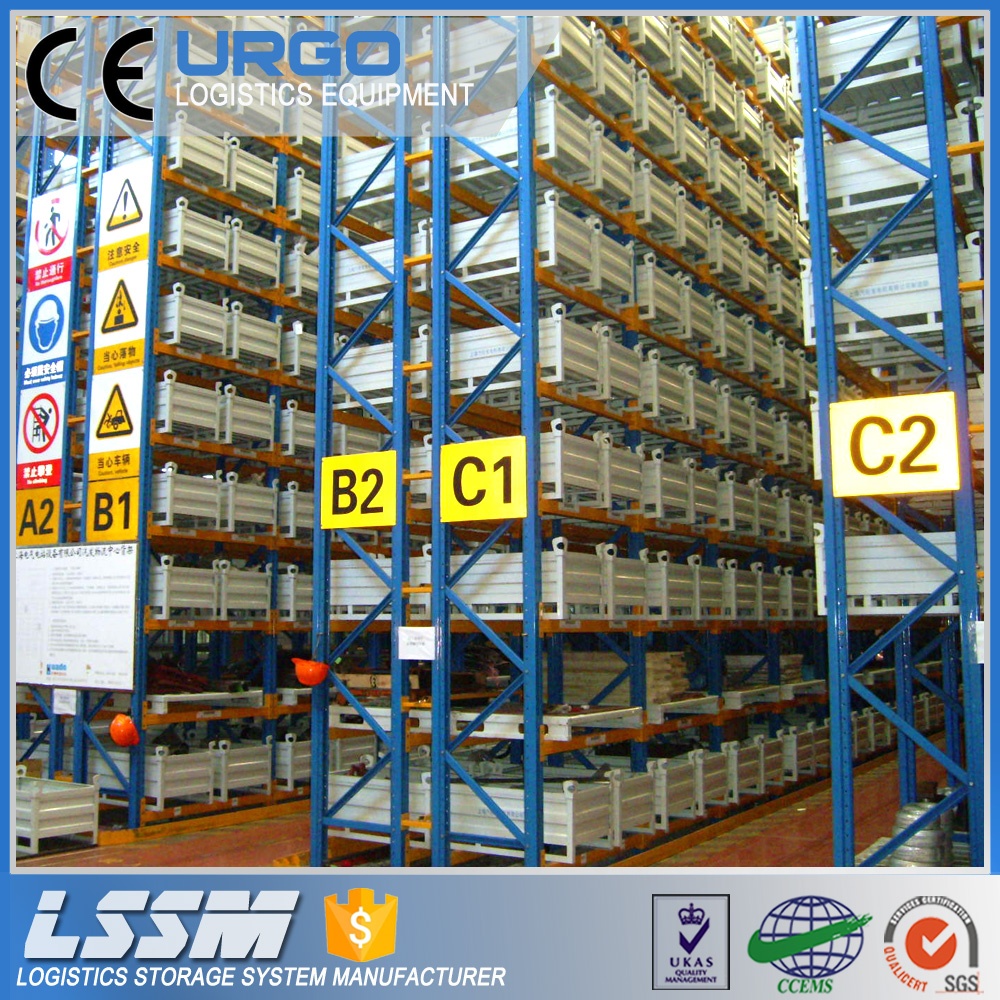

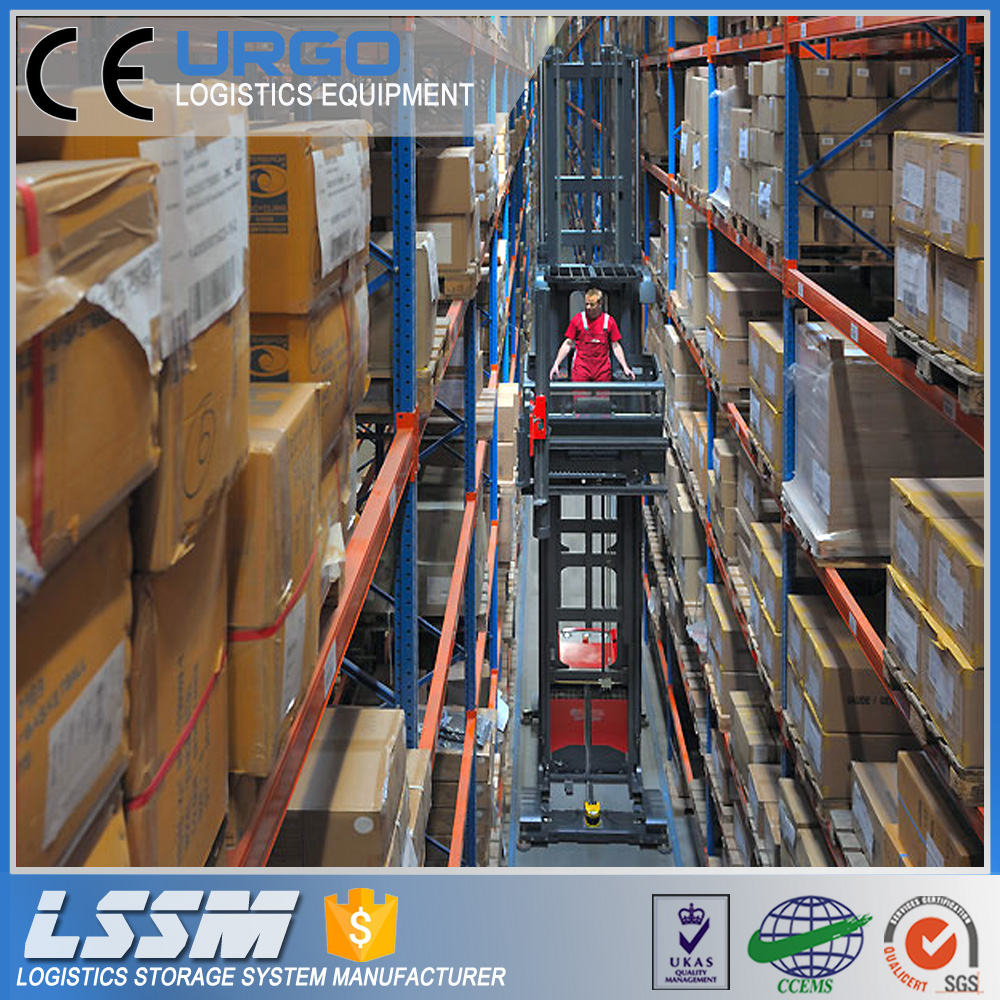

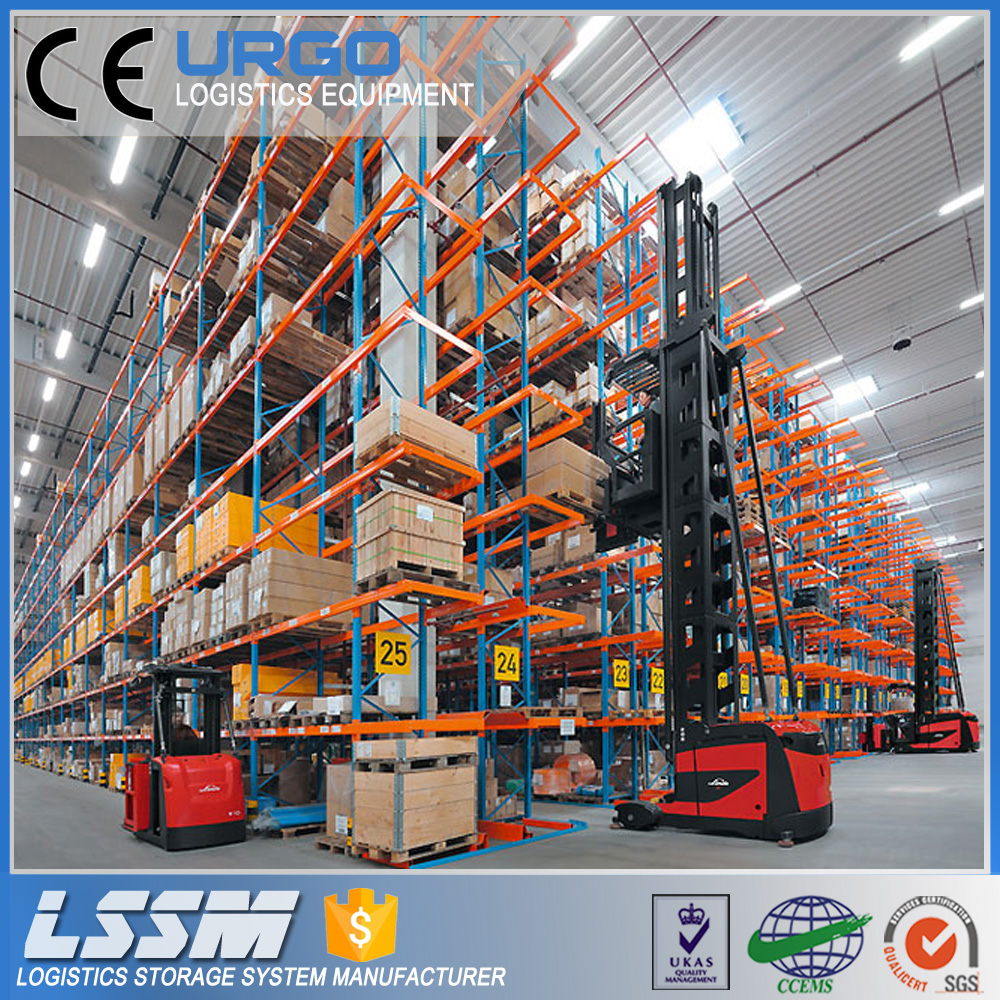

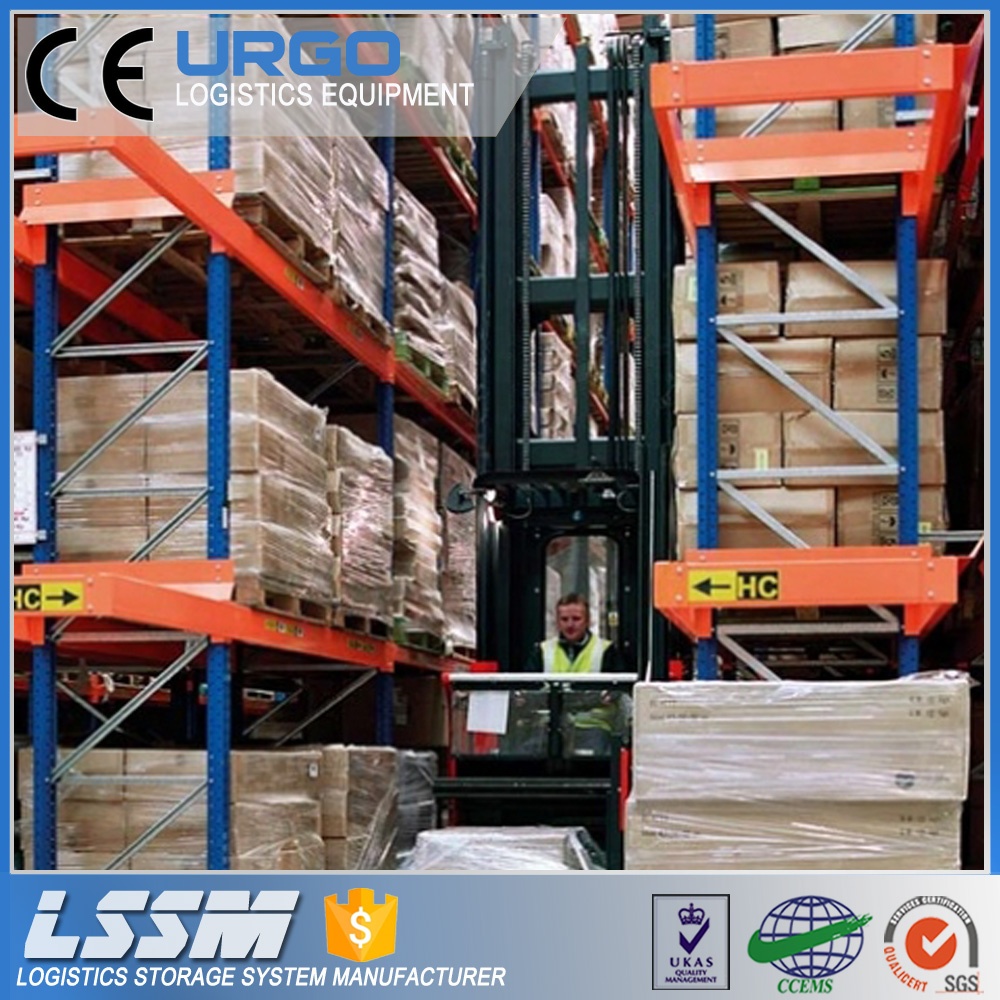

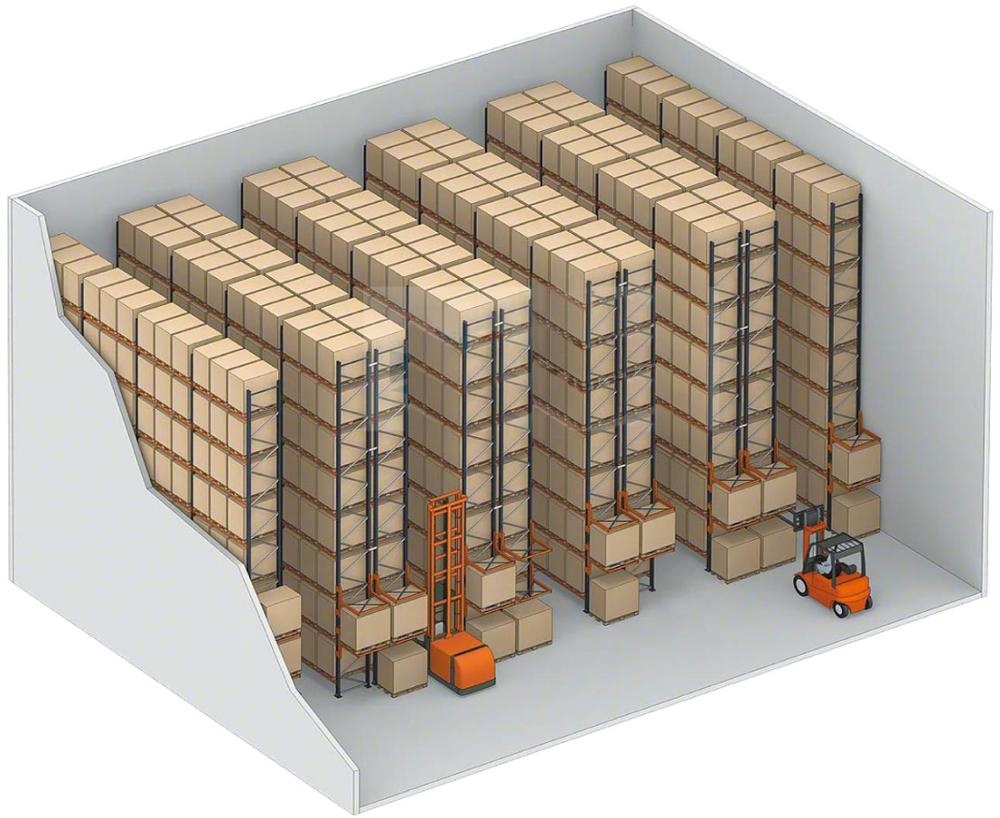

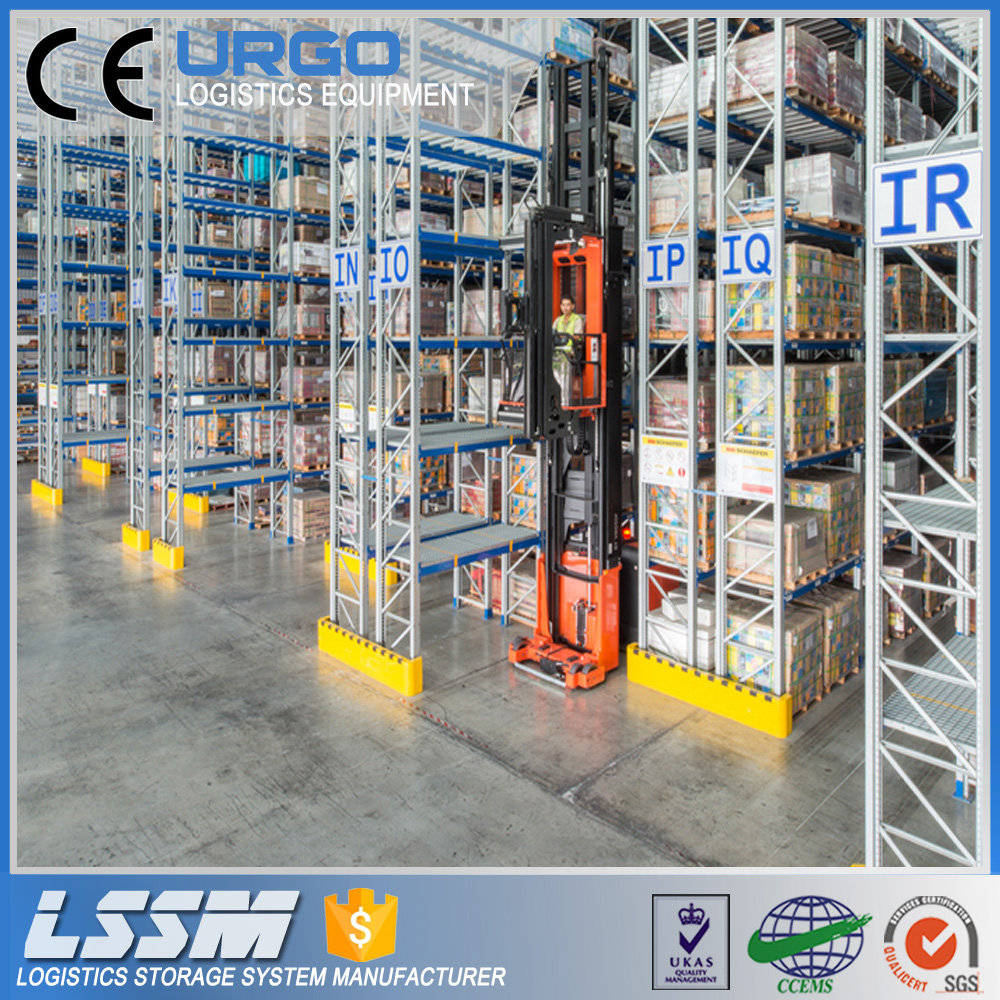

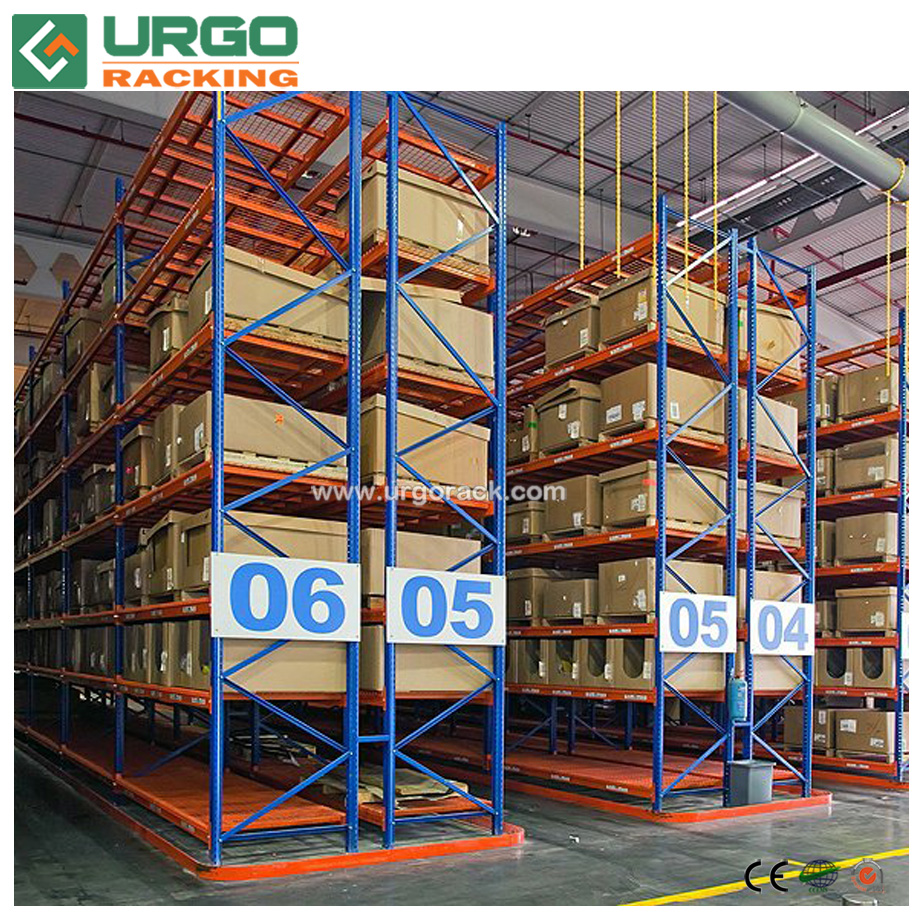

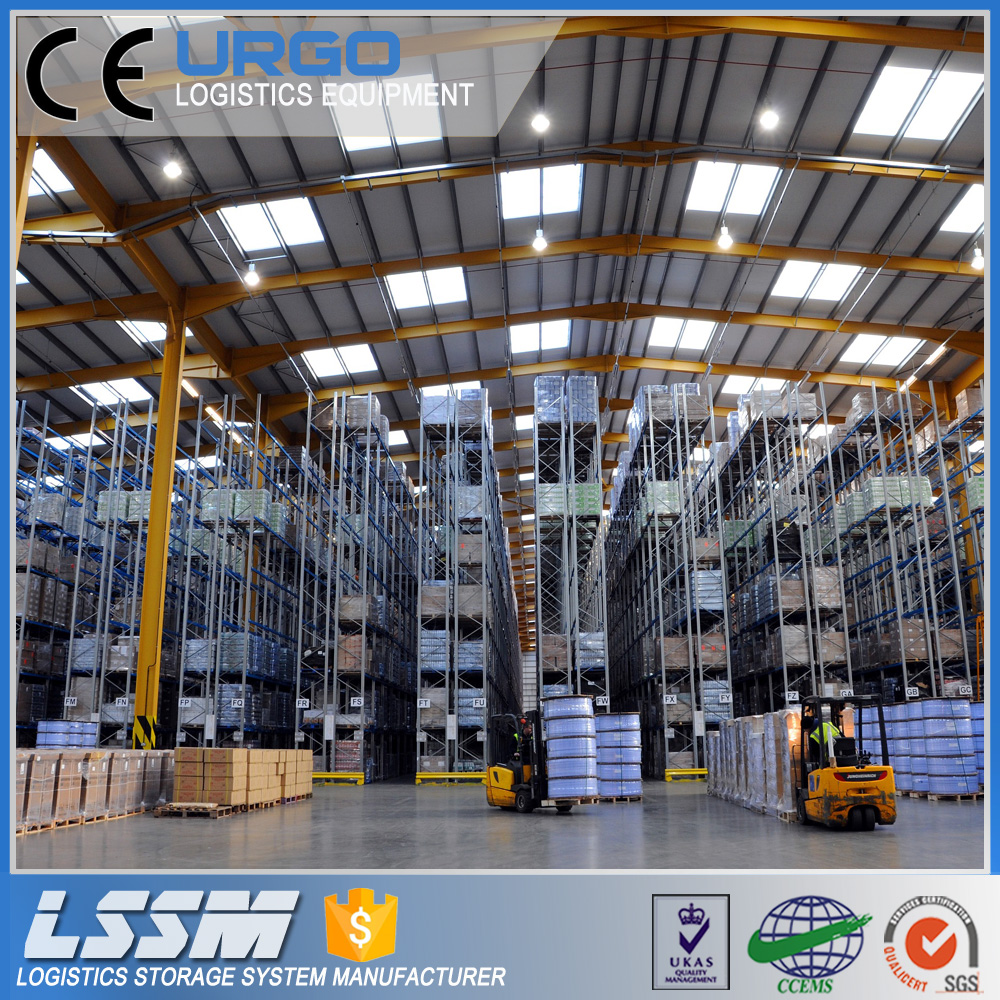

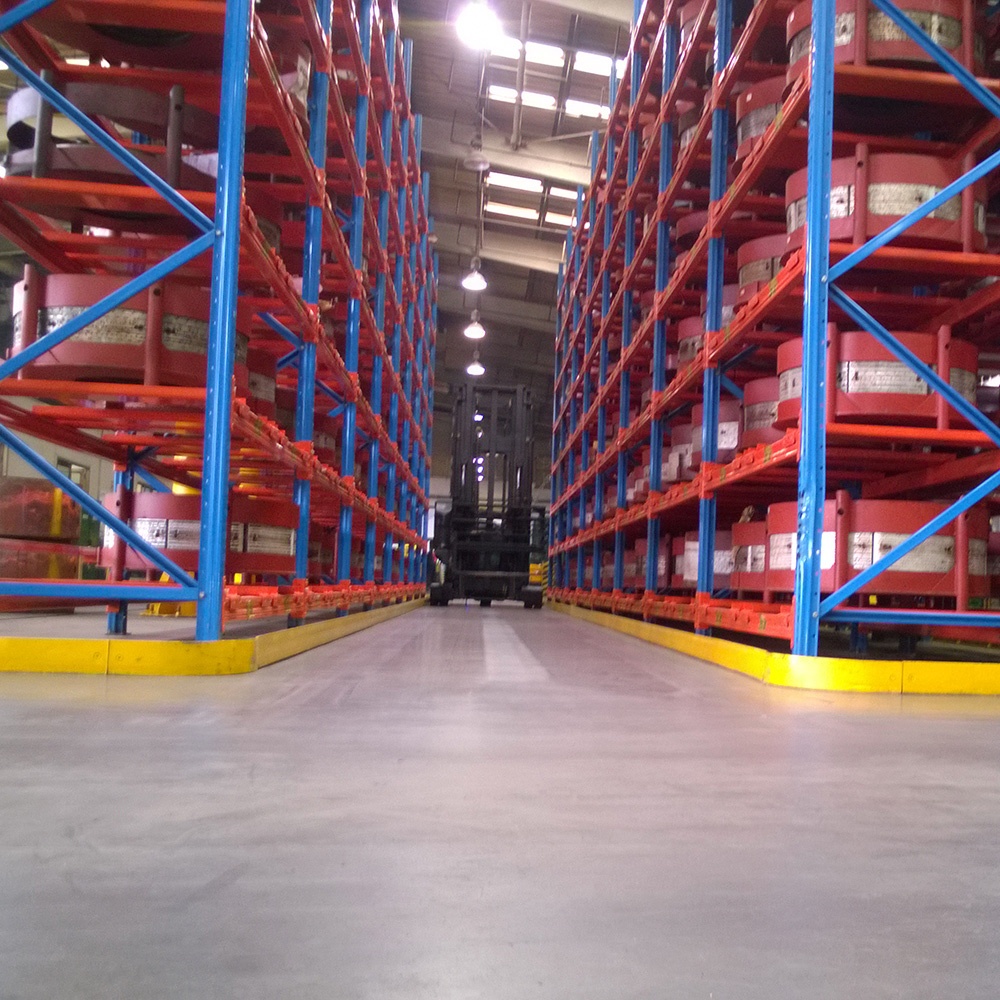

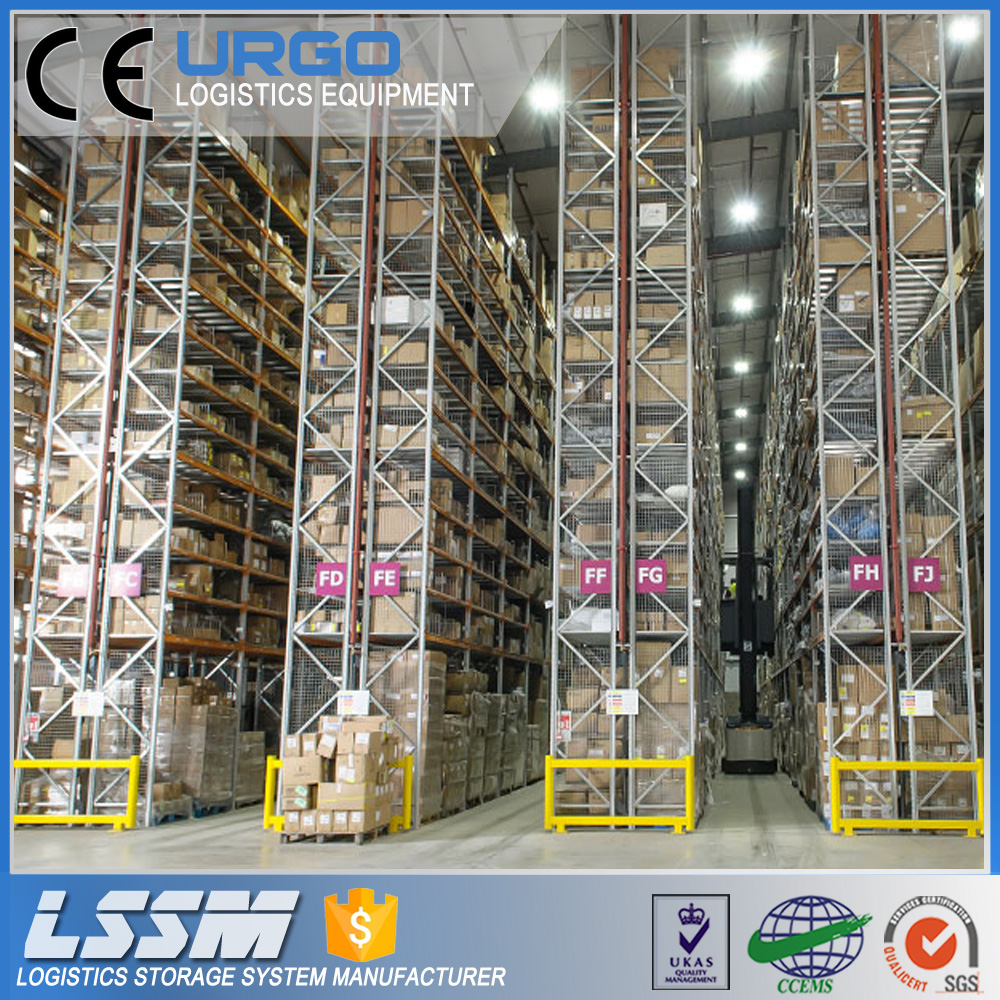

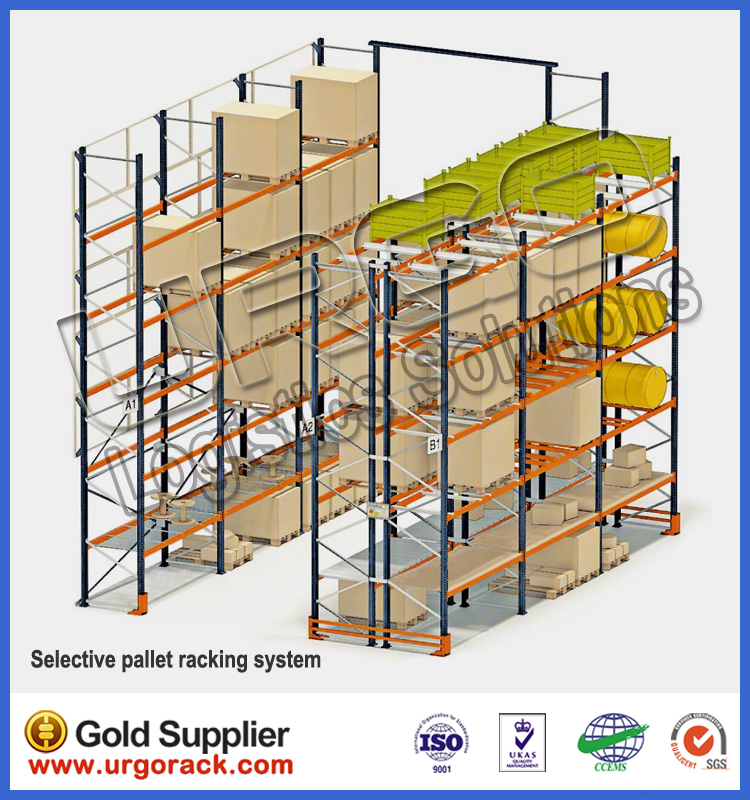

URGO Very Narrow Aisle Pallet Rack / VNA Racking System
Product Description
Product Structure
The structure of URGO heavy duty pallet rack includes uprights and beams, According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.
Warehouse Rack Use and customized Width drive in pallet racking
Key System Features
90% picking efficiency, and appropriate for picking heavy goods by pallet.
Surface finishing with araldite static powder coating.
High Strength and durability, easy for complete installation.
Pallets can be located, accessed and moved individually.
Rapid handling of almost all types of palletised goods.
Bottom level of pallets can be stored on the floor, lowering structure costs.
Strength and rigidity prevents compression damage to goods.
Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
| Section Item | Technical Specifications & Requirements |
|---|---|
| Beam & Frame |
1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck. |
| Main Parts Specs |
1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc. 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Load Capacity & Dimension |
1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Special sizes also available to specific storage needs. |
| Delivery Time | Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery. |
Upright Specifications:
- High load capacity up to 21000kg.
- Frames include all elements for assembly: bracing, feet and nuts & bolts.
- Blue epoxy coated (RAL 5012/5015/5017).
- Standard heights: From 2 to 11.5m.
- Adjusted by 50/75mm pitch.
Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
Beam Specifications:
- High load capacity up to 5000kg.
- Manufactured with the highest quality steel Q235.
- Orange epoxy coated (RAL 2004).
- Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
- Boltless connection with 3/4/5 connector hooks.
- Security pins per beam to prevent accidental dislodgement.
- Powder coating finish
Beam Profiles:
| Loading (kg) Specification (mm) |
The Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
| Loading (kg) Specification (mm) |
The Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |

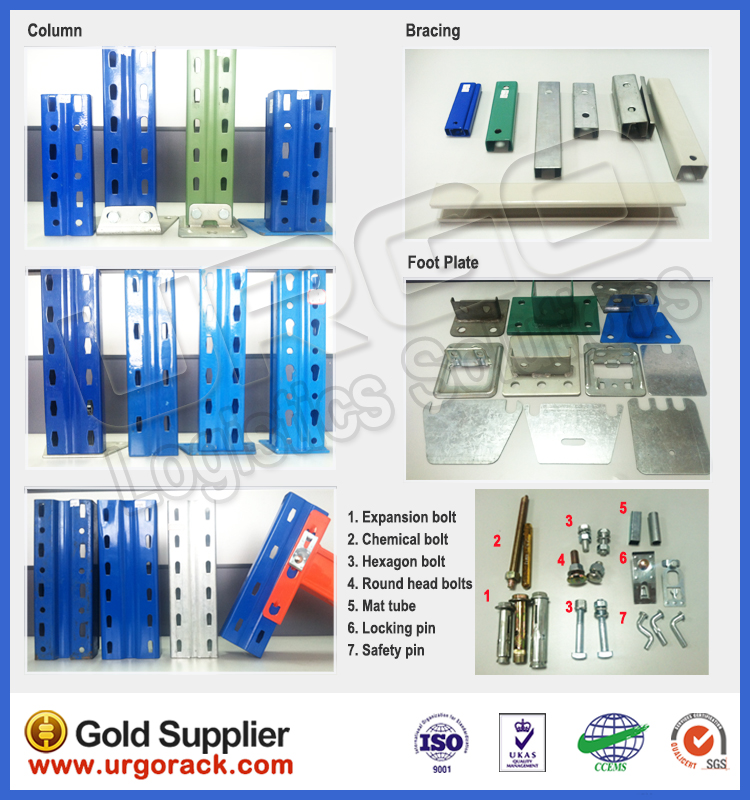

Main Spare Parts Profiles:
Optional Accessories
Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.
Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo’s Safeguard.
We owns a professional logistics team. First-class packaging technique meets your customized packing plan. Every step of logistics progress is thoroughly under our strictly control. We ensure your order received safely within the agreed duration. On-time delivery is our supreme promise.
Company Honor
FAQ and Our Services
Q1
What makes you different from other suppliers?
1) Our excellent service: For a quick, no hassle quote just send email to us. We promise to reply with a price within 12 hours.
2) Our quick manufacturing time: For selective pallet racking orders, we promise to produce within 15 days. As a manufactory we can ensure the delivery time according to the formal contract.
3) Our special export design: We pay great attention to export packages, equipping plastic clips on beams to prevent surface transit damage and wrapping uprights with transparent plastic film.
4) Our warranty time: High standards in design and manufacturing allow us to support products with a 10-year warranty for normal use.
2) Our quick manufacturing time: For selective pallet racking orders, we promise to produce within 15 days. As a manufactory we can ensure the delivery time according to the formal contract.
3) Our special export design: We pay great attention to export packages, equipping plastic clips on beams to prevent surface transit damage and wrapping uprights with transparent plastic film.
4) Our warranty time: High standards in design and manufacturing allow us to support products with a 10-year warranty for normal use.
Q2
What is the delivery time?
This depends on the product type. Typically standard products are delivered within 15 days. The delivery time of special customized products is determined by the tooling set-up schedule.
Q3
What is the term of payment?
1) Standard terms: 30% T/T down payment and balance before shipping.
2) 100% LC at sight.
2) 100% LC at sight.
Q4
May I know the status of my order?
Yes. We will proactively send you status updates and production photos across different stages so you receive the latest manufacturing information in real time.
Q5
Are samples available?
Yes, sample sections can be quickly dispatched via international express for your quality evaluation and reference.
Q6
How can I get your quick quotation on my pallet racking project?
To receive a prompt and tailored quotation, please share:
1) Required Pallet Racking Dimension (Height × Depth × Length);
2) Number of Beam Levels;
3) Loading Capacity per level;
4) Total Racking Quantity required.
