Storage Stacking Racks Pallet Steel Metal Shelves Garage Warehouse Racking
Product Description
Product Description
URGO Heavy Duty Pallet Rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific needs.
At present, all our raw materials are from large domestic steel corporations ensuring stable quality, combined with our own advantages to provide a perfect logistics storage system to clients.
Industry Applications
Warehouse & logistics, food/drug distribution, petroleum/chemical plants, automotive distributors, big box retail hardware, and home improvement stores.
Column Section Sizes
According to load bearing requirements, uprights are classified by column section size:
Type 80
Type 85
Type 90
Type 100
Type 120
Type 140
Beam Structure & Profiles
Divided according to structure and cross-section height:
Rectangular Tube Beam: 60 / 80 / 100 / 120mm
C Shape Tube Beam: 80 / 100 / 120 / 140mm
Box Beam: 80 / 90 / 100 / 110 / 120 / 140 / 160 / 180mm
Corbel Box Beam: 80 / 90 / 100 / 110 / 120 / 140 / 160mm
P Type Box Beam: 76.2 / 80 / 101.6 / 110 / 114.3mm
C Shape Tube Beam: 80 / 100 / 120 / 140mm
Box Beam: 80 / 90 / 100 / 110 / 120 / 140 / 160 / 180mm
Corbel Box Beam: 80 / 90 / 100 / 110 / 120 / 140 / 160mm
P Type Box Beam: 76.2 / 80 / 101.6 / 110 / 114.3mm
URGO Heavy Weight Pallet Rack Features:
- 100% accessibility to individual pallets
- Easy picking for lower levels
- Good storage density
- Easily installed and repositioned
- No special lift trucks required

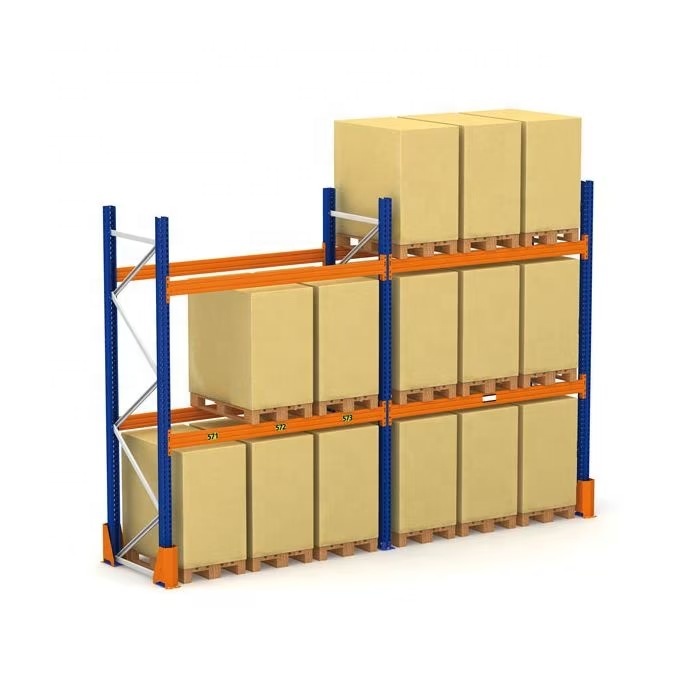

Product Structure
The structure of URGO heavy duty pallet rack includes uprights and beams. According to actual pallet load capacity and warehouse dimensions, column and beam specifications are selected along with corresponding racking accessories.
Upright Specifications
- High load capacity up to 21,000 kg.
- Frames include all elements needed for assembly: bracing, base plates, nuts, and bolts.
- Blue epoxy powder coated finish (RAL 5012 / 5015 / 5017).
- Standard heights: From 2m to 11.5m.
- Adjustable by 50mm or 75mm pitch.
Column Profiles Specification
| Column Specification (mm) | Thickness (mm) | Upright Loading Capacity (kg) |
|---|---|---|
| W80 x D60 | 1.8 - 2.0 | 4,000 - 6,000 KG |
| W85 x D67 | 1.8 - 2.3 | 7,500 - 12,500 KG |
| W90 x D60 | 1.8 - 2.5 | 8,000 - 10,000 KG |
| W90 x D70 | 1.8 - 2.5 | 10,000 - 12,000 KG |
| W100 x D70 | 2.0 - 2.5 | 11,000 - 14,000 KG |
| W120 x D95 | 2.3 - 3.0 | 17,000 - 21,000 KG |
Box Beam Profiles Load Capacity
| Specification (mm) | Length of Box Beam (mm) & Loading (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
P Type Box Beam Profiles Load Capacity
| Specification (mm) | Length of P Box Beam (mm) & Loading (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |
Main Spare Parts Profiles
Optional Accessories

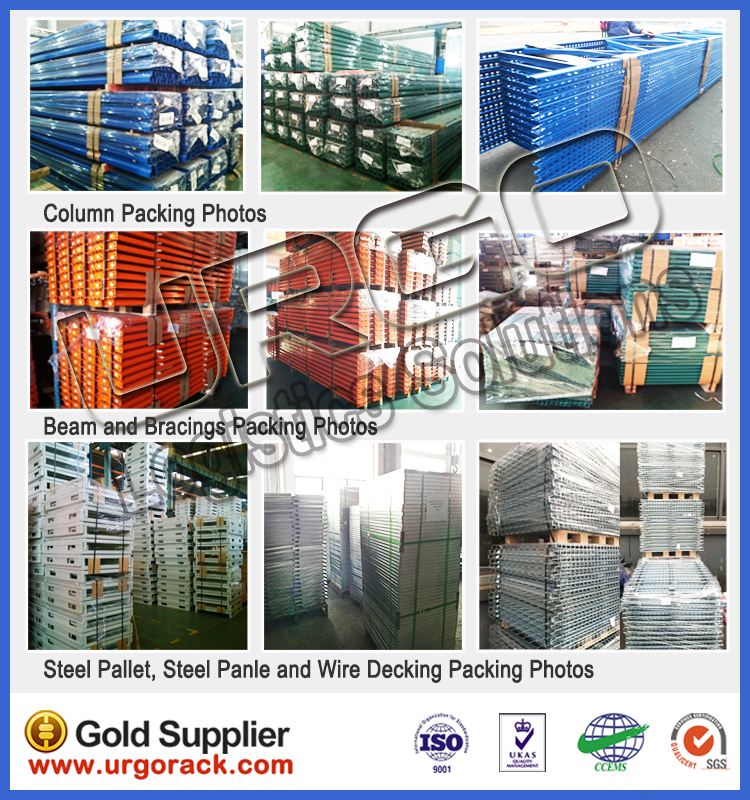

Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo’s Safeguard.
We own a professional logistics team. First-class packaging technique meets your customized packing plan. Every step of logistics progress is thoroughly under our strict control. We ensure your order is received safely within the agreed duration. On-time delivery is our supreme promise.
Company Information & Honor

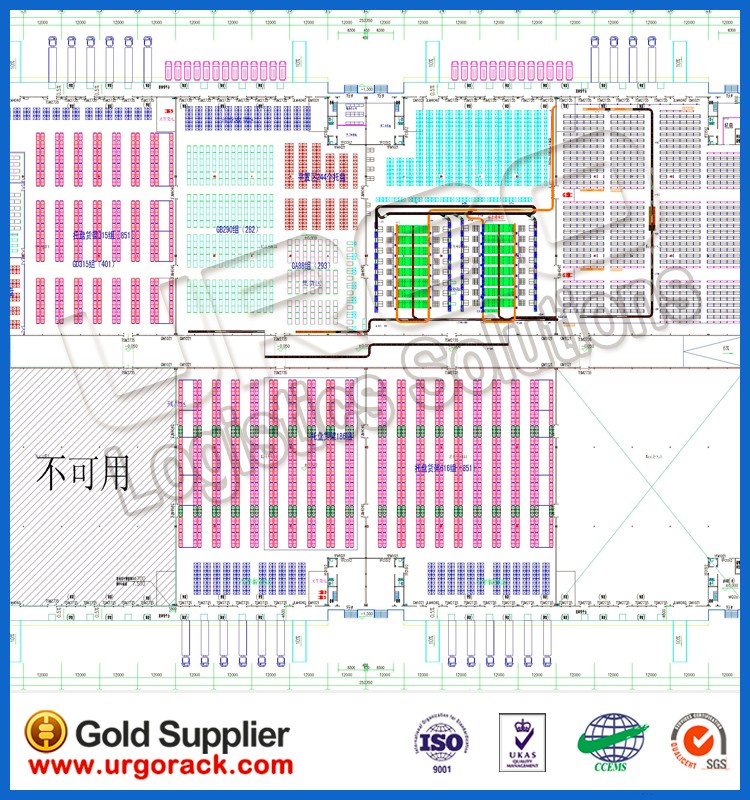

Storage Plan Design & Services
URGO has a professional warehousing logistics storage system design team, capable of optimizing your existing storage scheme. Cooperating with URGO meets all your design needs and provides:
- Experienced professional staff providing technical guidance, accurate pricing, and comprehensive service.
- Production cycle and storage risk reduced to a minimum for efficient return on investment.
- A full range of logistics warehouse racks providing maximum economic benefit.
Our Objective: To achieve "the most competitive logistics solutions, to provide the best quality service".
Installation Support
URGO has a professional racking installation team that can install or relocate storage rackings or related logistics equipment according to individual customer needs.
Service Commitment
Integrity, pragmatic innovation, and high quality. With over 15 years of industry experience, URGO guarantees superior product architecture supported by an industry-leading 10-year warranty for normal use.
Featured Products
Frequently Asked Questions
1. What makes URGO different from other suppliers?
- Excellent Service: Quick, hassle-free quotes with prices provided within 12 hours.
- Quick Manufacturing Time: Selective pallet racking orders produced within 15 days, strictly observing delivery contracts.
- Special Export Packaging: Beams protected with plastic clips to prevent surface abrasion, and upright frames thoroughly wrapped in clear protective film.
- 10-Year Warranty: High design and manufacturing standards allow us to offer an industry-leading 10-year warranty for normal operation.
2. What are the terms of payment?
- Standard term: 30% T/T down payment and the balance settled before shipment.
- 100% irrevocable LC at sight.
3. May I know the real-time status of my order?
Yes. Production photos and progress details will be shared with you at different stages of the manufacturing cycle, ensuring you receive timely and transparent project updates.
4. How can I get a quick quotation for my pallet racking project?
To receive an immediate quote, please provide the following project requirements:
- Required pallet racking dimensions: Height × Depth × Length
- Number of shelf beam levels
- Load weight capacity per level
- Total racking quantity
5. Do you provide installation and relocation services?
Yes. URGO provides a specialized racking installation team capable of assembling, adjusting, or relocating heavy-duty storage racks and related warehouse logistics equipment according to customer requirements.
6. What warranty and quality guarantees apply to URGO racks?
Backed by over 15 years of industry experience and strict raw material selection from premier domestic steel mills, URGO products include a comprehensive 10-year manufacturer warranty under normal operating conditions.
