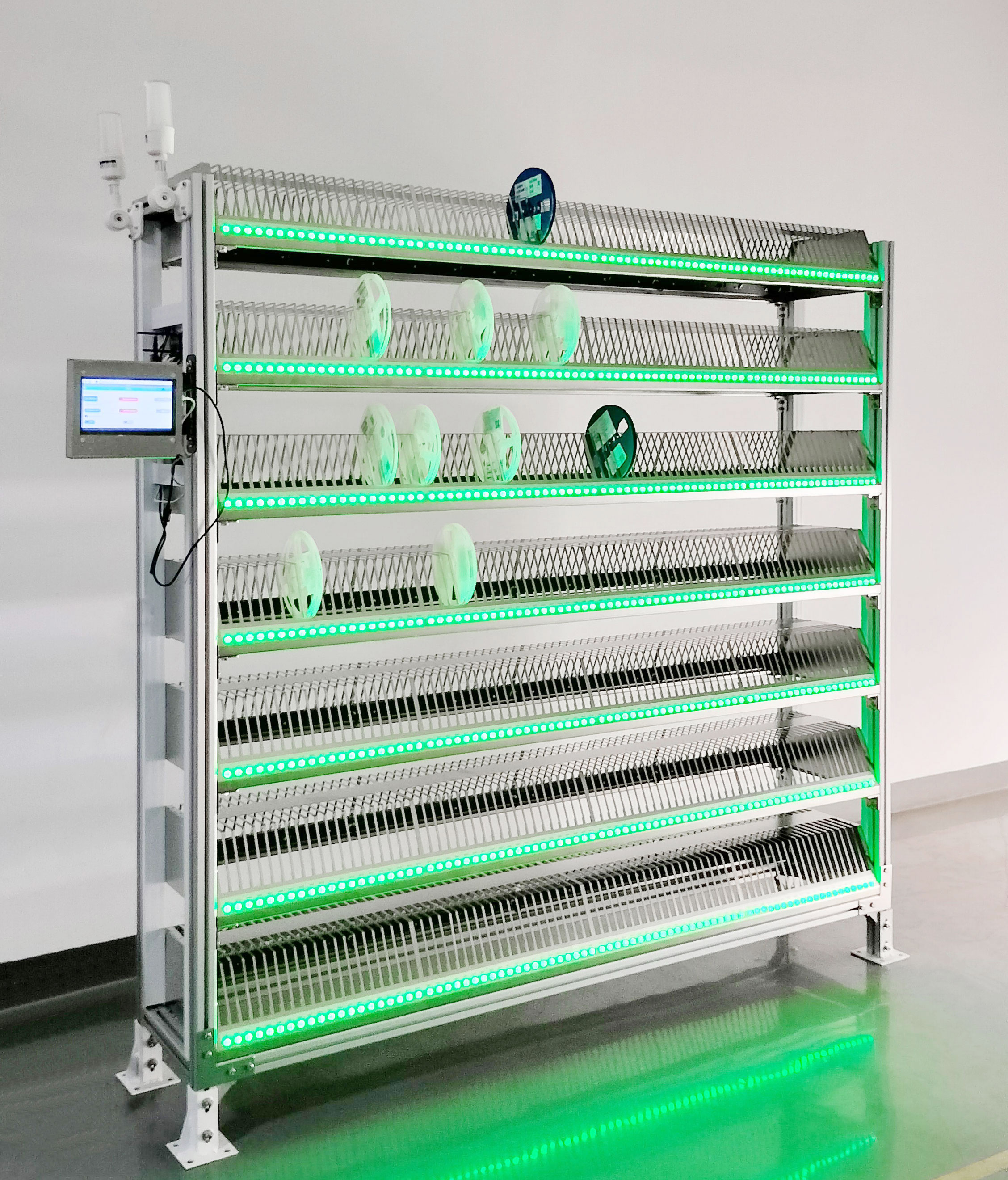

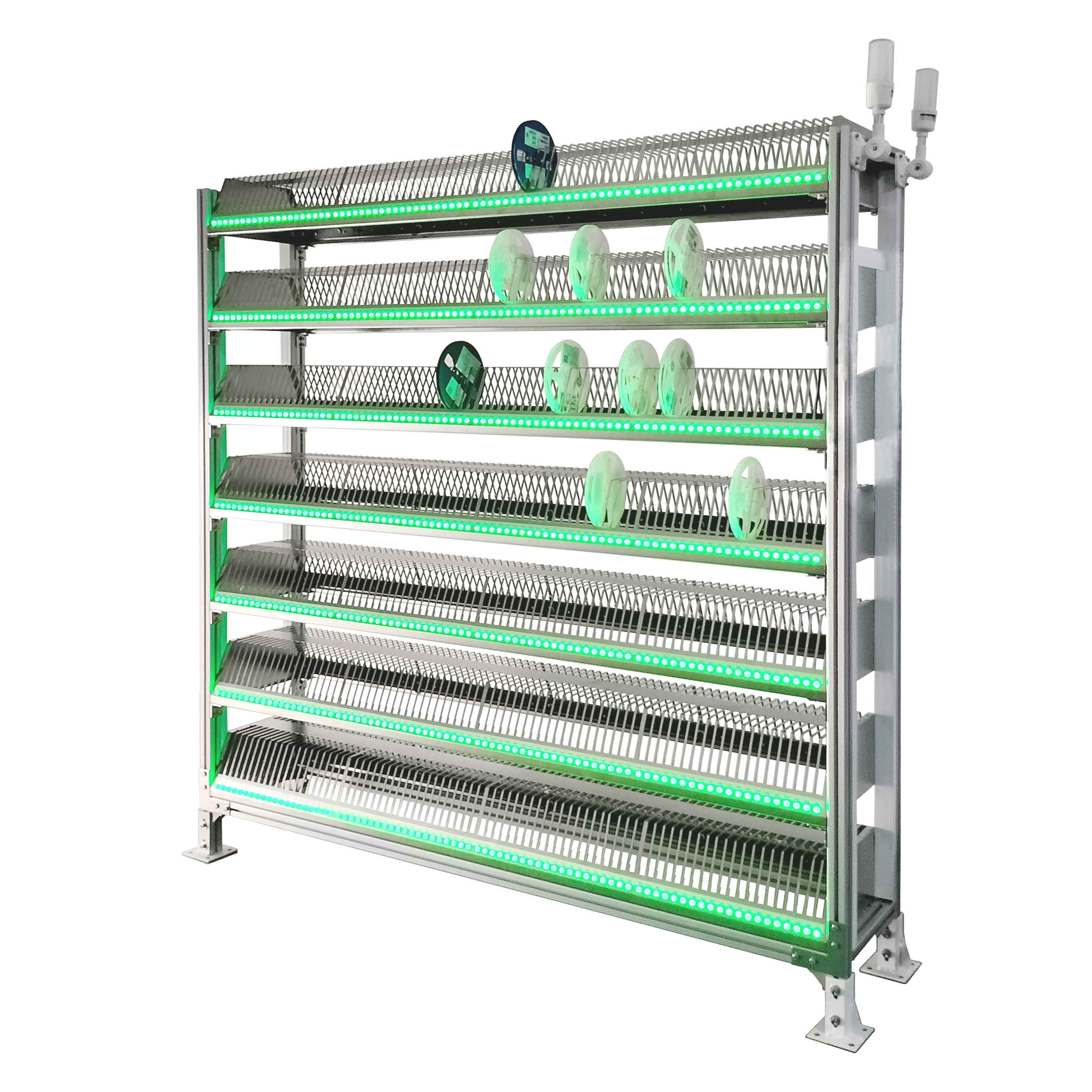

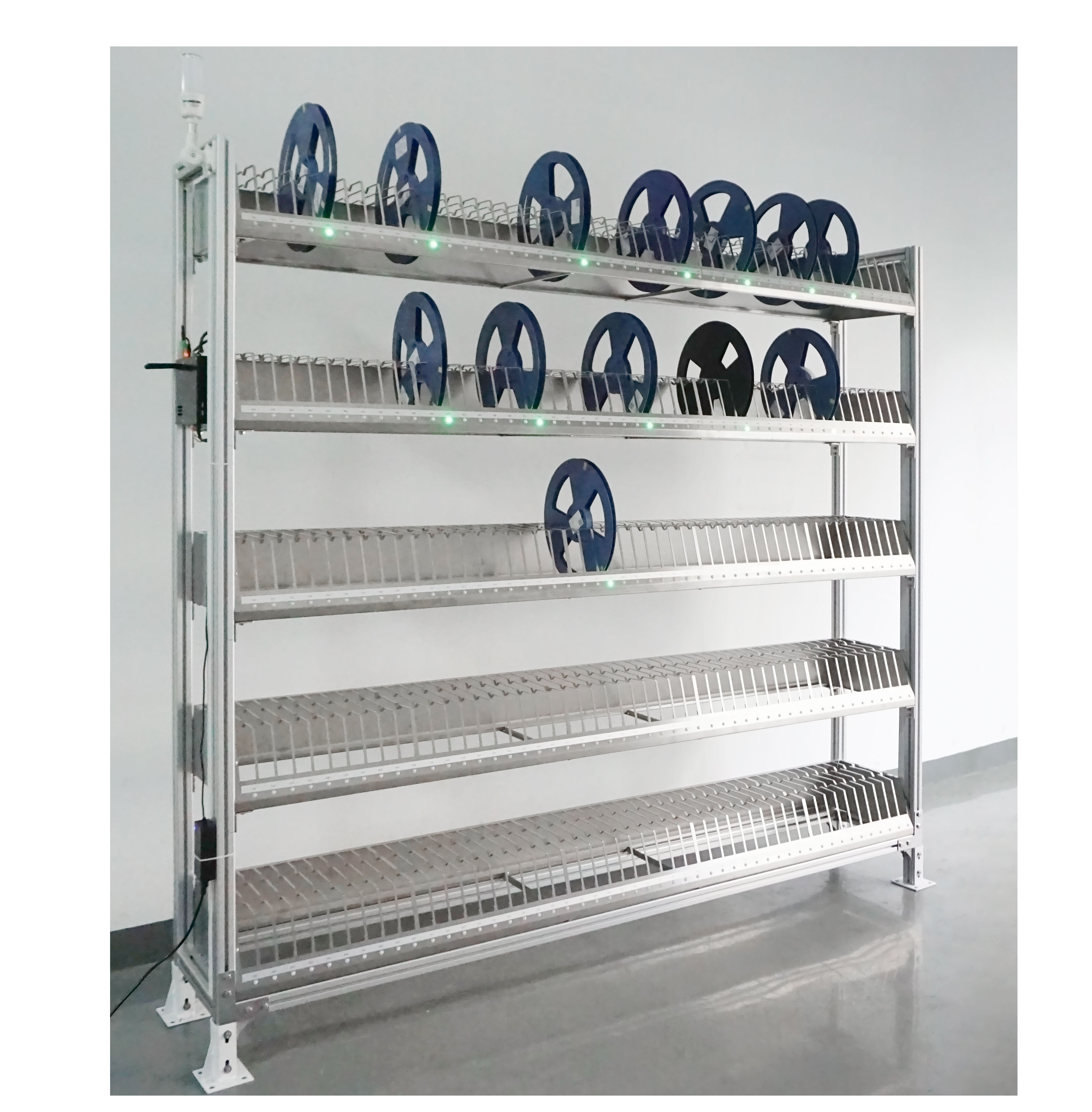

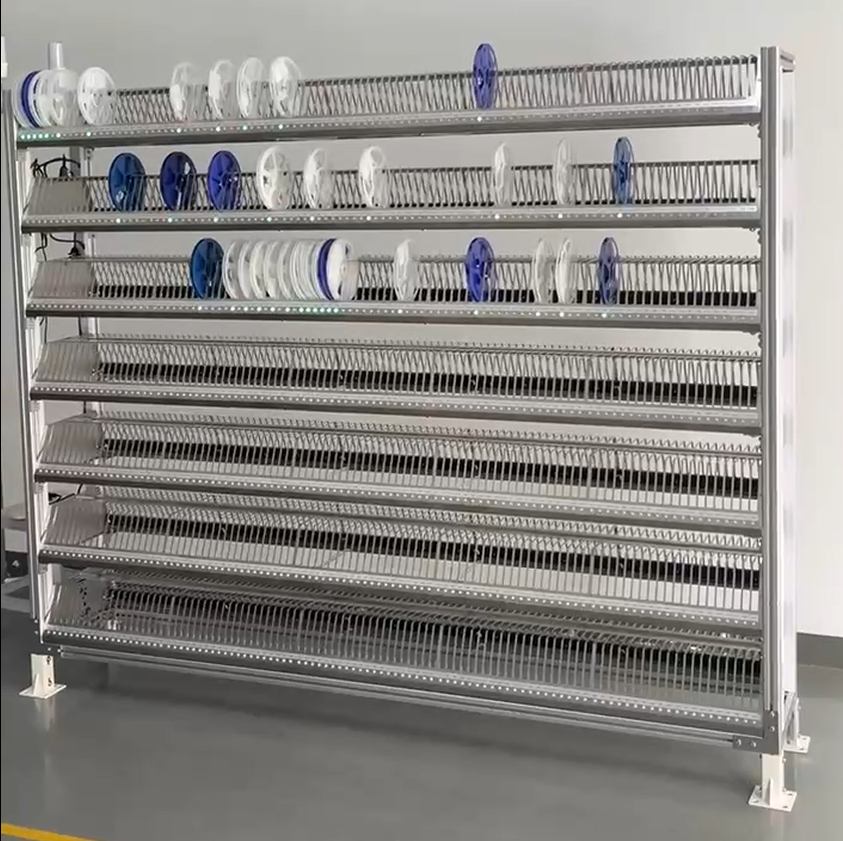

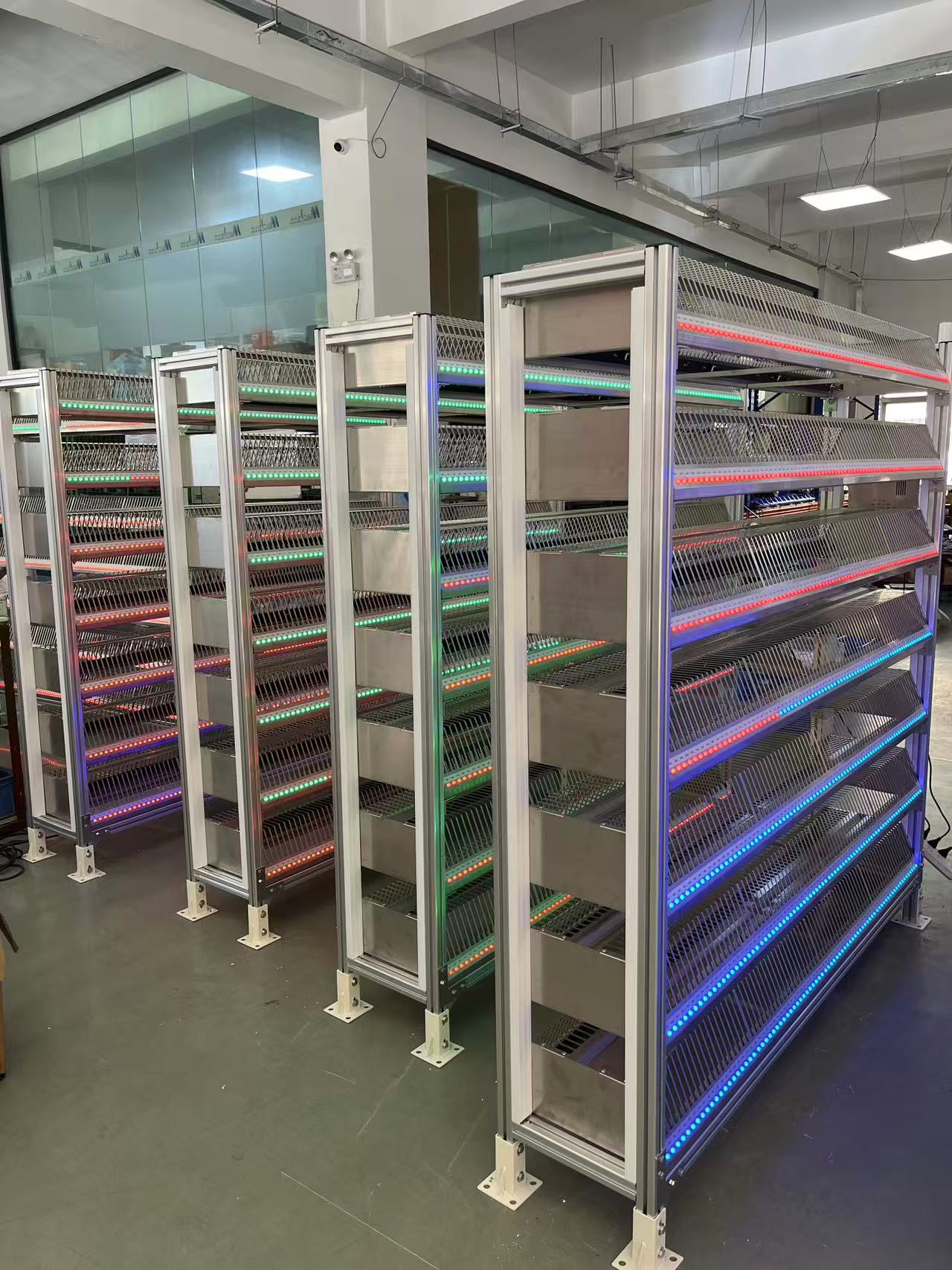

NEW Macinte IRS-20R-1400-7D-16 Stainless Steel 7-Layer SMT Reel Intelligent Selective Pallet Rack ESd Protection for Warehouse
Product Description
Product Overview

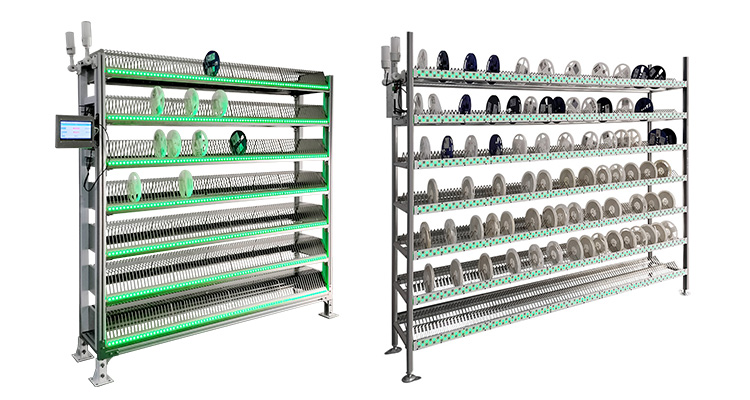

Macinte Intelligent Electronic Material Rack
The intelligent electronic material rack is a high volume ratio shelf used to store SMT chips. The material are placed in the corresponding positions according the LED indicator on the shelf, which is bound by the corresponding relationship of the QR code of the material number/location. Docking to the enterprise ERP/MES system, automatically realizes the quickly operation of sending and receiving materials according to the light indication.
Application Value
Stock In Workflow
1. Click / Scan Order Number to Start
Choose the stock in mode and click/scan the order / scan order code to start.

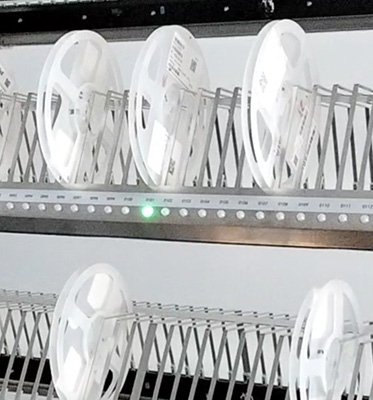

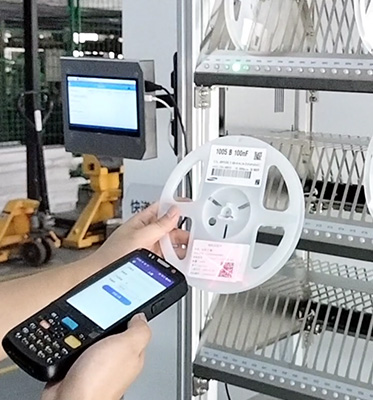

2. Scan Reel Code
Scan the reel code and put it in any empty location, infrared.
3. Stock In
Scan all reels in turn and click complete after all reels are stored.
Stock Out Workflow

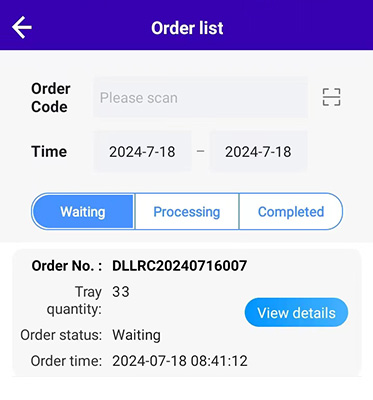

1. Enter Stock Out Mode & Select Order
Enter the stock out mode and select the order.

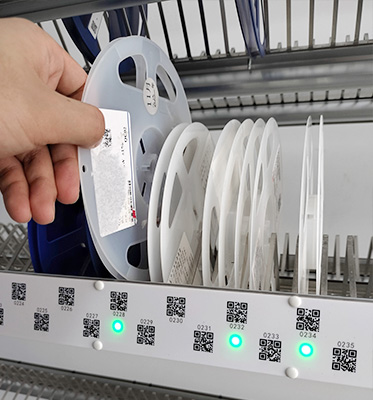

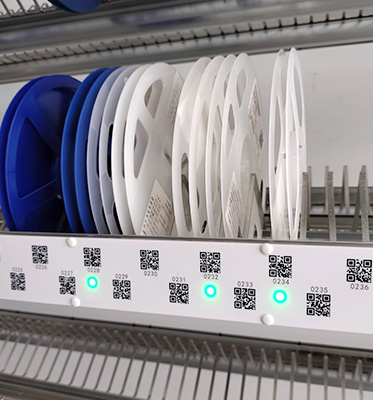

2. Light On and Off
Location lights to all reels in the order will be on, after take the reel and scan reel code its light will off.
3. Stock Out
Take other reels in turn. After all the reels are stock outed, click complete.

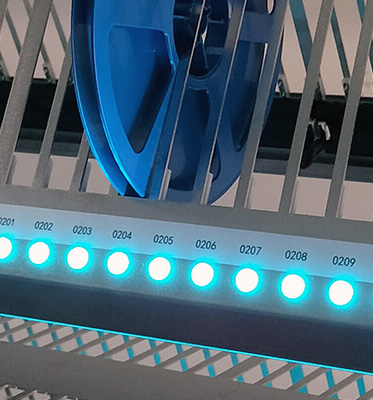

Location Infrared Sensing
Suitable for Different Environment
Adjustable sensitivity, more accurate control.
Efficiency
High real-time, strong error detection ability, data damage can be retransmitted.
Location Mark and Lock
Real-time control, automatic marking and locking the location.
Data Processing
Real-time sensor data and digital filter processing.
RGB Light Control and Voice Prompt

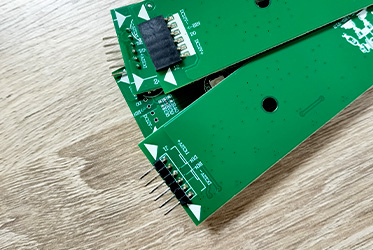

Easy to Maintain
Each LED module is independent and pluggable.

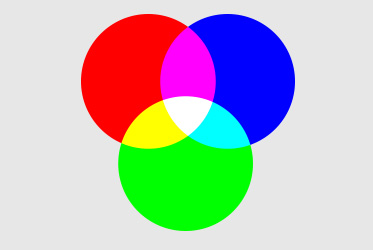

Color Management
Free to customize 128 colors (normal 7 colors).

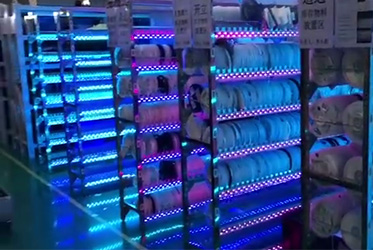

Light Programming
Steady on, dynamic fast blinking, slow blinking gradient color, etc.

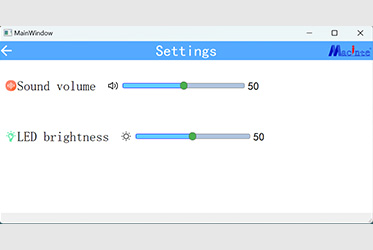

Brightness / Volume Adjustment
LED brightness / sound can be adjusted.

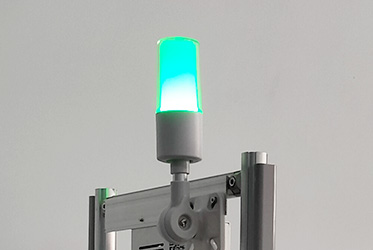

Top Light / Tower Light
Quickly locate to the rack.

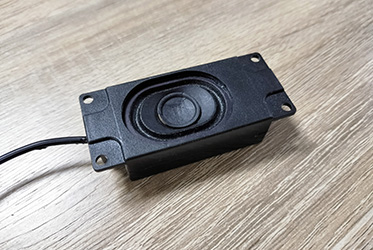

Voice Prompt
Supports text to speech, Intelligent voice playback.
Products Description

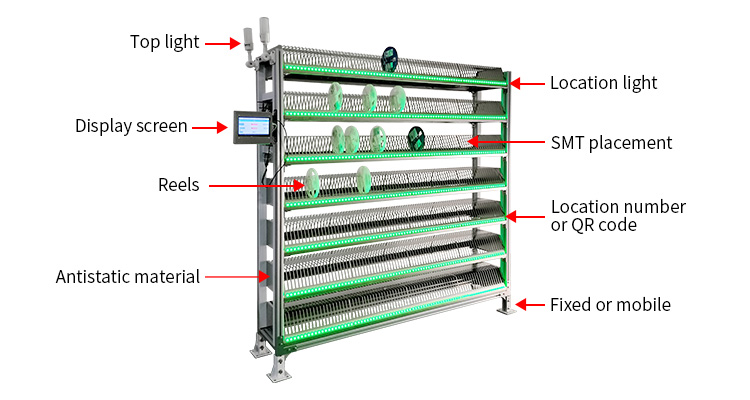

Intelligent Electronic Rack Description
LED lights are installed on each shelf and each storage location. The use of light, light color, light flashing to complete the material shelf, material preparation, low warning, material overdue warning, material inventory and a series of operations. Improve the work efficiency of the warehouse management personnel, each step of the operation is controlled to prevent error, reduce the manufacturing cost of the enterprise, improve the management level of the enterprise.
Location Infrared Sensing Type Rack
| Parameter | IRS-20R | IRS-16R | IRSM-12R | IRSM-8R |
|---|---|---|---|---|
| Applicable | 16mm (for 7'' reels) | 16mm (for 7'' reels) | 16mm (for 7'' reels) / 35mm (for 13'' reels) | 16mm (for 7'' reels) / 35mm (for 13'' reels) |
| Surface Number | double-sided | double-sided | 3D + 1S | 3D + 1S |
| Layer Number | 7 | 7 | 4 | 4 |
| Plate Number | 1400 pcs | 1120 pcs | 360 + 30 pcs | 240 + 30 pcs |
| Location Sensor | Yes | Yes | Yes | Yes |
| Touch Screen | Optional | Optional | Optional | Optional |
| Voice Prompt | Yes | Yes | Yes | Yes |
| Dimension | 2230*390*1850 mm | 1800*390*1850 mm | 1380*390*1250 mm | 950*390*1250 mm |
Location Code Scan Type Rack
| Parameter | IRS-20R | IRS-16R | IRSM-12R | IRSM-8R |
|---|---|---|---|---|
| Applicable | 16mm (for 7'' reels) | 16mm (for 7'' reels) | 16mm (for 7'' reels) / 35mm (for 13'' reels) | 16mm (for 7'' reels) / 35mm (for 13'' reels) |
| Surface Number | double-sided | double-sided | 3D + 1S | 3D + 1S |
| Layer Number | 7 | 7 | 4 | 4 |
| Plate Number | 1400 pcs | 1120 pcs | 360 + 30 pcs | 240 + 30 pcs |
| Location Sensor | No | No | No | No |
| Touch Screen | Optional | Optional | Optional | Optional |
| Voice Prompt | Yes | Yes | Yes | Yes |
| Dimension | 2090*390*1850 mm | 1690*390*1850 mm | 1290*390*1250 mm | 890*390*1250 mm |
Hardware Control & Terminal Equipment

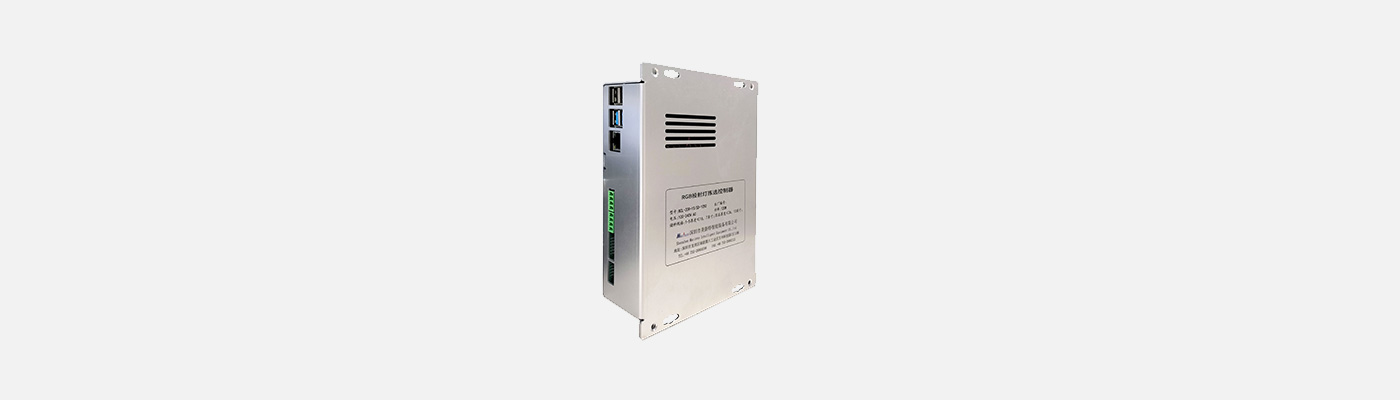

CAN Bus Controller
- System support: Linux
- Communication protocol: Support HTTP, TCP/IP
- Specifications configuration: 4 cores, 2.4/5G wireless network card
- Interface: Gigabit Ethernet, USB, HDMI, Bluetooth
- Power supply: Micro USB or USB-C power interface

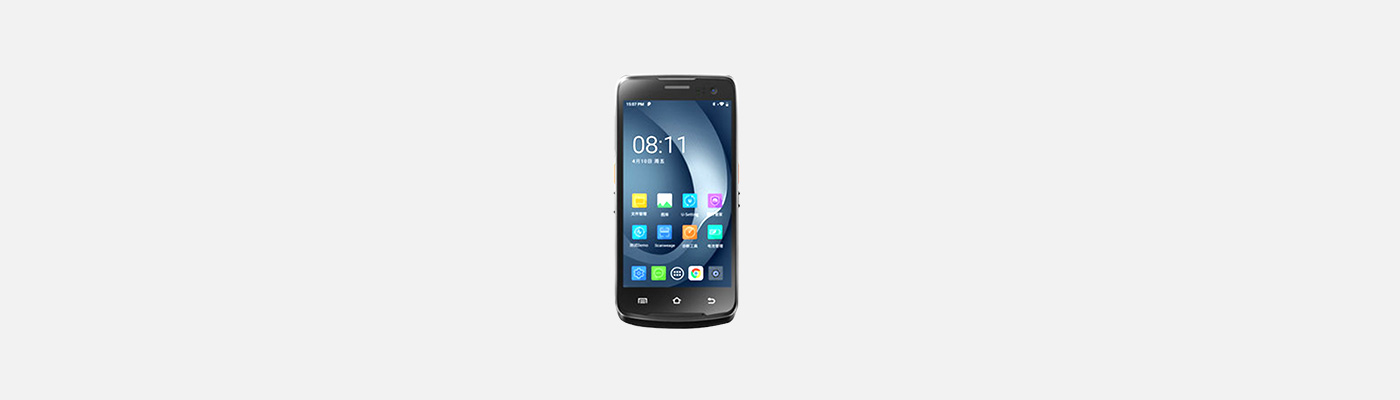

Android Wireless PDA
- Pre-installed picking software: support WMS\MES, etc
- Android system (support WiFi, 4G network)
- Support code reading photo, 5.98-inch touch screen
- 4G memory + 64G storage

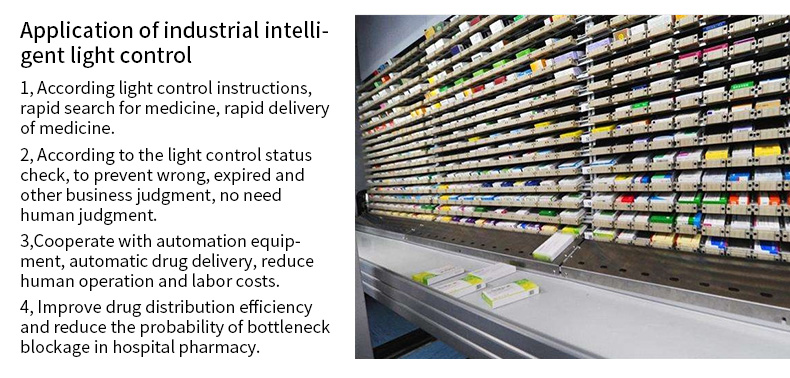

Application Cases

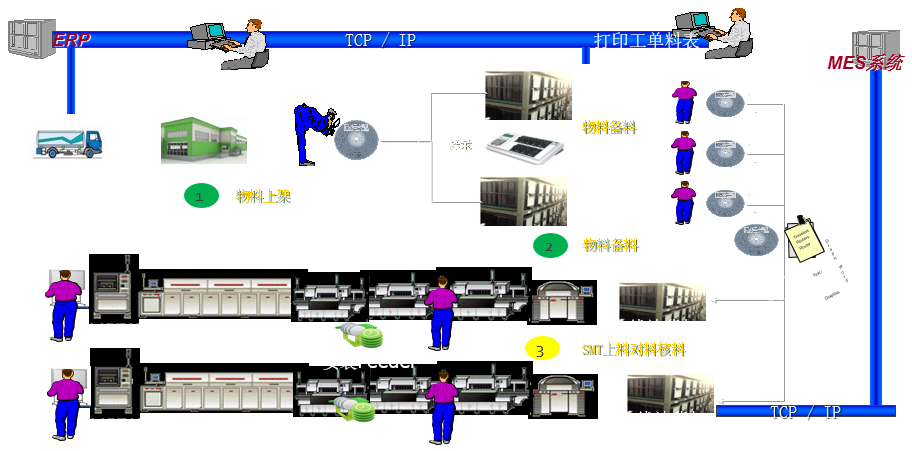

SMT production line material feeding and matching application in industrial intelligent light control
Through the industrial intelligent light control system, the LED light is installed on the cover of the SMT mounter, which can visually carry out complex operations such as loading to material, nuclear material, feeding, unloading, etc., which can effectively prevent the dull and avoid the wrong material feeding.

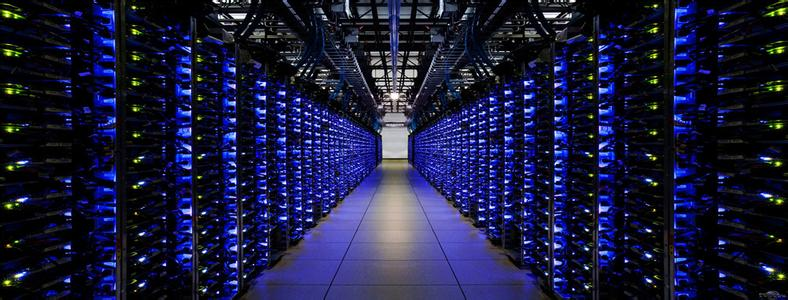

Large computer room management application in industrial intelligent light control
1. According light control instructions, quickly locate the unit, chassis, switches, and even network cable connectors.
2. According to the light control status check, check the faulty equipment to avoid repeated checks.
3. Cooperate with the computer room management system to monitor the status of the computer room in real time.
4. Improve daily inspection efficiency, reduce labor costs.
Certifications
Company Profile
Why Choose Us
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Frequently Asked Questions (FAQ)
What is the primary function of the Intelligent Electronic Material Rack?
It is a high-volume ratio storage system designed for SMT chip reels. Using LED indicators, location sensors, and QR code binding connected to enterprise ERP/MES systems, it directs and automates fast, error-free stock-in and stock-out operations.
What is the difference between the Location Infrared Sensing Type and Location Code Scan Type racks?
The Location Infrared Sensing Type features built-in automated location sensors with auto-detection, slot locking, and real-time filtering, whereas the Location Code Scan Type relies on manual barcode scanning at each slot location without hardware infrared position sensors.
Can the LED light guidance and voice alerts be customized?
Yes. The system supports up to 128 customizable RGB colors, multiple lighting modes (steady on, fast/slow blinking, color gradients), adjustable brightness and volume, top/tower positioning lights, and intelligent text-to-speech voice broadcasts.
What reel sizes and storage capacities are supported?
The racks accommodate standard 16mm (for 7-inch reels) and 35mm (for 13-inch reels). Storage capacities range from 240+30 pcs up to 1400 pcs per rack depending on the model (IRS-20R, IRS-16R, IRSM-12R, or IRSM-8R).
How does the rack connect and integrate with our existing factory systems?
It connects via a 4-core Linux CAN bus controller supporting HTTP and TCP/IP over Gigabit Ethernet and 2.4G/5G Wi-Fi, and operates with an Android wireless PDA pre-installed with picking software to seamlessly dock with ERP, WMS, and MES systems.
Where else can this industrial intelligent light control technology be applied?
Beyond SMT warehouse racks, it is applied directly to SMT mounters to guide loading/unloading and avoid feeding errors, as well as in large server/computer room management to rapidly pinpoint chassis, switches, and patch cords for maintenance.
