Engineered to strict European (EN 15512, FEM 10.2.02) and Australian (AS 4084) structural standards. Every system incorporates certified high-tensile structural steel (Q235B / Q355B) and electrostatic epoxy-polyester anti-corrosive powder finishes.

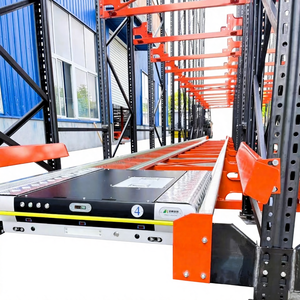

Autonomous cart lane storage delivering unmatched volumetric cube utilization. Eliminates forklift lane travel to reduce beam strikes while providing automated FIFO/LIFO turnover.
Continuous lane architecture engineered specifically for cold-chain, beverage, and bulk single-SKU facilities. Reinforced cantilever arms provide 3,000 kg capacity per level.
The global benchmark for 100% selective SKU accessibility. Precision-profiled upright frames (75mm/50mm pitch) with 4-hook and 5-hook connector claws for zero-play joint rigidity.

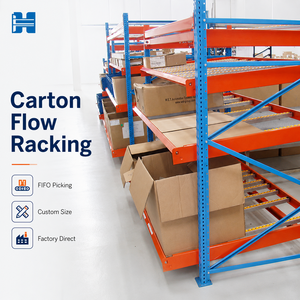

Self-replenishing dynamic storage powered by gravity incline tracks and centrifugal brake rollers. Ideal for high-turnover fulfillment, pharmaceutical lots, and FMCG assembly.
Versatile modular post and stacking pallet racks engineered for flexible staging, temporary seasonal surges, and high-load industrial forging and machinery parts containment.

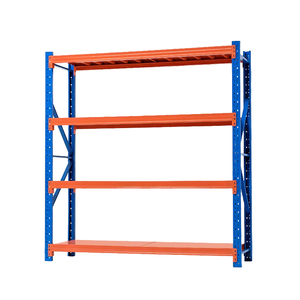

Interlocking butterfly-hole design allows rapid tool-free assembly. Perfect for manual order-picking, archive storage, e-commerce bins, and automotive spare parts departments.

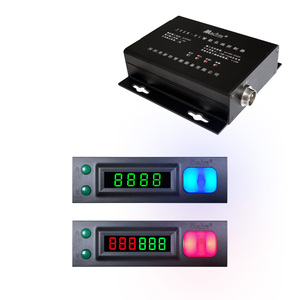

High-throughput sorting racks integrated with digital LED light guidance displays. Slash pick error rates below 0.01% while boosting fulfillment velocity by up to 300%.

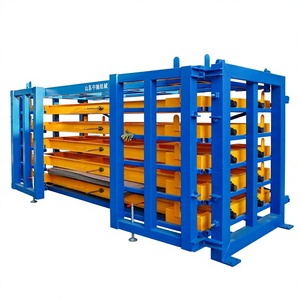

Engineered for stamping dies, steel plates, injection molds, and motor armatures. Roll-out drawer cassettes allow 100% overhead crane hoisting access with safety mechanical interlocks.
In structural storage engineering, safety margins are non-negotiable. Review the technical foundations that separate structural failures from long-term seismic-certified warehouse racking integrity.
Racking load tables cannot rely on nominal sheet thickness alone. Guangzhou Heda Shelves utilizes certified mill-tested Q235B and Q355B (equivalent to European S355JR / ASTM A572 Grade 50) continuous cold-rolled strip coil. Our rolling process preserves cold-work hardening across profile bends, boosting the yield strength of upright sections by up to 15% along critical stress corners.
Under cyclic warehouse operations, dynamic fork impacts and eccentric pallet placements create complex second-order bending moments (P-Delta effect). Heda engineers compute all structural capacities using advanced 3D FEA (Finite Element Analysis) solvers, verifying upright buckling resistance, connector rotational stiffness, and beam deflection under maximum design working load (DWL).
| Compliance Standard | Governing Region | Key Safety Factor & Criteria | Seismic Qualification |
|---|---|---|---|
| EN 15512:2020 | European Union (CE) | Partial load factor γM = 1.4; Stub-column compression & joint loosening tests | EN 16681 Certified |
| AS 4084:2023 | Australia & NZ | Limit State Design; mandatory upright impact allowance (min. 50kN upright baseline) | NZS 1170.5 Ready |
| ANSI MH16.1 (RMI) | North America | Allowable Stress Design (ASD) & LRFD; vertical load factor 1.69 | FEMA 460 / NEHRP |
| FEM 10.2.02 / 10.2.07 | International Bulk | Beam deflection max L/200; connector rotational stiffness index testing | Eurocode 8 Verified |
| ISO 9001:2015 | Global Factory QC | Full batch traceability from hot-rolled coil heat number to final powder film cure | Audited Yearly |
Industrial real estate lease inflation, warehouse labor scarcity, and heightened occupational health safety audits are reshaping how international enterprise buyers procure warehouse racking infrastructure.
Manual drive-in systems are rapidly giving way to 4-way and 2-way pallet radio shuttle technology. Procurement directors choose shuttle lanes to eliminate forklift collisions inside rack bays, decreasing lifetime maintenance overhead by over 70% while improving pallet handling throughput per hour.
Global insurers and municipal certifiers now reject generic racking catalogs. Procurement contracts require site-specific structural calcs incorporating spectral response acceleration (Ss, S1), soil classes A–E, and local building code certifications (such as AS 4084 / NZS 1170.5 in Oceania or IBC / Eurocode 8 in the Americas and Europe).
Global cold-chain expansions in pharmaceutical and food storage have driven surging demand for specialized sub-zero steel alloys. Conventional carbon steel risks brittle fracture below -15°C. Procurement teams prioritize high-impact Charpy V-notch tested steel profiles and thermoset powder chemistries.
True E-E-A-T factory capability is measured on the production floor. Our 30,000 m² Guangzhou manufacturing complex houses 16 continuous automated roll-forming lines, computerized plasma cutters, robotic beam welding cells, and automated pre-treatment curing tunnels.
18 to 22 pass cold-roll forming stations progressively shape heavy steel coils into 12-fold omega columns with zero cross-sectional residual stress.
High-speed hydraulic CNC punches maintain a tight ±0.1mm tolerance on pitch intervals (50mm, 75mm, 76.2mm) ensuring effortless field beam height adjustment.
Multi-axis Panasonic robotic arms weld box beam ends to forged connector claws under argon-CO2 shielding gas, producing flawless deep-penetration weld seams.
A 7-stage immersion process including alkaline degreasing, ultrasonic acid pickling, silane conversion, and double DI water rinses guarantees rust immunity.
Our automated Wagner powder coating booth employs reciprocating spray guns that apply high-grade polyester and epoxy powders electrostatically at 80–100 kV. Baked at 200°C for 30 minutes, the cured film reaches 60–90 μm thickness with superior scratch resistance (pencil hardness ≥2H) and adhesion (cross-cut test Grade 0 under ISO 2409).
For coastal maritime regions or chemical warehouses exposed to corrosive fumes, Heda offers Hot-Dip Galvanizing (HDG) to ISO 1461, producing a metallurgical zinc-iron alloy barrier exceeding 85 μm that lasts decades outdoors.
International ocean freight demands specialized packing. All timber components are heat-treated and certified to ISPM-15 standards to pass quarantine inspections by Australia's DAFF, New Zealand's MPI, the US CBP, and European customs without delays.
Upright frames and beams are nested on custom steel channel stillages lined with heavy bubble wrap, edge cardboard protectors, and steel banding. This eliminates handling transit scratches and enables rapid forklift destuffing from standard 40ft High Cube containers.
Founded in 2001, Guangzhou Heda Shelves has grown from an industrial racking workshop into a premier intralogistics manufacturer delivering factory-direct value to importers, racking distributors, EPC contractors, and global brands.
With over 30,000 m² of plant space and 300+ technical employees, our throughput capacity guarantees volume scalability and dependable delivery timelines for 500-pallet warehouses and 80,000-pallet mega-DCs alike.
We provide full transparency. Verify our international compliance credentials directly with accredited third-party registrars before submitting your purchase order:
Eliminate procurement guesswork. Send your building floor plan, and our senior structural engineers will return a complete layout design within 24–48 hours, fully optimized for forklift turning radiuses, fire suppression, and maximum cubic capacity.
Clear, engineering-backed answers addressing structural calculations, international certifications, customs clearance, and layout design.
Provide your warehouse dimensions, clear height, pallet weights, and forklift specifications. Our certified structural engineers will generate an optimized 3D layout, pallet capacity analysis, and a comprehensive factory-direct quotation within 24 hours.
