Featured Industrial Warehouse Storage Systems
Engineered to optimize volumetric cube efficiency, our factory-direct rack systems withstand dynamic seismic stresses and heavy pallet loads across commercial 3PL, manufacturing, and distribution centers.
Adjustable Steel Warehouse Storage Shelving Rack Multi Layer Stacking Shelf
High Capacity 3-Layer Heavy Duty Adjustable Steel Garage Storage Shelving Rack
Warehouse Heavy Duty Cantilever Racking for Timber & Steel Pipe Storage
Industrial Drive-In & Drive-Through Racking System for High-Density Cold Stores

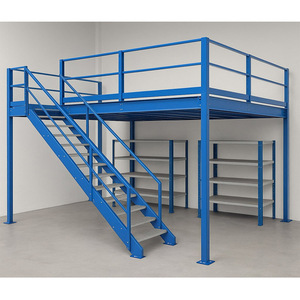

Industrial Multi-Level Mezzanine Platform Corrosion-Protected Steel Floor

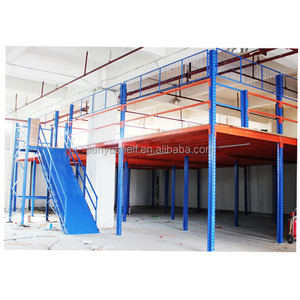

Two-Level Prefabricated Warehouse Mezzanine Heavy Duty Shelving System

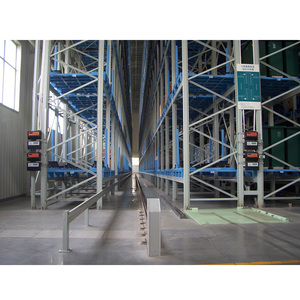

Full Space Utilization Automated Warehouse AS/RS High-Bay Racking System
Heavy Load Cold Rolled Steel Narrow Aisle (VNA) Warehouse Storage Racking
Engineering Structural Reliability in High-Bay Warehouse Racking
Modern warehouse logistics requires racking infrastructure capable of enduring relentless duty cycles, seismic acceleration forces, and localized impact stresses. Sourcing directly from an established Chinese manufacturer provides significant capital savings only when the underlying cold-formed structural steel meets precise metallurgical, mechanical, and safety criteria.
At Guangzhou HEDA Shelves Co., Ltd., upright columns and horizontal load beams are roll-formed using premium Q235B and high-tensile Q355B structural steel coils sourced directly from top-tier state-owned mills (Baosteel and Shougang). Our cold roll-forming process introduces up to 13 continuous forming stages, creating closed omega and multi-flange profiles that maximize the section modulus ($Z_x$) while mitigating global, local, and distortional buckling under asymmetric operational loads.
Finite Element Method (FEM) Verification: All custom beam spans and multi-tier mezzanines undergo 3D dynamic finite element analysis. Structural stress contours verify that deflections stay well within the conservative $L/200$ (Australian AS 4084) and $L/250$ (European FEM/EN 15512) standards under full working design loads.
Connection dynamics represent the most critical failure mode in conventional racking. HEDA utilizes robotic multi-point cold punching with CNC-machined dies, establishing a micro-tolerance 50mm and 75mm teardrop/slotted pitch. Integrated 4-claw and 5-claw cast-steel beam connectors incorporate automatic safety spring locks, preventing accidental disengagement caused by erratic forklift operator uplift.
- Primary Steel MetallurgyQ235B / Q355B High-Yield Cold Rolled
- Yield Strength ($f_y$)235 MPa – 355 MPa Guaranteed
- Tensile Strength ($f_u$)370 MPa – 510 MPa
- Standard International ComplianceAS 4084-2023, FEM 10.2.02, ANSI MH16.1
- Seismic Structural ModelingNZS 1170.5, UBC Seismic Zone 4 Ready
- Surface Pre-Treatment7-Stage Degreasing, Pickling & Phosphating
- Electrostatic FinishThermoset Polyester Powder (60–90 µm)
- Safety Factor Rating1.5 to 1.65 Structural Reserve
Why Tier-1 Importers Source from HEDA Shelves
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates an integrated 30,000 m² smart fabrication base. We bridge the gap between low factory unit economics and high-specification Western safety standards.
International Compliance Engineering
We provide complete design calculation books referencing Australia AS 4084, European FEM 10.2.02, and US RMI specifications. Every layout includes sectional properties, upright moment curves, and base plate shear simulations ready for certified local PE sign-off.
Seismic & Harsh Environment Upgrades
From high-seismic fault lines in New Zealand (NZS 1170.5) to coastal humidity in Queensland and the Pacific, we configure heavy anchor bases, K-bracing, and hot-dip galvanizing (ISO 1461) with zinc layer coatings exceeding 85 µm for C4/C5 marine durability.
Full Turnkey OEM / Private Label Services
We serve regional racking distributors and system integrators with confidential private labeling, bespoke connector patterns (Speedlock, Dexion, Teardrop, or SSI compatible), custom RAL electrostatic finishes, and customized printed packaging.
Biosecurity-Compliant Export Packing
Avoid costly quarantine detentions at ports such as Sydney, Melbourne, Auckland, or Long Beach. All shipments utilize non-wood steel stillages or strictly certified ISPM-15 heat-treated dunnage, complete with DAFF and MPI customs clearance documentation.
24-Hour 3D CAD & BIM Engineering Support
Supply your architectural DWG or PDF floor plan. Our 300+ technical engineer desk analyzes column grid interference, fire sprinkler head clearance, flue space margins, and forklift turning radiuses, delivering complete 3D layout visuals within 24 hours.
Traceable Mill Test Reports & Third-Party QC
We provide raw steel chemical composition certificates (MTRs), weld penetration ultrasonic reports, and powder adhesion cross-hatch results for every batch. We openly welcome third-party on-site audits (SGS, TÜV Rheinland, BV, Intertek) prior to container loading.
Racking System Selection & TCO Evaluation Matrix
Balancing initial CAPEX against long-term floor utilization ($/m²) and throughput speed. Use our engineering matrix to determine the optimal system architecture for your supply chain requirements.
| Storage System Type | Space Utilization | Pallet Selectivity | Forklift Compatibility | Relative CAPEX / Position | Ideal Operational Profile |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | Standard Counterbalance / Reach | High SKU variety, fast pick cycles, 3PL logistics | ||
| Very Narrow Aisle (VNA) | 65% – 75% | Turret Truck / Man-Up Aisle Guide | High ceiling heights (>10m), premium land value | ||
| Drive-In / Drive-Through | 75% – 85% | Counterbalance / Narrow Reach | Bulk homogeneous SKUs, refrigerated cool rooms | ||
| Radio Shuttle Racking | 80% – 90% | Standard Reach / Forklift Fleet | High throughput, cold storage, reduced rack impacts | ||
| Rack-Supported Mezzanine | 150% – 250% (Multi-Tier) | Trolleys, Pallet Jacks, Vertical Lifts | E-commerce fulfillment, auto parts, carton picking | ||
| Heavy Duty Cantilever | 60% – 70% | Side Loader / Four-Directional Truck | Lumber, steel tubing, PVC pipe, extruded profiles | ||
| Automated AS/RS High-Bay | 90% – 98% | Automated Stacker Crane / Shuttle | 24/7 automated operations, extreme cube utilization |
Future Procurement Trends in Warehouse Storage Systems
Industrial supply chain architecture is shifting from passive static steel structures toward dynamic, digitized, and automation-ready modular racking ecosystems.
Hybrid AMR & Shuttle-Ready Engineering
Warehouses are moving away from manual reach-truck operations toward Autonomous Mobile Robots (AMRs) and 4-way pallet shuttles. Modern racking designs now incorporate high-precision guide rails, tighter fabrication tolerances (±1.0mm per 10m upright), and reinforced base anchors to support continuous autonomous navigation.
Green Steel & Eco-Certified Coatings
Global enterprise tenders now require verified Environmental Product Declarations (EPDs). HEDA is transitioning toward certified low-carbon electric arc furnace (EAF) steel and zero-VOC heavy-metal-free thermosetting powder coatings that comply with strict RoHS and European REACH environmental directives.
Sub-Zero Thermal & Dynamic Optimization
As cold-storage power costs rise, facilities must maximize density. Procurement is favoring deep-lane Radio Shuttle and Push-Back systems manufactured from low-temperature impact-resistant steel grades capable of withstanding brittle fracture down to -30°C without structural degradation.
IoT-Enabled Structural Deflection Monitoring
Smart warehouses are increasingly piloting intelligent rack protection systems. Fiber-optic sensors and wireless strain gauges integrated directly into critical upright columns monitor structural deflection, forklift impact shocks, and overloaded beam conditions in real time to prevent progressive collapses.
Frequently Asked Questions for Warehouse Racking Importers
Detailed engineering and logistical answers to support technical due diligence and cross-border procurement workflows.
Q: How does your factory certify compliance with Australia AS 4084 and New Zealand NZS 1170.5?
Our engineering department designs racking profiles with reference to AS 4084:2023 (Steel Storage Racking) criteria. We provide complete structural calculation packages—including section modulus, moment capacity, frame stability calculations, and anchor pull-out ratings—allowing local Australian or New Zealand chartered engineers (CPEng/RPEQ) to review and issue local structural certificates. For NZ projects, base plates, row spacers, and diagonal lattice bracing are increased based on site-specific seismic acceleration factors ($C_h(T)$).
Q: What is the difference between Q235B and Q355B steel in racking fabrication?
Q235B has a minimum yield point ($f_y$) of 235 MPa and is the standard industry benchmark for beam levels, secondary bracing, and medium-height upright frames up to 6 meters. Q355B offers a higher minimum yield point of 355 MPa (comparable to European S355 and ASTM A572 Grade 50). We specify Q355B for high-bay upright columns exceeding 8–15 meters, VNA systems, heavy-load mezzanine support columns, and cold-storage operations requiring superior yield strength and load margins without excessive dead weight.
Q: How do you prevent corrosion during ocean shipping and in high-humidity climates?
Prior to coating, steel components undergo an automated 7-stage chemical pre-treatment process: degreasing, water rinsing, acid pickling to eliminate mill scale, phosphating to create an anti-corrosive crystalline layer, and deionized water rinsing. We then apply an electrostatic thermoset polyester powder coating cured at 180°C–200°C (minimum dry film thickness of 60–80 µm). For outdoor lumber yards, coastal regions, and open-sided facilities, we supply full hot-dip galvanized components certified to ISO 1461 with average coating thicknesses exceeding 85 µm.
Q: How does HEDA prevent container shipping damage and simplify on-site unloading?
Racking components are nested, bundled with protective corrugated edging, strapped with heavy plastic-coated steel bands, and mounted onto custom steel shipping stillages or ISPM-15 certified heat-treated timber dunnage. Every bundle includes an English packing label matched to the project's CAD erection drawing. Uprights and beams are systematically balanced to ensure safe forklift side-unloading from 40-foot High Cube (40HQ) ocean containers without cargo shifting or handling damage during transit.
Q: Can your factory manufacture components compatible with our existing racking systems?
Yes. HEDA maintains tooling for all major international upright profiles and connector configurations. We can manufacture customized beam hooks, safety pins, and post hole patterns compatible with standard 50mm, 75mm, and 76.2mm pitch standards (including Dexion, Colby, SSI Schaefer, Stow, and American Teardrop configurations). We verify dimensions against customer physical samples or detailed technical drawings to ensure precise compatibility.
Q: What documentation is provided to clear customs and claim FTA preferential tariffs?
With every exported shipment, our logistics team issues a complete documentation suite: Commercial Invoice, Packing List with detailed piece counts and net/gross weights, Ocean Bill of Lading (B/L), and an official Certificate of Origin (such as Form A, Form E, or preferential certificates under ChAFTA for Australia and the China-NZ FTA). These documents ensure smooth customs clearance and allow qualified buyers to take advantage of preferential zero or reduced import tariff schedules.
Q: What parameters are required to receive a free 24-hour 3D layout and formal quote?
To prepare an accurate CAD and 3D layout, our engineering team requires: 1) Warehouse architectural floor plan showing column locations, clear building height under beams/sprinklers, access doors, and floor slab specifications; 2) Pallet specifications (width, depth, height including cargo overhang, and gross pallet weight); 3) Forklift model, mast collapsed height, maximum lift elevation, and manufacturer-recommended turning aisle radius; and 4) Any seismic zone ratings or localized climate requirements.
Q: What is your standard production lead time and ocean transit window?
For standard selective pallet racking and longspan shelving, factory production lead time is typically 15 to 25 calendar days for a 2–5 container order. Highly customized AS/RS high-bay projects, semi-automated radio shuttles, or multi-level mezzanines require approximately 30 to 45 days. Direct ocean shipping from South China ports (Nansha, Huangpu, Shenzhen) to major destinations takes roughly 12–18 days to Australia/New Zealand, 18–25 days to the US West Coast, and 28–35 days to European main ports.
Optimize Your Warehouse Capacity with Direct Mill Factory Engineering
Partner directly with Guangzhou HEDA Shelves Co., Ltd. Eliminate middleman distributor markups, secure certified high-yield structural steel, and receive free 3D CAD/BIM warehouse layout designs prepared by our senior engineering team within 24 hours.
- AS 4084 / FEM / RMI Standard Verification
- Direct Ex-Factory Container Pricing
- Traceable Mill Certificates & Load Testing
- Rapid 15–25 Day Production Window
